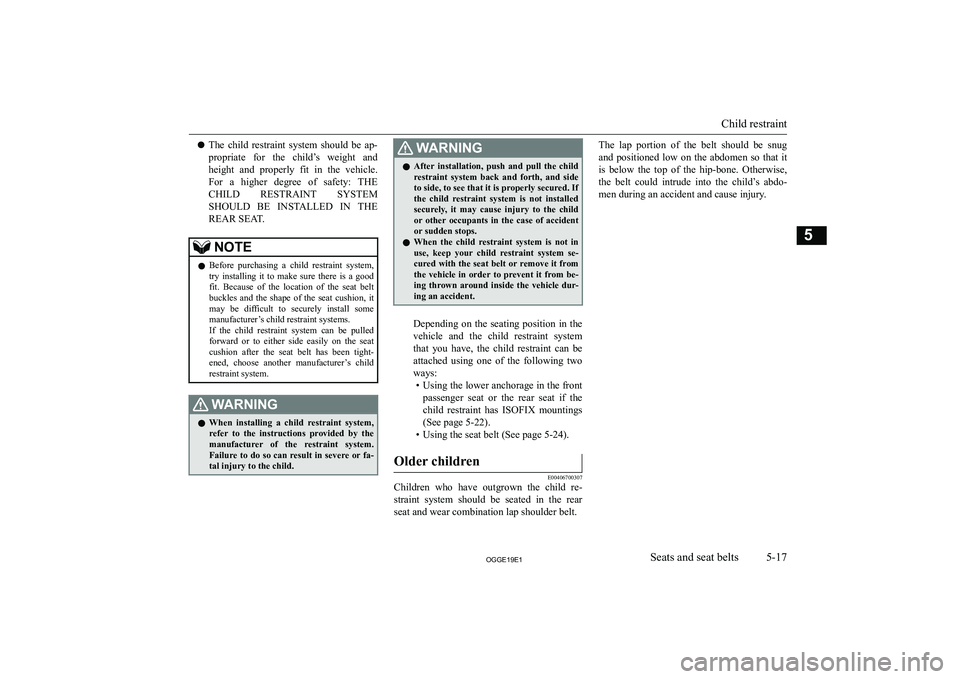

zThe child restraint system should be ap-
propriate for the child’s weight and height and properly fit in the vehicle.
For a higher degree of safety: THE CHILD RESTRAINT SYSTEM
SHOULD BE INSTALLED IN THE REAR SEAT.NOTEz Before purchasing a child restraint system,
try installing it to make sure there is a good fit. Because of the location of the seat belt
buckles and the shape of the seat cushion, it may be difficult to securely install some
manufacturer’s child restraint systems.
If the child restraint system can be pulled forward or to either side easily on the seatcushion after the seat belt has been tight-
ened, choose another manufacturer’s child restraint system.:ARN,NGz When installing a child restraint system,
refer to the instructions provided by the manufacturer of the restraint system.
Failure to do so can result in severe or fa- tal injury to the child.:ARN,NGz After installation, push and pull the child
restraint system back and forth, and sideto side, to see that it is properly secured. If
the child restraint system is not installed
securely, it may cause injury to the child or other occupants in the case of accident or sudden stops.
z When the child restraint system is not in
use, keep your child restraint system se- cured with the seat belt or remove it from the vehicle in order to prevent it from be-
ing thrown around inside the vehicle dur- ing an accident.
Depending on the seating position in the
vehicle and the child restraint system
that you have, the child restraint can be attached using one of the following two
ways:

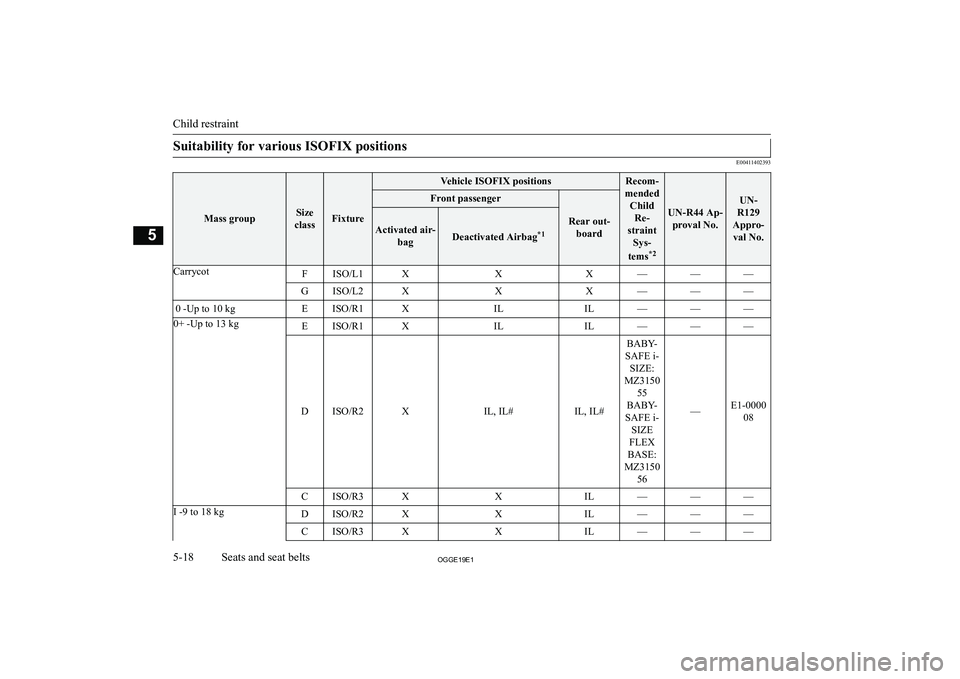

Suitability for various ISOFIX positions
E00411402393
Mass groupSize
classFixture
Vehicle ISOFIX positionsRecom-
mended ChildRe-
straint Sys-
tems *2
UN-R44 Ap-
proval No.
UN-
R129
Appro- val No.
Front passenger
Rear out- boardActivated air- bagDeactivated Airbag *1
CarrycotFISO/L1XXX———GISO/L2XXX———0 -Up to 10 kgEISO/R1XILIL———0+ -Up to 13 kgEISO/R1XILIL———
DISO/R2XIL, IL#IL, IL#
BABY-
SAFE i- SIZE:
MZ3150 55
BABY-
SAFE i- SIZE
FLEX
BASE:
MZ3150 56
—E1-000008
CISO/R3XXIL———I -9 to 18 kgDISO/R2XXIL———CISO/R3XXIL———
Child restraint
5-182**((Seats and seat belts5

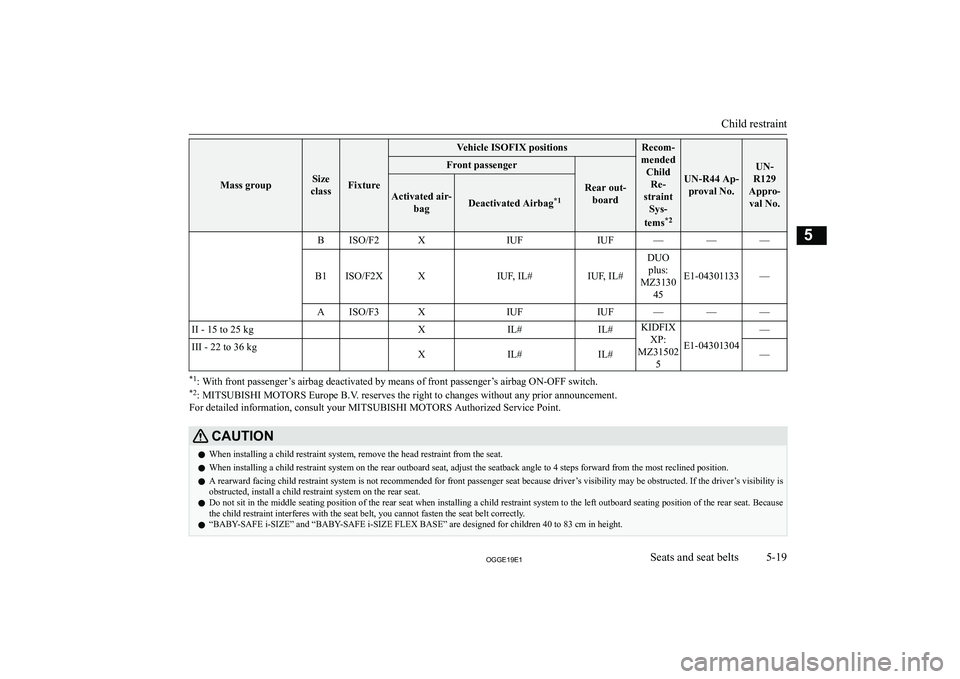

Mass groupSize
classFixture
Vehicle ISOFIX positionsRecom-
mended ChildRe-
straint Sys-
tems *2
UN-R44 Ap-
proval No.
UN-
R129
Appro- val No.
Front passenger
Rear out- boardActivated air- bagDeactivated Airbag *1
BISO/F2XIUFIUF———
B1ISO/F2XXIUF, IL#IUF, IL#
DUO
plus:
MZ3130 45
E1-04301133—
AISO/F3XIUFIUF———II - 15 to 25 kg XIL#IL#KIDFIXXP:
MZ31502 5
E1-04301304
—III - 22 to 36 kg XIL#IL#—
*1: With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch.
*2 : MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point.
CAUT,ONz When installing a child restraint system, remove the head restraint from the seat.
z When installing a child restraint system on the rear outboard seat, adjust the seatback angle to 4 steps forward from the most reclined position.
z A rearward facing child restraint system is not recommended for front passenger seat because driver’s visibility may be obstructed. If the driver’s visibility is
obstructed, install a child restraint system on the rear seat.
z Do not sit in the middle seating position of the rear seat when installing a child restraint system to the left outboard seating position of the rear seat. Because
the child restraint interferes with the seat belt, you cannot fasten the seat belt correctly.
z “BABY-SAFE i-SIZE” and “BABY-SAFE i-SIZE FLEX BASE” are designed for children 40 to 83 cm in height.
Child restraint
5-192**((Seats and seat belts5

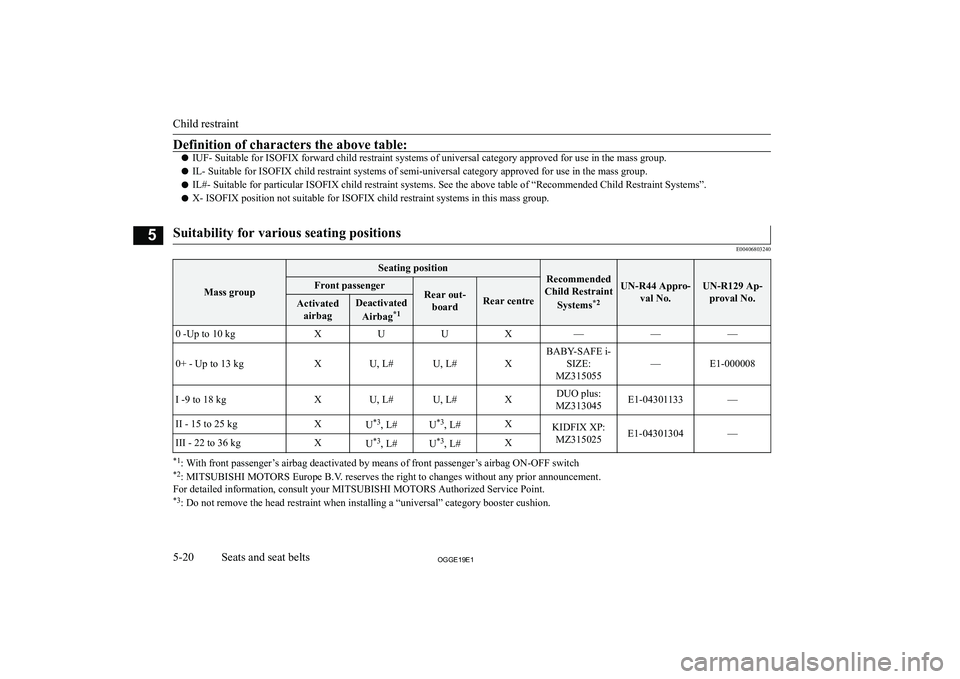

Definition of characters the above table:
zIUF- Suitable for ISOFIX forward child restraint systems of universal category approved for use in the mass group.
z IL- Suitable for ISOFIX child restraint systems of semi-universal category approved for use in the mass group.
z IL#- Suitable for particular ISOFIX child restraint systems. See the above table of “Recommended Child Restraint Systems”.
z X- ISOFIX position not suitable for ISOFIX child restraint systems in this mass group.

Suitability for various seating positions
E00406803240Mass group
Seating positionRecommended
Child Restraint
Systems *2UN-R44 Appro-
val No.UN-R129 Ap-proval No.
Front passengerRear out- boardRear centre
ActivatedairbagDeactivated
Airbag *10 -Up to 10 kgXUUX———
0+ - Up to 13 kgXU, L#U, L#X
BABY-SAFE i-
SIZE:
MZ315055
—E1-000008I -9 to 18 kgXU, L#U, L#XDUO plus:
MZ313045E1-04301133—II - 15 to 25 kgXU *3
, L#U*3
, L#XKIDFIX XP:
MZ315025E1-04301304—
III - 22 to 36 kgXU *3
, L#U*3
, L#X
*1: With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch
*2 : MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point. *3 : Do not remove the head restraint when installing a “universal” category booster cushion.
Child restraint
5-202**((Seats and seat belts5

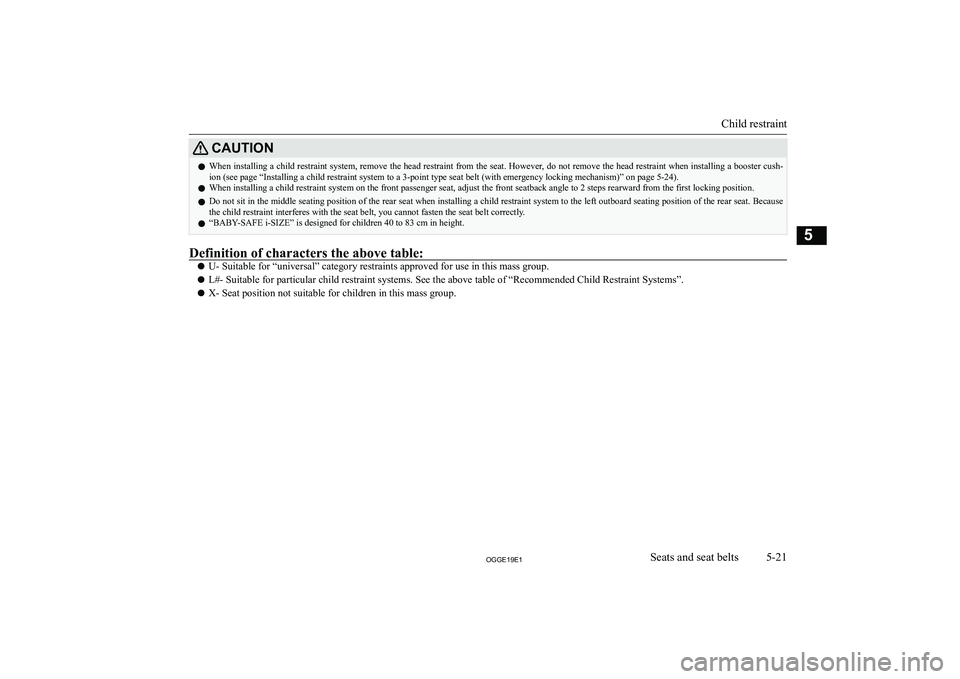

CAUT,ONzWhen installing a child restraint system, remove the head restraint from the seat. However, do not remove the head restraint when installing a booster cush-
ion (see page “Installing a child restraint system to a 3-point type seat belt (with emergency locking mechanism)” on page 5-24).
z When installing a child restraint system on the front passenger seat, adjust the front seatback angle to 2 steps rearward from the first locking position.
z Do not sit in the middle seating position of the rear seat when installing a child restraint system to the left outboard seating position of the rear seat. Because
the child restraint interferes with the seat belt, you cannot fasten the seat belt correctly.
z “BABY-SAFE i-SIZE” is designed for children 40 to 83 cm in height.Definition of characters the above table:
z
U- Suitable for “universal” category restraints approved for use in this mass group.
z L#- Suitable for particular child restraint systems. See the above table of “Recommended Child Restraint Systems”.
z X- Seat position not suitable for children in this mass group.

Child restraint
5-212**((Seats and seat belts5

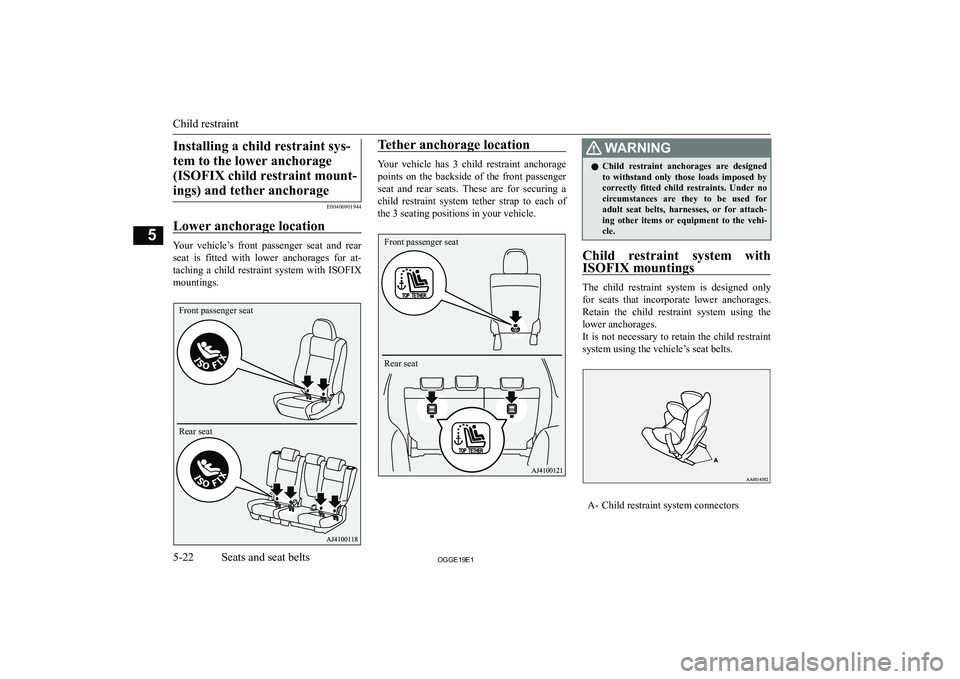

Installing a child restraint sys-tem to the lower anchorage (ISOFIX child restraint mount-ings) and tether anchorage
E00406901944
Lower anchorage location
Your vehicle’s front passenger seat and rear seat is fitted with lower anchorages for at-
taching a child restraint system with ISOFIX mountings.
Tether anchorage location
Your vehicle has 3 child restraint anchoragepoints on the backside of the front passenger seat and rear seats. These are for securing a
child restraint system tether strap to each of the 3 seating positions in your vehicle.
:ARN,NGz Child restraint anchorages are designed
to withstand only those loads imposed by
correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts, harnesses, or for attach-
ing other items or equipment to the vehi-
cle.
Child restraint system with
ISOFIX mountings
The child restraint system is designed only for seats that incorporate lower anchorages.
Retain the child restraint system using the lower anchorages.
It is not necessary to retain the child restraint
system using the vehicle’s seat belts.
A- Child restraint system connectors
Child restraint
5-222**((Seats and seat belts5Front passenger seat
Rear seat Front passenger seat Rear seat

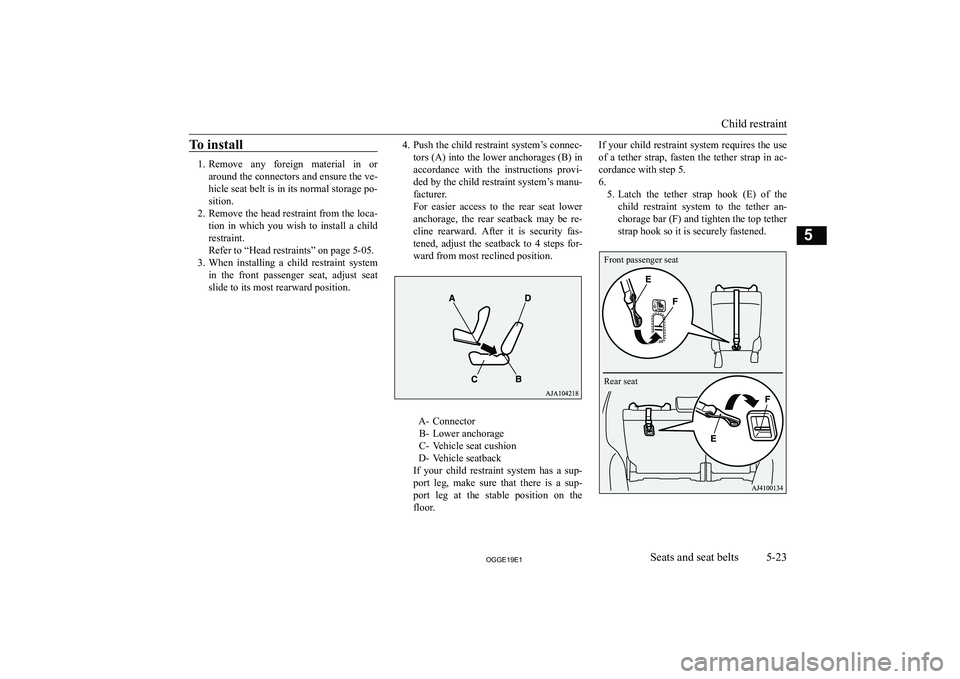

To install
1.Remove any foreign material in or
around the connectors and ensure the ve- hicle seat belt is in its normal storage po-
sition.
2. Remove the head restraint from the loca-
tion in which you wish to install a child
restraint.
Refer to “Head restraints” on page 5-05.
3. When installing a child restraint system
in the front passenger seat, adjust seat
slide to its most rearward position.
4. Push the child restraint system’s connec-
tors (A) into the lower anchorages (B) inaccordance with the instructions provi-
ded by the child restraint system’s manu- facturer.
For easier access to the rear seat lower
anchorage, the rear seatback may be re-
cline rearward. After it is security fas- tened, adjust the seatback to 4 steps for-
ward from most reclined position.
A- Connector B- Lower anchorage
C- Vehicle seat cushion
D- Vehicle seatback
If your child restraint system has a sup- port leg, make sure that there is a sup-
port leg at the stable position on the floor.
If your child restraint system requires the use
of a tether strap, fasten the tether strap in ac- cordance with step 5.
6. 5. Latch the tether strap hook (E) of the
child restraint system to the tether an- chorage bar (F) and tighten the top tetherstrap hook so it is securely fastened.
Child restraint
5-232**((Seats and seat belts5 Front passenger seat
Rear seat

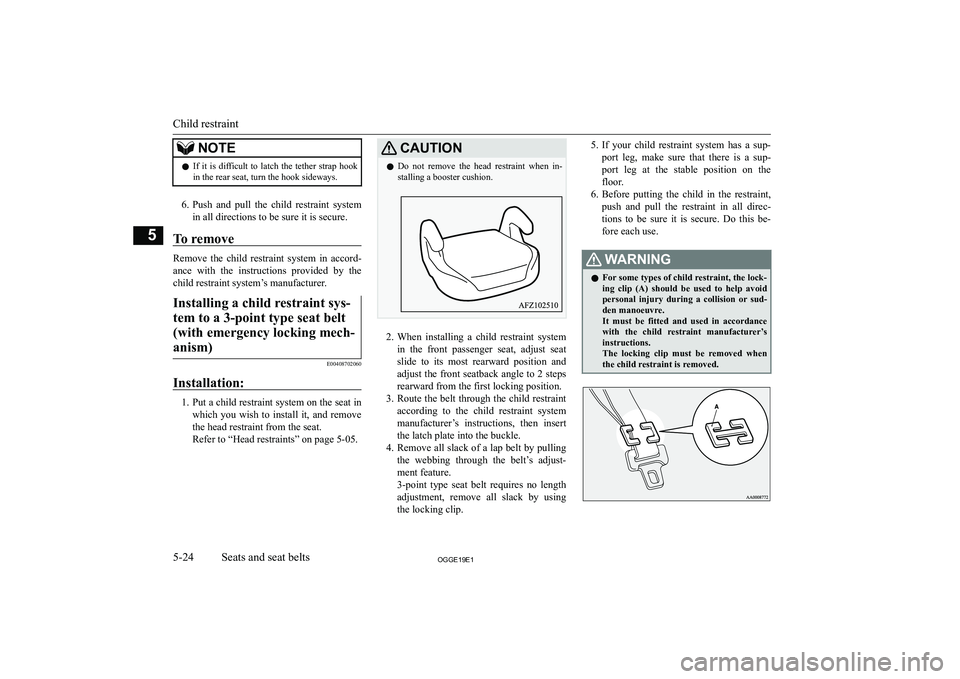

NOTEzIf it is difficult to latch the tether strap hook
in the rear seat, turn the hook sideways.
6. Push and pull the child restraint system
in all directions to be sure it is secure.
To remove
Remove the child restraint system in accord- ance with the instructions provided by the
child restraint system’s manufacturer.
Installing a child restraint sys-
tem to a 3-point type seat belt(with emergency locking mech- anism)
E00408702060
Installation:
1. Put a child restraint system on the seat in
which you wish to install it, and remove
the head restraint from the seat.
Refer to “Head restraints” on page 5-05.
CAUT,ONz Do not remove the head restraint when in-
stalling a booster cushion.
2. When installing a child restraint system
in the front passenger seat, adjust seat slide to its most rearward position and
adjust the front seatback angle to 2 steps
rearward from the first locking position.
3. Route the belt through the child restraint
according to the child restraint system manufacturer’s instructions, then insert
the latch plate into the buckle.
4. Remove all slack of a lap belt by pulling
the webbing through the belt’s adjust- ment feature.
3-point type seat belt requires no length adjustment, remove all slack by usingthe locking clip.
5. If your child restraint system has a sup-
port leg, make sure that there is a sup- port leg at the stable position on the
floor.
6. Before putting the child in the restraint,
push and pull the restraint in all direc-
tions to be sure it is secure. Do this be- fore each use.:ARN,NGz For some types of child restraint, the lock-
ing clip (A) should be used to help avoid personal injury during a collision or sud-den manoeuvre.
It must be fitted and used in accordance with the child restraint manufacturer’s
instructions.
The locking clip must be removed when the child restraint is removed.
