Page 65 of 708

651-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)
■Adult*1
■Child*3 or child restraint system*4
Condition and operation in the front passenger occupant classifi-
cation system
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG ON”
SRS warning light Off
Front passenger’s seat belt reminder light Flashing*2
Devices
Front passenger airbag
Activated
Side airbag on the right side
passenger seats
Curtain shield airbag
in the front passenger side
Front passenger knee airbag
Front passenger’s seat belt pretensioner
Active head restraints
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
“AIR BAG
OFF”*5
SRS warning light Off
Front passenger’s seat belt reminder light Flashing*2
Devices
Front passenger airbag Deactivated
Side airbag on the right side
passenger seatsActivated
Curtain shield airbag
in the front passenger sideActivated
Front passenger knee airbagDeactivated
Front passenger’s seat belt pretensionerActivatedActive head restraints
Page 66 of 708
661-1. For safe use
LS460/LS460L_GE (OM50G06E)
■Unoccupied
■There is a malfunction in the system
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights Not illuminated
SRS warning light OffFront passenger’s seat belt reminder light
Devices
Front passenger airbag Deactivated
Side airbag on the right side
passenger seatsActivated
Curtain shield airbag
in the front passenger side Activated
Front passenger knee airbagDeactivated
Front passenger’s seat belt pretensionerDeactivated or
activated*6
Active head restraintsDeactivated
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG OFF”
SRS warning light On
Front passenger’s seat belt reminder light Off
Devices
Front passenger airbag Deactivated
Side airbag on the right side
passenger seatsActivated
Curtain shield airbag
in the front passenger sideActivated
Front passenger knee airbagDeactivated
Front passenger’s seat belt pretensionerActivatedActive head restraints

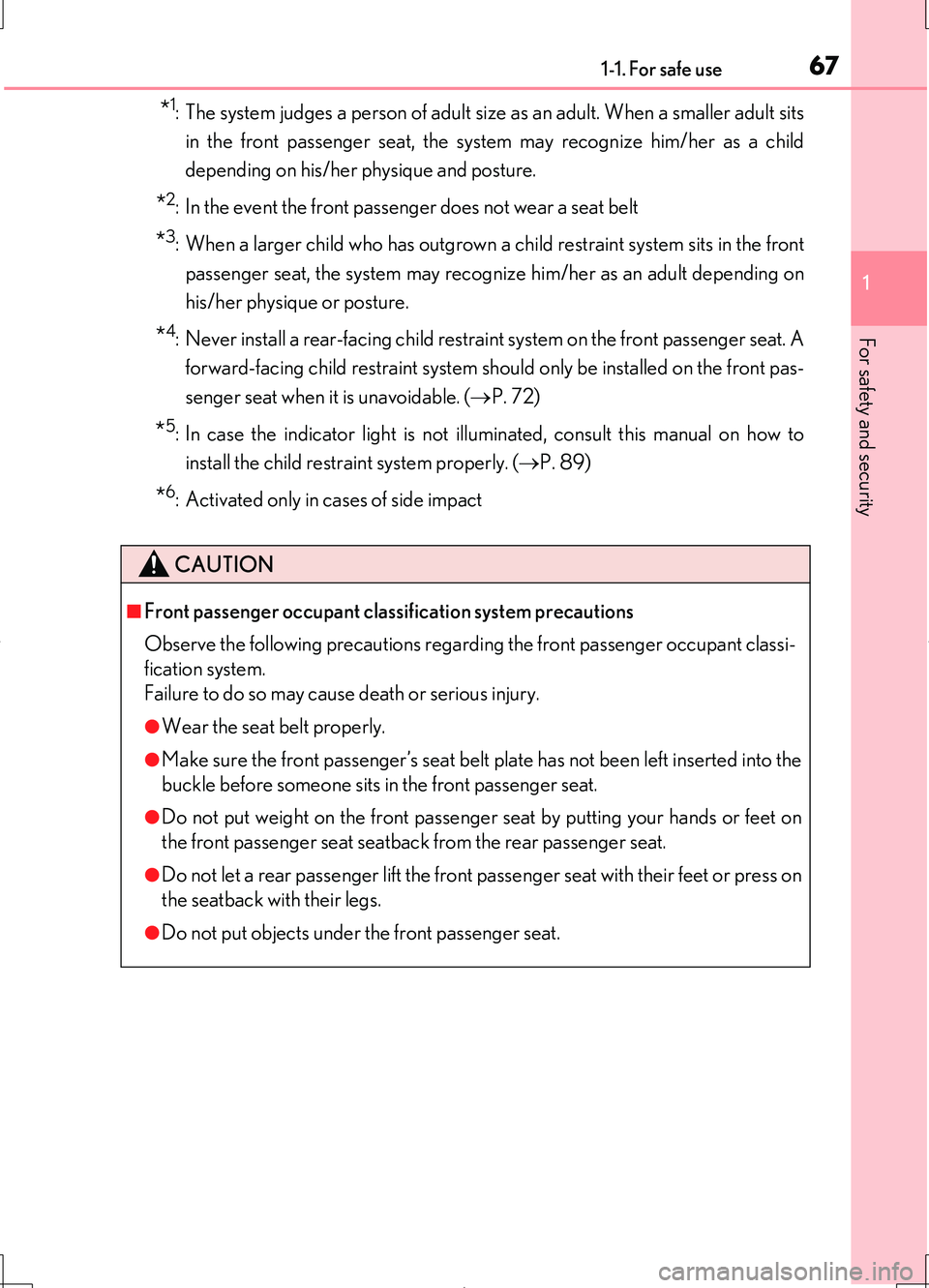

Page 67 of 708

671-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)
*1: The system judges a person of adult size as an adult. When a smaller adult sits
in the front passenger seat, the system may recognize him/her as a child
depending on his/her physique and posture.
*2: In the event the front passenger does not wear a seat belt
*3: When a larger child who has outgrown a child restraint system sits in the front
passenger seat, the system may recognize him/her as an adult depending on
his/her physique or posture.
*4: Never install a rear-facing child restraint system on the front passenger seat. A
forward-facing child restraint system should only be installed on the front pas-
senger seat when it is unavoidable. ( P. 72)
*5: In case the indicator light is not illuminated, consult this manual on how to
install the child restraint system properly. ( P. 89)
*6: Activated only in cases of side impact
CAUTION
■Front passenger occupant classification system precautions
Observe the following precautions regarding the front passenger occupant classi-
fication system.
Failure to do so may cause death or serious injury.
●Wear the seat belt properly.
●Make sure the front passenger’s seat belt plate has not been left inserted into the
buckle before someone sits in the front passenger seat.
●Do not put weight on the front passenger seat by putting your hands or feet on
the front passenger seat seatback from the rear passenger seat.
●Do not let a rear passenger lift the front passenger seat with their feet or press on
the seatback with their legs.
●Do not put objects under the front passenger seat.
Page 68 of 708

681-1. For safe use
LS460/LS460L_GE (OM50G06E)
CAUTION
■Front passenger occupant classification system precautions
●Do not recline the front passenger seatback so far that it touches a rear seat. This
may cause the “AIR BAG OFF” indicator light to be illuminated, which indicates
that the passenger’s airbags will not deploy in the event of a severe accident. If the
seatback touches the rear seat, return the seatback to a position where it does
not touch the rear seat. Keep the front passenger seatback as upright as possible
when the vehicle is moving. Reclining the seatback excessively may lessen the
effectiveness of the seat belt system.
●If an adult sits in the front passenger seat, the “AIR BAG ON” indicator light is illu-
minated. If the “AIR BAG OFF” indicator is illuminated, ask the passenger to sit
up straight, well back in the seat, feet on the floor, and with the seat belt worn cor-
rectly. If the “AIR BAG OFF” indicator still remains illuminated, either ask the pas-
senger to move to the rear seat, or if that is not possible, move the front passenger
seat fully rearward.
●When it is unavoidable to install a forward-facing child restraint system on the
front passenger seat, install the child restraint system on the front passenger seat
in the proper order. ( P. 89)
●Do not modify or remove the front seats.
●Do not kick the front passenger seat or subject it to severe impact. Otherwise,
the SRS warning light may come on to indicate a malfunction of the detection sys-
tem. In this case, contact your Lexus dealer immediately.
●Child restraint systems installed on the rear seat should not contact the front seat-
backs.
●Do not use a seat accessory, such as a cushion or seat cover, that covers the seat
cushion surface.
●Do not modify or replace the upholstery of the front seat.
Page 69 of 708
691-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)
“PASSENGER AIR BAG” indi-
cator
This indicator light turns on when the
airbag system is on (only when the
engine switch is in IGNITION ON
mode).
Airbag manual on-off switch
Airbag manual on-off system
This system deactivates the front passenger airbag, front passenger
knee airbag.
Only deactivate the airbags when us ing a child restraint system on the
front passenger seat.
: If equipped
1
2
Page 70 of 708

701-1. For safe use
LS460/LS460L_GE (OM50G06E)
Insert the mechanical key into the
cylinder and rotate to the “OFF”
position.
The “OFF” indicator light turns on
(only when the engine switch is in
IGNITION ON mode).
■“PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that there is a malfunction in the
system. Have the vehicle inspected by Lexus dealer.
●Neither “ON” nor “OFF” comes on.
●The indicator light does not change when the airbag manual on-off switch is
switched to “ON” or “OFF”.
Deactivating the front seat passenger airbag and front passenger
knee airbag
CAUTION
■When installing a child restraint system
For safety reasons, always install a child restraint system in a rear seat. In the event
that the rear seat cannot be used, the front seat can be used as long as the airbag
manual on-off system is set to off.
If the airbag manual on-off system is left on, the strong impact of the airbag deploy-
ment (inflation) may cause serious injury or even death.
■When a child restraint system is not installed on the front passenger seat
Ensure that the airbag manual on-off system is set to on.
If it is left off, the airbag may not deploy in the event of an accident, which may
result in serious injury or even death.
Page 71 of 708

711-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)
●It is recommended that children sit in the rear seats to avoid accidental
contact with the shift lever, wiper switch etc.
●Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the power
window accidentally.
●Do not let small children operate equipment which may catch or pinch
body parts, such as the power window, hood, trunk, seats etc.
Safety information for children
Observe the following precautions when children are in the vehicle.
Use a child restraint system appropri ate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt.
CAUTION
Never leave children unattended in the vehicle, and never allow children to have or
use the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the cigarette
lighter, the windows, the moon roof, or ot her features of the vehicle. In addition,
heat build-up or extremely cold temperatures inside the vehicle can be fatal to chil-
dren.

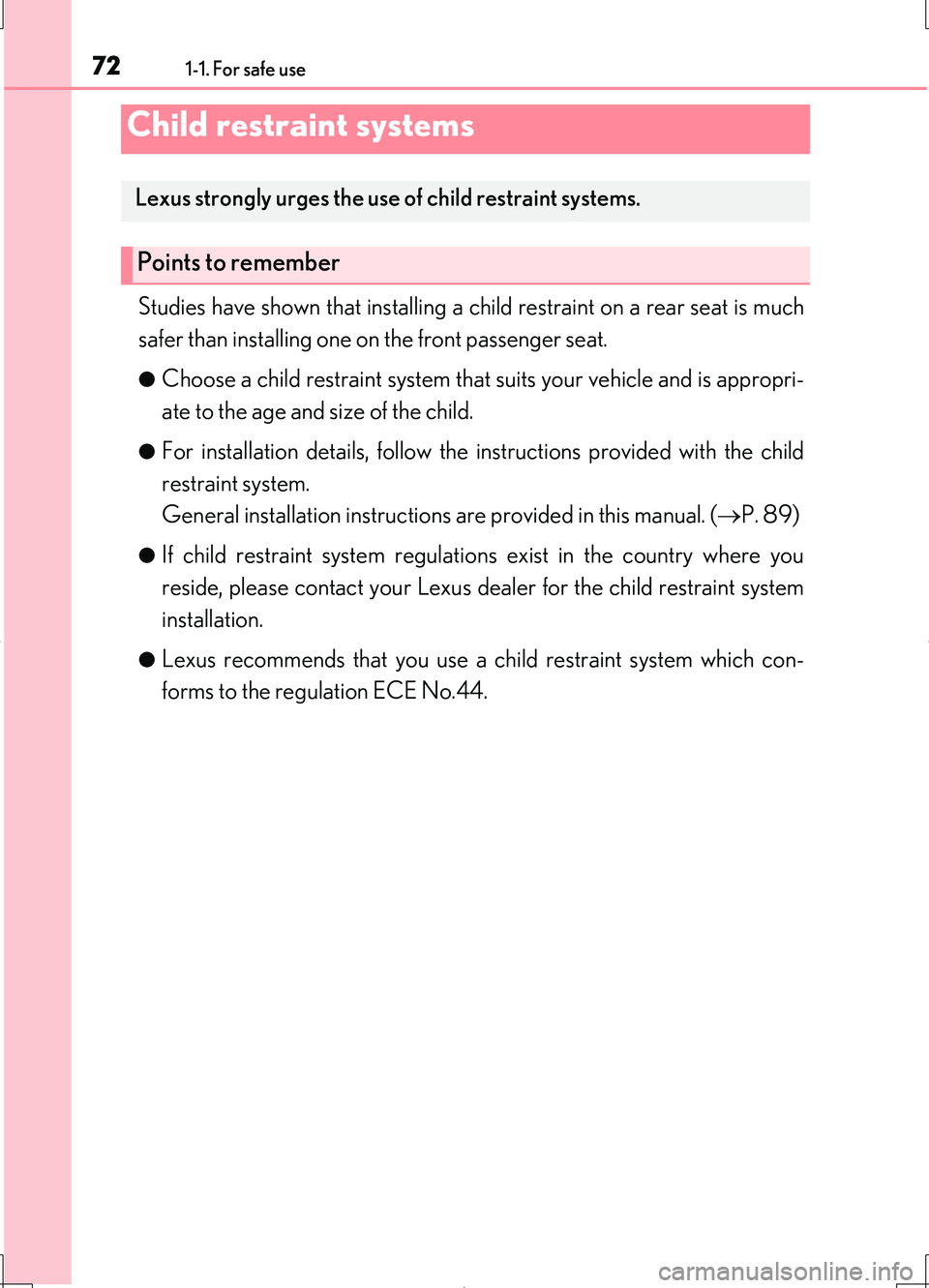

Page 72 of 708
721-1. For safe use
LS460/LS460L_GE (OM50G06E)
Studies have shown that installing a child restraint on a rear seat is much
safer than installing one on the front passenger seat.
●Choose a child restraint system that suits your vehicle and is appropri-
ate to the age and size of the child.
●For installation details, follow the instructions provided with the child
restraint system.
General installation instructions are provided in this manual. ( P. 89)
●If child restraint system regulations exist in the country where you
reside, please contact your Lexus dealer for the child restraint system
installation.
●Lexus recommends that you use a child restraint system which con-
forms to the regulation ECE No.44.
Child restraint systems
Lexus strongly urges the use of child restraint systems.
Points to remember
