2016 LEXUS LS460L Owners Manual

2894-3. Operating the lights and wipers
4
Driving
LS460/LS460L_GE (OM50G06E)
■Automatic light off system
For GCC countries*, Yemen, Jordan, Lebanon and Syria
The headlights and tail lights turn off automa tically if the engine switch is switched to
ACCESSORY mode or turned off and the driver’s door is opened.
To turn the lights on again, turn the engine switch to IGNITION ON mode, or turn
the light switch off once and then back to or .
Vehicles with a follow me home system
●When the light switch is in , , or : The headlights turn off automati-
cally if the engine switch is switched to ACCESSORY mode or turned off.
●When the light switch is in : The headlights and all lights turn off automatically if
the engine switch is switched to ACCESSORY mode or turned off.
To turn the lights on again, turn the engine switch to IGNITION ON mode, or turn
the light switch off once and then back to , , or .
Vehicles without a follow me home system except for GCC countries*, Yemen,
Jordan, Lebanon and Syria
When the light switch is in : The headlights and tail lights turn off 30 seconds
after the engine switch is turned to ACCESSORY mode or turned off and a door is
opened and all of the doors and trunk are closed. (The lights turn off immediately if
on the key is pressed after all the doors are closed.)
To turn the lights on again, turn the engine switch to IGNITION ON mode, or turn
the light switch off once and then back to , , or .
If any of the doors or trunk lid is kept open, the lights automatically turn off after 20
minutes.
*: Saudi Arabia, Sultanate of Oman, Bahrain, United Arab Emirates, Qatar, Kuwait
■Light reminder buzzer (except for GCC countries*, Yemen, Jordan, Lebanon and
Syria)
A buzzer sounds when the engine switch is turned off or turned to ACCESSORY
mode and the driver’s door is opened while the lights are turned on.
*: Saudi Arabia, Sultanate of Oman, Bahrain, United Arab Emirates, Qatar, Kuwait
■Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number of pas-
sengers and the loading condition of the vehicle to ensure that the headlights do not
interfere with other road users.

2904-3. Operating the lights and wipers
LS460/LS460L_GE (OM50G06E)
■Battery-saving function
In the following conditions, the remaining lights will go off automatically after 20
minutes in order to prevent the vehicle battery from being discharged:
●The headlights and/or tail lights are on.
●The engine switch is turned to ACCESSORY mode or turned off.
●Vehicles with a follow me home system: The light switch is in , or .
This function will be canceled in any of the following situations:
●When the engine switch is turned to IGNITION ON mode.
●When the light switch is operated.
●When the door or trunk is opened or closed.
■Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features P. 667)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not running.

2914-3. Operating the lights and wipers
4
Driving
LS460/LS460L_GE (OM50G06E)
When variable shade beam is on,
the illumination of the area sur-
rounding oncoming vehicles and
preceding vehicles is partially
shielded while all other areas con-
tinue to be illuminated in high beam.
This enables forward lighting to be
optimized without blinding sur-
rounding traffic.
If oncoming or preceding vehicles
change position, the shielded area
changes and adapts to the vehicle’s
position.
AHS (Adaptive High-beam System)
The Adaptive High-beam System uses an in-vehicle camera sensor to
assess the brightness of streetlights , the lights of oncoming and preced-
ing vehicles, etc., and automatically turns high beam and variable shade
beam on or off as necessary.
: If equipped

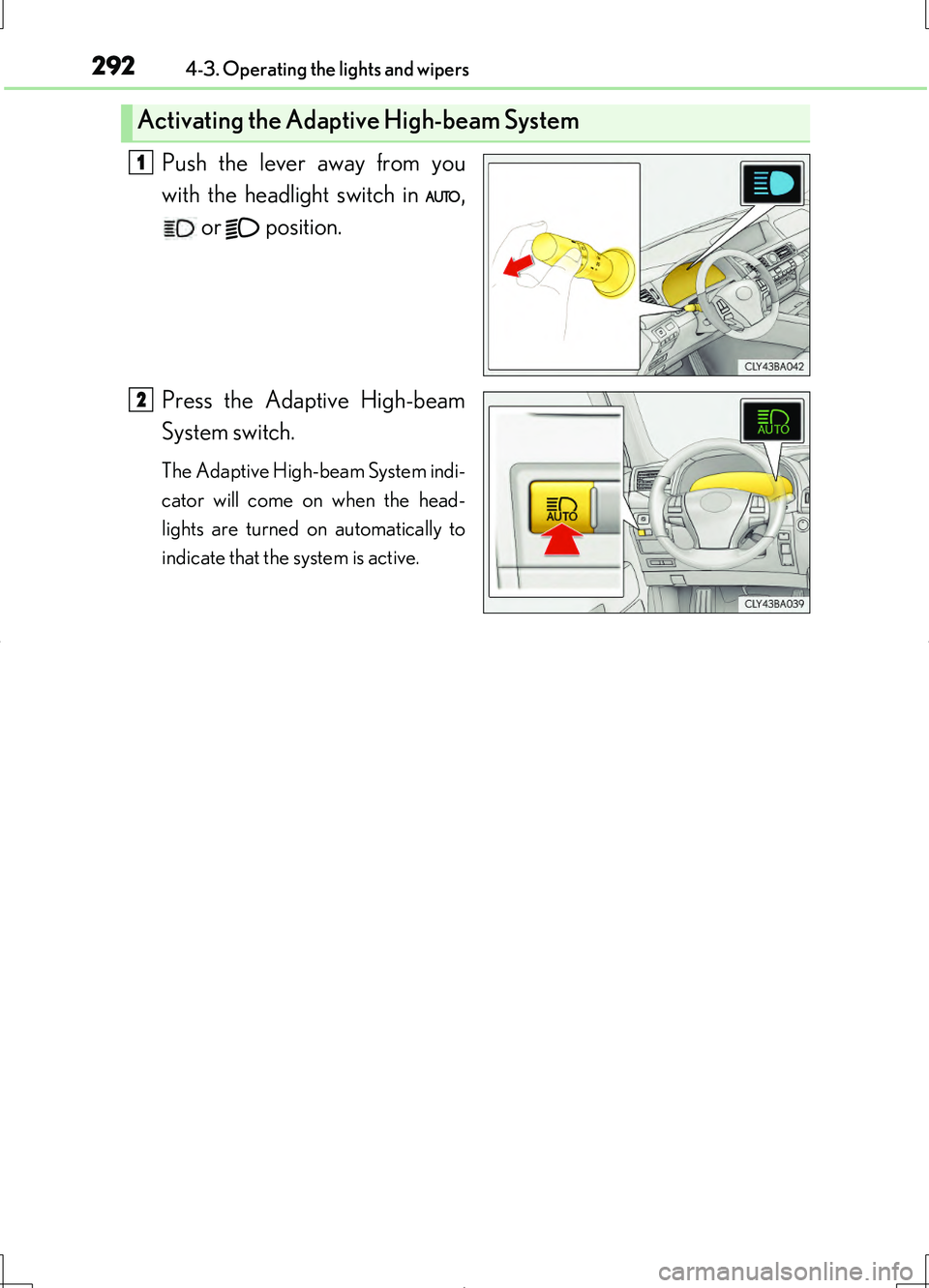

2924-3. Operating the lights and wipers
LS460/LS460L_GE (OM50G06E)
Push the lever away from you
with the headlight switch in ,
or position.
Press the Adaptive High-beam
System switch.
The Adaptive High-beam System indi-
cator will come on when the head-
lights are turned on automatically to
indicate that the system is active.
Activating the Adaptive High-beam System
1
2

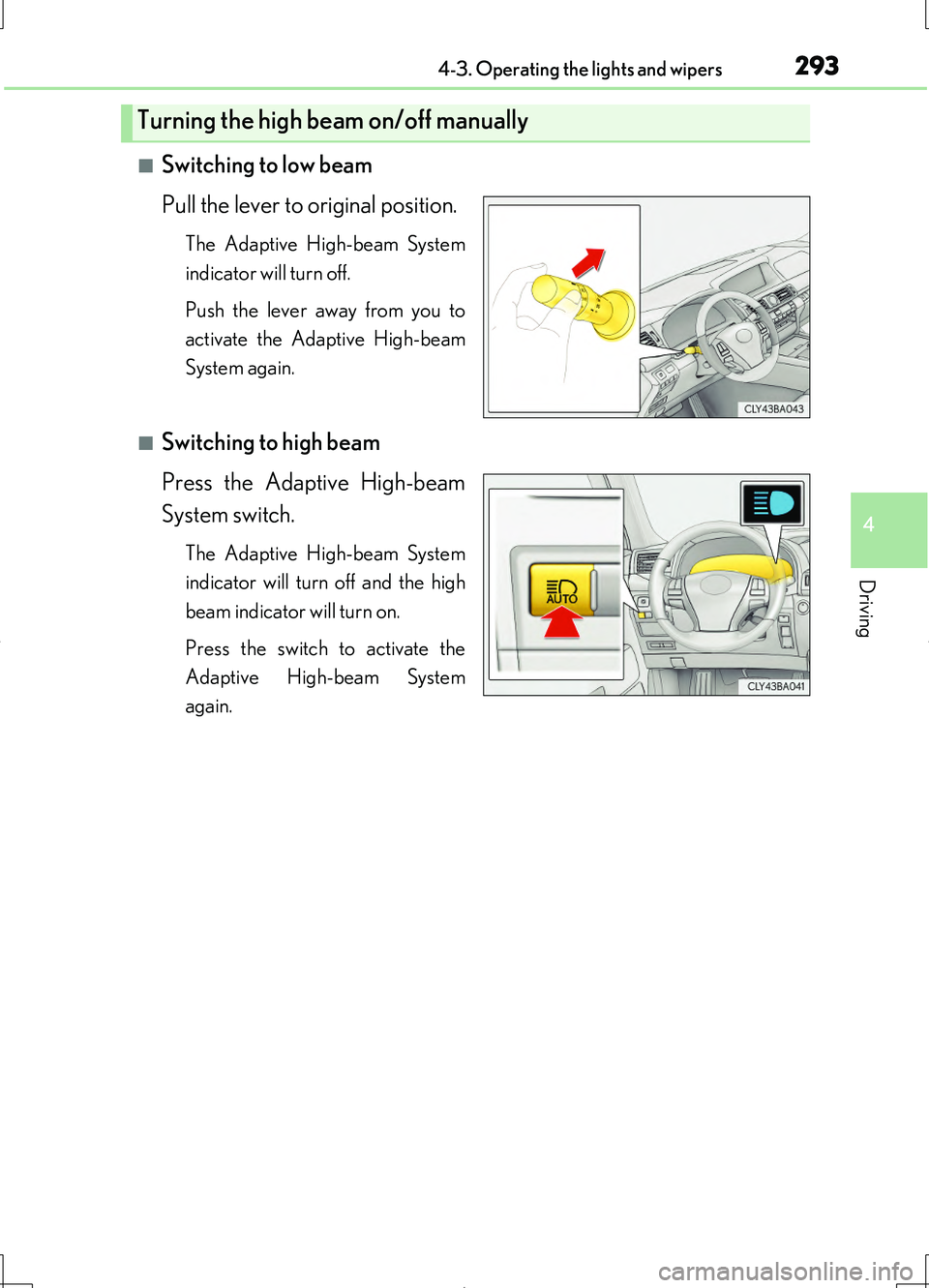

2934-3. Operating the lights and wipers
4
Driving
LS460/LS460L_GE (OM50G06E)
■Switching to low beam
Pull the lever to original position.
The Adaptive High-beam System
indicator will turn off.
Push the lever away from you to
activate the Adaptive High-beam
System again.
■Switching to high beam
Press the Adaptive High-beam
System switch.
The Adaptive High-beam System
indicator will turn off and the high
beam indicator will turn on.
Press the switch to activate the
Adaptive High-beam System
again.
Turning the high beam on/off manually

2944-3. Operating the lights and wipers
LS460/LS460L_GE (OM50G06E)
●When all of the following conditions are fulfilled, high beam will be
automatically turned on (after approximately 1 second):
• Vehicle speed is above approximately 60 km/h (37 mph).
• The area ahead of the vehicle is dark.
• There are no oncoming or precedin g vehicles with headlights or tail
lights turned on.
●If any of the following conditions are fulfilled, low beam will be automat-
ically turned on, depending on the location of oncoming or preceding
vehicles:
• Vehicle speed drops below approximately 40 km/h (25 mph).
• The area ahead of the vehicle is not dark.
• Preceding vehicles are moving qu ickly and high beams may blind the
drivers of the other vehicles.
●When all of the following conditions are fulfilled, variable shade beam
will be automatically turned on, depending on the location of oncoming
or preceding vehicles:
• Vehicle speed is above approximately 60 km/h (37 mph).
• The area ahead of the vehicle is dark.
High beam, low beam and variable shade beam automatic turning
on conditions

2954-3. Operating the lights and wipers
4
Driving
LS460/LS460L_GE (OM50G06E)
■The Adaptive High-beam System can be operated when
The engine switch is in IGNITION ON mode.
■Camera sensor detection information
●High beam may not be automatically turned off or changed to variable shade beam
in the following situations:
• When oncoming vehicles suddenly appear from a curve
• When the vehicle is cut in front of by another
• When oncoming or preceding vehicles are hidden from sight due to repeated
curves, road dividers or roadside trees
●High beam may be turned off or variable shade beam may be changed to if an
oncoming vehicle that is using fog lights without using the headlights is detected.
●House lights, street lights, red traffic signals, and illuminated billboards or signs may
cause the high beam to turn off or variable shade beam to be changed to and may
change the area that is shielded.
●The following factors may affect the amount of time taken to turn high beam on or
off, or the speed by which the shielded areas change:
• The brightness of headlights, fog lights, and tail lights of oncoming and preced-
ing vehicles
• The movement and direction of oncoming and preceding vehicles
• When a oncoming or preceding vehicle only has operational lights on one side
• When a oncoming or preceding vehicle is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the road surface etc.)
• The number of passengers and amount of luggage
●High beam and variable shade beam may be turned on or off when unexpected by
the driver.
●Small vehicles, such as bicycles, may not be detected.

2964-3. Operating the lights and wipers
LS460/LS460L_GE (OM50G06E)
●In the situations below, the system may not be able to correctly detect the sur-
rounding brightness levels, and may flash or expose oncoming or preceding vehi-
cles to the high beam or may continue using the low beam. Therefore, in these
situations you should consider turning the high beams on or off manually rather
than relying on the Adaptive High-beam System.
• In bad weather (rain, snow, fog, sandstorms etc.)
• The windshield is obscured by fog, mist, ice, dirt etc.
• The windshield is cracked or damaged.
• The inside rear view mirror or camera sensor is deformed or dirty.
• The camera sensor temperature is extremely high.
• Surrounding brightness levels are equal to those of headlights, tail lights or fog
lights.
• Vehicles ahead have headlights that are either switched off, dirty, are changing
color, or have are not aimed properly.
• When driving through an area of intermittently changing brightness and dark-
ness.
• When frequently and repeatedly driving ascending/descending roads, or roads
with rough, bumpy or uneven surfaces (such as stone-paved roads, gravel tracks
etc.).
• When frequently and repeatedly taking curves or driving on a winding road.
• There is a highly reflective object ahead of the vehicle, such as a sign or a mirror.
• The back of a vehicle ahead is highly reflective, such as a container on a truck.
• The vehicle’s headlights are damaged or dirty.
• The vehicle is listing or tilting, due to a flat tire, a trailer being towed etc.
■Turning the high beam on during Adapt ive High-beam System (except vehicles
with both LED headlights and near-infrared ray transmitters)
When the vehicle is traveling at a high speed, the system will turn on the inner high
beam together with the outer high beam.
■Customization
The variable shade beam can be turned off. (Customizable features P. 667)
