2016 LEXUS LS460L Owners Manual

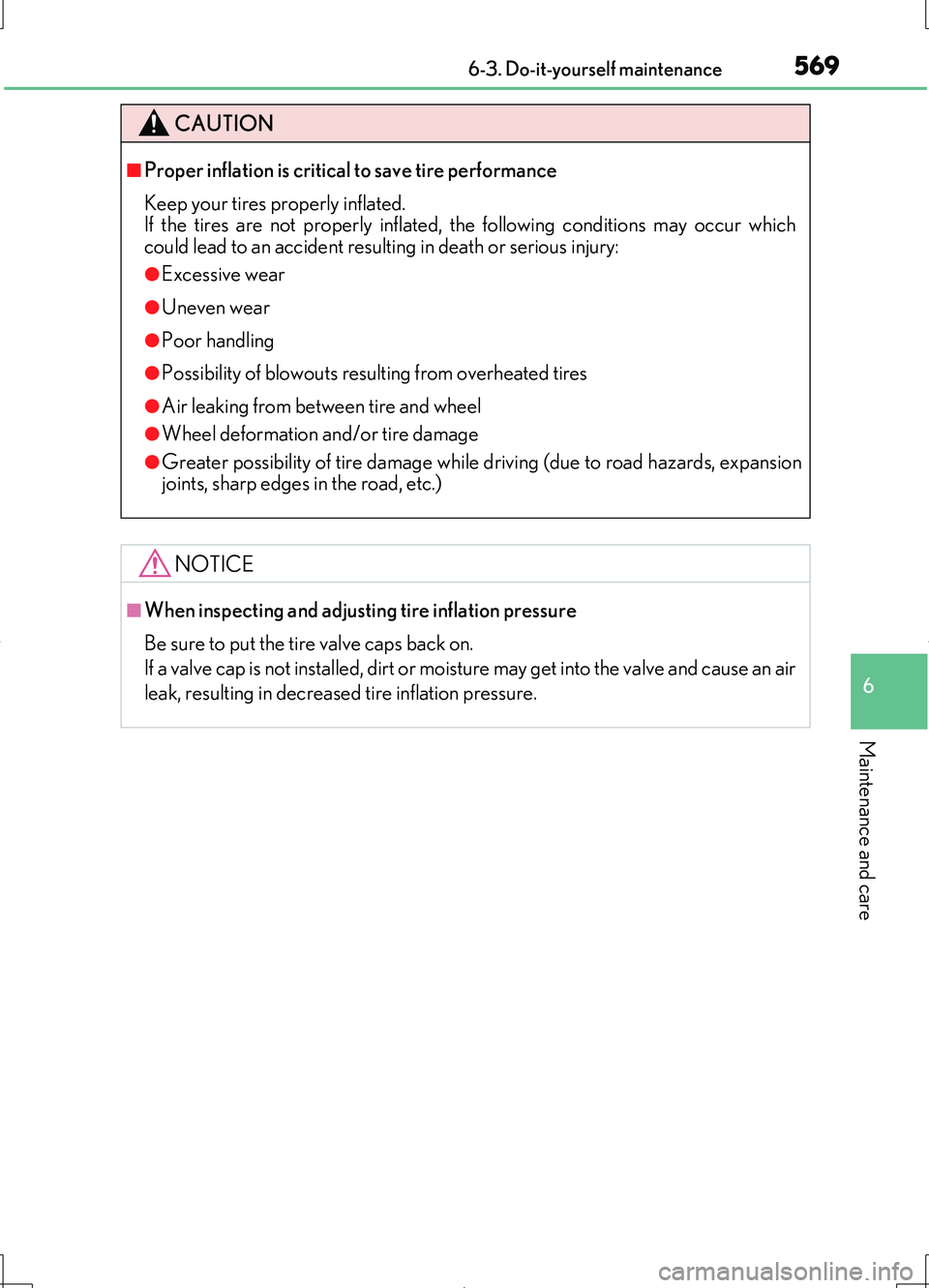

5696-3. Do-it-yourself maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
CAUTION
■Proper inflation is critical to save tire performance
Keep your tires properly inflated.
If the tires are not properly inflated, the following conditions may occur which
could lead to an accident resulting in death or serious injury:
●Excessive wear
●Uneven wear
●Poor handling
●Possibility of blowouts resulting from overheated tires
●Air leaking from between tire and wheel
●Wheel deformation and/or tire damage
●Greater possibility of tire damage while driving (due to road hazards, expansion
joints, sharp edges in the road, etc.)
NOTICE
■When inspecting and adjusting tire inflation pressure
Be sure to put the tire valve caps back on.
If a valve cap is not installed, dirt or moisture may get into the valve and cause an air
leak, resulting in decreased tire inflation pressure.

5706-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)
When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset*.
Replacement wheels are available at your Lexus dealer.
*: Conventionally referred to as “offset”.
Lexus does not recommend using the following:
●Wheels of different sizes or types
●Used wheels
●Bent wheels that have been straightened
●Use only Lexus wheel nuts and wheel nut wrenches designed for use
with your aluminum wheels.
●When rotating, repairing or changing your tires, check that the wheel
nuts are still tight after driving 1600 km (1000 miles).
●Be careful not to damage the aluminum wheels when using tire chains.
●Use only Lexus genuine balance weights or equivalent and a plastic or
rubber hammer when balancing your wheels.
Wheels
If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause a loss of han-
dling control.
Wheel selection
Aluminum wheel precautions

5716-3. Do-it-yourself maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
■When replacing wheels (vehicles with the tire pressure warning system)
The wheels of your vehicle are equipped with tire pressure warning valves and trans-
mitters that allow the tire pressure warning system to provide advance warning in the
event of a loss in tire inflation pressure. Whenever wheels are replaced, tire pressure
warning valves and transmitters must be installed. ( P. 558)
CAUTION
■When replacing wheels
●Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in a loss of handling control.
●Never use an inner tube in a leaking wheel which is designed for a tubeless tire.
Doing so may result in an accident, causing death or serious injury.
NOTICE
■Replacing tire pressure warning valves and transmitters (vehicles with the tire
pressure warning system)
●Because tire repair or replacement may affect the tire pressure warning valves
and transmitters, make sure to have tires serviced by your Lexus dealer or other
qualified service shop. In addition, make sure to purchase your tire pressure
warning valves and transmitters at your Lexus dealer.
●Ensure that only genuine Lexus wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly with non-
genuine wheels.

5726-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)
■Front air conditioning filter
Set the air conditioning system to recirculated air mode. ( P. 428)
The air conditioning filter case cannot be removed with the system in outside
air mode.
Turn the engine switch off.
Open the glove box. Remove the partition. ( P. 453)
Remove the filter cover.
Remove the filter case.
Air conditioning filter
The air conditioning filter must be changed regularly to maintain air
conditioning efficiency.
Removal method
1
2
3
34
5

5736-3. Do-it-yourself maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
Remove the air conditioning
filter from the filter case and
replace it with a new one.
The “ UP” marks shown on the fil-
ter and the filter case should be
pointing up.
Reset the air conditioning filter maintenance data. ( P. 574)
■Rear air conditioning filter (if equipped)
Turn the engine switch off.
Open the trunk lid. Remove
the filter cover.
Remove the air conditioning
filter and replace it with a new
one.
The “ UP” mark shown on the filter
should be pointing up.
6
7
1
2
33

5746-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)
■Checking interval
Front air conditioning filter
Inspect and replace the air conditioning filter when a message is appeared on the
multi-information display. In dusty areas or areas with heavy traffic flow, early
replacement may be required.
Rear air conditioning filter (if equipped)
Replace every 15000 km (9000 miles).
■If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
■After changing the front air conditioning filter
The front air conditioning filter maintenance data should be reset. Perform the fol-
lowing procedures:
Turn the engine switch to IGNITION ON mode.
Press and hold (on the air conditioning panel) for 4 seconds or more.
A buzzer will sound to indicate that the maintenance data has been successfully
reset.
■Rear air conditioning filter (if equipped)
If it is necessary to clean or replace the filter, contact your Lexus dealer.
■Climate control seat filter (if equipped)
Filters are installed in the seats. When it is necessary to clean or replace the filters,
contact your Lexus dealer.
1
2
NOTICE
■When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the system.

5756-3. Do-it-yourself maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
●Small Phillips-head screwdriver (type A only)
●Flathead screwdriver (type B only)
●Small flathead screwdriver
●Lithium battery CR1632
Type A
Take out the mechanical key.
Remove the cover.
Electronic key battery
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2

5766-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)
Remove the battery cover bolts
and remove the battery cover.
Remove the depleted battery.
Insert a new battery with the “+” termi-
nal facing up.
Type B
Take out the mechanical key.
Remove the cover.
To prevent damage to the key, cover
the tip of the screwdriver with a rag.
3
4
1
2
