2016 LEXUS LS460L Owners Manual

417
5
Interior features
LS460/LS460L_GE (OM50G06E)
5-2. Lexus Climate Concierge
Automatic air conditioning system (P. 424, 439)
Set the air conditioning system to automatic mode.
The temperature for the driver’s seat, front passenger’s seat and both rear seats
can be adjusted individually.
Climate control seats/seat heaters ( P. 478, 479)
Select “AUTO” mode on each seat.
Seat heater, off, ventilation or seat cooler is automatically selected according to
the set temperature of the air conditioning system, outside temperature, etc.
Heated steering wheel ( P. 476)
Turned on automatically according to the outside temperature and
cabin temperature.
Operates for a maximum of 30 minutes.
: If equipped
Lexus Climate Concierge
The climate control seats/seat heater on each seat and heated steer-
ing wheel are automatically controlled according to the set tempera-
ture of the air conditioning system, outside temperature, cabin
temperature, etc. Lexus Climate Co ncierge allows a comfortable con-
dition to be maintained wi thout adjusting each system.
1
2
3

418
LS460/LS460L_GE (OM50G06E)
5-3. Using the air conditioning system and defogger
Front automatic air conditioning system
Air outlets and fan speed are automatically adjusted according to the
temperature setting.
Press the “MENU” button on the Re mote Touch, and then select
to display the air conditioning operation screen.
The air conditioning system can be displayed and operated on the side
display. ( P. 414)
The illustrations below are for left-hand drive vehicles.
The button positions and shapes will differ for right-hand drive vehicles.
Also, the display and button positions will differ depending on the type
of the system.

4195-3. Using the air conditioning system and defogger
5
Interior features
LS460/LS460L_GE (OM50G06E)
■Control panel
Type A
Type B
Left-hand front seat side tem-
perature control
Left-hand front seat side tem-
perature display
Right-hand front seat side
temperature display
Right-hand front seat side
temperature control
Outside/recirculated air mode
Windshield defogger
Air outlet selector
Fan speed control
Off
Automatic mode
1
2
3
4
5
6
7
8
9
10

4205-3. Using the air conditioning system and defogger
LS460/LS460L_GE (OM50G06E)
■Operation screen (Main display)
Without rear air conditioning system
With rear air conditioning system

4215-3. Using the air conditioning system and defogger
5
Interior features
LS460/LS460L_GE (OM50G06E)
Left-hand front seat side tem-
perature control
Fan speed control
Air flows to the feet and the
windshield defogger operates
Right-hand front seat side tem-
perature control
Option control screen
Automatic mode
Select to set cooling and dehu-
midification function on/off
DUAL/4-ZONE mode on/off
Eco mode on/off
Front seat air outlet selector
Right-hand front seat side air
outlet selector
Left-hand front seat side air out-
let selector
Rear air conditioning operation
screen
1
2
3
4
5
6
7
8
9
10
11
12
13

4225-3. Using the air conditioning system and defogger
LS460/LS460L_GE (OM50G06E)

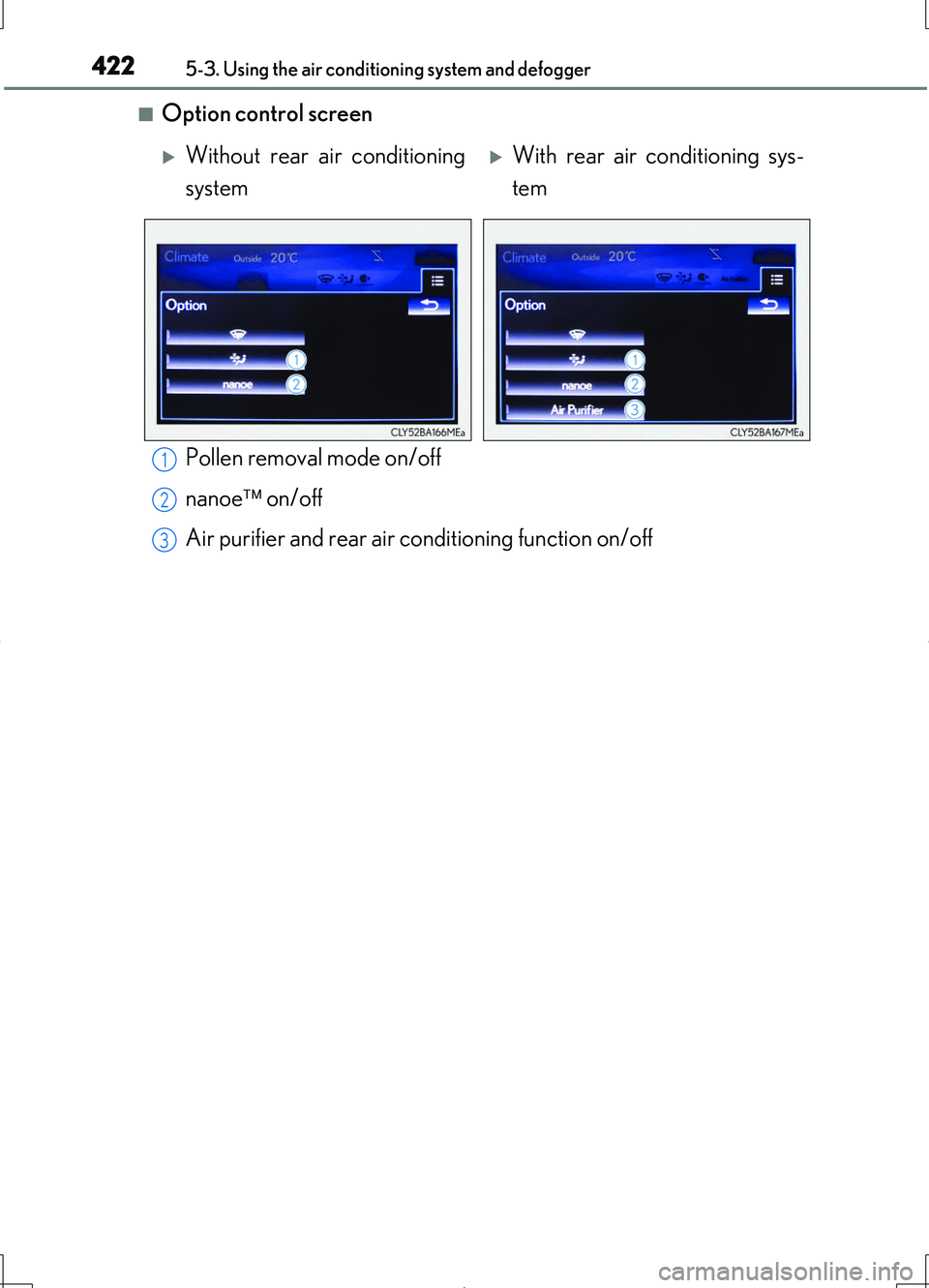

■Option control screen
Pollen removal mode on/off
nanoe  on/off
Air purifier and rear air conditioning function on/off
Without rear air conditioning
system
With rear air conditioning sys-
tem
1
2
3

4235-3. Using the air conditioning system and defogger
5
Interior features
LS460/LS460L_GE (OM50G06E)
■Operation screen (Side display)
Front seat air outlet selector
Left-hand front seat side temperature control
Fan speed control
Right-hand front seat side temperature control
Automatic mode
Cooling and dehumidification function on/off
DUAL/4-ZONE mode on/off
Left-hand front seat side air outlet selector
Right-hand front seat si de air outlet selector
Without rear air conditioning
system
With rear air conditioning sys-
tem
1
2
3
4
5
6
7
8
9

4245-3. Using the air conditioning system and defogger
LS460/LS460L_GE (OM50G06E)
Press the “AUTO” switch or select “AUTO” on the operation screen.
The dehumidification function begins to operate. Air outlets and fan speed are
automatically adjusted according to the temperature setting and humidity.
Press to switch to automatic air intake mode. (type B)
The air conditioning system automatically switches between outside air and recir-
culated air modes.
Press or select on the operation screen to increase the
temperature and or on the operation screen to decrease
the temperature.
Without rear air conditioning system
When “DUAL” is selected (the indicator will be on) or the passenger’s side tem-
perature control button is pressed, the temperature for the driver and passenger
seats can be adjusted separately.
Air outlets for the driver and passenger seats may be adjusted separately
depending on the temperature setting.
When the climate control seats are set to “AUTO” mode, the system is operated
automatically according to the set temperature, outside temperature, etc.
With rear air conditioning system
When “4-ZONE” is selected (the indicator will be on) or the passenger’s side
temperature control button is pressed, the temperature for the driver’s, front pas-
senger’s and rear seats ( P. 438) can be adjusted separately.
Air outlets for the driver and passenger seats may be adjusted separately
depending on the temperature setting.
When the climate control seats are set to “AUTO” mode, the system is operated
automatically according to the set temperature, outside temperature, etc.
■Automatic mode indicator
If the fan speed setting or air flow modes are operated, the automatic
mode indicator goes off. However, automatic mode for functions other
than that operated is maintained.
Using the automatic air conditioning system
1
2
3
