2016 LEXUS LS460L Owners Manual

4415-3. Using the air conditioning system and defogger
5
Interior features
LS460/LS460L_GE (OM50G06E)

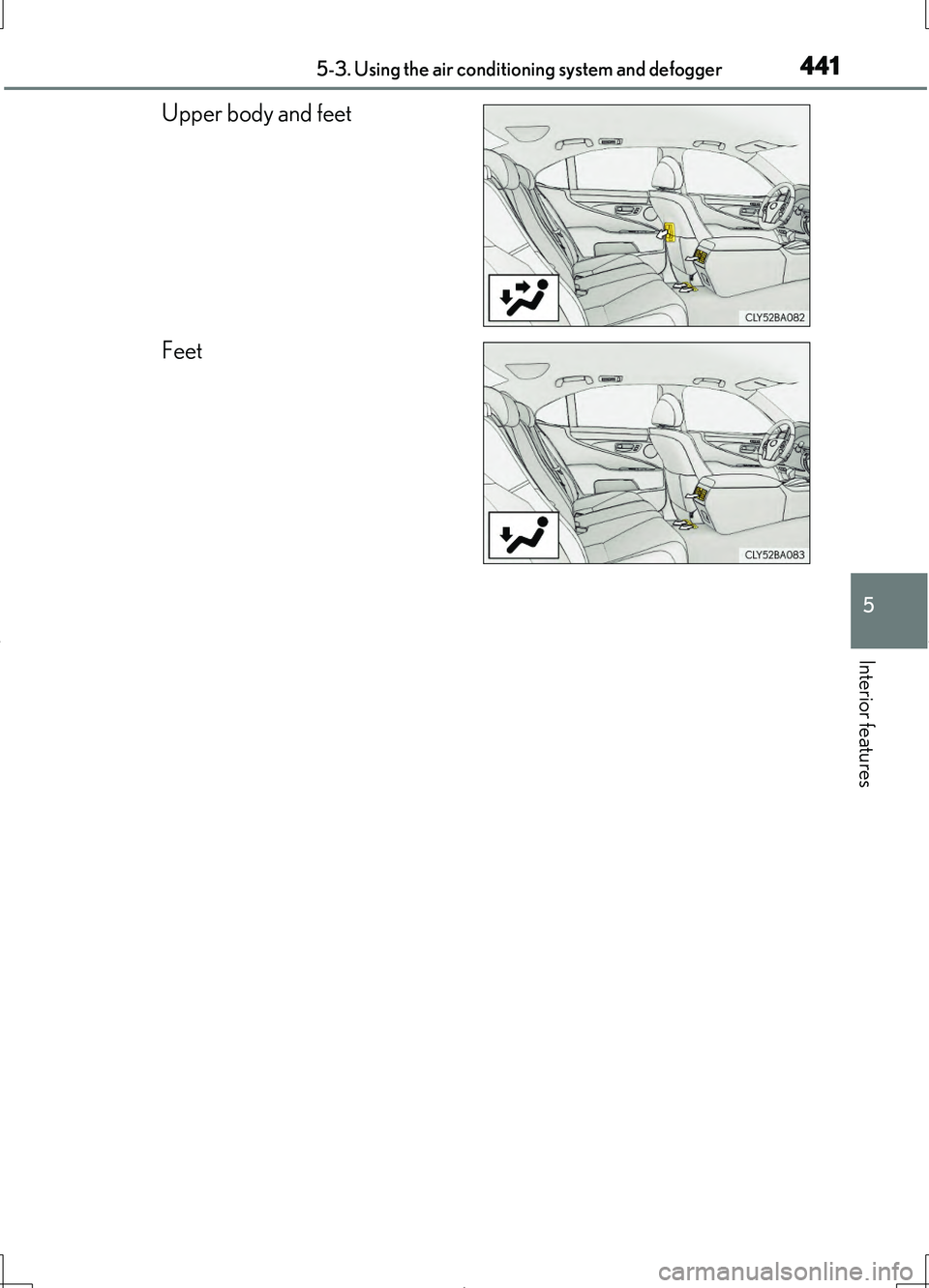

Upper body and feet
Feet

4425-3. Using the air conditioning system and defogger
LS460/LS460L_GE (OM50G06E)

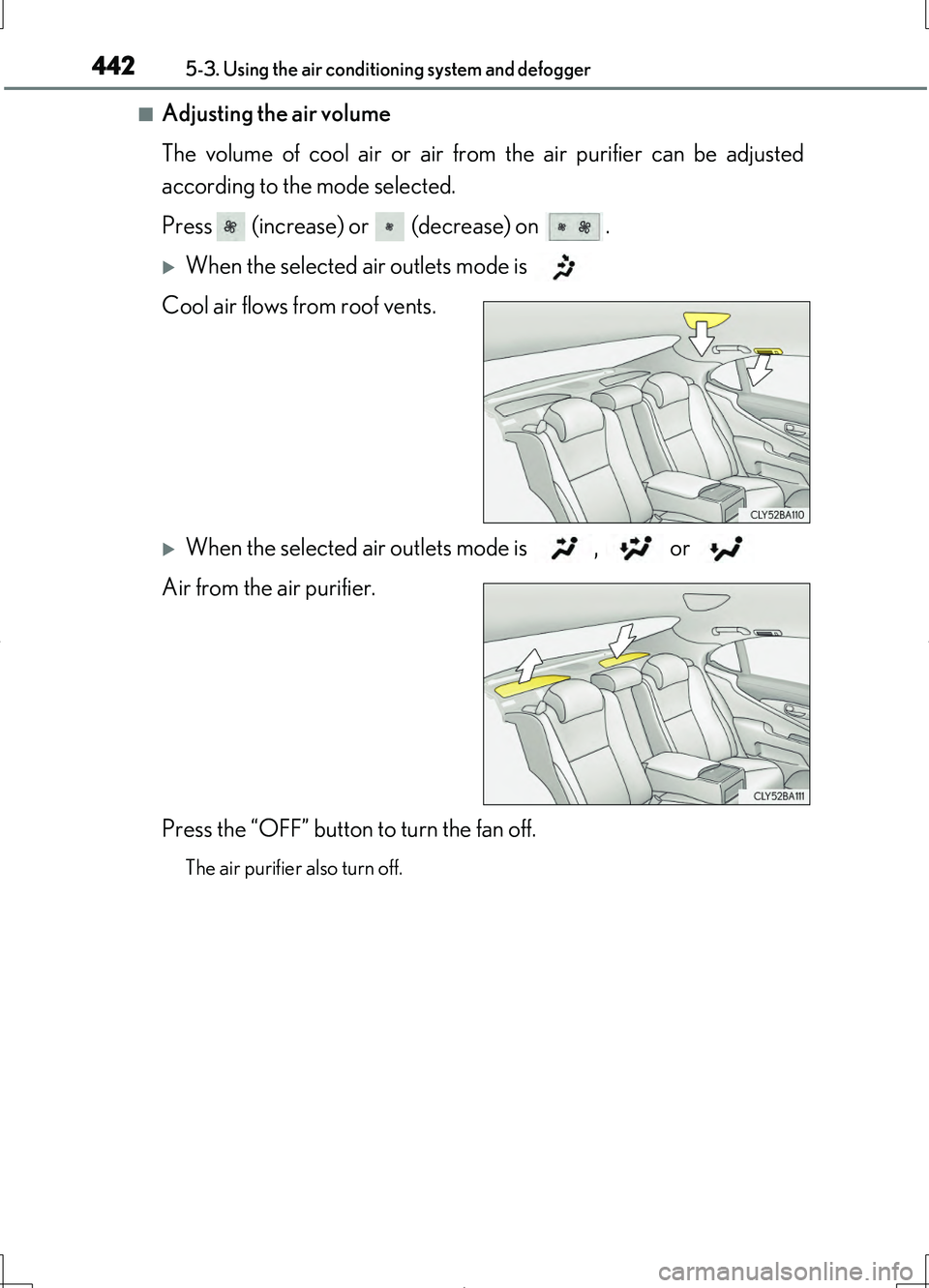

■Adjusting the air volume
The volume of cool air or air from the air purifier can be adjusted
according to the mode selected.
Press (increase) or (decrease) on .
When the selected air outlets mode is
Cool air flows from roof vents.
When the selected air outlets mode is , or
Air from the air purifier.
Press the “OFF” button to turn the fan off.
The air purifier also turn off.

4435-3. Using the air conditioning system and defogger
5
Interior features
LS460/LS460L_GE (OM50G06E)
■Rear center outlets Direct air flow to the left or right, up or down.
Turn the knob to open or close the vent.
■Rear side outlets Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
■Roof side outlets
Direct air flow to the left or right,
up or down.
Adjusting the position of and opening and closing the air outlets
Without rear console displayWith rear console display
1
2
1
2

4445-3. Using the air conditioning system and defogger
LS460/LS460L_GE (OM50G06E)
■Button lock function
To prevent inadvertent operation, the buttons on the rear controller for the air condi-
tioning system, rear sunshade, rear door sunshades, and audio system can be
locked.
The rear controller can be locked from the air conditioning operation screen.
( P. 431)
■Rear control panel illumination off function
Control panel illumination on the rear controller can be turned off.
■Replacing the rear air conditioning filter
Replacing the air conditioning filter when using rear air conditioning or air purifier
reduces air flow or deodorizing performance. ( P. 572)
Press and hold the “MODE” switch until you
hear a beep to lock the buttons. Pressing the
“MODE” switch again until you hear a beep
will release the lock.
An indicator appears on the display when the
buttons are locked.
Press and hold the “PWR” switch until you
hear a beep to turn the illumination off. Press-
ing the “PWR” switch again until you hear a
beep will turn the illumination on.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is off.

4455-3. Using the air conditioning system and defogger
5
Interior features
LS460/LS460L_GE (OM50G06E)
On/off
The defoggers will automatically turn
off after approximately 15 minutes.
■Operating conditions
The engine switch must be in the IGNITION ON mode.
Rear window and outside rear view mirror
defoggers
These features are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Type A
Type B
CAUTION
■When the outside rear view mirror defoggers are on
Do not touch the rear view mirror surfaces, as they can become very hot and burn
you.
NOTICE
■To prevent battery discharge
Turn the defoggers off when the engine is off.

4465-3. Using the air conditioning system and defogger
LS460/LS460L_GE (OM50G06E)
Press the “MENU” button on the Remote Touch. (P. 406)
Select on the “Menu” screen.
Select on the “Climate” screen.
Operates the windshield wiper
de-icer on/off.
Select on the option control
screen to turn on the windshield wiper
de-icer, then the indicator will be on.
The windshield wiper de-icer will
automatically turn off after approxi-
mately 15 minutes, then the indicator
will be off. Selecting on the
option control screen again also turns
the de-icer off.
■Operating conditions
The engine switch must be in the IGNITION ON mode.
Windshield wiper de-icer
: If equipped
This feature is used to prevent ice from building up on the windshield
and wiper blades.
1
2
3
4
CAUTION
■When the windshield wiper de-icer is on
Do not touch the glass at the lower part of the windshield or to the side of the front
pillars as the surfaces can become very hot and burn you.

447
5
Interior features
LS460/LS460L_GE (OM50G06E)
5-4. Using the interior lights
Interior lights list
Shift lever lights
Front personal lights( P. 449)
Front interior lights ( P. 448)
Instrument panel ornament
lights
Inside door handle lights
Rear personal lights ( P. 449)
Rear interior light ( P. 448)
Door courtesy lights
Seat belt buckle lights
Footwell lights
Engine switch light
Clock light
Outer foot lights
1
2
3
4
5
6
7
8
9
10
11
12
13

4485-4. Using the interior lights
LS460/LS460L_GE (OM50G06E)
Front
“OFF”
Door position on/off
“ON”
Rear
On/off
If door position on is selected for the
front interior light, the rear interior
light is also turned on/off by the open-
ing and closing of a door.
Interior lights
1
2
3
