2016 LEXUS LS460L Owners Manual

3534-5. Using the driving support systems
4
Driving
LS460/LS460L_GE (OM50G06E)
NOTICE
■Camera sensor (P. 344)
Observe the following to ensure that the LKA system functions correctly.
●Keep the windshield clean at all times.
Performance could be affected if the windshield is dirty, or if raindrops, conden-
sation or ice are adhering to the windshield.
●Do not attach window tinting to the windshield.
●Do not install an antenna in front of the camera lens.
●If the windshield is fogged up, use the windshield defogger to remove fog from
the windshield.
When it is cold, using the heater with air blowing to the feet may allow the upper
part of the windshield to fog up. This will have a negative effect on the images.
●Do not place anything on the dashboard.
The camera sensor may recognize the image reflected on the windshield as lane
markers by mistake.
●Do not scratch the camera lens, or let it get dirty.
When cleaning the inside of the windshield, be careful not to get any glass
cleaner etc. on the lens. Also, do not touch the lens.
For lens repair, contact your Lexus dealer.
●Do not change the installation position or direction of the camera sensor or
remove it. The direction of the camera sensor is precisely adjusted.
●Do not subject the camera sensor to strong impact or force, and do not disas-
semble the camera sensor.
●Do not attach a sticker or other items to the
windshield near the camera sensor.
●Do not install or place anything near the
camera.

3544-5. Using the driving support systems
LS460/LS460L_GE (OM50G06E)
Vehicles without electronically modulated air suspension
Normal mode
For normal driving.
Press the switch to change the driving mode to normal mode when not in normal
mode.
Eco drive mode
Use Eco drive mode to help achieve low fuel consumption during trips
that involve frequent accelerating.
When not in Eco drive mode and the driving mode select switch is turned to the
left, the “ECO MODE” indicator comes on and Eco Driving Indicator Zone Dis-
play and average fuel consumption is shown on the multi-information display.
( P. 132)
Driving mode select switch
The driving modes can be selected to suit driving condition.
1
2

3554-5. Using the driving support systems
4
Driving
LS460/LS460L_GE (OM50G06E)
Sport mode
Assists acceleration response by controlling the transmission and
steering. Suitable for when precise handling is desirable, for example
when driving on mountain roads.
When not in Sport mode and the driving mode select switch is turned to the right,
the “SPORT” indicator comes on in the multi-information display.
3

3564-5. Using the driving support systems
LS460/LS460L_GE (OM50G06E)
Vehicles with electronically modulated air suspension
Normal mode
For normal driving.
Press the switch to change the driving mode to normal mode when not in normal
mode.
Comfort mode
By controlling the suspension, riding comfort is further enhanced. Suit-
able for city driving.
When not in comfort mode and the driving mode select switch is turned to the
left, the “COMFORT” indicator comes on in the multi-information display.
Eco drive mode
Use Eco drive mode to help achieve low fuel consumption during trips
that involve frequent accelerating.
When in comfort mode and the driving mode select switch is turned to the left,
the “ECO MODE” indicator comes on and Eco Driving Indicator Zone Display
and average fuel consumption is shown on the multi-information display.
( P. 132)
1
2
3

3574-5. Using the driving support systems
4
Driving
LS460/LS460L_GE (OM50G06E)
Sport mode
• SPORT S mode
Assists acceleration response by controlling the transmission and
the engine. Suitable for when powerful acceleration is desirable.
When not in SPORT S mode and the driv ing mode select switch is turned to
the right, the “SPORT S” indicator comes on in the multi-information display.
• SPORT S+ mode
Helps to ensure steering performance and driving stability by simul-
taneously controlling the steering and suspension in addition to the
transmission. Suitable for sporty driving.
When in SPORT S mode and the driving mo de select switch is turned to the
right, the “SPORT S+” indicator comes on in the multi-information display.
■Operation of the air conditioni ng system in Eco drive mode
Eco drive mode controls the heating/cooling operations and fan speed of the air
conditioning system to enhance fuel efficiency ( P. 418). To improve air condition-
ing performance, adjust the fan speed or turn off Eco drive mode.
■Sport mode automatic deactivation
Sport mode is automatically deactivated if the engine switch is turned off after driv-
ing in sport mode.
■Driving mode pop-up display
When the driving mode is changed, the selected driving mode will be temporarily
displayed on the side display. ( P. 415)
4

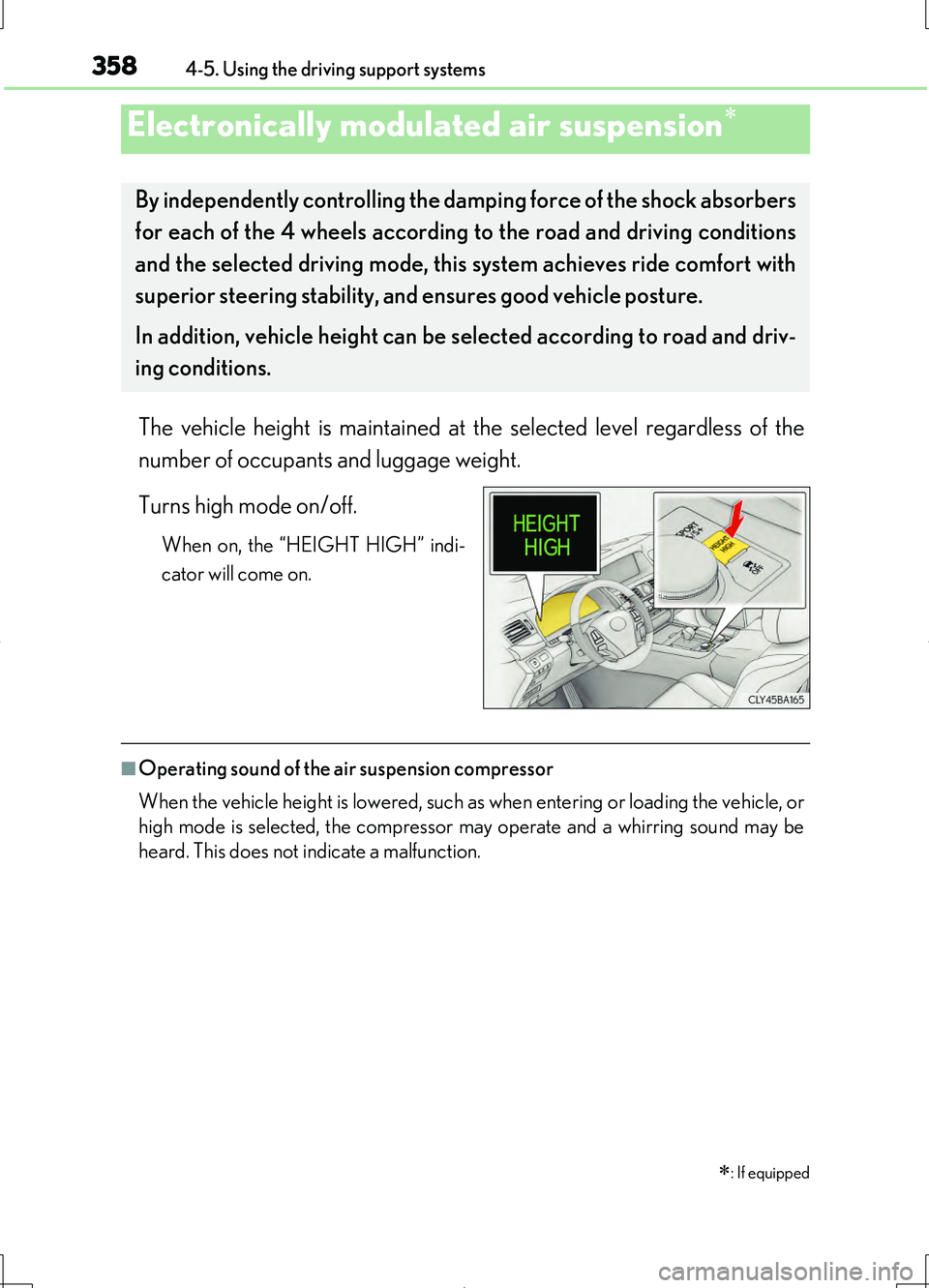

3584-5. Using the driving support systems
LS460/LS460L_GE (OM50G06E)
The vehicle height is maintained at the selected level regardless of the
number of occupants and luggage weight.
Turns high mode on/off.
When on, the “HEIGHT HIGH” indi-
cator will come on.
■Operating sound of the air suspension compressor
When the vehicle height is lowered, such as when entering or loading the vehicle, or
high mode is selected, the compressor may operate and a whirring sound may be
heard. This does not indicate a malfunction.
Electronically modul ated air suspension
: If equipped
By independently controlling the damping force of the shock absorbers
for each of the 4 wheels according to the road and driving conditions
and the selected driving mode, this system achieves ride comfort with
superior steering stability, an d ensures good vehicle posture.
In addition, vehicle height can be se lected according to road and driv-
ing conditions.

3594-5. Using the driving support systems
4
Driving
LS460/LS460L_GE (OM50G06E)
CAUTION
■Be sure to stop the engine in the following situations in order to stop operation of
the electronically modulated air suspension:
●The vehicle is parked on a curb.
●Any of the wheels is stuck in a ditch.
●It is necessary to jack up the vehicle.
●It is necessary to tow the vehicle with part of it lifted.
If the engine switch remains in IGNITION ON mode, the vehicle height may
change, and you may catch part of your body in the vehicle, resulting in accidental
damage.

3604-5. Using the driving support systems
LS460/LS460L_GE (OM50G06E)
◆ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly, or if
the brakes are applied while driv ing on a slippery road surface
◆Brake assist
Generates an increased level of braking force after the brake pedal is
depressed when the system detects a panic stop situation
◆VSC (Vehicle Stability Control)
Helps the driver to control skidding when swerving suddenly or turning
on slippery road surfaces
◆TRC (Traction Control)
Helps to maintain drive power and prevent the drive wheels from spin-
ning when starting the vehicle or accelerating on slippery roads
◆Hill-start assist control
Helps to prevent the vehicle from rolling backward when starting on an
incline or slippery slope
Driving assist systems
To help enhance driving safety and performance, the following systems
operate automatically in response to various driving situations. Be
aware, however, that these system s are supplementary and should not
be relied upon too heavily when operating the vehicle.
