2016 LEXUS LS460L Owners Manual

649
8
8-1. Specifications
Vehicle specifications
LS460/LS460L_GE (OM50G06E)

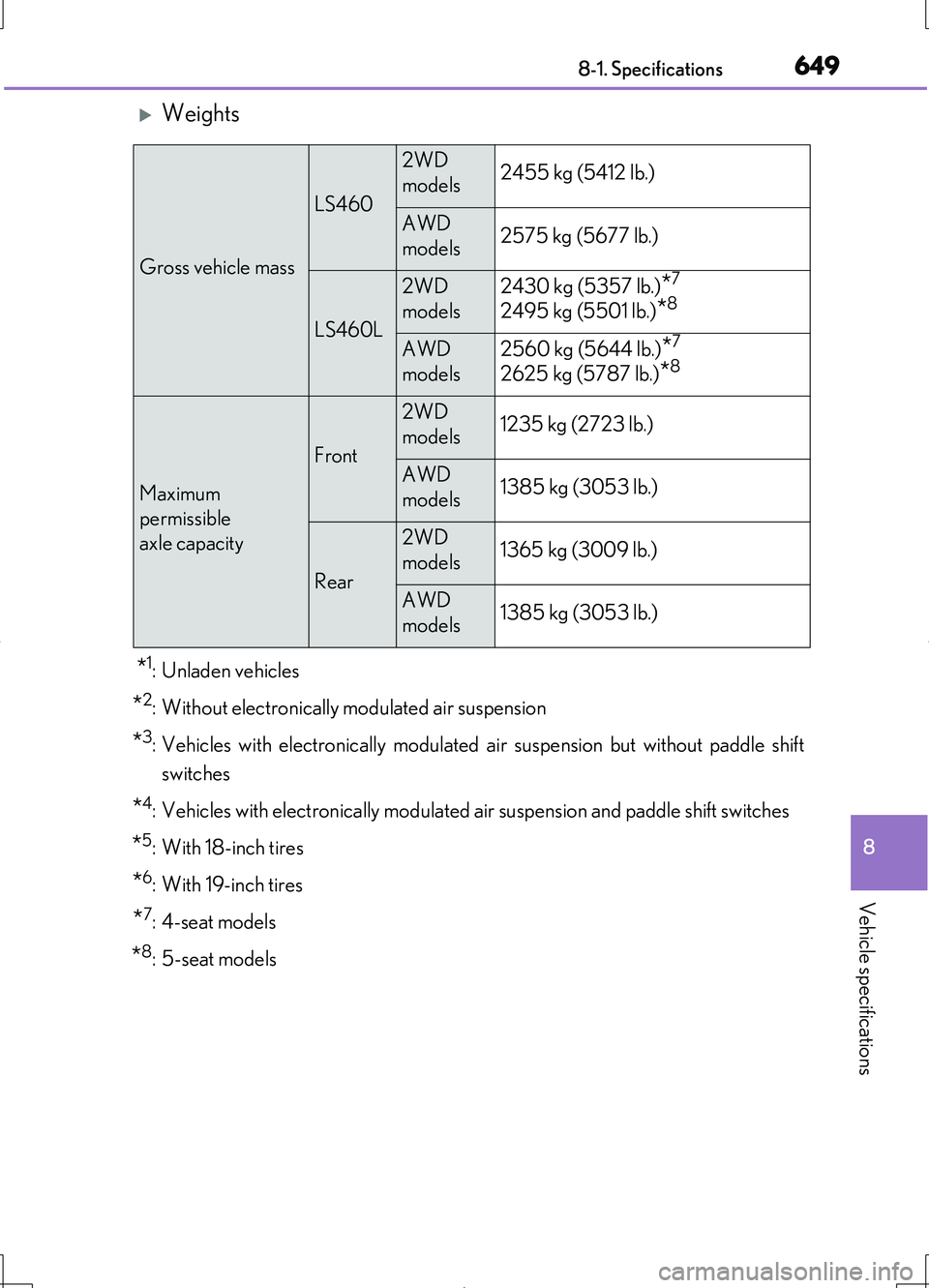

Weights
*1: Unladen vehicles
*2: Without electronically modulated air suspension
*3: Vehicles with electronically modulated air suspension but without paddle shift
switches
*4: Vehicles with electronically modulated air suspension and paddle shift switches
*5: With 18-inch tires
*6: With 19-inch tires
*7: 4-seat models
*8:5-seat models
Gross vehicle mass
LS460
2WD
models2455 kg (5412 lb.)
AWD
models2575 kg (5677 lb.)
LS460L
2WD
models
2430 kg (5357 lb.)*7
2495 kg (5501 lb.)*8
AWD
models
2560 kg (5644 lb.)*7
2625 kg (5787 lb.)*8
Maximum
permissible
axle capacity
Front
2WD
models1235 kg (2723 lb.)
AWD
models1385 kg (3053 lb.)
Rear
2WD
models1365 kg (3009 lb.)
AWD
models1385 kg (3053 lb.)

6508-1. Specifications
LS460/LS460L_GE (OM50G06E)
■Vehicle identification number
The vehicle identification number (V IN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in
the engine compartment.
This number is also on the Certifi-
cation Regulation label*1 or the
manufacturer’s label*2.
*1: For Korea, GCC countries*3, Yemen and Lebanon
*2: Except for Korea, GCC countries*3, Yemen and Lebanon
*3: Saudi Arabia, Sultanate of Oman, Bahrain, United Arab Emirates, Qatar,
Kuwait
Vehicle identification

651
8
8-1. Specifications
Vehicle specifications
LS460/LS460L_GE (OM50G06E)
■Year of manufacture and coun try of origin (GCC countries*, Yemen
and Lebanon)
The year of the manufacture and country of origin are shown on the
Certification Regulation label.
*: Saudi Arabia, Sultanate of Oman, Bahrain, United Arab Emirates, Qatar,
Kuwait
■Engine number
2WD models
The engine number is stamped
on the engine block as shown.
AWD models
The engine number is stamped
on the engine block as shown.

6528-1. Specifications
LS460/LS460L_GE (OM50G06E)
*1: For vehicles with model code*2 that has “V” as the last letter
*2: The model code is indicated on the manufacturer’s label or the Certification
Regulation label. ( P. 650)
Engine
Model1UR-FSE1UR-FE
Type8-cylinder V type, 4-cycle, gasoline
Bore and stroke94.0  83.0 mm (3.70  3.27 in.)
Displacement4608 cm3 (281.2 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Maximum vehicle speed*1250 km/h (155 mph)
Maximum torque (NET)*1493 N•m@4100 rpm455 N•m@4000 rpm
Maximum power (NET)*1285 kW@6400 rpm260 kW@6400 rpm
Fuel
Fuel typePremium unleaded gasoline only
Research Octane
Number
For Brazil95 (Octane rating 91) or higher
Except for Brazil95 or higher
Fuel tank capacity
(Reference)84 L (22.2 gal., 18.4 Imp. gal.)

653
8
8-1. Specifications
Vehicle specifications
LS460/LS460L_GE (OM50G06E)
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check
the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Lubrication system
Oil capacity (Drain and refill—
reference*)
With filter
2WD models
AWD models
Without filter
8.6 L (9.1 qt., 7.6 Imp. qt.)
9.0 L (9.5 qt., 7.9 Imp. qt.)
8.4 L (8.9 qt., 7.4 Imp. qt.)

6548-1. Specifications
LS460/LS460L_GE (OM50G06E)
Recommended viscosity (SAE):
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 0W-20, 5W-20 or
5W-30 engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity (one
with a higher value) may be better suited if the vehicle is operated at
high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change.

655
8
8-1. Specifications
Vehicle specifications
LS460/LS460L_GE (OM50G06E)

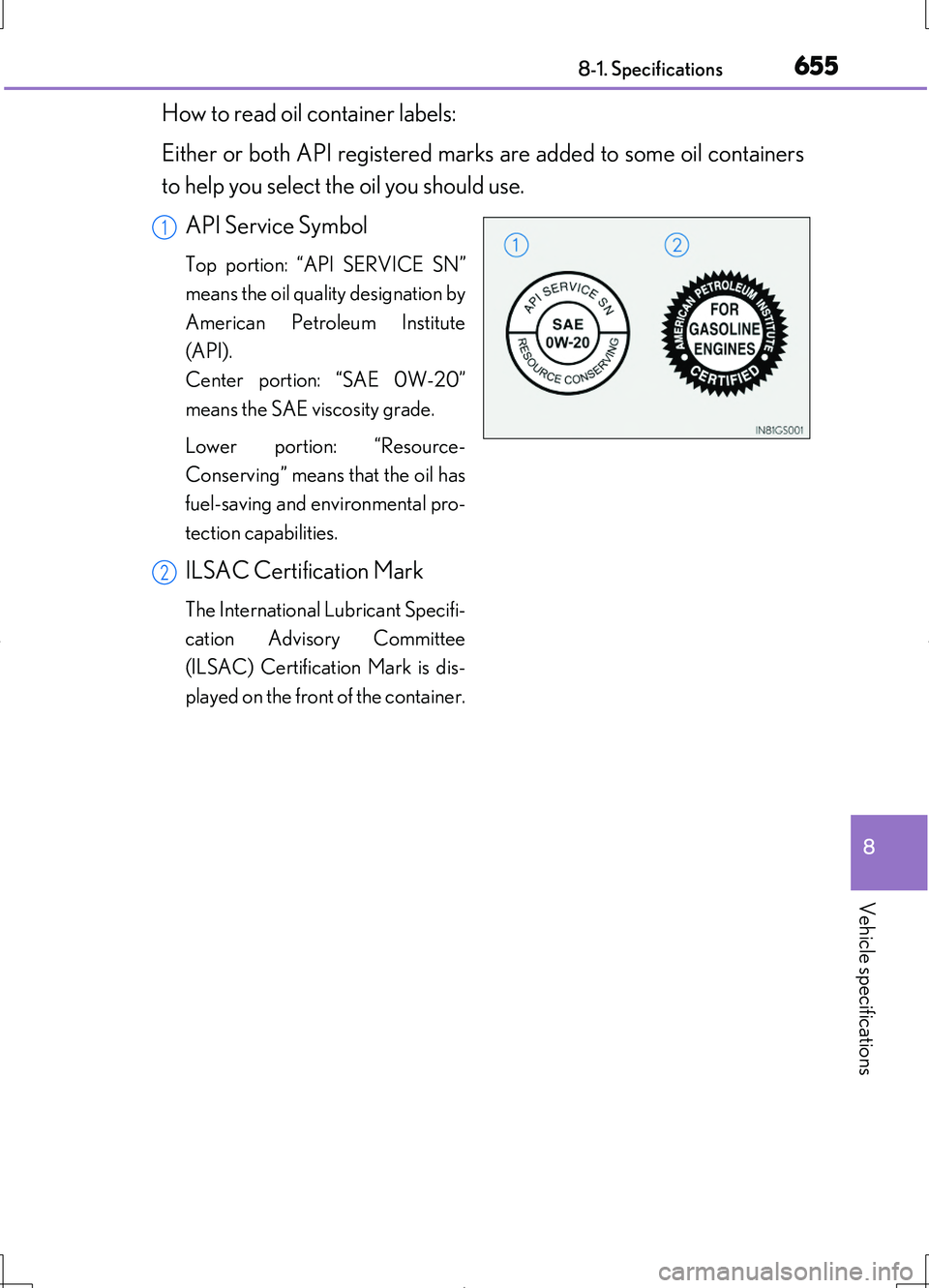

How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation by
American Petroleum Institute
(API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil has
fuel-saving and environmental pro-
tection capabilities.
ILSAC Certification Mark
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is dis-
played on the front of the container.
1
2

6568-1. Specifications
LS460/LS460L_GE (OM50G06E)
*1: For the Philippines, Vietnam, Hong Kong, Thailand, Singapore, Malaysia, the
Republic of Indonesia, Brunei, Macao, Taiwan and Korea
*2: For countries other than those listed above
Cooling system
Capacity
2WD
models
11.0 L (11.6 qt., 9.7 Imp. qt.)*1
11.8 L (12.5 qt., 10.4 Imp. qt.)*2
AWD
models11.1 L (11.7 qt., 9.8 Imp. qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
Ignition system
Model 1UR-FSE 1UR-FE
Spark plug
MakeDENSO FK20HBR11DENSO SK20HR11
Gap1.1 mm (0.043 in.)1.1 mm (0.043 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
