2016 LEXUS LS460L Owners Manual

4895-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)
CAUTION
■When the rear sunshade is being raised or lowered
Do not place fingers or other objects in the shade mechanism or in the opening as
injury may result.
NOTICE
■To prevent the battery from being discharged
Do not operate the rear sunshade when the engine is not running.
■To ensure normal operation of the sunshade
Observe the following precautions:
●Do not place excessive load on the motor or other components.
●Do not place objects where they may hinder opening and closing operations.
●Do not attach items to the rear sunshade.
●Keep the opening clean and clear of obstructions.
●Do not operate the rear sunshade continuously for long periods of time.

4905-6. Other interior features
LS460/LS460L_GE (OM50G06E)
■From front seat
Vehicles with power rear seat
Extend/retract
Vehicles with relaxation seat
Extend/retract
Rear door sunshades
: If equipped
The rear door sunshades can be ex tended and retracted by operating
any of the buttons shown below.

4915-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)

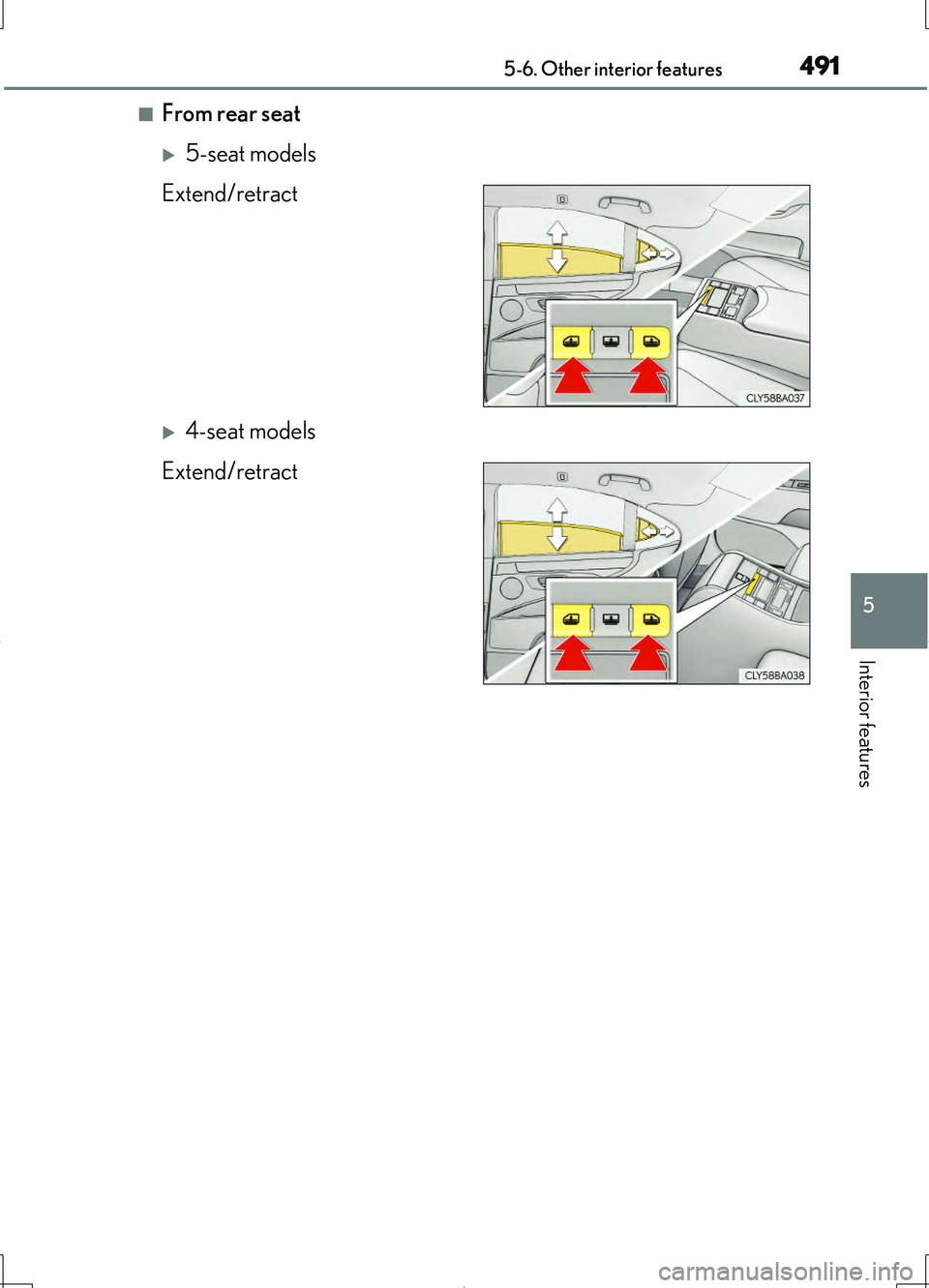

■From rear seat
5-seat models
Extend/retract
4-seat models
Extend/retract

4925-6. Other interior features
LS460/LS460L_GE (OM50G06E)
■Operating conditions
●The engine switch is in IGNITION ON mode.
●The rear windows are fully closed.
The rear door sunshades automatically retract when the rear windows are opened.
■Operating the rear door sunshades after turning the engine switch off
The rear door sunshades can be operated for approximately 60 seconds even after
the engine switch is switched to ACCESSORY mode or turned off.
■Jam protection function
If an object becomes caught between a rear door sunshade and the window frame,
the jam protection function will cause the sunshade to detach from its drive mecha-
nism and retract.
If the jam protection function operates when extending the rear door sunshades
Pressing the button will reconnect the sunshade.
Pressing the button again will allow the sunshades to be operated.
If the sunshade does not operate after the button is pressed, press the button again.
If the jam protection function operates when retracting the rear door sunshades
Press and hold the button to re-extend the rear door sunshades, and continue press-
ing for more than 5 seconds after the sunshades have fully extended and stopped.
■Button lock function
To prevent inadvertent operation, some buttons on the rear controller can be locked.
( P. 444)
■When reconnecting the battery
The rear door sunshades will always be retracted the first time the button is pressed.

4935-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)
CAUTION
■When the rear door sunshades are being extended or retracted
Do not place fingers or other objects in the shade mechanism or in the opening as
injury may result.
■Jam protection function
Never use any part of your body to intentionally activate the jam protection func-
tion.
NOTICE
■To prevent the battery from being discharged
Do not operate the rear door sunshades when the engine is not running.
■To ensure normal operation of the sunshades
Observe the following precautions:
●Do not place excessive load on the motor or other components.
●Do not place objects where they may hinder opening and closing operations.
●Do not attach items to the rear door sunshades.
●Keep the opening clean and clear of obstructions.
●Do not operate the rear door sunshades continuously for long periods of time.

4945-6. Other interior features
LS460/LS460L_GE (OM50G06E)
Pull down the armrest. (P. 483)
Open the armrest door.
The armrest door can be locked
and unlocked using the mechani-
cal key.
Unlock
Lock
Opening from the cabin
Open the inside trunk door from
the cabin, and load baggage or
other items.
Opening from the trunk
Open the inside trunk door from
the trunk, and load baggage or
other items.
Trunk storage extension
: If equipped
Long objects can be loaded in the vehicle by utilizing the trunk space
and rear seat area.
1
2
1
2
3
3

4955-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)

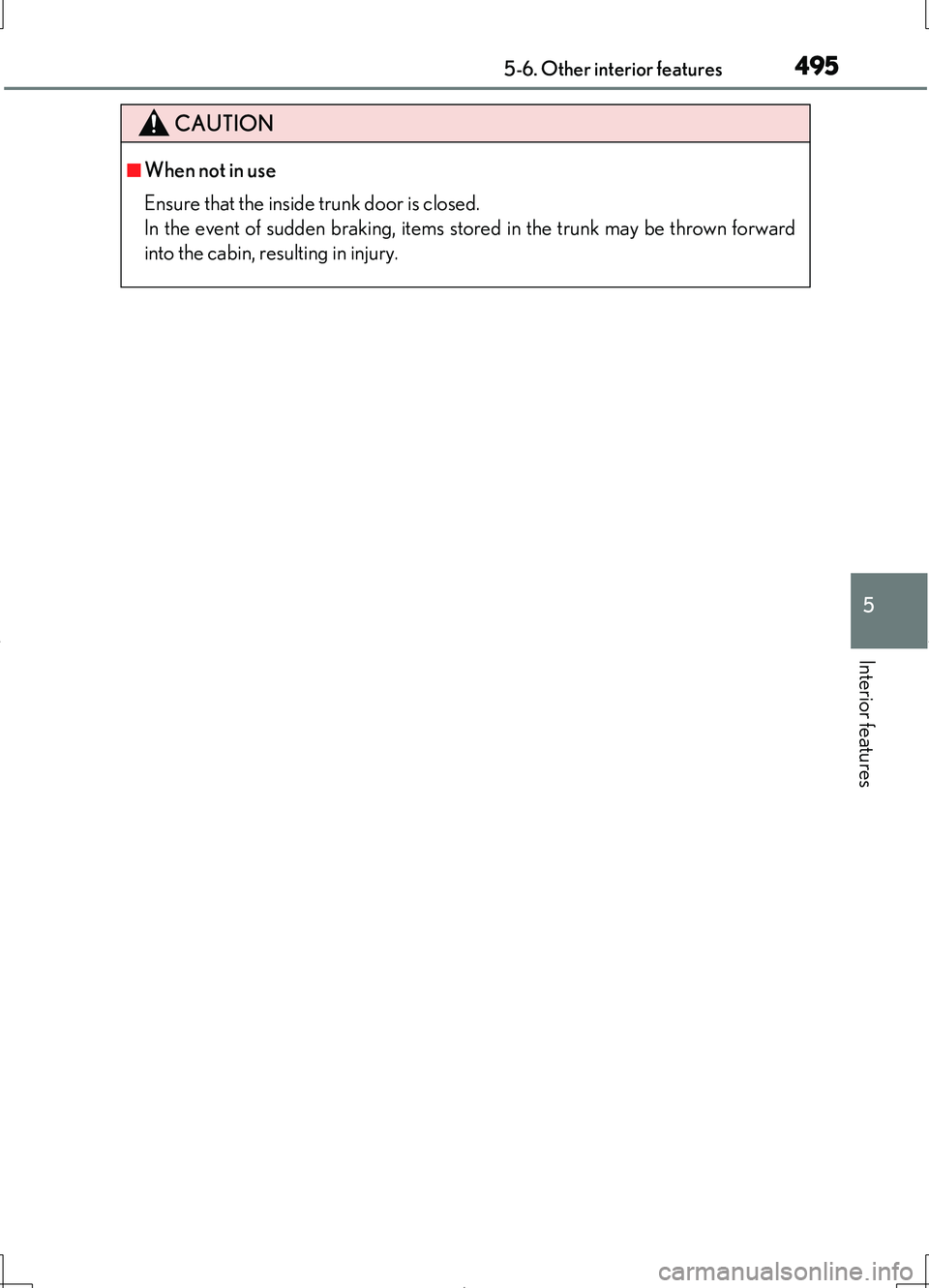

CAUTION
■When not in use
Ensure that the inside trunk door is closed.
In the event of sudden braking, items stored in the trunk may be thrown forward
into the cabin, resulting in injury.

4965-6. Other interior features
LS460/LS460L_GE (OM50G06E)

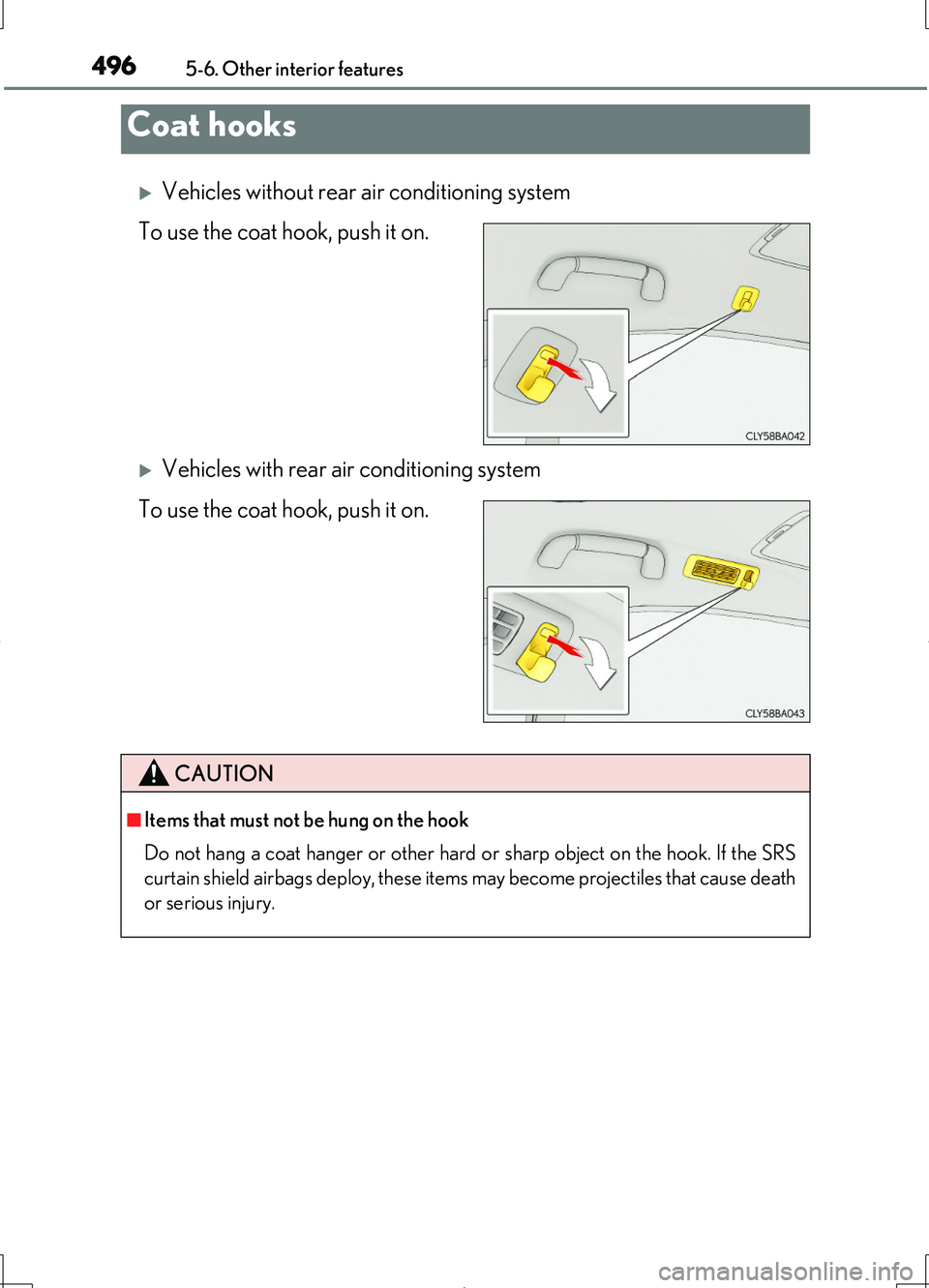

Vehicles without rear air conditioning system
To use the coat hook, push it on.
Vehicles with rear air conditioning system
To use the coat hook, push it on.
Coat hooks
CAUTION
■Items that must not be hung on the hook
Do not hang a coat hanger or other hard or sharp object on the hook. If the SRS
curtain shield airbags deploy, these items may become projectiles that cause death
or serious injury.
