2016 LEXUS LS460L climate control

TABLE OF CONTENTS4
LS460/LS460L_GE (OM50G06E)
5-1. Remote Touch screen
Remote Touch .............................406
12.3-inch display.......................... 413
5-2. Lexus Climate Concierge
Lexus Climate Concierge....... 417
5-3. Using the air conditioning
system and defogger
Front automatic air
conditioning system ................ 418
Rear air conditioning
system ......................................... 438
Rear window and outside
rear view mirror
defoggers .......................................... 445
Windshield wiper de-icer............446
5-4. Using the interior lights
Interior lights list.......................... 447
• Interior lights ..........................448
• Personal lights .......................449
5-5. Using the storage features
List of storage features ............. 451
• Glove box ...............................453
• Coin holder ............................454
• Door pockets .........................454
• Cup holders ...........................455
• Console box........................... 457
• Cool box/auxiliary
box .............................................459
• Auxiliary boxes .....................462
Trunk features..............................465
5-6. Other interior features
Sun visors and vanity
mirrors ......................................... 467
Clock ...............................................469
Ashtrays ......................................... 470
Cigarette lighters .........................471
Power outlets ............................... 473
Heated steering wheel ............ 476
Climate control seats/
seat heaters ...............................478
Armrest ......................................... 483
Retractable table ........................484
Rear sunshade.............................486
Rear door sunshades................490
Trunk storage extension ......... 494
Coat hooks ...................................496
Assist grips .................................... 497
Garage door opener............... 498
ERA-GLONASS...................... 504
5Interior features

23Pictorial index
LS460/LS460L_GE (OM50G06E)
Snow mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 266, 274
Driving mode select switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 354
Vehicle height adjustment switch*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 358
Remote Touch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 406
VSC (Vehicle Stability Control) OFF switch . . . . . . . . . . . . . . . . . . . . . . . P. 362
Seat and interior feature switches*3
Rear sunshade switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 486
Rear door sunshade switches*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 490
Front climate control seat switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 478
Rear seat return switch*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208
Front passenger’s power seat switches*2. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 199
*1: Refer to “Navigation and Multimedia System Owner’s Manual”
or “Navigation System Owner’s Manual”.
*2: If equipped
*3: Location of the switches varies according to the vehicle grade level.
1
2
3
4
5
6

31Pictorial index
LS460/LS460L_GE (OM50G06E)
Remote Touch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 406
Snow mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 266, 274
Driving mode select switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 354
Vehicle height adjustment switch*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 358
VSC (Vehicle Stability Control) OFF switch . . . . . . . . . . . . . . . . . . . . . . . P. 362
Seat and interior feature switches*3
Rear sunshade switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 486
Rear door sunshade switches*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 490
Front climate control seat switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 478
Rear seat return switch*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208
Front passenger’s power seat switches*2. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 199
*1: Refer to “Navigation and Multimedia System Owner’s Manual”
or “Navigation System Owner’s Manual”.
*2: If equipped
*3: Location of the switches varies according to the vehicle grade level.
1
2
3
4
5
6

38Pictorial index
LS460/LS460L_GE (OM50G06E)
■Rear interior switches
Rear air conditioning switches*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 438
Rear sunshade switch*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 486
Rear door sunshade switches*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 490
Rear audio switches*1, 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 444
Rear climate control seat switches*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 479
Rear seat heater switches*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 479
Power rear seat switches*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 205
Front passenger’s seat control switches*1, 2. . . . . . . . . . . . . . . . . P. 200, 209
Pelvic support seat switches*1, 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210
1
2
3
4
5

4004-6. Driving tips
LS460/LS460L_GE (OM50G06E)
Perform the following according to the driving conditions:
●Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away the
water immediately to prevent it from freezing.
●To ensure proper operation of the climate control system fan, remove
any snow that has accumulated on the air inlet vents in front of the wind-
shield.
●Check for and remove any excess ice or snow that may have accumu-
lated on the exterior lights, vehicle’s roof, chassis, around the tires or on
the brakes.
●Remove any snow or mud from the bottom of your shoes before getting
in the vehicle.
Accelerate the vehicle slowly, keep a safe distance between you and the
vehicle ahead, and drive at a reduced speed suitable to road conditions.
●Park the vehicle and move the shift lever to P without setting the park-
ing brake. The parking brake may free ze up, preventing it from being
released. If the vehicle is parked without setting the parking brake,
make sure to block the wheels.
Failure to do so may be dangerous because it may cause the vehicle to
move unexpectedly, possibly leading to an accident.
●If the vehicle is parked without setting the parking brake, confirm that
the shift lever cannot be moved out of P*.
*: The shift lever will be locked if it is attempted to be shifted from P to any other
position without depressing the brake pedal. If the shift lever can be shifted
from P, there may be a problem with the shift lock system. Have the vehicle
inspected by your Lexus dealer immediately.
Before driving the vehicle
When driving the vehicle
When parking the vehicle

405
5Interior features
LS460/LS460L_GE (OM50G06E)
5-1. Remote Touch screen
Remote Touch .............................406
12.3-inch display.......................... 413
5-2. Lexus Climate Concierge
Lexus Climate
Concierge ....................................417
5-3. Using the air conditioning
system and defogger
Front automatic air
conditioning system ................ 418
Rear air conditioning
system ......................................... 438
Rear window and outside
rear view mirror
defoggers ...................................445
Windshield wiper de-icer ....... 446
5-4. Using the interior lights
Interior lights list.......................... 447
• Interior lights ..........................448
• Personal lights ....................... 449
5-5. Using the storage features
List of storage features ............. 451
• Glove box ...............................453
• Coin holder ............................454
• Door pockets .........................454
• Cup holders ...........................455
• Console box........................... 457
• Cool box/auxiliary
box .............................................459
• Auxiliary boxes ..................... 462
Trunk features..............................465
5-6. Other interior features
Sun visors and vanity
mirrors ......................................... 467
Clock .............................................. 469
Ashtrays ......................................... 470
Cigarette lighters.........................471
Power outlets............................... 473
Heated steering wheel ............ 476
Climate control seats/seat
heaters......................................... 478
Armrest..........................................483
Retractable table........................ 484
Rear sunshade ............................486
Rear door sunshades ...............490
Trunk storage extension ......... 494
Coat hooks ................................... 496
Assist grips.................................... 497
Garage door opener ...............498
ERA-GLONASS ......................504

417
5
Interior features
LS460/LS460L_GE (OM50G06E)
5-2. Lexus Climate Concierge
Automatic air conditioning system (P. 424, 439)
Set the air conditioning system to automatic mode.
The temperature for the driver’s seat, front passenger’s seat and both rear seats
can be adjusted individually.
Climate control seats/seat heaters ( P. 478, 479)
Select “AUTO” mode on each seat.
Seat heater, off, ventilation or seat cooler is automatically selected according to
the set temperature of the air conditioning system, outside temperature, etc.
Heated steering wheel ( P. 476)
Turned on automatically according to the outside temperature and
cabin temperature.
Operates for a maximum of 30 minutes.
: If equipped
Lexus Climate Concierge
The climate control seats/seat heater on each seat and heated steer-
ing wheel are automatically controlled according to the set tempera-
ture of the air conditioning system, outside temperature, cabin
temperature, etc. Lexus Climate Co ncierge allows a comfortable con-
dition to be maintained wi thout adjusting each system.
1
2
3

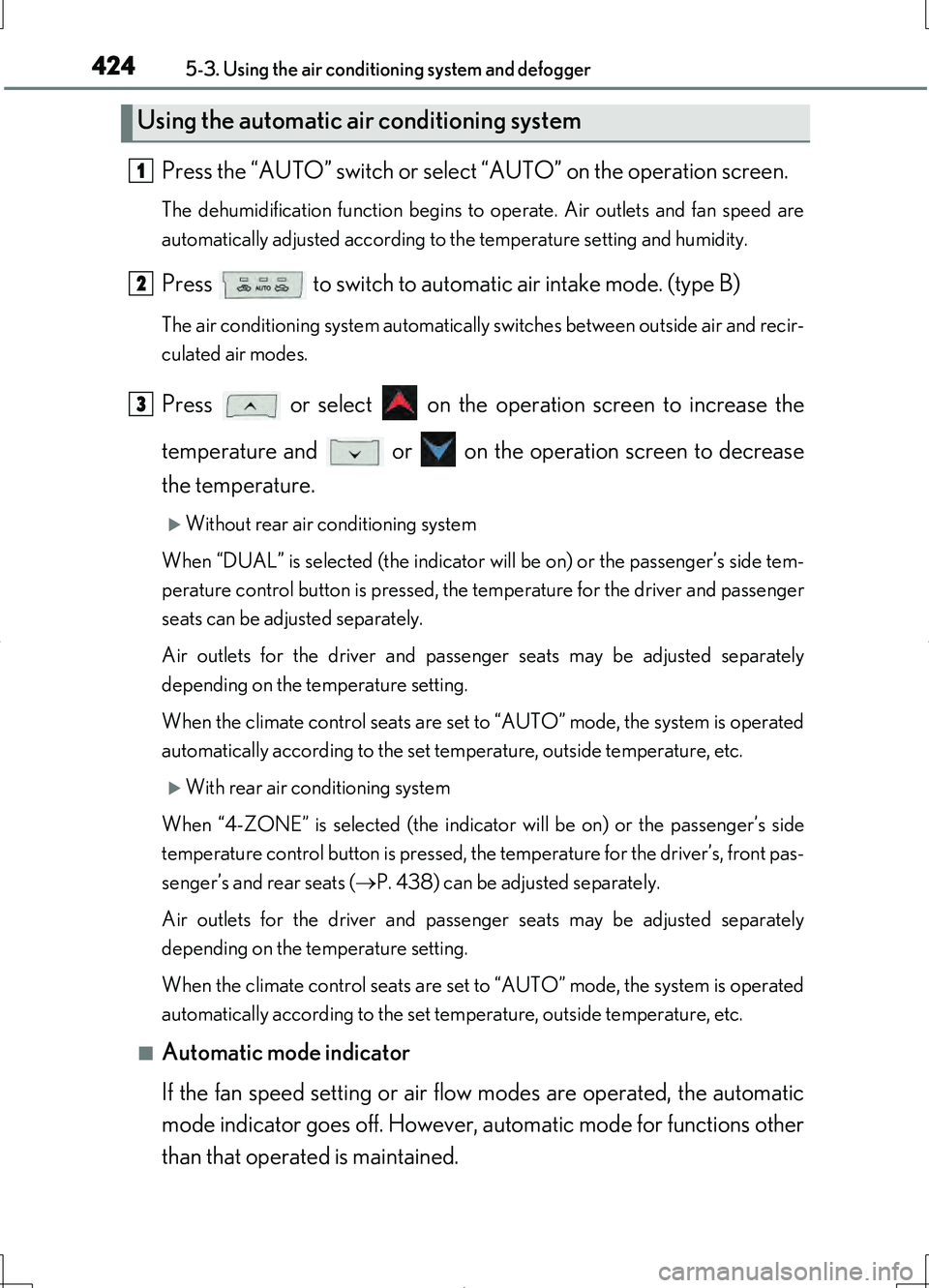

4245-3. Using the air conditioning system and defogger
LS460/LS460L_GE (OM50G06E)
Press the “AUTO” switch or select “AUTO” on the operation screen.
The dehumidification function begins to operate. Air outlets and fan speed are
automatically adjusted according to the temperature setting and humidity.
Press to switch to automatic air intake mode. (type B)
The air conditioning system automatically switches between outside air and recir-
culated air modes.
Press or select on the operation screen to increase the
temperature and or on the operation screen to decrease
the temperature.
Without rear air conditioning system
When “DUAL” is selected (the indicator will be on) or the passenger’s side tem-
perature control button is pressed, the temperature for the driver and passenger
seats can be adjusted separately.
Air outlets for the driver and passenger seats may be adjusted separately
depending on the temperature setting.
When the climate control seats are set to “AUTO” mode, the system is operated
automatically according to the set temperature, outside temperature, etc.
With rear air conditioning system
When “4-ZONE” is selected (the indicator will be on) or the passenger’s side
temperature control button is pressed, the temperature for the driver’s, front pas-
senger’s and rear seats ( P. 438) can be adjusted separately.
Air outlets for the driver and passenger seats may be adjusted separately
depending on the temperature setting.
When the climate control seats are set to “AUTO” mode, the system is operated
automatically according to the set temperature, outside temperature, etc.
■Automatic mode indicator
If the fan speed setting or air flow modes are operated, the automatic
mode indicator goes off. However, automatic mode for functions other
than that operated is maintained.
Using the automatic air conditioning system
1
2
3
