2016 LEXUS LS460L climate control

4795-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)

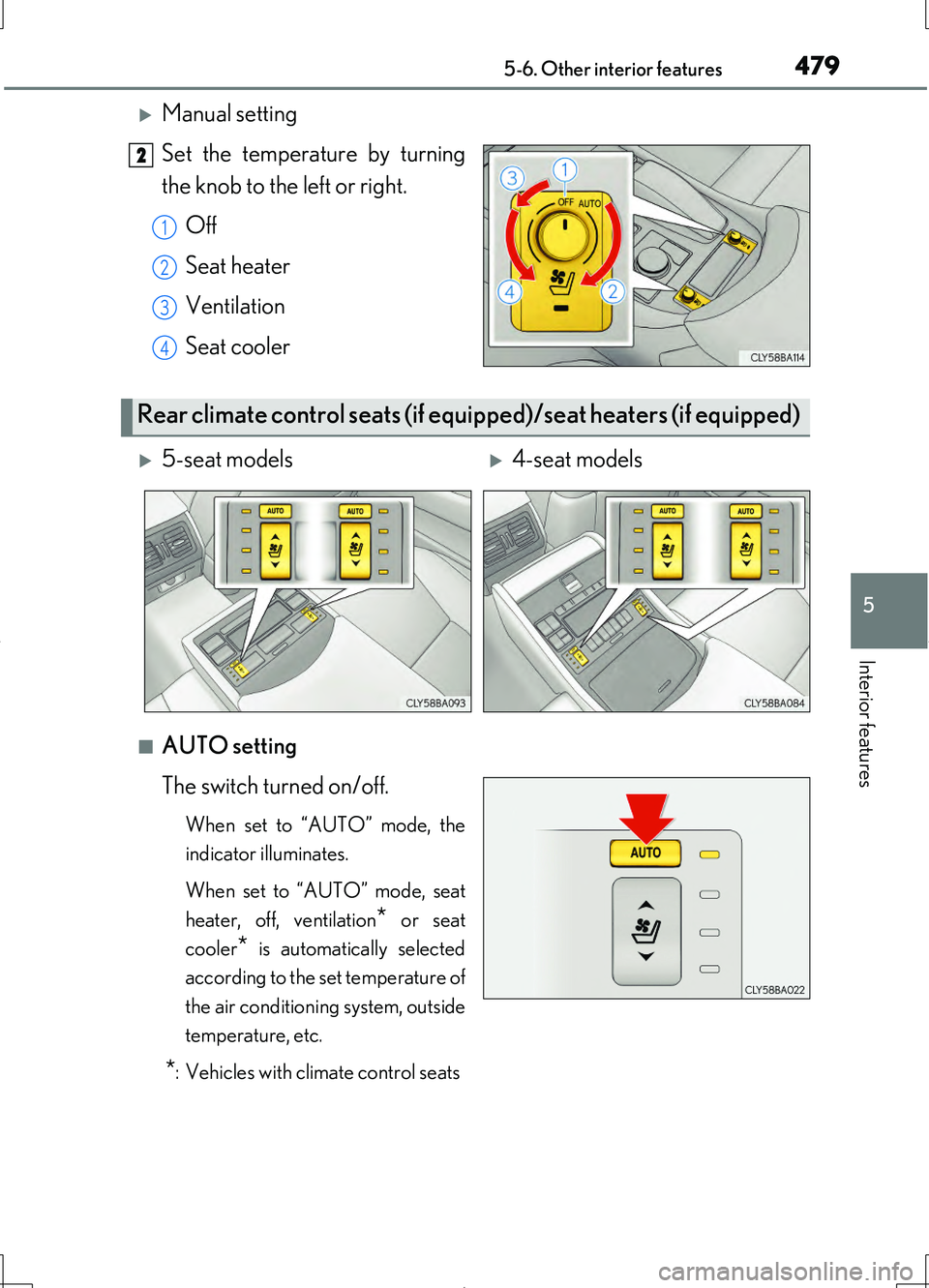

Manual setting
Set the temperature by turning
the knob to the left or right.
Off
Seat heater
Ventilation
Seat cooler
■AUTO setting
The switch turned on/off.
When set to “AUTO” mode, the
indicator illuminates.
When set to “AUTO” mode, seat
heater, off, ventilation* or seat
cooler* is automatically selected
according to the set temperature of
the air conditioning system, outside
temperature, etc.
*: Vehicles with climate control seats
2
1
2
3
4
Rear climate control seats (if eq uipped)/seat heaters (if equipped)
5-seat models4-seat models

4805-6. Other interior features
LS460/LS460L_GE (OM50G06E)

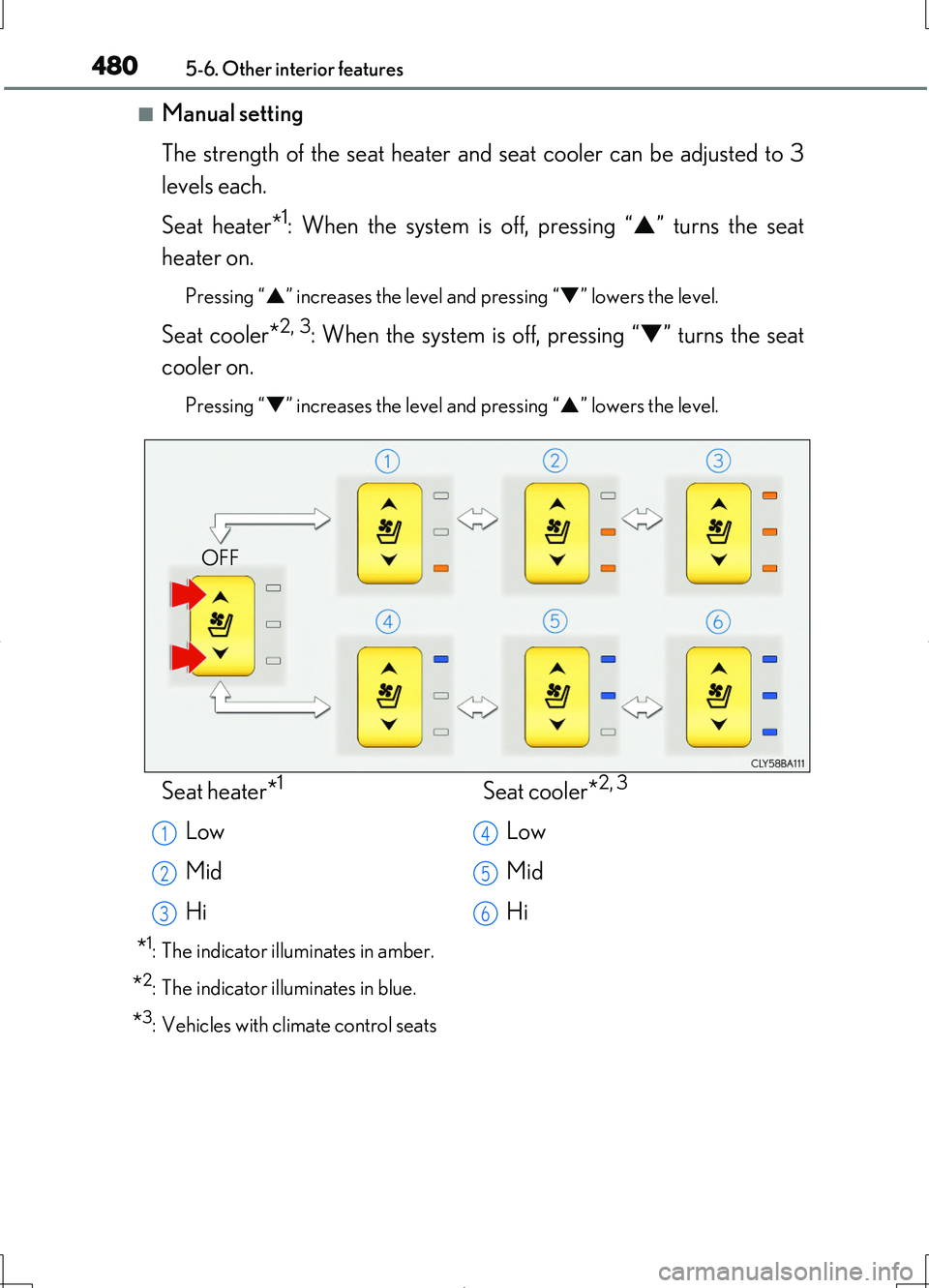

■Manual setting
The strength of the seat heater and seat cooler can be adjusted to 3
levels each.
Seat heater*1: When the system is off, pressing “ ” turns the seat
heater on.
Pressing “ ” increases the level and pressing “” lowers the level.
Seat cooler*2, 3: When the system is off, pressing “” turns the seat
cooler on.
Pressing “ ” increases the level and pressing “” lowers the level.
*1: The indicator illuminates in amber.
*2: The indicator illuminates in blue.
*3: Vehicles with climate control seats
OFF
Seat heater*1
Low
Mid
Hi
Seat cooler*2, 3
Low
Mid
Hi
1
2
3
4
5
6

4815-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)
■Operating condition
The engine switch is in IGNITION ON mode.
■Climate control seat/seat heater operation
Depending on the outside temperature and the temperature of the seat surface,
there are cases when heating operation is stronger than usual.
■Operating the rear climate control seats from the front seats
 P. 429
■Disabling the switches on the rear controller
 P. 431
■Replacing the air filters
Filters are installed in the climate control se ats. For replacement of the filters, contact
your Lexus dealer.
■Customization
Automatic operation settings can be customized. (Customizable features P. 667)

4825-6. Other interior features
LS460/LS460L_GE (OM50G06E)
CAUTION
■Burns/excessive cooling
●Use caution when seating the following persons in a seat to avoid the possibility of
burns or excessive cooling:
• Babies, small children, elderly persons, sick persons and persons with a physi-
cal disability
• Persons who have sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs which induce sleep, such as sleeping
drugs and cold remedies
●Do not cover the seat with anything when using the climate control seat or seat
heater. Using the climate control seat or seat heater with a blanket or cushion
may increase or decrease the temperature of the seat, resulting in overheating or
overcooling.
●Do not use the climate control seat or seat heater more than necessary. Doing so
may cool the occupants excessively or may cause minor burns or overheating.
NOTICE
■To prevent damage to the climate control seat and seat heater
Do not put heavy objects that have an uneven surface on the seat and do not stick
sharp objects, such as needles and nails, into the seat.
■To prevent the battery from being discharged
Do not leave the system on longer th an necessary when the engine is off.

5746-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)
■Checking interval
Front air conditioning filter
Inspect and replace the air conditioning filter when a message is appeared on the
multi-information display. In dusty areas or areas with heavy traffic flow, early
replacement may be required.
Rear air conditioning filter (if equipped)
Replace every 15000 km (9000 miles).
■If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
■After changing the front air conditioning filter
The front air conditioning filter maintenance data should be reset. Perform the fol-
lowing procedures:
Turn the engine switch to IGNITION ON mode.
Press and hold (on the air conditioning panel) for 4 seconds or more.
A buzzer will sound to indicate that the maintenance data has been successfully
reset.
■Rear air conditioning filter (if equipped)
If it is necessary to clean or replace the filter, contact your Lexus dealer.
■Climate control seat filter (if equipped)
Filters are installed in the seats. When it is necessary to clean or replace the filters,
contact your Lexus dealer.
1
2
NOTICE
■When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the system.

6768-2. Customization
LS460/LS460L_GE (OM50G06E)
Climate
control
seats*2/
seat heat-
ers*2
( P. 478)
Front climate control seat/
seat heater temperature
adjustment during auto-
matic operation (individual
seat adjustment avail-
able)*2
Level 3
(standard)
Level 1
(cool) to
level 5
(warm)
O—O
Rear climate control seat/
rear seat heater start-up
conditions when engine
switch is in the ON posi-
tion (individual seat adjust-
ment available)*2
OffOn
(AUTO)O—O
Function that warms seats
faster than usual (individual
seat adjustment available)
OnOff——O
Time until function that
warms seats faster than
usual turns off (individual
seat adjustment available)
Standard
Short
——O
Long
Heated
steering
wheel*2
( P. 476)
Automatic steering wheel
heatingOnOffO—O
Time until automatic steer-
ing wheel heating turns off
Level 3
(standard)
Level 1
(short) to
level 5
(long)
O—O
ItemFunctionDefault
setting
Custom-
ized setting123
