2016 LEXUS LS460L Owners Manual

2173-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

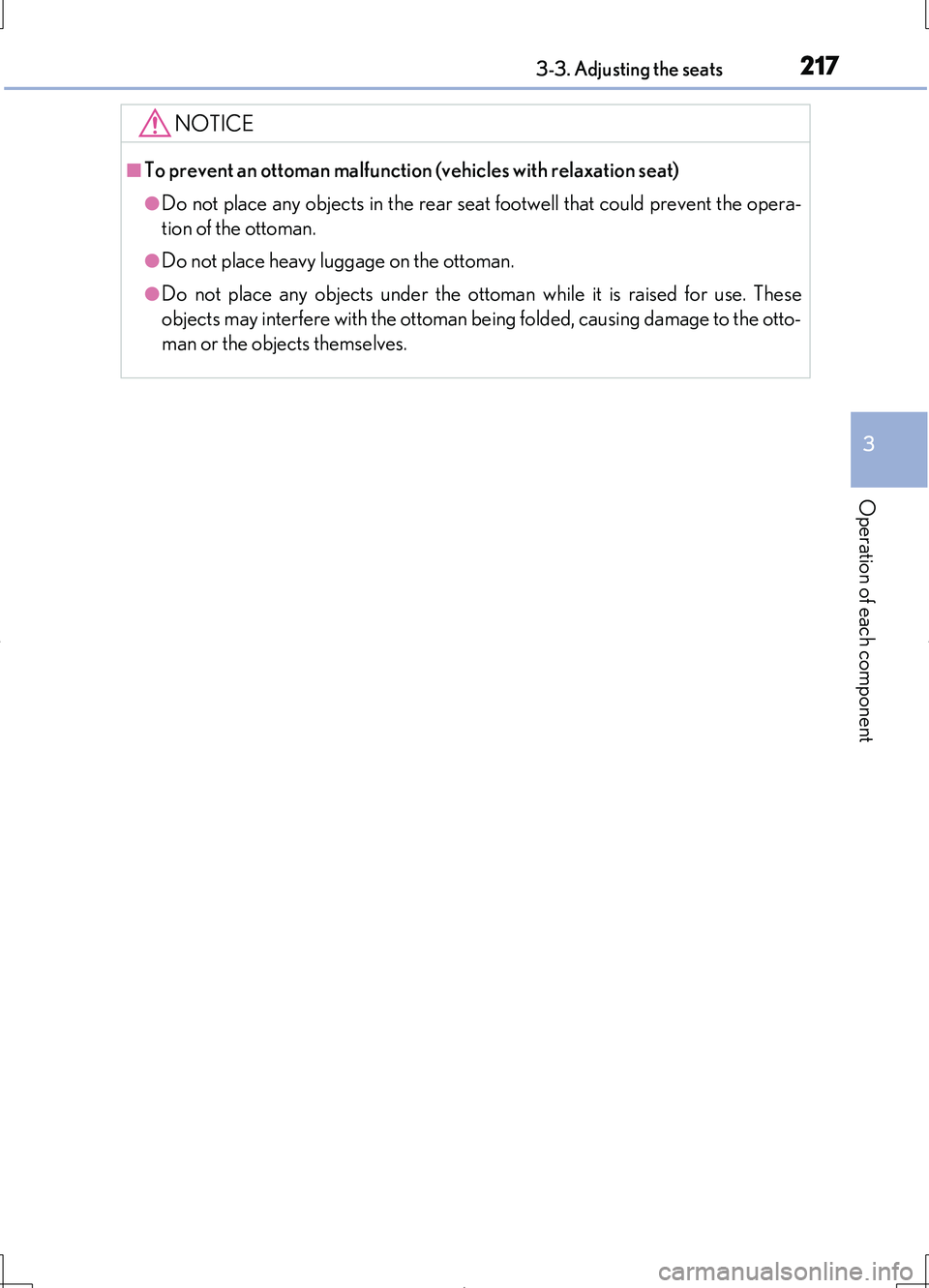

NOTICE
■To prevent an ottoman malfunction (vehicles with relaxation seat)
●Do not place any objects in the rear seat footwell that could prevent the opera-
tion of the ottoman.
●Do not place heavy luggage on the ottoman.
●Do not place any objects under the ottoman while it is raised for use. These
objects may interfere with the ottoman being folded, causing damage to the otto-
man or the objects themselves.

2183-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)
Your preferred driving position (the position of the driver’s seat, steering
wheel, outside rear view mirrors and he ight of seat belt shoulder anchor)
can be recorded and recalled by pressing a switch.
Three different driving positions can be recorded into memory.
■Recording procedure
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Adjust the driver’s seat, steering wheel, outside rear view mirrors and
seat belt shoulder anchor height to the desired positions.
Press the “SET” switch, then
within 3 seconds press switch
“1”, “2” or “3” until the buzzer
sounds.
If the selected switch has already
been preset, the previously
recorded position will be overwrit-
ten.
To record the position of the front passenger’s seat, adjust the front pas-
senger’s seat to the desired posi tion and perform step using the
switches on the front passenger’s side.
Driving position memory
This feature automatically adjusts the front seats, steering wheel, out-
side rear view mirrors and height of seat belt shoulder anchor to suit
your preferences.
Driving position memory
1
2
3
4
4

2193-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
■Recall procedure
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Press one of the switches for
the driving position you want
to recall until the buzzer
sounds.
■When you want to stop the position recall operation part-way through
Perform any of the following operations:
●Press the “SET” switch.
●Press switch “1”, “2” or “3”.
●Operate any of the seat adjustment switches (only cancels seat position recall).
●Operate the tilt and telescopic steering control switch (only cancels steering wheel
position recall).
●Operate the seat belt shoulder anchor height adjusting switch (only cancels height
of seat belt shoulder anchor recall).
■Front passenger’s seat position recall limitations
Vehicles with front passenger ottoman:
The memorized position will only be recalled if the front passenger ottoman is in a
position higher than the memorized position. It will not move in an upward direction.
Vehicles with relaxation seat:
When retractable table (4-seat models) or ottoman is used, rearward memories
cannot be recalled.
■Automatic front passenger ottoman adjustment (if equipped)
While the memorized position is being recalled, if it appears that the front edge of
the cushion will make contact with the area surrounding the instrument panel, the
front passenger ottoman will be automatically stowed.
1
2
3

2203-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)
■Operating the driving position memory after turning the engine switch off
Driver’s seat:
Recorded driving positions (except the steering wheel position) can be recalled up
to 180 seconds after the driver’s door is opened and up to 60 seconds after it is
closed again.
Front passenger’s seat:
Recorded seat positions can be recalled up to 180 seconds after the front passen-
ger’s door is opened.
■In order to correctly use the driving position memory function
If a seat position is already in the furthest possible position and the seat is operated in
the same direction, the recorded position may be slightly different when it is recalled.
Each electronic key (including a card key) can be registered to recall your
preferred driving position.
■Registering procedure
Record your driving position to switch “1”, “2” or “3” before performing
the following:
Using the wireless remote control
Turn the engine switch off and close the driver’s door.
While pressing the desired
switch (“1”, “2” or “3”), press on the wireless remote
control until the buzzer
sounds.
To prevent unintended triggering of the alarm, open and close a door
once after a driving position has been recorded. (If a door is not
opened within 30 seconds after
is pressed, the doors will be
locked again and the alarm will automatically be set.)
In case that the alarm is triggered, immediately stop the alarm.
(  P. 113)
Memory recall function (driver’s side only)
1
2

2213-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
Using the door lock switch
Carry only one of the keys (including the card key) to which you want to
link the driving position. If 2 or more keys are in the vehicle, the driving
position cannot be linked properly.
Turn the engine switch off and close the driver’s door.
While pressing the recalled
switch, press and hold the door
lock switch (either lock or
unlock) until the buzzer
sounds.
■Recall procedure
Carry the electronic key that has be en registered to the driving posi-
tion, and then unlock and open the driver’s door using the smart
entry & start system or wireless remote control.
The driving position will move to the recorded position (not including the
steering wheel). However, the seat will move to a position slightly behind the
recorded position in order to make entering the vehicle easier.
If the driving position is in a position that has already been recorded, the seat
and outside rear view mirrors will not move.
Turn the engine switch to ACCESSO RY mode or fasten your seat-
belt.
The seat and steering wheel will move to the recorded position.
1
2
1
2

2223-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)
■Cancelation procedure
Using the wireless remote control
Turn the engine switch off and close the driver’s door.
While pressing the “SET” switch, press on the wireless remote
control until the buzzer sounds.
Using the door lock switch
Carry only the key you want to cancel and then close the driver’s door.
If 2 or more keys are in the vehicl e, the driving position cannot be can-
celed properly.
Turn the engine switch off and close the driver’s door.
While pressing the “SET” switch, press the lock or unlock side on the
door lock switch until the buzzer sounds.
■Recalling the driving position using the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be different depending on the key being car-
ried.
●If a door other than the driver’s door is unlocked with the smart entry & start sys-
tem, the driving position cannot be recalled. In this case, press the driving position
switch which has been set.
■Seat operation automatic stop function (vehicles with relaxation seat)
If a front seat is likely to come into contact with the retractable table (4-seat models)
or the ottoman during seat operation or activation of the power easy access system,
a buzzer will sound and seat slide operation will be stopped partway.
(A warning message will be shown on the multi-information display.)
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passen-
ger or squeeze your body against the steering wheel.
1
2
1
2

2233-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
Turn the engine switch to IGNITION ON mode.
Adjust the rear seat to the desired position.
Press the “SET” button until the
signal beeps.
If the preset is being used, the previ-
ously recorded seat position will be
overwritten.
Press the “M” button until the signal
beeps.
Relaxation seat:
The memorized position will only be
recalled if the ottoman is in a position
higher than the memorized position. It
will not move in an upward direction.
Rear seat position memory
The rear seat position can be memorized and recalled with the touch of
a button.
Entering a position to memory
1
2
3
Recalling the memorized position
: If equipped

2243-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)
Pressing the “C” button will disable
the seat position recall or seat
return function.
The indicator light comes on when the
function is disabled.
Pressing the button again will enable
the seat position recall or seat return
function.
■Seat return function linked to the door opening operation
●Operating conditions
The engine switch is in IGNITION ON mode.
●Canceling operation partway through
During the seat return operation, performing either of the following actions can-
cels the operation:
• Pressing the “SET”, “M” or “C” button
• Pressing any of the seat adjustment switches
●Seat return operation after turning the engine switch off
The seat will automatically return to the neutral position if the door is opened
within approximately 45 seconds of the engine switch being turned off.
Disabling the seat return function
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the rear passengers do not strike the front
seats.
