2016 LEXUS LS460L Owners Manual

5136-1. Maintenance and care
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
NOTICE
■To prevent paint deterioration and corrosion on the body and components (alu-
minum wheels etc.)
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the paint
surface
• After driving in an area contaminated with soot, oily smoke, mine dust, iron
powder or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
●If the paint is chipped or scratched, have it repaired immediately.
●To prevent the wheels from corroding, remove any dirt and store in a place with
low humidity when storing the wheels.
■Cleaning the exterior lights
●Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
●Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
■When using an automatic car wash
Set the wiper switch to the off position.
If the wiper switch is in “AUTO”, the wipers may operate and the wiper blades may
be damaged.
■When using a high pressure car wash
●When washing the vehicle, do not spray the camera or its surrounding area
directly with a high pressure washer. Shock applied from high pressure water may
cause the device to not operate normally.
●Do not bring the nozzle tip close to boot s (rubber or resin manufactured cover),
connectors or the following parts. The parts may be damaged if they come into
contact with high-pressure water.
• Traction related parts
• Steering parts
• Suspension parts
• Brake parts

5146-1. Maintenance and care
LS460/LS460L_GE (OM50G06E)
●Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces with
a cloth dampened with lukewarm water.
●If dirt cannot be removed, wipe it off with a soft cloth dampened with
neutral detergent diluted to approximately 1%.
Wring out any excess water from the cloth and thoroughly wipe off
remaining traces of detergent and water.
●Remove dirt and dust using a vacuum cleaner.
●Wipe off any excess dirt and dust with a soft cloth dampened with
diluted detergent.
Use a diluted water solution of approximately 5% neutral wool detergent.
●Wring out any excess water from the cloth and thoroughly wipe off all
remaining traces of detergent.
●Wipe the surface with a dry, soft cloth to remove any remaining mois-
ture. Allow the leather to dry in a shaded and ventilated area.
●Remove dirt and dust using a vacuum cleaner.
●Wipe it off with a soft cloth dampened with neutral detergent diluted to
approximately 1%.
●Wring out any excess water from the cloth and thoroughly wipe off
remaining traces of detergent and water.

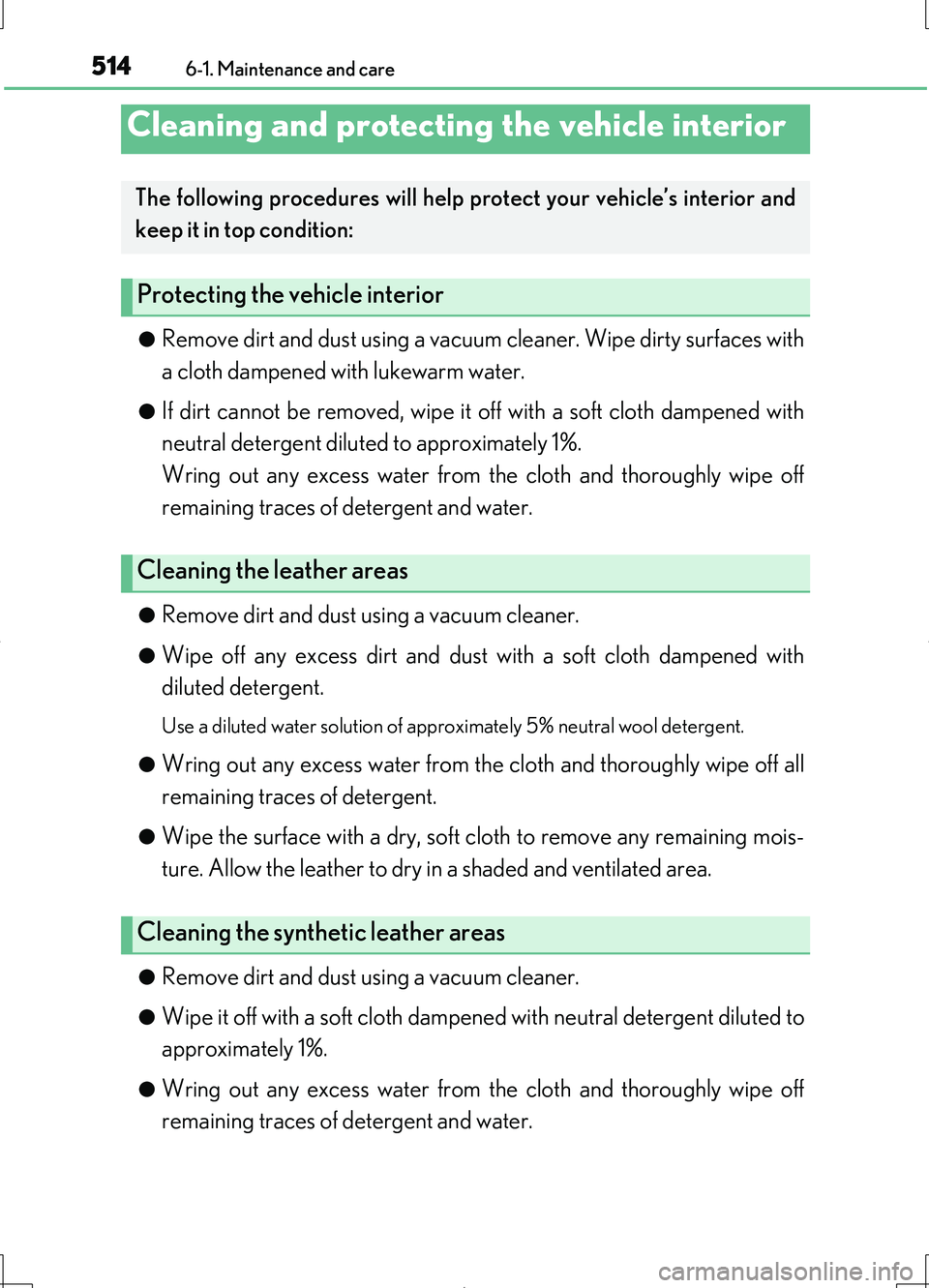

Cleaning and protecting the vehicle interior
The following procedures will help protect your vehicle’s interior and
keep it in top condition:
Protecting the vehicle interior
Cleaning the leather areas
Cleaning the synthetic leather areas

5156-1. Maintenance and care
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
■Caring for leather areas
Lexus recommends cleaning the interior of the vehicle at least twice a year to main-
tain the quality of the vehicle’s interior.
■Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a sponge or
brush to apply the foam. Rub in overlapping circles. Do not use water. Wipe dirty sur-
faces and let them dry. Excellent results are obtained by keeping the carpet as dry as
possible.
■Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also check the
belts periodically for excessive wear, fraying or cuts.
CAUTION
■Water in the vehicle
●Do not splash or spill liquid in the vehicle.
Doing so may cause electrical components etc. to malfunction or catch fire.
●Do not get any of the SRS components or wiring in the vehicle interior wet.
( P. 53)
An electrical malfunction may cause the airbags to deploy or not function prop-
erly, resulting in death or serious injury.
■Cleaning the interior (especially instrument panel)
Do not use polish wax or polish cleaner. The instrument panel may reflect off the
windshield, obstructing the driver’s view and leading to an accident, resulting in
death or serious injury.
■Cleaning the leather areas of the instrument panel
Do not use any protective agents (coatings etc). Doing so may cause the instru-
ment panel to reflect onto the windshield, obstructing the front view and possibly
causing an accident.

5166-1. Maintenance and care
LS460/LS460L_GE (OM50G06E)
NOTICE
■Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehicle inte-
rior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline, alkaline
or acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alcohol
●Do not use polish wax or polish cleaner. The instrument panel’s or other interior
part’s painted surface may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sun light for extended periods of time. Park
the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the upholstery, as
they may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes into
contact with electrical components such as the audio system above or under the
floor of the vehicle. Water may also cause the body to rust.
■When cleaning the inside of the windshield (vehicles with LKA [Lane-Keeping
Assist])
Be careful not to touch the camera sensor ( P. 344).
If the camera is accidentally scratched or hit, LKA may not operate properly or
may cause a malfunction.
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause damage to
the rear window defogger heater wires or antenna. Use a cloth dampened with
lukewarm water to gently wipe the window clean. Wipe the window in strokes
running parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.

517
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
6-2. Maintenance
●Scheduled maintenance should be performed at specified intervals
according to the maintenance schedule.
The interval for scheduled maintenance is determined by the odometer reading
or the time interval, whichever comes first, shown in the schedule.
Maintenance beyond the last period should be performed at the same intervals.
●Where to go for maintenance service?
It makes good sense to take your vehicle to your local Lexus dealer for mainte-
nance service as well as other inspections and repairs.
Lexus technicians are well-trained specialists receiving the latest service informa-
tion through technical bulletins, service tips and in-dealership training programs.
They learn to work on Lexus before they work on your vehicle, rather than while
they are working on it. Doesn’t that seem like the best way?
Your Lexus dealer has invested a lot of money in special Lexus tools and service
equipment. It helps them to do the job better and at less cost.
Your Lexus dealer’s service department will perform all of the scheduled mainte-
nance on your vehicle reliably and economically.
Rubber hoses (for cooling and heater system, brake system and fuel system)
should be inspected by a qualified technician according to the Lexus mainte-
nance schedule.
Rubber hoses are particularly important maintenance items. Have any deterio-
rated or damaged hoses replaced immediately. Note that rubber hoses will dete-
riorate with age, resulting in swelling, chafing or cracking.
Maintenance requirements
To ensure safe and economical driving, day-to-day care and regular
maintenance are essential. Lexus recommends the following mainte-
nance:
Scheduled maintenance

5186-2. Maintenance
LS460/LS460L_GE (OM50G06E)
What about do-it-yourself maintenance?
Many of the maintenance items are easy to do yourself if you have a little mechan-
ical ability and a few basic automotive tools. Simple instructions for how to per-
form them are presented in this section.
Note, however, that some maintenance tasks require special tools and skills.
These are best performed by qualified technicians. Even if you are an experi-
enced do-it-yourself mechanic, we recommend that repairs and maintenance be
conducted by your Lexus dealer who will keep a record of maintenance on your
vehicle. This record could be helpful should you ever require Warranty Service.
■Does your vehicle need repairs?
Be on the alert for changes in performance and sounds, and visual tip-offs that indi-
cate service is needed. Some important clues are:
●Engine missing, stumbling or pinging
●Appreciable loss of power
●Strange engine noises
●A fluid leak under the vehicle (However, water dripping from the air conditioning
system after use is normal.)
●Change in exhaust sound (This may indicate a dangerous carbon monoxide leak.
Drive with the windows open and have the exhaust system checked immediately.)
●Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
●Vehicle pulls to one side when driven straight on a level road
●Strange noises related to suspension movement
●Loss of brake effectiveness, spongy feeling brake pedal, pedal almost touches the
floor, vehicle pulls to one side when braking
●Engine coolant temperature continually higher than normal ( P. 125)
If you notice any of these clues, take your vehicle to your Lexus dealer as soon as
possible. Your vehicle may need adjustment or repair.
Do-it-yourself maintenance

5196-2. Maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
CAUTION
■If your vehicle is not properly maintained
Improper maintenance could result in serious damage to the vehicle and possible
death or serious injury.
■Handling of the battery
Battery posts, terminals and related accessories contain lead and lead compounds
which are known to cause brain damage. Wash your hands after handling.
( P. 549)

5206-2. Maintenance
LS460/LS460L_GE (OM50G06E)
Scheduled maintenance
Perform maintenance by the schedule as follows:
Maintenance schedule requirements
Your vehicle needs to be serviced according to the normal
maintenance schedule. (See “Maintenance schedule”.)
If you mainly operate your vehicle under one or more of the special
operating conditions below, some of the maintenance schedule items
need to be serviced more frequently in order to keep your vehicle in
good condition. (See “Additional maintenance schedule”.)
A. Road Conditions
1. Operating on rough or muddy
roads, or roads with melted
snow
2. Operating on dusty roads
(Roads in areas where their
pavement rate is low, or a
cloud of dust often arises and
the air is dry)
B. Driving Conditions
1. Heavily loaded vehicle (For
example, using a car top car-
rier and so forth.)
2. Repeated short trips less than
8 km (5 miles) and outside
temperatures remain below
freezing (Engine temperature
will not reach to normal tem-
perature)
3. Extensive idling and/or low
speed driving for a long dis-
tance such as police, taxi or
door-to-door delivery use
4. Continuous high speed driving
(80% or more of maximum
vehicle speed) for over 2 hours
