Page 57 of 708

571-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)
CAUTION
■SRS airbag precautions
●Do not use seat accessories which cover the parts where the SRS side airbags
and SRS seat cushion airbag inflate as they may interfere with inflation of the SRS
airbags. Such accessories may prevent the side airbags and SRS seat cushion air-
bag from activating correctly, disable th e system or cause the side airbags and
SRS seat cushion airbag to inflate accidentally, resulting in death or serious injury.
●Do not strike or apply significant levels of force to the area of the SRS airbag
components. Doing so can cause the SRS airbags to malfunction.
●Do not touch any of the component parts immediately after the SRS airbags have
deployed (inflated) as they may be hot.
●If breathing becomes difficult after the SRS airbags have deployed, open a door
or window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off
any residue as soon as possible to prevent skin irritation.
●If the areas where the SRS airbags are stored, such as the steering wheel pad and
front and rear pillar garnishes are damaged or cracked, have them replaced by
your Lexus dealer.
●Vehicles with front passenger occupant classification system:
Do not place anything, such as a cushion, on the front passenger’s seat. Doing so
will disperse the passenger’s weight, which prevents the sensor from detecting
the passenger’s weight properly. As a result, the SRS front passenger airbag may
not deploy in the event of a collision.
Page 58 of 708
581-1. For safe use
LS460/LS460L_GE (OM50G06E)
CAUTION
■Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perfor m any of the following modifications with-
out consulting your Lexus dealer. The SRS airbags may malfunction or deploy
(inflate) accidentally, causing death or serious injury.
●Installation, removal, disassembly and repair of the SRS airbags
●Repairs, modifications, removal or replacement of the steering wheel, instrument
panel, dashboard, seats or seat upholstery, front, side and rear pillars or roof side
rails
●Repairs or modifications of the front fend er, front bumper, or side of the occupant
compartment
●Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows, winches
●Modifications to the vehicle’s suspension system
●Installation of electronic devices such as mobile two-way radios (RF-transmitter)
and CD players
Page 59 of 708

591-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)
■If the SRS airbags deploy (inflate)
●Slight abrasions, burns, bruising etc., may be sustained from SRS airbags, due to
the extremely high speed deployment (inflation) by hot gases.
●A loud noise and white powder will be emitted.
●Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as
the seats, parts of the front and rear pillars, and roof side rails, may be hot for sev-
eral minutes. The airbag itself may also be hot.
●The windshield may crack.
●Vehicles with ERA-GLONASS: If the SRS airbags deploy, the system is designed
to send an emergency call* to the Public Safety Answering Point (PSAP), notifying
them of the vehicle's location (without needing to push the “SOS” button) and an
agent will attempt to speak with the occupants to ascertain the level of emergency
and assistance required. If the occupants are unable to communicate, the agent
automatically treats the call as an emergency and helps to dispatch the necessary
emergency services. ( P. 504)
*: In some cases, the call cannot be made. (P. 506)
■SRS airbag deployment conditions (SRS front airbags and SRS seat cushion air-
bag)
●The SRS front airbags and SRS seat cushion airbag will deploy in the event of an
impact that exceeds the set threshold level (the level of force corresponding to an
approximately 20 - 30 km/h [12 - 18 mph] frontal collision with a fixed wall that
does not move or deform).
However, this threshold velocity will be considerably higher in the following situa-
tions:
• If the vehicle strikes an object, such as a parked vehicle or sign pole, which can
move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in which the
front of the vehicle “underrides”, or goes under, the bed of a truck
●Depending on the type of collision, it is possible that only the seat belt pretension-
ers will activate.
●Front passenger occupant classification system: The SRS front passenger airbag
will not activate, if there is no passenger sitting in the front passenger seat. How-
ever, the SRS front passenger airbag may deploy, if luggage is put in the seat, or the
seat belt is fastened, even if the seat is unoccupied.
Page 60 of 708

601-1. For safe use
LS460/LS460L_GE (OM50G06E)
■SRS airbag deployment conditions (SRS side and curtain shield airbags)
●The SRS side and curtain shield airbags will deploy in the event of an impact that
exceeds the set threshold level (the level of force corresponding to the impact
force produced by an approximately 1500 kg [3300 lb.] vehicle colliding with the
vehicle cabin from a direction perpendicular to the vehicle orientation at an
approximate speed of 20 - 30 km/h [12 - 18 mph]).
●The SRS side and curtain shield airbags will deploy in the event of a severe frontal
collision.
■Conditions under which the SRS airbags may deploy (inflate), other than a collision
(SRS front airbags, SRS curtain shield airbag and SRS seat cushion airbag)
The SRS front airbags, SRS curtain shield airbag and SRS seat cushion airbag may
also deploy if a serious impact occurs to the underside of your vehicle. Some exam-
ples are shown in the illustration.
■Types of collisions that may not deploy the SRS airbags (SRS front airbags and SRS
seat cushion airbag)
The SRS front airbags and SRS seat cushion airbag do not generally inflate if the
vehicle is involved in a side or rear collision, if it rolls over, or if it is involved in a low-
speed frontal collision. But, whenever a collision of any type causes sufficient for-
ward deceleration of the vehicle, deployment of the SRS front airbags and SRS seat
cushion airbag may occur.
●Hitting a curb, edge of pavement or hard
surface
●Falling into or jumping over a deep hole
●Landing hard or falling
●Collision from the side
●Collision from the rear
●Vehicle rollover
Page 61 of 708
611-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)

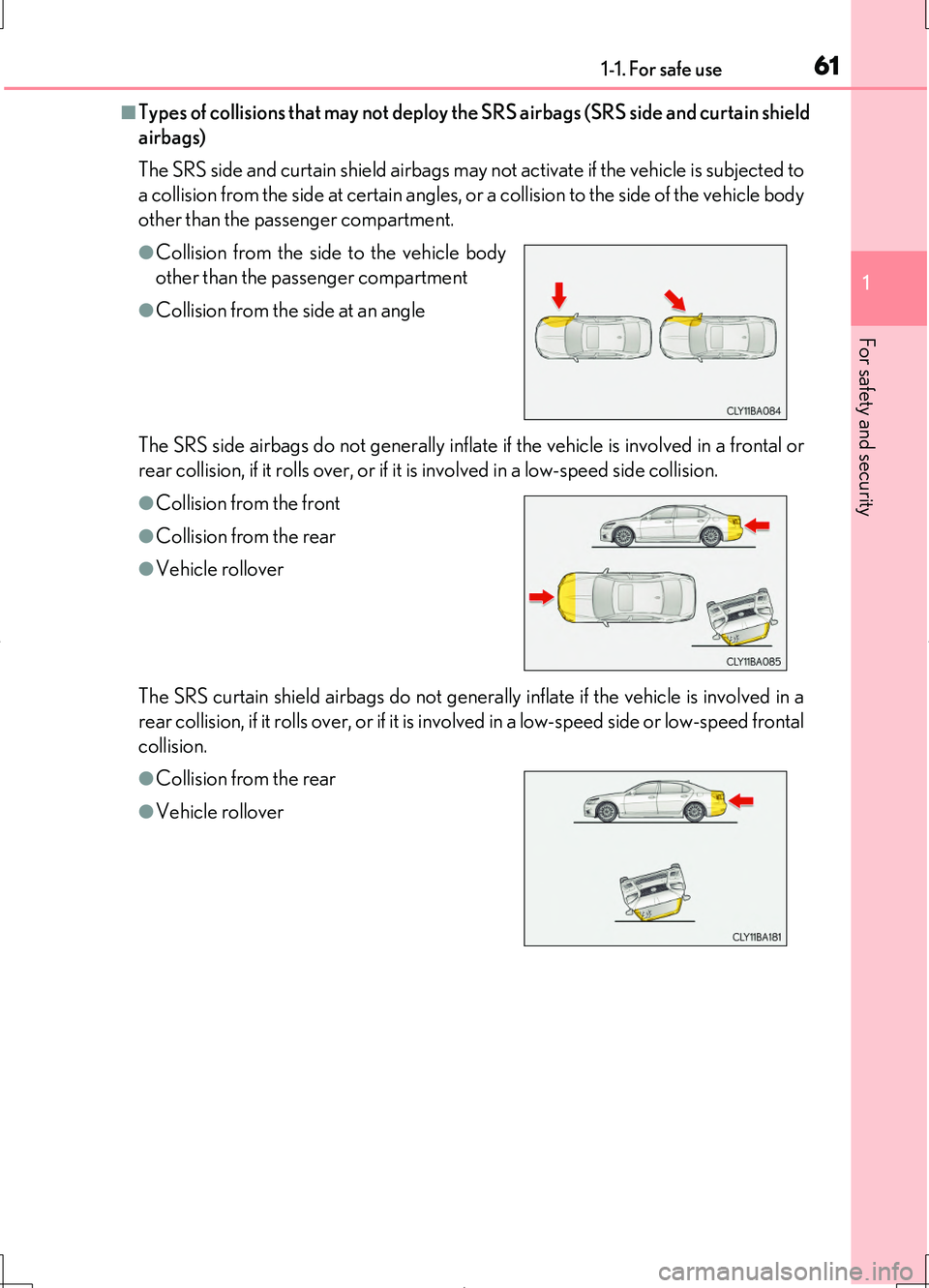

■Types of collisions that may not deploy the SRS airbags (SRS side and curtain shield
airbags)
The SRS side and curtain shield airbags may not activate if the vehicle is subjected to
a collision from the side at certain angles, or a collision to the side of the vehicle body
other than the passenger compartment.
The SRS side airbags do not generally inflate if the vehicle is involved in a frontal or
rear collision, if it rolls over, or if it is involved in a low-speed side collision.
The SRS curtain shield airbags do not generally inflate if the vehicle is involved in a
rear collision, if it rolls over, or if it is involved in a low-speed side or low-speed frontal
collision.
●Collision from the side to the vehicle body
other than the passenger compartment
●Collision from the side at an angle
●Collision from the front
●Collision from the rear
●Vehicle rollover
●Collision from the rear
●Vehicle rollover
Page 62 of 708
621-1. For safe use
LS460/LS460L_GE (OM50G06E)

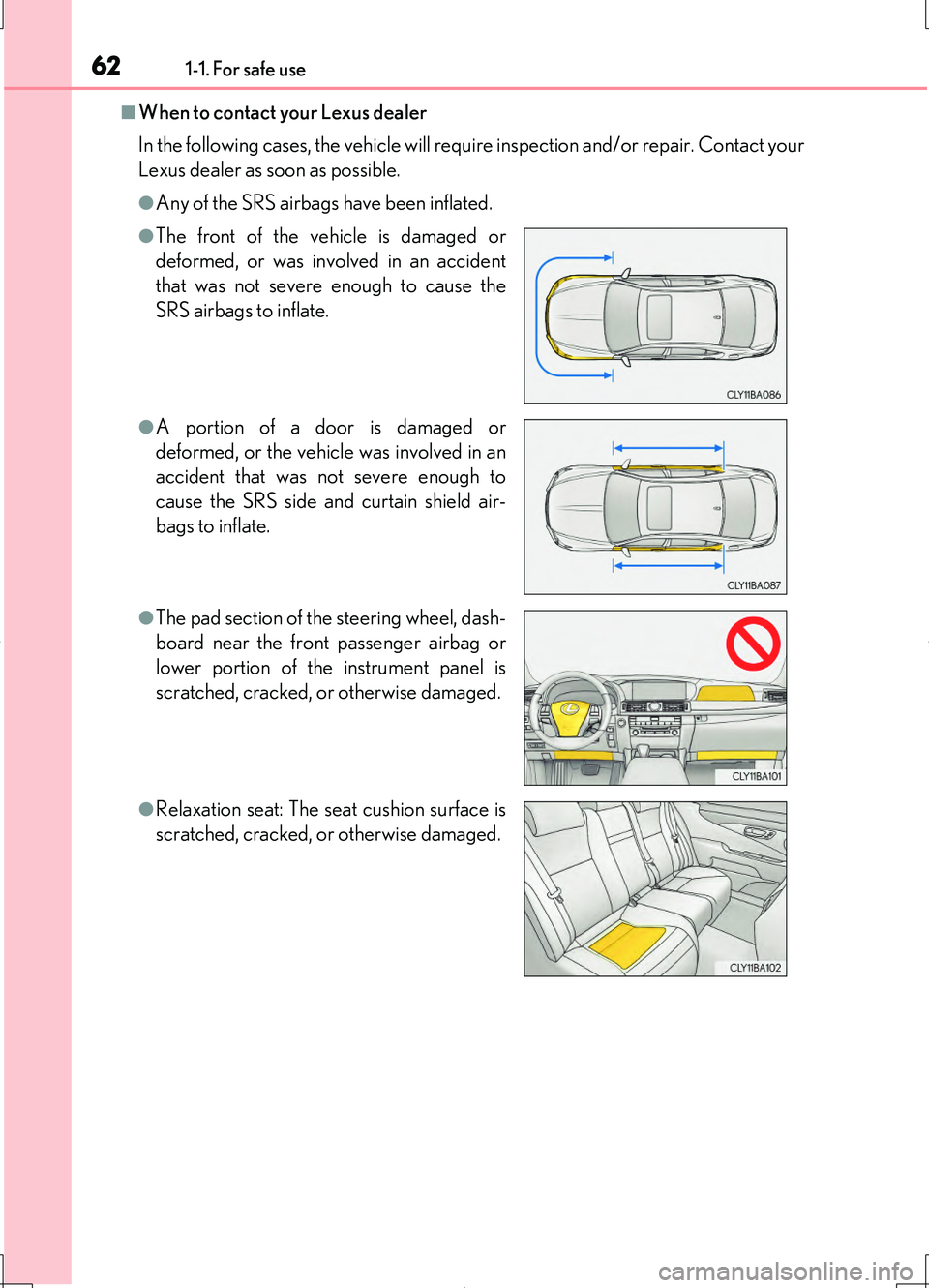

■When to contact your Lexus dealer
In the following cases, the vehicle will require inspection and/or repair. Contact your
Lexus dealer as soon as possible.
●Any of the SRS airbags have been inflated.
●The front of the vehicle is damaged or
deformed, or was involved in an accident
that was not severe enough to cause the
SRS airbags to inflate.
●A portion of a door is damaged or
deformed, or the vehicle was involved in an
accident that was not severe enough to
cause the SRS side and curtain shield air-
bags to inflate.
●The pad section of the steering wheel, dash-
board near the front passenger airbag or
lower portion of the instrument panel is
scratched, cracked, or otherwise damaged.
●Relaxation seat: The seat cushion surface is
scratched, cracked, or otherwise damaged.
Page 63 of 708
631-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)

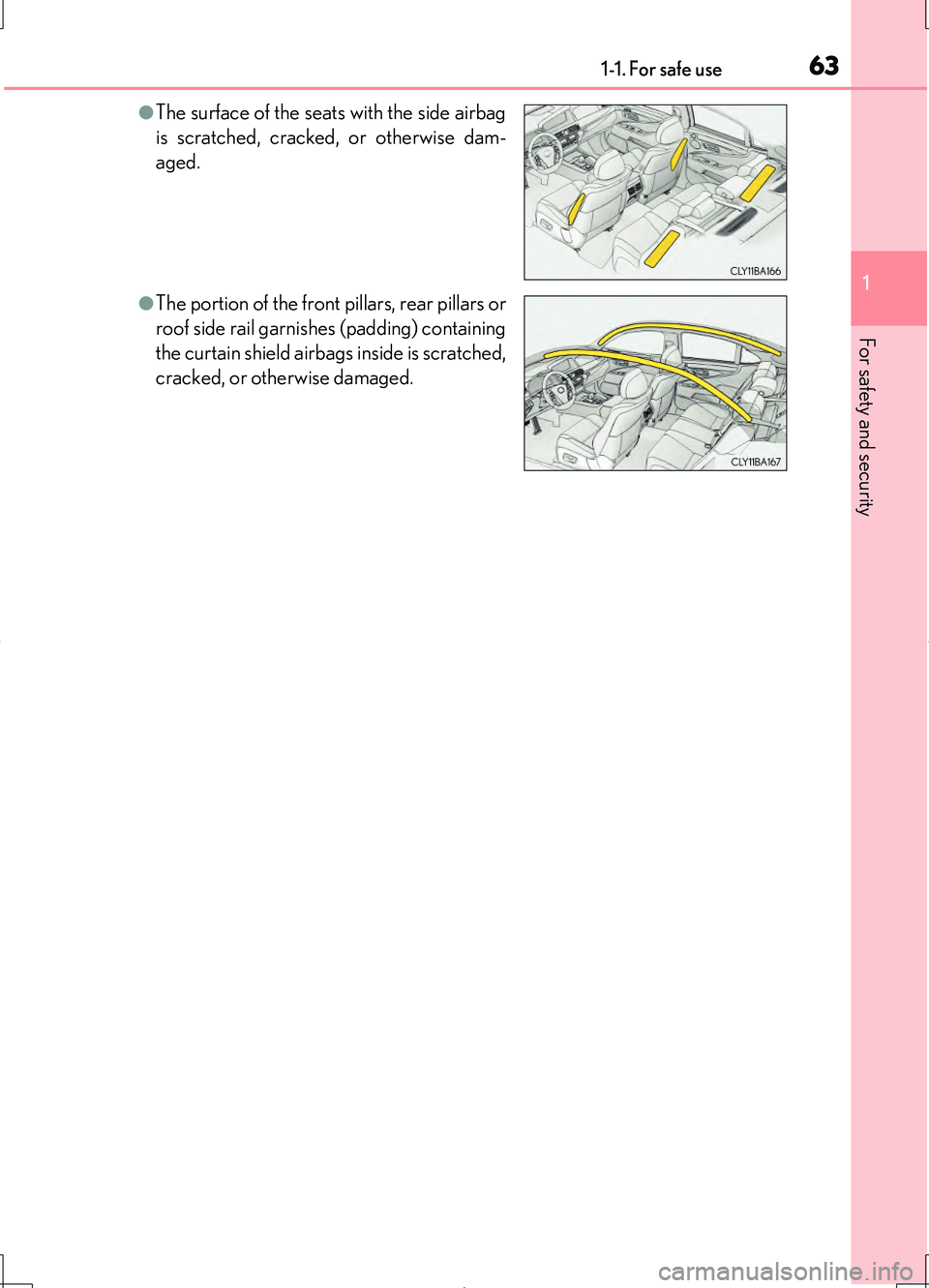

●The surface of the seats with the side airbag
is scratched, cracked, or otherwise dam-
aged.
●The portion of the front pillars, rear pillars or
roof side rail garnishes (padding) containing
the curtain shield airbags inside is scratched,
cracked, or otherwise damaged.
Page 64 of 708
641-1. For safe use
LS460/LS460L_GE (OM50G06E)
Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classification
system. This system detects the conditions of the front passenger seat
and activates or deactivates the devices for the front passenger.
Seat belt reminder light
SRS warning light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
1
2
3
4
: If equipped
