2016 LEXUS LS460L Owners Manual

41
1For safety and security
LS460/LS460L_GE (OM50G06E)
1-1. For safe use
Before driving................................. 42
For safety drive .............................. 44
Seat belts .......................................... 46
SRS airbags .......................................51
Front passenger occupant
classification system.................. 64
Airbag manual on-off
system ............................................. 69
Safety information for
children ............................................ 71
Child restraint systems ............... 72
Installing child restraints............. 89
Exhaust gas precautions .......... 103
1-2. Theft deterrent system
Engine immobilizer system..... 104
Double locking system ................ 111
Alarm ................................................. 112
Anti-theft device ...........................118

42
LS460/LS460L_GE (OM50G06E)
1-1. For safe use
Use only floor mats designed specifically for vehicles of the same model
and model year as your vehicle. Fix them securely in place onto the car-
pet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure the
floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the illustra-
tion.

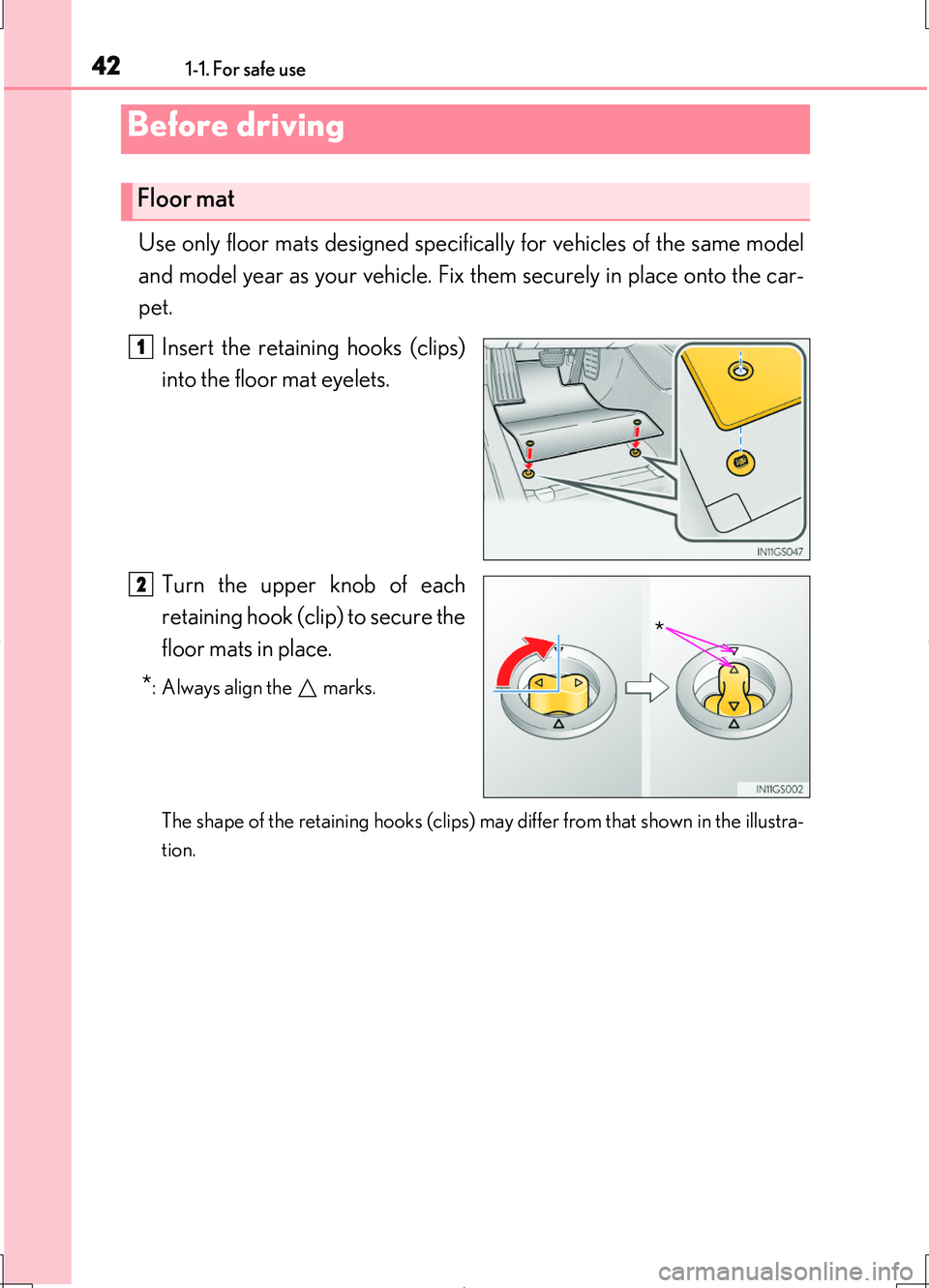

Before driving
Floor mat
1
*
2

431-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the
pedals while driving. An unexpectedly high speed may result or it may become diffi-
cult to stop the vehicle. This could lead to an accident, resulting in death or serious
injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely using the retaining hooks (clips) provided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.
■Before driving
●Check that the floor mat is securely fixed in
the correct place with all the provided
retaining hooks (clips). Be especially care-
ful to perform this check after cleaning the
floor.
●With the engine stopped and the shift lever
in P, fully depress each pedal to the floor to
make sure it does not interfere with the
floor mat.

441-1. For safe use
LS460/LS460L_GE (OM50G06E)
Adjust the angle of the seatback
so that you are sitting straight up
and so that you do not have to
lean forward to steer. ( P. 198)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at the
elbow when gripping the steering
wheel. ( P. 198)
Lock the head restraint in place
with the center of the head
restraint closest to the top of your
ears. ( P. 225)
Wear the seat belt correctly.
( P. 46)
Make sure that all occupants are wear ing their seat belts before driving
the vehicle. ( P. 46)
Use a child restraint system approp riate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt. (P. 72)

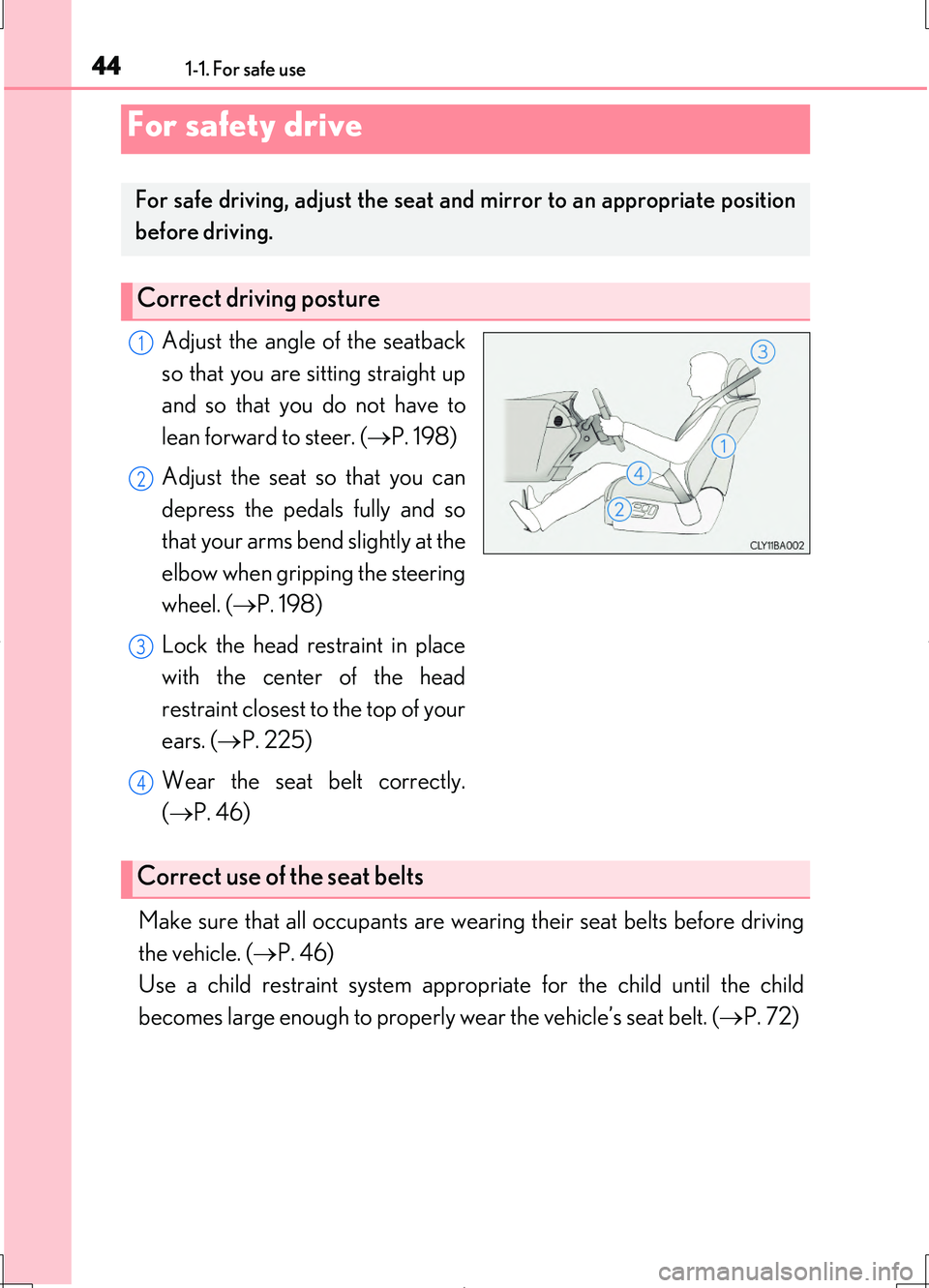

For safety drive
For safe driving, adjust the seat and mirror to an appropriate position
before driving.
Correct driving posture
1
2
3
4
Correct use of the seat belts

451-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)
Make sure that you can see backward clearly by adjusting the inside and
outside rear view mirrors properly. ( P. 229, 232)
Adjusting the mirrors
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the
effectiveness of the seat belt and head restraint.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and
stop the seat from locking in place. This may lead to an accident and the adjust-
ment mechanism may also be damaged.
●Always observe the legal speed limit when driving on public roads.
●When driving over long distances, take regular breaks before you start to feel
tired.
Also, if you feel tired or sleepy while driving, do not force yourself to continue
driving and take a break immediately.

461-1. For safe use
LS460/LS460L_GE (OM50G06E)
●Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with
the neck or slide off the shoulder.
●Position the lap belt as low as
possible over the hips.
●Adjust the position of the seat-
back. Sit up straight and well back
in the seat.
●Do not twist the seat belt.
To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press the
release button.
If the seat belt cannot be pulled out of
the retractor, firmly pull the belt and
release it.

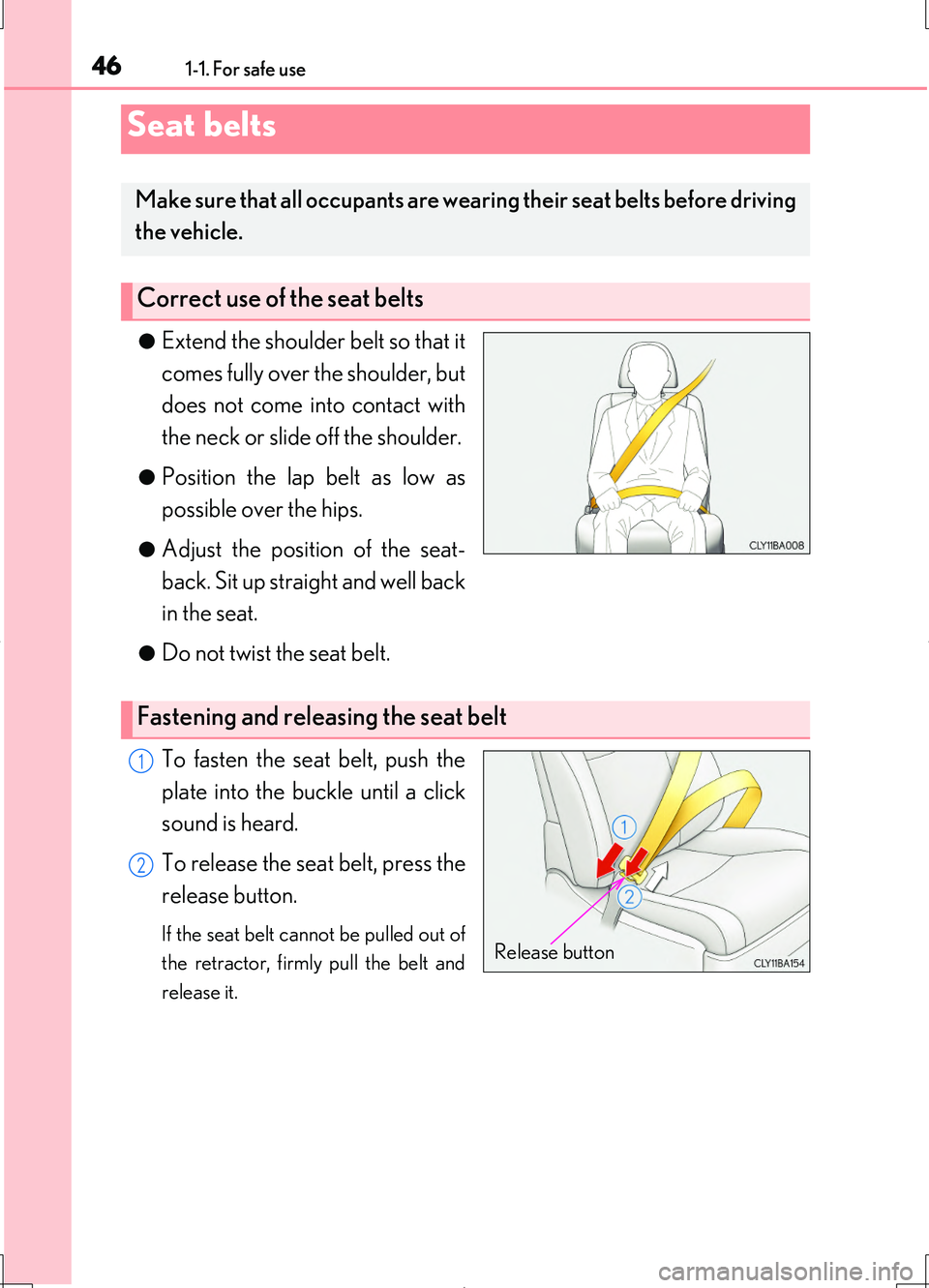

Seat belts
Make sure that all occupants are wearing their seat belts before driving
the vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt
Release button
1
2

471-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)
Moves the seat belt shoulder
anchor up
Moves the seat belt shoulder
anchor down
For children or smaller-than-aver-
age people, slide the seat belt com-
fort guide forward so that the
shoulder belt does not sit close to
the person’s neck.
The pretensioners help the seat
belts to quickly restrain the occu-
pants by retracting the seat belts
when the vehicle is subjected to
certain types of severe frontal colli-
sion.
The front seat belt pretensioners also
activate when the vehicle is subjected
to certain types of severe side colli-
sion.
The pretensioners do not activate in
the event of a minor frontal impact, a
minor side impact, a rear impact or a
vehicle rollover.

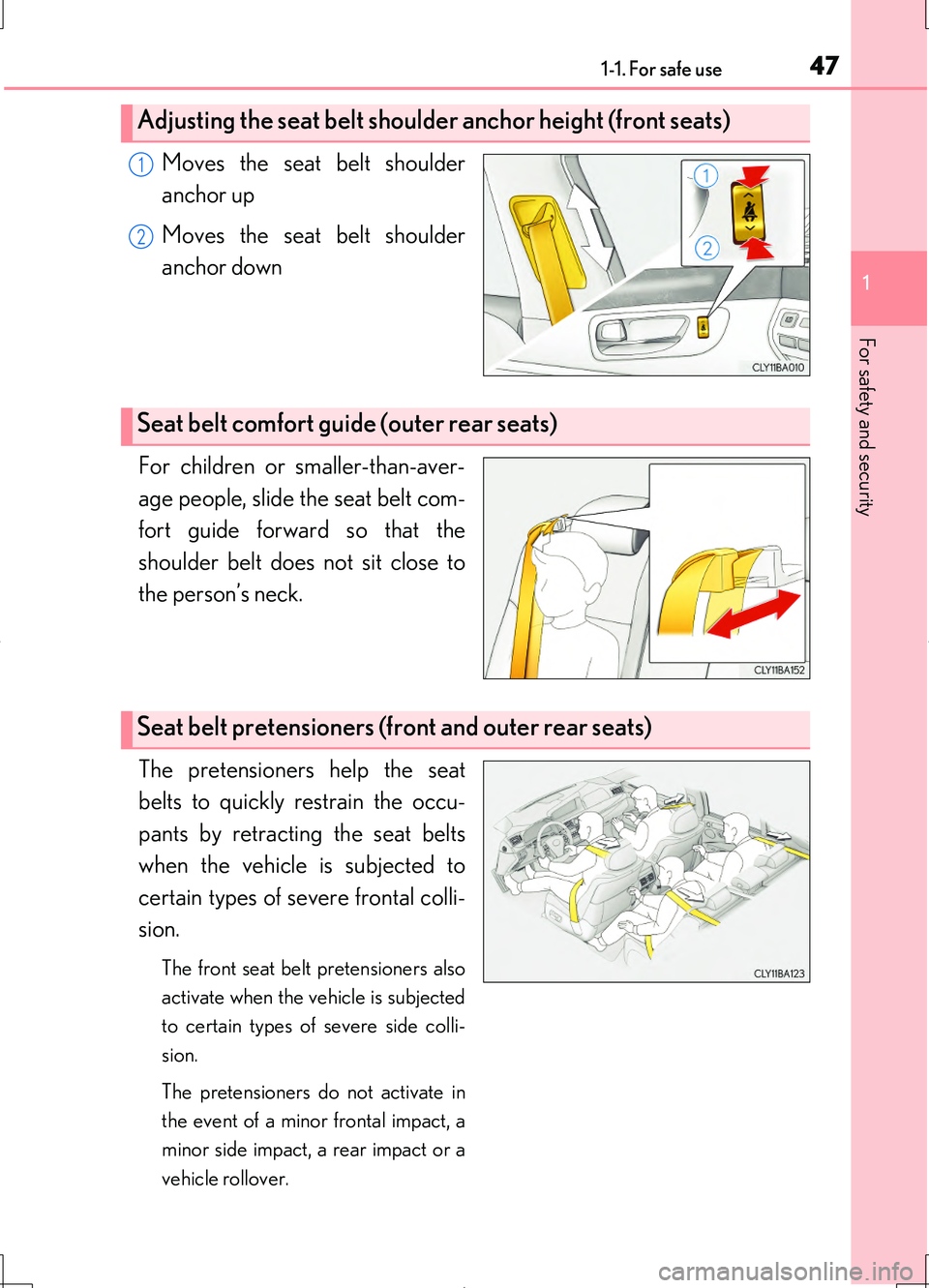

Adjusting the seat belt shoulder anchor height (front seats)
1
2
Seat belt comfort guide (outer rear seats)
Seat belt pretensioners (front and outer rear seats)

481-1. For safe use
LS460/LS460L_GE (OM50G06E)
If the system determines that a collision is unavoidable, the front seat belts
will retract before the collision. ( P. 368)
■Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size.
●Use a child restraint system appropriate for the child, until the child becomes large
enough to properly wear the vehicle’s seat belt. ( P. 72)
●When the child becomes large enough to properly wear the vehicle’s seat belt, fol-
low the instructions regarding seat belt usage. ( P. 46)
■Automatic adjustment of the seat belt shoulder anchor height (front seats)
A desired seat belt shoulder anchor height can be entered to memory and recalled
automatically by the driving position memory and seat position memory. ( P. 218)
■Emergency locking retractor (ELR)
The retractor will lock the belt during a su dden stop or on impact. It may also lock if
you lean forward too quickly. A slow, easy motion will allow the belt to extend so that
you can move around fully.
■Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the
first collision, but will not activate for the second or subsequent collisions.
■Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact your
Lexus dealer for seat belt replacement or installation.
Pre-crash seat belts (front seats of vehicles with pre-crash safety
system)
