2016 LEXUS LS460L Owners Manual

153
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
3-2. Opening, closing and locking the doors
The following operations can be performed simply by carrying the elec-
tronic key (including the card key) on your person, for example in your
pocket. (The driver should always carry the electronic key.)
Smart entry & start system
Function summary
Locks and unlocks the doors ( P. 155)
Opens the trunk ( P. 155)
Starts the engine ( P. 259)
1
2
3

1543-2. Opening, closing and locking the doors
LS460/LS460L_GE (OM50G06E)
■Operation signals
Doors:
The emergency flashers flash to indicate that the doors have been locked/unlocked.
(Locked: Once; Unlocked: Twice)
Windows and moon roof:
A buzzer sounds to indicate that th e windows and moon roof are operating.
Some models, the buzzer also sounds from the doors and the trunk.
■Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■Welcome light illumination control
The front position, tail and license plate lights automatically turn on at night when the
doors are unlocked using the entry function or wireless remote control if the head-
light switch is in the “AUTO” position.

1553-2. Opening, closing and locking the doors
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
Grip the handle to unlock the doors.
Make sure to touch the sensor on the
back of the handle.
The doors cannot be unlocked for 3
seconds after the doors are locked.
Press the lock button to lock the
door.
Check that the door is securely
locked.
Pressing and holding the button closes
the windows.
The moon roof will also close.
(if equipped)
Press the button.
The trunk lid automatically opens fully.
When all the doors are unlocked using
one of the following methods, the
trunk can be opened without the elec-
tronic key:
• Entry function
• Wireless remote control
• Door lock switches
• Automatic door unlocking system
• Mechanical key
Unlocking and locking the doors
Opening the trunk

1563-2. Opening, closing and locking the doors
LS460/LS460L_GE (OM50G06E)

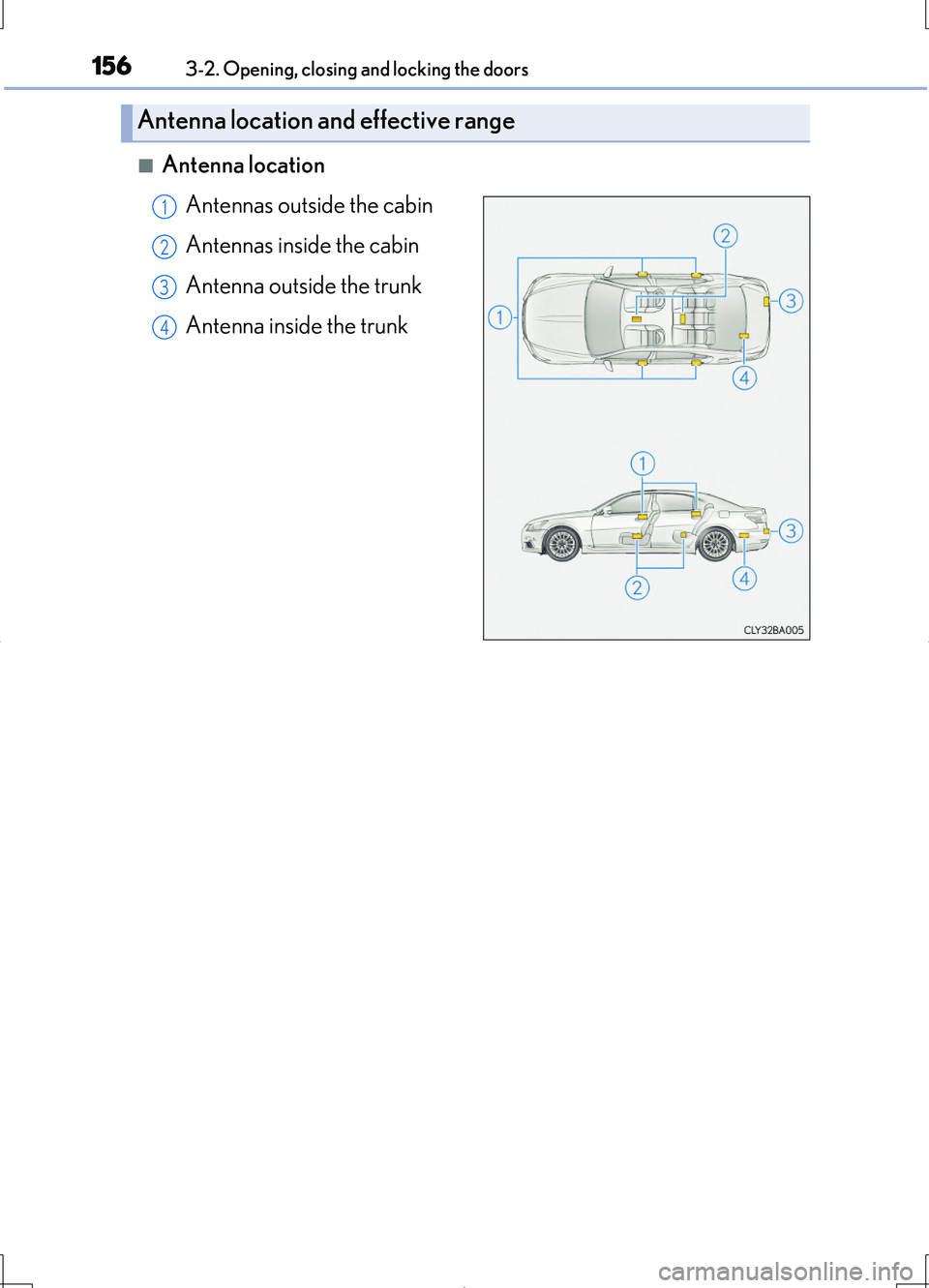

■Antenna location
Antennas outside the cabin
Antennas inside the cabin
Antenna outside the trunk
Antenna inside the trunk
Antenna location and effective range
1
2
3
4

1573-2. Opening, closing and locking the doors
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
■Effective range (areas within which the electronic key is detected)
When locking or unlocking the
doors
The system can be operated when
the electronic key is within about
0.7 m (2.3 ft.) of an outside door
handle. (Only the doors detecting
the key can be operated.)
When opening the trunk
The system can be operated when
the electronic key is within about
0.7 m (2.3 ft.) of the trunk release
button.
When starting the engine or
changing engine switch modes
The system can be operated when
the electronic key is inside the vehi-
cle.

1583-2. Opening, closing and locking the doors
LS460/LS460L_GE (OM50G06E)
■Alarms and warning indicators
A combination of exterior and interior alarms as well as warnings displayed on the
multi-information display are used to prevent theft of the vehicle and unforeseeable
accidents resulting from erroneous operation. Perform the appropriate correction
procedure described in the following table:
AlarmSituationCorrection procedure
Exterior alarm sounds
once for 2 seconds.
An attempt was made to
lock the doors using the
entry function while the
electronic key was still
inside the passenger
compartment.
Retrieve the electronic
key from the passenger
compartment and lock
the doors again.
The trunk was closed with
the electronic key inside
and all doors were
locked.
Retrieve the electronic
key from the trunk and
close the trunk lid.
Exterior alarm sounds
once for 60 seconds.
An attempt was made to
exit the vehicle and lock
the doors while carrying
the electronic key without
first turning the engine
switch off.
Turn the engine switch off
and lock the doors again.
Exterior alarm sounds
once for 5 seconds.
An attempt was made to
lock the vehicle while a
door was open.
Close all of the doors and
lock the doors again.

1593-2. Opening, closing and locking the doors
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
Interior alarm pings con-
tinuously.
The engine switch was
turned to ACCESSORY
mode while the driver’s
door was open (or the
driver’s door was opened
while the engine switch
was in ACCESSORY
mode).
Turn the engine switch off
and close the driver’s
door.
The engine switch was
turned off while the
driver’s door was open.
Close the driver’s door.
Interior alarm sounds
continuously.*1
When the engine switch
is in IGNITION ON or
ACCESSORY mode, an
attempt was made to
open the door and exit
the vehicle, and the shift
lever was not in P.
Shift the shift lever to P
and turn the engine
switch off.
Interior and exterior
alarms sound continu-
ously.*1
When the engine switch
is in IGNITION ON or
ACCESSORY mode, the
driver’s door was closed
after the key was carried
outside the vehicle, and
the shift lever was not in P.
Shift the shift lever to P,
turn the engine switch off
and close the driver’s
door again.
Interior alarm pings
once.*1
The electronic key has a
low battery.
Replace the electronic
key battery.
An attempt was made to
start the engine without
the electronic key being
present, or the electronic
key was not functioning
normally.
Start the engine with the
electronic key present.*2
AlarmSituationCorrection procedure

1603-2. Opening, closing and locking the doors
LS460/LS460L_GE (OM50G06E)
*1: A warning message will be shown on the multi-information display in the instru-
ment cluster.
*2: If the engine does not start when the electronic key is inside the vehicle, the elec-
tronic key battery may be depleted or there may be difficulties receiving the sig-
nal from the key. ( P. 163)
Interior alarm pings once
and exterior alarm
sounds 3 times.*1
The driver’s door was
closed after the key was
carried outside the vehi-
cle, and the engine switch
was not turned off.
Turn the engine switch off
and close the driver’s
door again.
An occupant carried the
electronic key outside the
vehicle and closed the
door while the engine
switch was not off.
Bring the electronic key
back into the vehicle.
AlarmSituationCorrection procedure
