2016 LEXUS LS460L Owners Manual

4815-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)
■Operating condition
The engine switch is in IGNITION ON mode.
■Climate control seat/seat heater operation
Depending on the outside temperature and the temperature of the seat surface,
there are cases when heating operation is stronger than usual.
■Operating the rear climate control seats from the front seats
 P. 429
■Disabling the switches on the rear controller
 P. 431
■Replacing the air filters
Filters are installed in the climate control se ats. For replacement of the filters, contact
your Lexus dealer.
■Customization
Automatic operation settings can be customized. (Customizable features P. 667)

4825-6. Other interior features
LS460/LS460L_GE (OM50G06E)
CAUTION
■Burns/excessive cooling
●Use caution when seating the following persons in a seat to avoid the possibility of
burns or excessive cooling:
• Babies, small children, elderly persons, sick persons and persons with a physi-
cal disability
• Persons who have sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs which induce sleep, such as sleeping
drugs and cold remedies
●Do not cover the seat with anything when using the climate control seat or seat
heater. Using the climate control seat or seat heater with a blanket or cushion
may increase or decrease the temperature of the seat, resulting in overheating or
overcooling.
●Do not use the climate control seat or seat heater more than necessary. Doing so
may cool the occupants excessively or may cause minor burns or overheating.
NOTICE
■To prevent damage to the climate control seat and seat heater
Do not put heavy objects that have an uneven surface on the seat and do not stick
sharp objects, such as needles and nails, into the seat.
■To prevent the battery from being discharged
Do not leave the system on longer th an necessary when the engine is off.

4835-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)

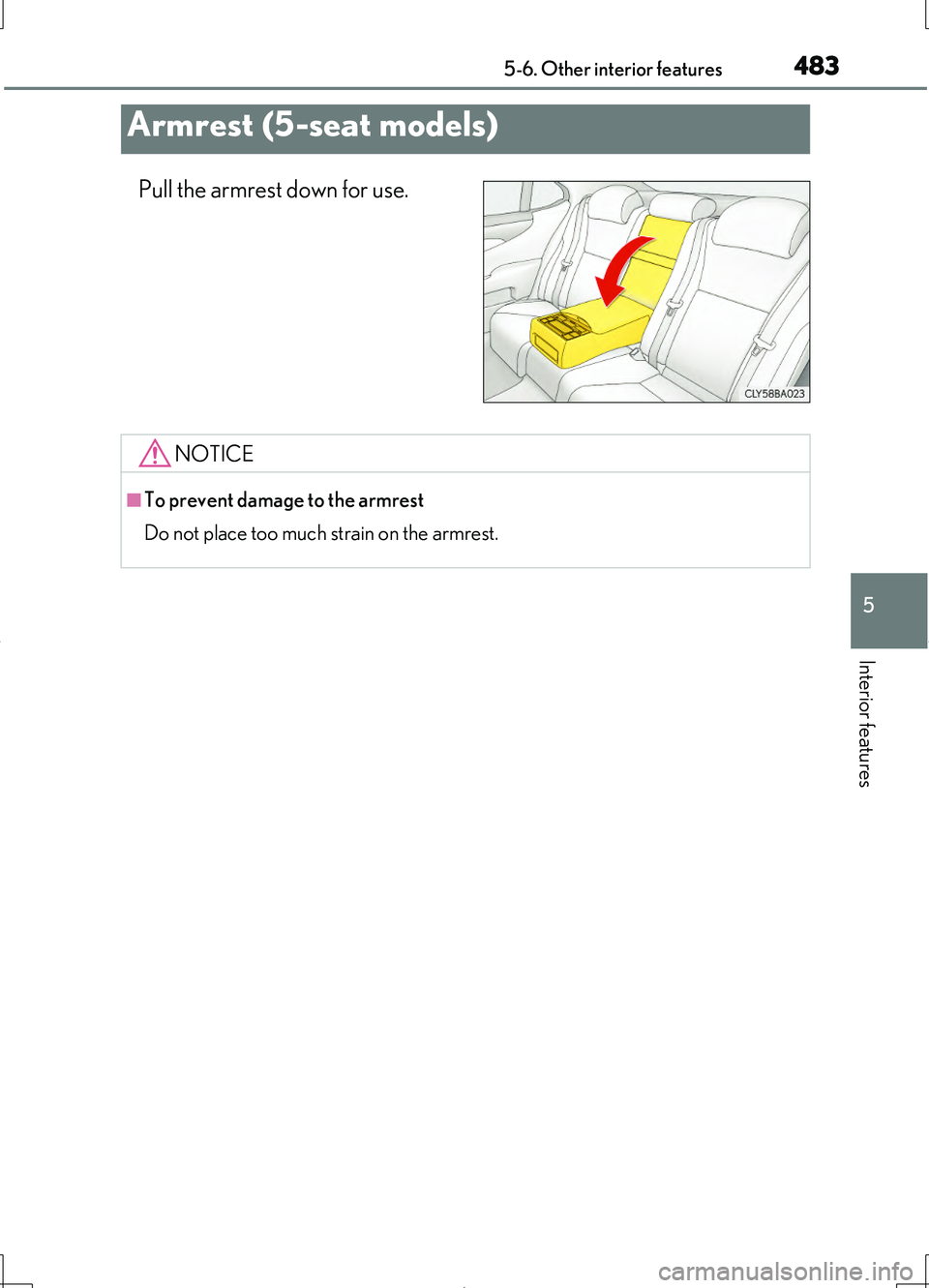

Pull the armrest down for use.
Armrest (5-seat models)
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.

4845-6. Other interior features
LS460/LS460L_GE (OM50G06E)

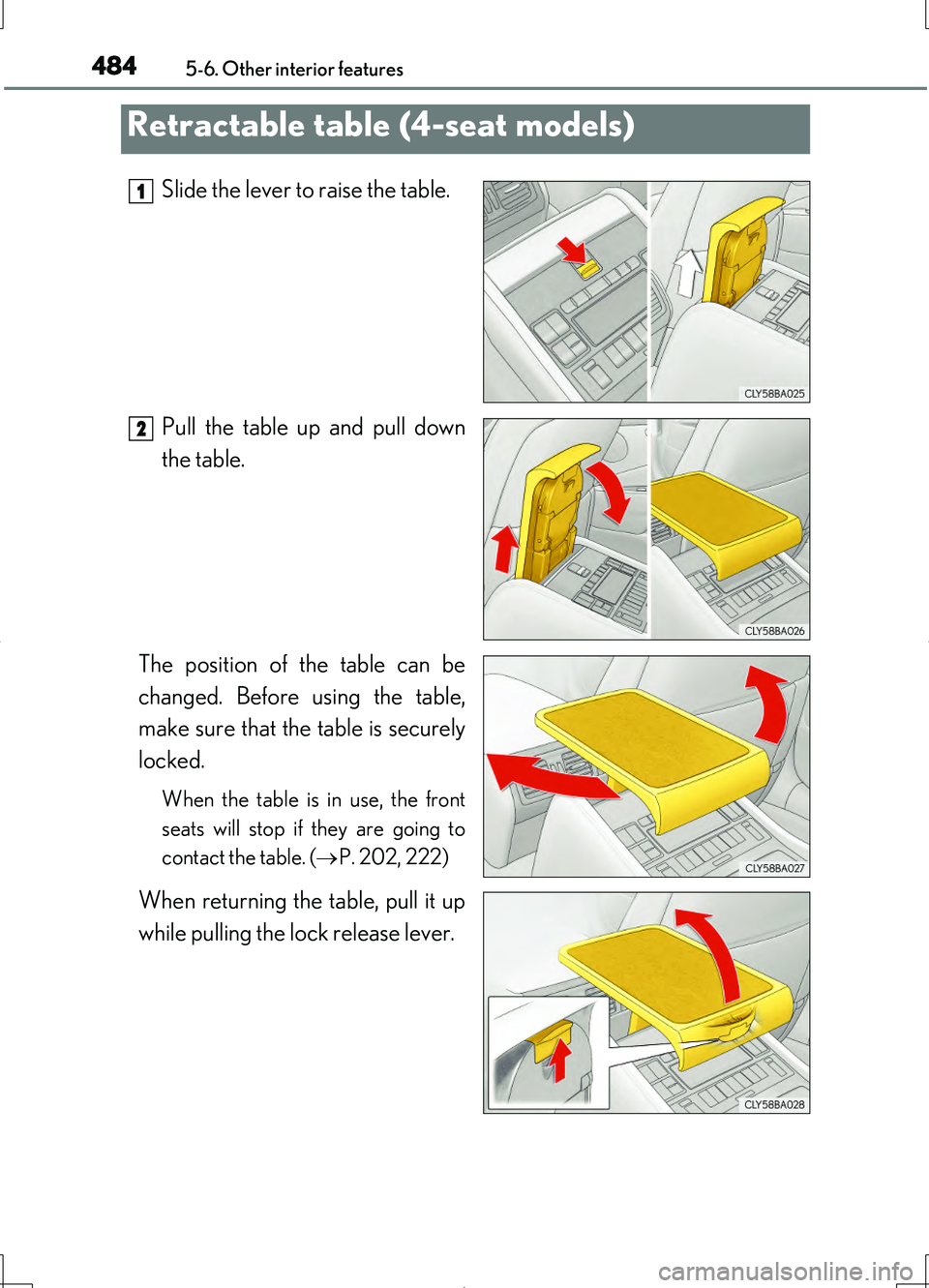

Slide the lever to raise the table.
Pull the table up and pull down
the table.
The position of the table can be
changed. Before using the table,
make sure that the table is securely
locked.
When the table is in use, the front
seats will stop if they are going to
contact the table. ( P. 202, 222)
When returning the table, pull it up
while pulling the lock release lever.
Retractable table (4-seat models)
1
2

4855-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)
CAUTION
■When not in use
To avoid injury, return the table.
■Caution while driving
Keep the table stowed properly in its place. In the event of an accident, contact
with the table may result in death or serious injury.
■When using the table
Observe the following precautions. Failure to do so may result in death or serious
injury.
●Make sure the table is securely locked.
●Do not lean on the table.
●Do not put anything heavier than 10 kg (22 lb.) on the table.
NOTICE
■To prevent damage to the table
Do not place too much strain on the table.

4865-6. Other interior features
LS460/LS460L_GE (OM50G06E)
■From front seat
Vehicles without power rear seat
Extend/retract
Vehicles with power rear seat
Extend/retract
Vehicles with relaxation seat
Extend/retract
Rear sunshade
The rear sunshade can be raised and lowered by operating any of the
buttons shown below.

4875-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)

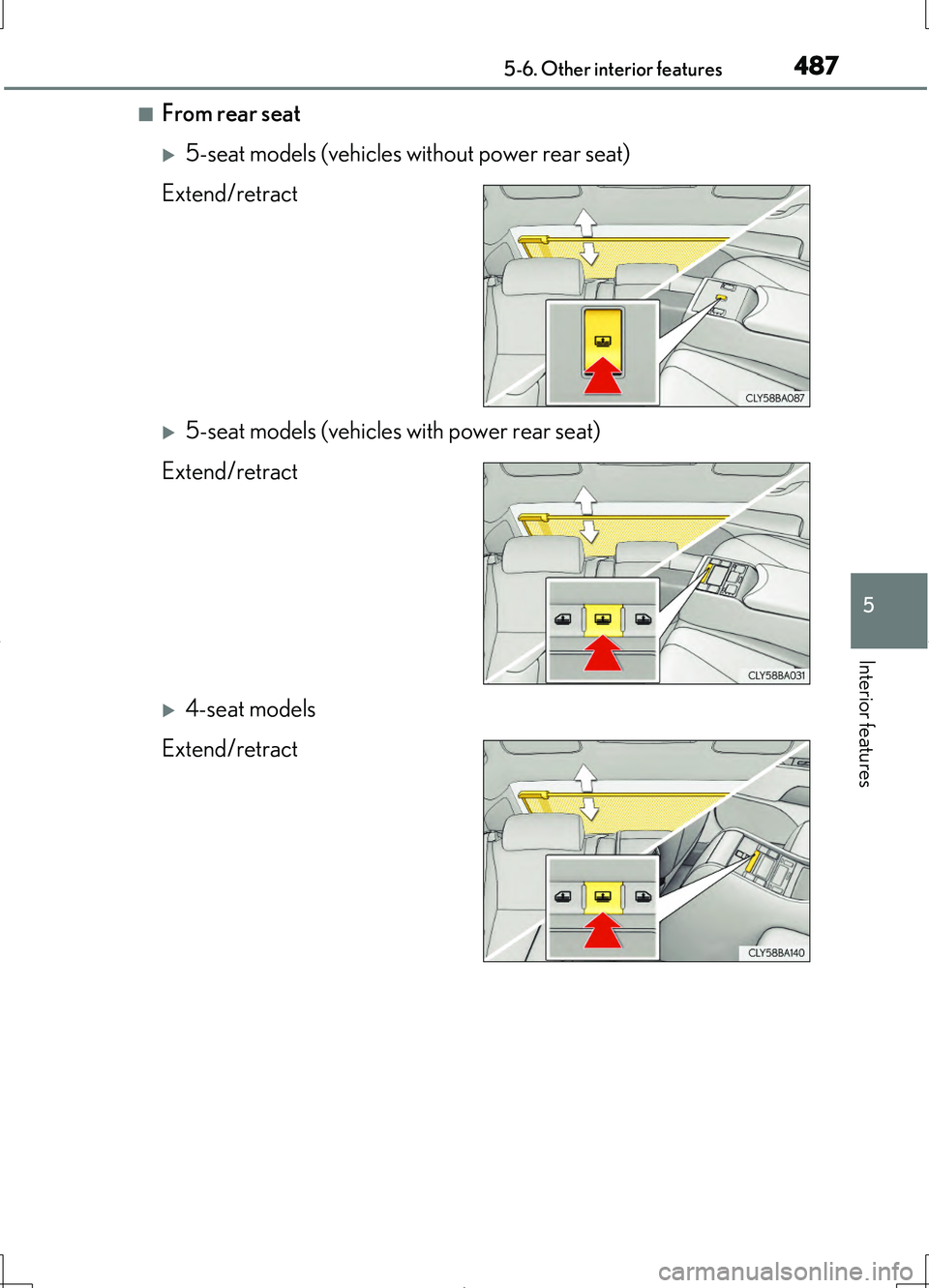

■From rear seat
5-seat models (vehicles without power rear seat)
Extend/retract
5-seat models (vehicles with power rear seat)
Extend/retract
4-seat models
Extend/retract

4885-6. Other interior features
LS460/LS460L_GE (OM50G06E)
■The rear sunshade can be used when
The engine switch is in IGNITION ON mode.
■Operating the rear sunshade after turning the engine switch off
The rear sunshade can be operated for approximately 60 seconds even after the
engine switch is switched to ACCESSORY mode or turned off.
■Reverse operation feature
To ensure adequate rear visibility, the rear sunshade automatically lowers when the
shift lever is shifted to R.
However, the rear sunshade is raised again if any of the following occurs:
●The button is pressed again.
●The shift lever is shifted to P.
●The shift lever is shifted out of P and R, and the vehicle reaches a speed of 15 km/h
(9 mph).
If the engine is turned off when the rear sunshade has been lowered due to the
reverse operation feature, it will not be raised even when the engine is turned on
again and the vehicle reaches a speed of 15 km/h (9 mph). To raise the sunshade
again, press the button.
■Button lock function
To prevent inadvertent operation, some buttons on the rear controller can be locked.
( P. 444)
