2016 LEXUS LS460L Owners Manual

6177-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)

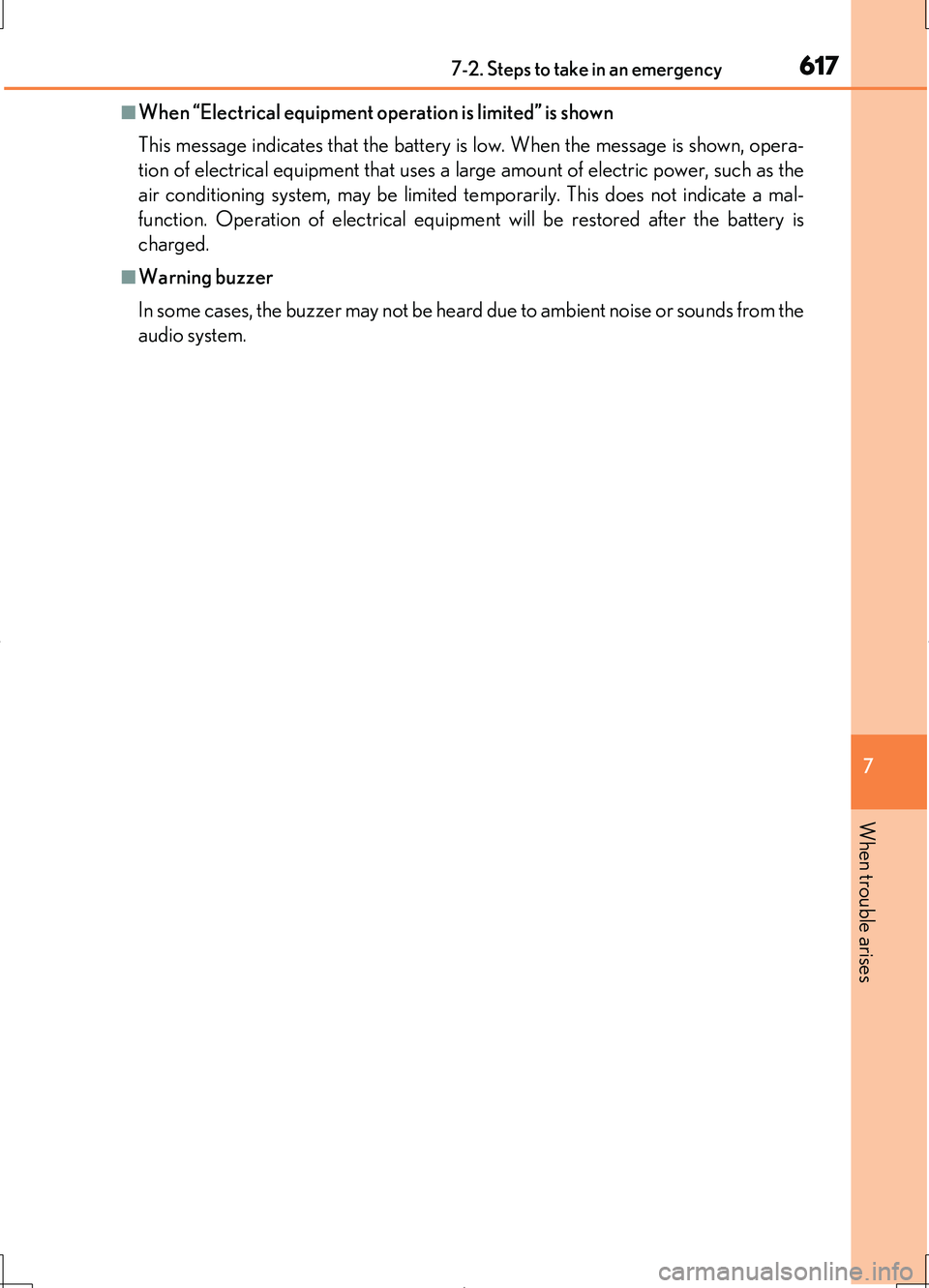

■When “Electrical equipment operation is limited” is shown
This message indicates that the battery is low. When the message is shown, opera-
tion of electrical equipment that uses a large amount of electric power, such as the
air conditioning system, may be limited temporarily. This does not indicate a mal-
function. Operation of electrical equipment will be restored after the battery is
charged.
■Warning buzzer
In some cases, the buzzer may not be heard due to ambient noise or sounds from the
audio system.

6187-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)
●Stop the vehicle in a safe place on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P.
●Stop the engine.
●Turn on the emergency flashers. ( P. 594)
If you have a flat tire
Your vehicle is equipped with a spare tire. The flat tire can be replaced
with the spare tire.
For details about tires: P. 556
CAUTION
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel
beyond repair, which could result in an accident.
Before jacking up the vehicle

6197-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
Location of the spare tire, jack and tools
Parking brake release tool
Jack handle
Wheel nut wrench
Jack
Tools
Screwdriver
Spare tire
Towing eyelet
1
2
3
4
5
6
7
8

6207-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)
CAUTION
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the jack,
leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires
on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported by the
jack.
●Do not start the engine or drive the vehicle while the vehicle is supported by the
jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●Vehicles with electronically modulated air suspension: Be sure to turn off the
height control and stop the engine.
●When lowering the vehicle, make sure that there is no-one near the vehicle. If
there are people nearby, warn them vocally before lowering.

6217-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)

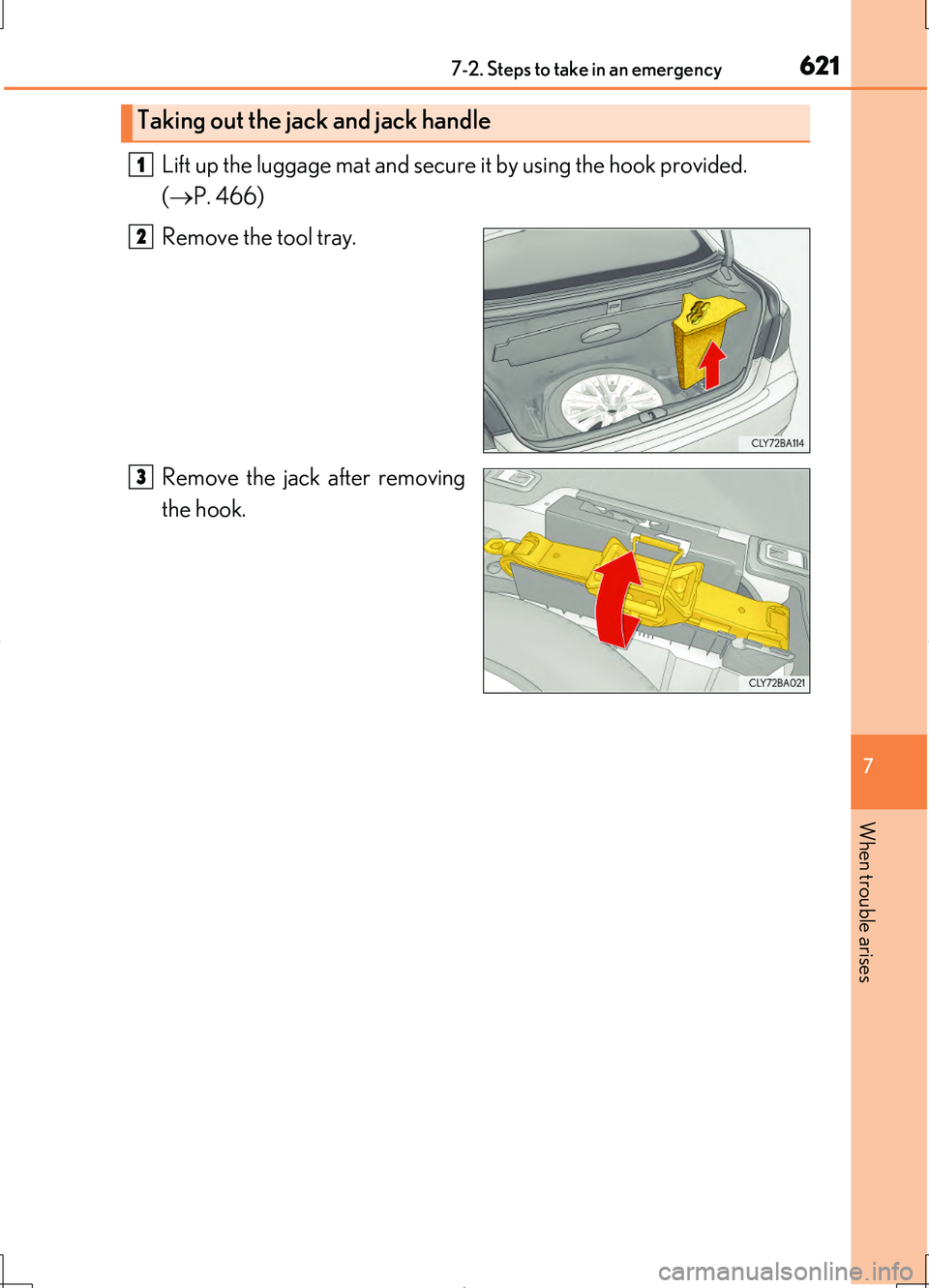

Lift up the luggage mat and secure it by using the hook provided.
( P. 466)
Remove the tool tray.
Remove the jack after removing
the hook.
Taking out the jack and jack handle
1
2
3

6227-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)
Lift up the luggage mat and secure it by using the hook provided.
( P. 466)
Loosen the center fastener that
secures the spare tire.
If the center fastener cannot be turned
by hand, use the wheel nut wrench
that is stored in the trunk. (To secure
the tire, tighten the center fastener by
hand. Do not use the wrench or other
tools.)
Chock the tires.
Taking out the spare tire
1
2
CAUTION
■When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire and the
body of the vehicle.
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire

6237-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)

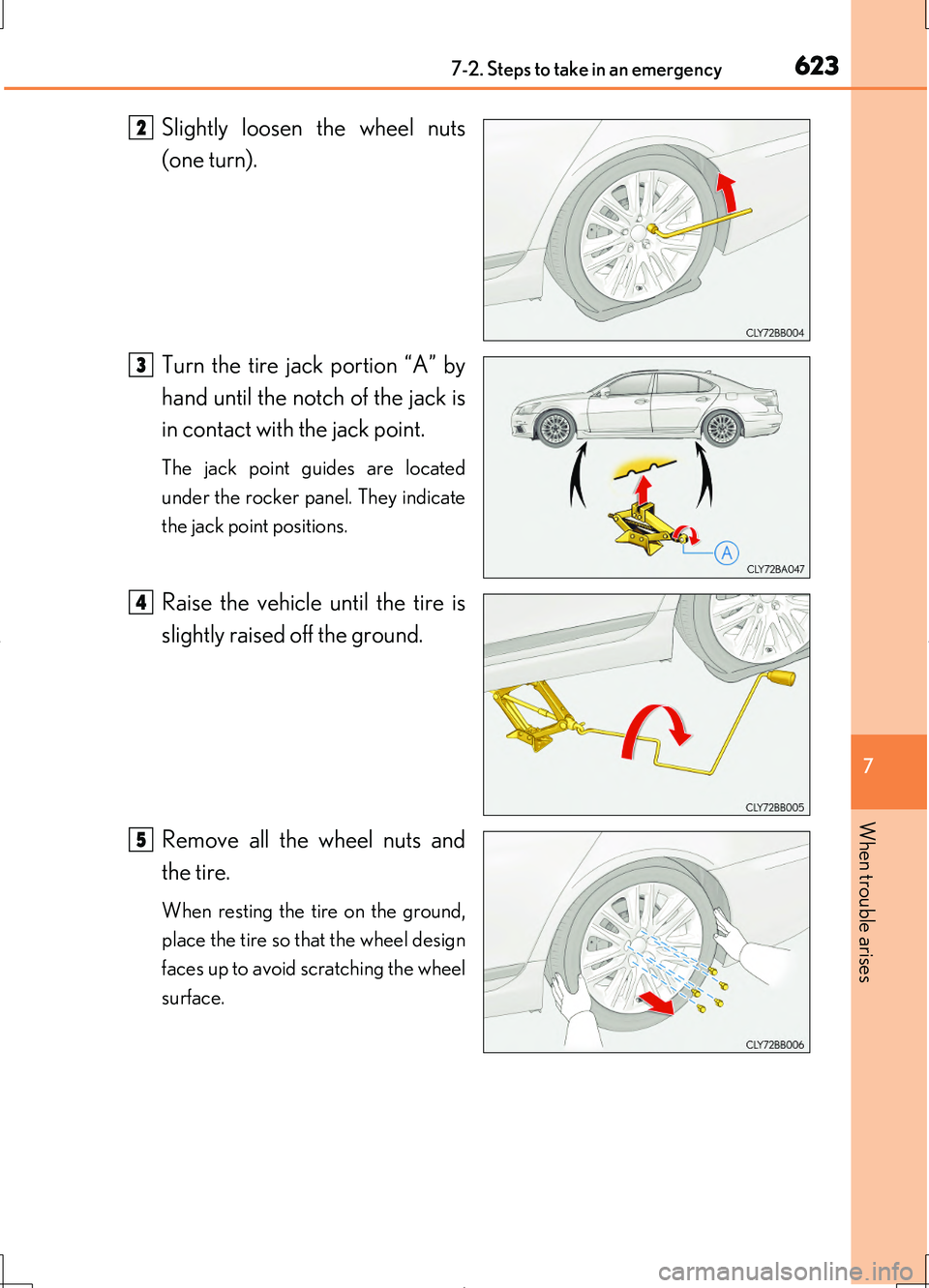

Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
The jack point guides are located
under the rocker panel. They indicate
the jack point positions.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the ground,
place the tire so that the wheel design
faces up to avoid scratching the wheel
surface.
2
3
4
5

6247-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)
Remove the wheel ornament by
pushing from the reverse side.
6
CAUTION
■Replacing a flat tire
●Observe the following precautions.
Failure to do so may result in serious injury:
• Do not try to remove the wheel ornament by hand. Take due care in handling
the ornament to avoid unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes immediately after
the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the
brakes will be extremely hot. Touching these areas with hands, feet or other
body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to loosen and the
tire to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened, leading
to bolt or disc wheel damage. In addition, the oil or grease can cause the
wheel nuts to loosen and the wheel may fall off, causing a serious accident.
Remove any oil or grease from the wheel bolts or wheel nuts.
• Have the wheel nuts tightened with a torque wrench to 140 N•m (14.3 kgf•m,
103 ft•lbf) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off the wheel
while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been specifically designed
for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt
holes of the wheel, have the vehicle inspected by your Lexus dealer.
