2016 LEXUS LS460L Owners Manual

5296-2. Maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
NOTE:
1. First replace at 160000 km (100000 miles), then replace every 80000 km
(48000 miles).
2. It is possible to replace every 100000 km (60000 miles).
3. Including the filter in fuel tank.
4. Parking brake inspection is not necessary.
CHASSIS AND BODY
17Brake pipes and hosesIIIIII12
18Steering wheel, linkage and steering
gear boxIIIIII12
19Drive shaft bootsIIIIII24
20Suspension ball joint and dust coverIIIIII12
21Automatic transmission fluidII36
22Rear differential oilIRIRIRI: 12
R: 48
23Front and rear suspensionIIIIII12
24Tires and inflation pressureIIIIII12
25Lights, horns, wipers and washersIIIIII12
26Air conditioning filter
When a message on the multi-
information display indicates that
maintenance is required, replace
the filter.
Refrigerant amount for air conditionerIIIIII12
Maintenance operations:I =Inspect
R =Replace, change or lubricate
SERVICE INTERVAL:ODOMETER READING
(Odometer reading or
months, whichever
comes first.)
x1000 km153045607590
MONTHSx1000
miles91827364554

5306-2. Maintenance
LS460/LS460L_GE (OM50G06E)
Refer to the following table for normal maintenance schedule items
requiring more frequent service specific to the type of severe conditions.
(For outline, see “Maintenance schedule requirements”.)
Additional maintenance schedule (for South Africa)
A-1: Operating on rough or muddy ro ads, or roads with melted snow
Inspection of brake linings and
drums
Every 15000 km (9000 miles) or 12
months
 Inspection of brake pads and discsEvery 7500 km (4500 miles) or 6
months
 Inspection of brake pipes and hosesEvery 7500 km (4500 miles) or 6
months
 Inspection of suspension ball joint
and dust cover
Every 7500 km (4500 miles) or 6
months
 Inspection of drive shaft bootsEvery 7500 km (4500 miles) or 12
months
 Inspection of steering wheel, linkage
and steering gear box
Every 7500 km (4500 miles) or 6
months
 Inspection of front and rear suspen-
sion
Every 7500 km (4500 miles) or 6
months
 Tightening of bolts and nuts on chas-
sis and body <>
Every 15000 km (9000 miles) or 12
months

5316-2. Maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
A-2: Operating on dusty roads (Roads in areas where their pavement rate is low,
or a cloud of dust often arises and the air is dry)
Replacement of engine oilEvery 7500 km (4500 miles) or 6
months
 Replacement of engine oil filterEvery 7500 km (4500 miles) or 6
months
 Inspection or replacement of air
cleaner filter
I: Every 7500 km (4500 miles) or 12
months
R: Every 60000 km (36000 miles) or
48 months
 Inspection of brake linings and
drums
Every 15000 km (9000 miles) or 12
months
 Inspection of brake pads and discsEvery 7500 km (4500 miles) or 6
months
B-1: Heavily loaded vehicle (For example, using a car top carrier and so forth.)
 Replacement of engine oilEvery 7500 km (4500 miles) or 6
months
 Replacement of engine oil filterEvery 7500 km (4500 miles) or 6
months
 Inspection of brake linings and
drums
Every 15000 km (9000 miles) or 12
months
 Inspection of brake pads and discsEvery 7500 km (4500 miles) or 6
months
 Inspection or replacement of auto-
matic transmission fluid
I: Every 45000 km (27000 miles) or
36 months
R: Every 90000 km (54000 miles) or
72 months
 Inspection of front and rear suspen-
sion
Every 7500 km (4500 miles) or 6
months
 Tightening of bolts and nuts on chas-
sis and body <>
Every 15000 km (9000 miles) or 12
months

5326-2. Maintenance
LS460/LS460L_GE (OM50G06E)
NOTE:
For seat mounting bolts, front and rear suspension member retaining bolts.
B-2: Repeated short trips less than 8 km (5 miles) and outside temperatures
remain below freezing (Engine temperature will not reach to normal tem-
perature)
 Replacement of engine oilEvery 7500 km (4500 miles) or 6
months
 Replacement of engine oil filterEvery 7500 km (4500 miles) or 6
months
B-3: Extensive idling and/or low speed dr iving for a long distance such as police,
taxi or door-to-door delivery use
 Replacement of engine oilEvery 7500 km (4500 miles) or 6
months
 Replacement of engine oil filterEvery 7500 km (4500 miles) or 6
months
 Inspection of brake linings and
drums
Every 15000 km (9000 miles) or 12
months
 Inspection of brake pads and discsEvery 7500 km (4500 miles) or 6
months
B-4: Continuous high speed driving (80% or more of maximum vehicle speed)
for over 2 hours
 Inspection or replacement of auto-
matic transmission fluid
I: Every 45000 km (27000 miles) or
36 months
R: Every 90000 km (54000 miles) or
72 months

533
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct
procedure as given in these sections.
ItemsParts and tools
Battery condition (P. 549)
•Warm water
• Baking soda
•Grease
• Conventional wrench
(for terminal clamp bolts)
•Distilled water
Engine coolant level ( P. 547)
•“Toyota Super Long Life Coolant” or
a similar high quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite and non-borate coolant with
long-life hybrid organic acid technol-
ogy
“Toyota Super Long Life Coolant” is
pre-mixed with 50% coolant and
50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level ( P. 544)
• “Toyota Genuine Motor Oil” or
equivalent
•Rag or paper towel
• Funnel (used only for adding engine
oil)
Fuses ( P. 579)• Fuse with same amperage rating as
original
Light bulbs ( P. 584)
• Bulb with same number and wattage
rating as original
• Phillips-head screwdriver
• Flathead screwdriver
•Wrench
Radiator and condenser ( P. 549)

5346-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)
Tire inflation pressure (P. 568)• Tire pressure gauge
• Compressed air source
Washer fluid ( P. 553)
• Water or washer fluid containing anti-
freeze (for winter use)
• Funnel (used only for adding water or
washer fluid)
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious
injury, observe the following precautions.
■When working on the engine compartment
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
●Take care because brake fluid can harm your hands or eyes and damage painted
surfaces. If fluid gets on your hands or in your eyes, flush the affected area with
clean water immediately.
If you still experience disc omfort, consult a doctor.
■When working near the electric cooling fans or radiator grille
Be sure the engine switch is off.
With the engine switch in IGNITION ON mode, the electric cooling fans may
automatically start to run if the air conditioning is on and/or the coolant tempera-
ture is high. ( P. 549)
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from get-
ting in your eyes.
ItemsParts and tools

5356-3. Do-it-yourself maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air.
■If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear or
when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.

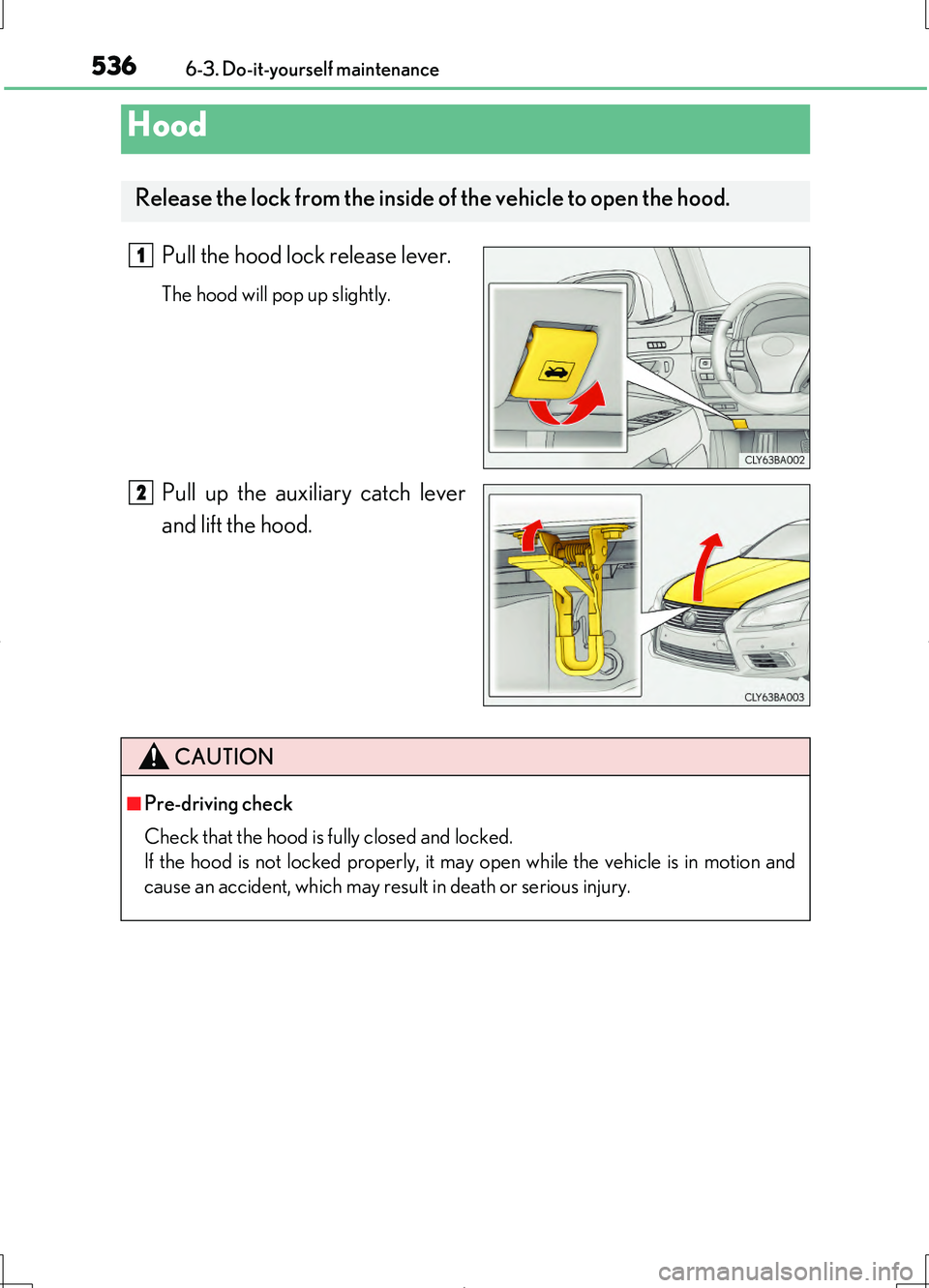

5366-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)
Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever
and lift the hood.
Hood
Release the lock from the inside of the vehicle to open the hood.
1
2
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion and
cause an accident, which may result in death or serious injury.
