2016 LEXUS LS460L Owners Manual

5216-2. Maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
Maintenance schedule (except for South Africa)
Maintenance operations:I =Inspect
R =Replace, change or lubricate
SERVICE
INTERVAL:ODOMETER READING
MONTHS(Odometer
reading or
months,
whichever
comes first.)
x1000 km1020304050607080
x1000 miles612182430364248
BASIC ENGINE COMPONENTS
1Drive beltsIIII24
2Engine oil RRRRRRRR12
3Engine oil filterRRRRRRRR12
4Cooling and heater system
<>II24
5Engine coolant
<>II-
6Exhaust pipes and mount-
ingsIIII12
IGNITION SYSTEM
7Spark plugsReplace every 100000 km
(60000 miles)-
8BatteryIIIIIIII12
FUEL AND EMISSION CONTROL SYSTEMS
9Fuel filter
<>R96
10Air cleaner filterIRIRI: 24
R: 48
11
Fuel tank cap, fuel lines, con-
nections and fuel vapor con-
trol valve <>
II24
12Charcoal canister
(except Korea)II24

5226-2. Maintenance
LS460/LS460L_GE (OM50G06E)
CHASSIS AND BODY
13Brake pedal <>IIIIIIII6
14Brake linings and drumsIIII12
15Brake pads and discsIIIIIIII6
16Brake fluidIIIRIIIRI: 6
R: 24
17Brake pipes and hosesIIII12
18Steering wheel, linkage and
steering gear boxIIII12
19Drive shaft bootsIIII24
20Suspension ball joint and
dust coverIIII12
21Automatic transmission fluidII24
22Transfer oil (AWD models)IRIRI: 12
R: 48
23Front differential oil (AWD
models)IRIRI: 12
R: 48
24Rear differential oilIRIRI: 12
R: 48
25Front and rear suspension
<>IIII12
26Tires and inflation pressureIIIIIIII6
27Lights, horns, wipers and
washersIIIIIIII6
28Air conditioning filter
When a message on the multi-information
display indicates that maintenance is
required, replace the filter.
Refrigerant amount for air condi-
tionerIIII12
Maintenance operations:I =Inspect
R =Replace, change or lubricate
SERVICE
INTERVAL:ODOMETER READING
MONTHS(Odometer
reading or
months,
whichever
comes first.)
x1000 km1020304050607080
x1000 miles612182430364248

5236-2. Maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)

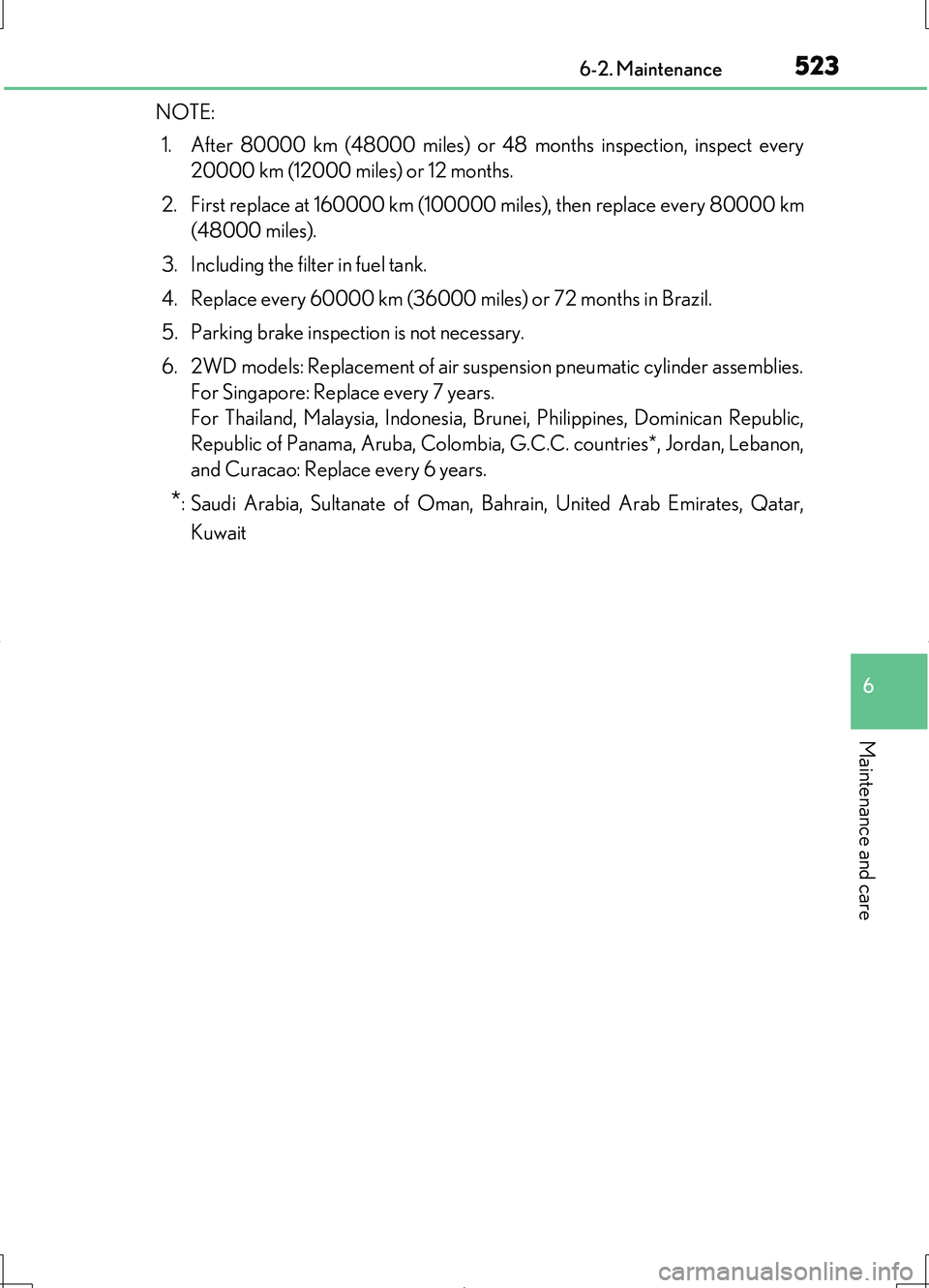

NOTE:
1. After 80000 km (48000 miles) or 48 months inspection, inspect every
20000 km (12000 miles) or 12 months.
2. First replace at 160000 km (100000 miles), then replace every 80000 km
(48000 miles).
3. Including the filter in fuel tank.
4. Replace every 60000 km (36000 miles) or 72 months in Brazil.
5. Parking brake inspection is not necessary.
6. 2WD models: Replacement of air suspension pneumatic cylinder assemblies.
For Singapore: Replace every 7 years.
For Thailand, Malaysia, Indonesia, Brunei, Philippines, Dominican Republic,
Republic of Panama, Aruba, Colombia, G.C.C. countries*, Jordan, Lebanon,
and Curacao: Replace every 6 years.
*: Saudi Arabia, Sultanate of Oman, Bahrain, United Arab Emirates, Qatar,
Kuwait

5246-2. Maintenance
LS460/LS460L_GE (OM50G06E)
Refer to the following table for normal maintenance schedule items
requiring more frequent service specific to the type of severe conditions.
(For outline, see “Maintenance schedule requirements”.)
Additional maintenance schedule (except for South Africa)
A-1: Operating on rough or muddy ro ads, or roads with melted snow
Inspection of brake linings and
drums
Every 10000 km (6000 miles) or
6 months
 Inspection of brake pads and discsEvery 5000 km (3000 miles) or
3 months
 Inspection of brake pipes and hosesEvery 10000 km (6000 miles) or
6 months
 Inspection of suspension ball joint
and dust cover
Every 10000 km (6000 miles) or
6 months
 Inspection of drive shaft bootsEvery 10000 km (6000 miles) or
12 months
 Replacement of transfer oil (AWD
models)
Every 20000 km (12000 miles) or
24 months
 Inspection of steering wheel, linkage
and steering gear box
Every 5000 km (3000 miles) or
3 months
 Inspection of front and rear suspen-
sion <>
Every 10000 km (6000 miles) or
6 months
 Tightening of bolts and nuts on chas-
sis and body <>
Every 10000 km (6000 miles) or
6 months

5256-2. Maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
A-2: Operating on dusty roads (Roads in areas where their pavement rate is low,
or a cloud of dust often arises and the air is dry)
Replacement of engine oilEvery 5000 km (3000 miles) or
6 months
 Replacement of engine oil filterEvery 5000 km (3000 miles) or
6 months
 Inspection or replacement of air
cleaner filter
I: Every 2500 km (1500 miles) or 3
months
R: Every 40000 km (24000 miles) or
48 months
 Inspection of brake linings and
drums
Every 10000 km (6000 miles) or
6 months
 Inspection of brake pads and discsEvery 5000 km (3000 miles) or
3 months
 Replacement of transfer oil (AWD
models)
Every 20000 km (12000 miles) or
24 months

5266-2. Maintenance
LS460/LS460L_GE (OM50G06E)
B-1: Heavily loaded vehicle (For example, using a car top carrier and so forth.)
Replacement of engine oilEvery 5000 km (3000 miles) or
6 months
 Replacement of engine oil filterEvery 5000 km (3000 miles) or
6 months
 Inspection of brake linings and
drums
Every 10000 km (6000 miles) or
6 months
 Inspection of brake pads and discsEvery 5000 km (3000 miles) or
3 months
 Inspection or replacement of auto-
matic transmission fluid
I: Every 40000 km (24000 miles) or
24 months
R: Every 80000 km (48000 miles) or
48 months
 Replacement of transfer oil (AWD
models)
Every 20000 km (12000 miles) or
24 months
 Inspection of front and rear suspen-
sion <>
Every 10000 km (6000 miles) or
6 months
 Tightening of bolts and nuts on chas-
sis and body <>
Every 10000 km (6000 miles) or
6 months

5276-2. Maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
NOTE:
1. Replacement of air suspension pneumatic cylinder assemblies.
For Singapore: Replace every 7 years.
For Thailand, Malaysia, Indonesia, Brunei, Philippines, Dominican Republic,
Republic of Panama, Aruba, Colombia, G.C.C. countries*, Jordan, Lebanon,
and Curacao: Replace every 6 years.
2. For seat mounting bolts, front and rear suspension member retaining bolts.
*: Saudi Arabia, Sultanate of Oman, Bahrain, United Arab Emirates, Qatar,
Kuwait
B-2: Repeated short trips less than 8 km (5 miles) and outside temperatures
remain below freezing (Engine temperature will not reach to normal tem-
perature)
 Replacement of engine oilEvery 5000 km (3000 miles) or
6 months
 Replacement of engine oil filterEvery 5000 km (3000 miles) or
6 months
B-3: Extensive idling and/or low speed dr iving for a long distance such as police,
taxi or door-to-door delivery use
 Replacement of engine oilEvery 5000 km (3000 miles) or
6 months
 Replacement of engine oil filterEvery 5000 km (3000 miles) or
6 months
 Inspection of brake linings and
drums
Every 10000 km (6000 miles) or
6 months
 Inspection of brake pads and discsEvery 5000 km (3000 miles) or
3 months
B-4: Continuous high speed driving (80% or more of maximum vehicle speed)
for over 2 hours
 Inspection or replacement of auto-
matic transmission fluid
I: Every 40000 km (24000 miles) or
24 months
R: Every 80000 km (48000 miles) or
48 months
 Replacement of transfer oil (AWD
models)
Every 20000 km (12000 miles) or
24 months

5286-2. Maintenance
LS460/LS460L_GE (OM50G06E)
Maintenance schedule (for South Africa)
Maintenance operations:I =Inspect
R =Replace, change or lubricate
SERVICE INTERVAL:ODOMETER READING
(Odometer reading or
months, whichever
comes first.)
x1000 km153045607590
MONTHSx1000
miles91827364554
BASIC ENGINE COMPONENTS
1Drive beltsIIIIII12
2Engine oilRRRRRR12
3Engine oil filterRRRRRR12
4Cooling and heater system III24
5Engine coolant <>III-
6Exhaust pipes and mountingsIIIIII12
IGNITION SYSTEM
7Spark plugs <>R-
8BatteryIIIIII12
FUEL AND EMISSION CONTROL SYSTEMS
9Fuel filter <>R96
10Air cleaner filterIIIRIII: 24
R: 48
11Fuel tank cap, fuel lines, connections
and fuel vapor control valveIII24
12Charcoal canisterII24
CHASSIS AND BODY
13Brake pedal <>III24
14Brake linings and drumsIII24
15Brake pads and discsIIIIII12
16Brake fluidIRIRIRI: 12
R: 24
