2016 LEXUS LS460L Owners Manual

5616-3. Do-it-yourself maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
■If the tread on snow tires wears down below 4 mm (0.16 in.)
The effectiveness of the tires as snow tires is lost.
■Situations in which the tire pressure warning system may not operate properly
(vehicles with the tire pressure warning system)
●In the following cases, the tire pressure warning system may not operate properly.
• If non-genuine Lexus wheels are used.
• A tire has been replaced with a tire that is not an OE (Original Equipment) tire.
• A tire has been replaced with a tire that is not of the specified size.
• Tire chains etc. are equipped.
• An auxiliary-supported run-flat tire is equipped.
• If a window tint that affects the radio wave signals is installed.
• If there is a lot of snow or ice on the vehicle, particularly around the wheels or
wheel housings.
• If the tire inflation pressure is extr emely higher than the specified level.
• If the spare tire is in a location subject to poor radio wave signal reception.
• If a large metallic object which can interfere with signal reception is put in the
trunk.
• If tires not equipped with tire pressure warning valves and transmitters are used.
• If the ID code on the tire pressure warning valves and transmitters is not regis-
tered in the tire pressure warning computer.
●Performance may be affected in the following situations.
• Near a TV tower, electric power plant, gas station, radio station, large display,
airport or other facility th at generates strong radio waves or electrical noise
• When carrying a portable radio, cellular phone, cordless phone or other wire-
less communication device
If tire position information is not correctly displayed due to the radio wave condi-
tions, the display may be corrected by driving and changing the radio wave condi-
tions.
●When the vehicle is parked, the time taken for the warning to start or go off could
be extended.
●When tire inflation pressure declines rapidly for example when a tire has burst, the
warning may not function.

5626-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)
■The initialization operation (vehicles with the tire pressure warning system)
●Make sure to carry out initialization after adjusting the tire inflation pressure.
Also, make sure the tires are cold before carrying out initialization or tire inflation
pressure adjustment.
●If you have accidentally turned the engine switch off during initialization, it is not
necessary to press the reset switch again as initialization will restart automatically
when the engine switch has been turned to IGNITION ON mode for the next time.
●If you accidentally press the reset switch when initialization is not necessary, adjust
the tire inflation pressure to the specified level when the tires are cold, and conduct
initialization again.
■Warning performance of the tire pressure warning system (if equipped)
The warning of the tire pressure warning system will change in accordance with driv-
ing conditions. For this reason, the system may give a warning even if the tire pres-
sure does not reach a low enough level, or if the pressure is higher than the pressure
that was adjusted to when the system was initialized.
■When initialization of the tire pressure warning system has failed (vehicles with the
tire pressure warning system)
Initialization can be completed in a few minutes. However, in the following cases, the
settings have not been recorded and the system will not operate properly. If
repeated attempts to record tire inflation pressure settings are unsuccessful, have
the vehicle inspected by your Lexus dealer.
●When operating the tire pressure warning reset switch, the tire pressure warning
light does not blink 3 times.
●After carrying out the initialization procedure, the tire pressure warning light blinks
for 1 minute then stays on after driving for 20 minutes.

5636-3. Do-it-yourself maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
■Certification for tire pressure warning system
For vehicles sold in the United Arab Emirates
For vehicles sold in Jordan
Type approval No.: TRC/LPD/2010/44
For vehicles sold in South Africa
TPMS (Tire Pressure Monitoring System) Transmitter conforms to the requirement
of ICASA.
For vehicles sold in Singapore

5646-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)

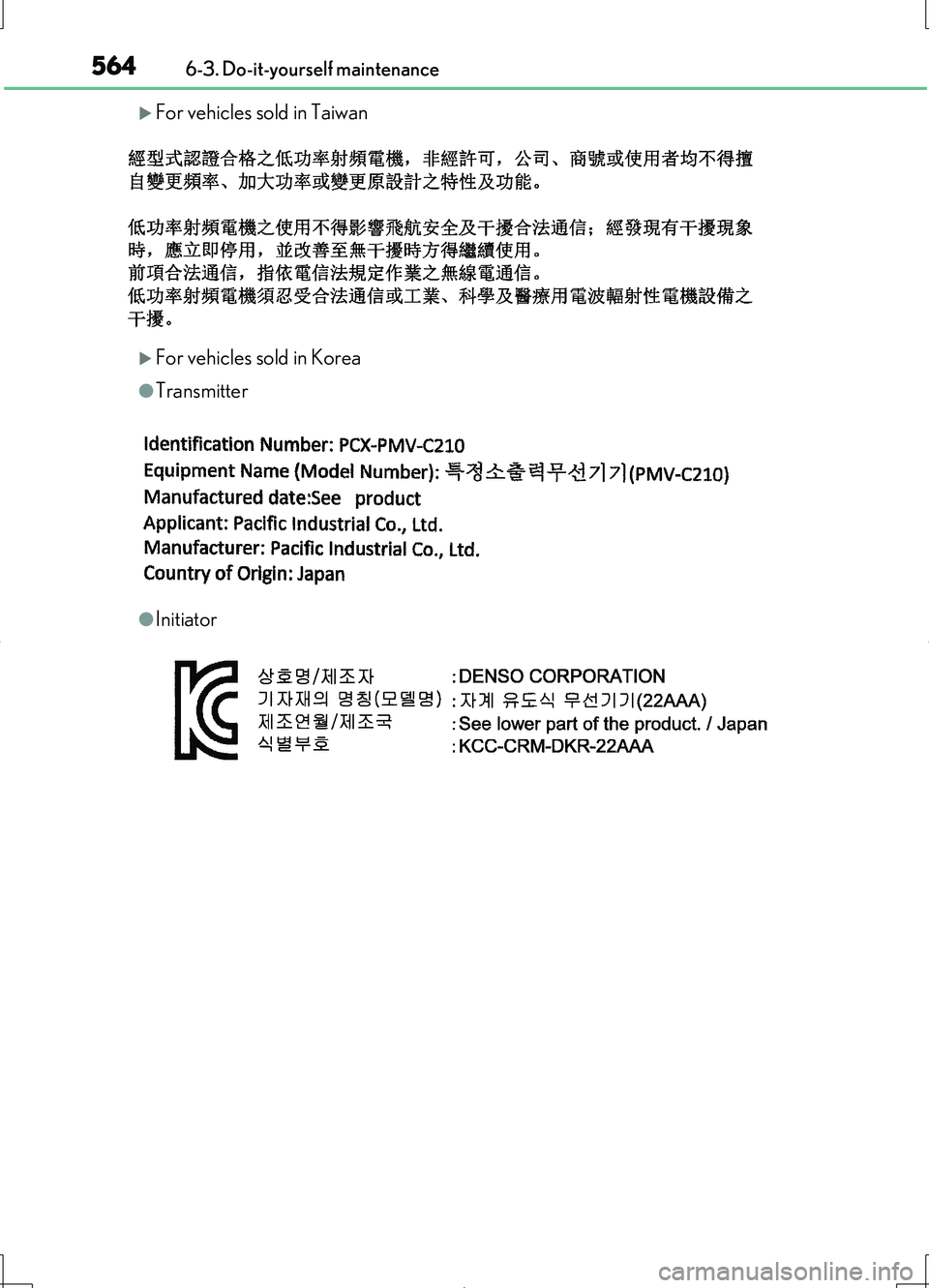

For vehicles sold in Taiwan
For vehicles sold in Korea
●Transmitter
●Initiator

5656-3. Do-it-yourself maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
CAUTION
■When inspecting or replacing tires
Observe the following precautions to prevent accidents.
Failure to do so may cause damage to parts of the drive train as well as dangerous
handling characteristics, which may lead to an accident resulting in death or seri-
ous injury.
●Do not mix tires of different makes, models or tread patterns.
Also, do not mix tires of remarkably different treadwear.
●Do not use tire sizes other than those recommended by Lexus.
●Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
●Do not mix summer, all season and snow tires.
●Do not use tires that have been used on another vehicle.
Do not use tires if you do not kno w how they were used previously.

5666-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)
CAUTION
■Using tires of a different size
Do not use tires of a different size from those equipped when the vehicle was new,
as the front tire steering angle setting is designed for the original tire size. It is dan-
gerous to use an incorrect wheel and tire combination as this may result in reduced
vehicle stability.
■When initializing the tire pressure warning system (vehicles with the tire pressure
warning system)
Do not operate the tire pressure warning reset switch without first adjusting the tire
inflation pressure to the specified level. Otherwise, the tire pressure warning light
may not come on even if the tire inflation pressure is low, or it may come on when
the tire inflation pressure is actually normal.
■Caution regarding interference with electronic devices (vehicles with the tire
pressure warning system)
●Users of any electrical medical device other than implantable cardiac pacemak-
ers, cardiac resynchronization therapy-pacemakers or implantable cardioverter
defibrillators should consult the manufacturer of the device for information about
its operation under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such medical
devices.
●People with implantable cardiac pacemak-
ers, cardiac resynchronization therapy-
pacemakers or implantable cardioverter
defibrillators should not come within 450
mm (17.7 in.) of the tire pressure warning
system initiators. The radio waves may
affect the operation of such devices.

5676-3. Do-it-yourself maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)

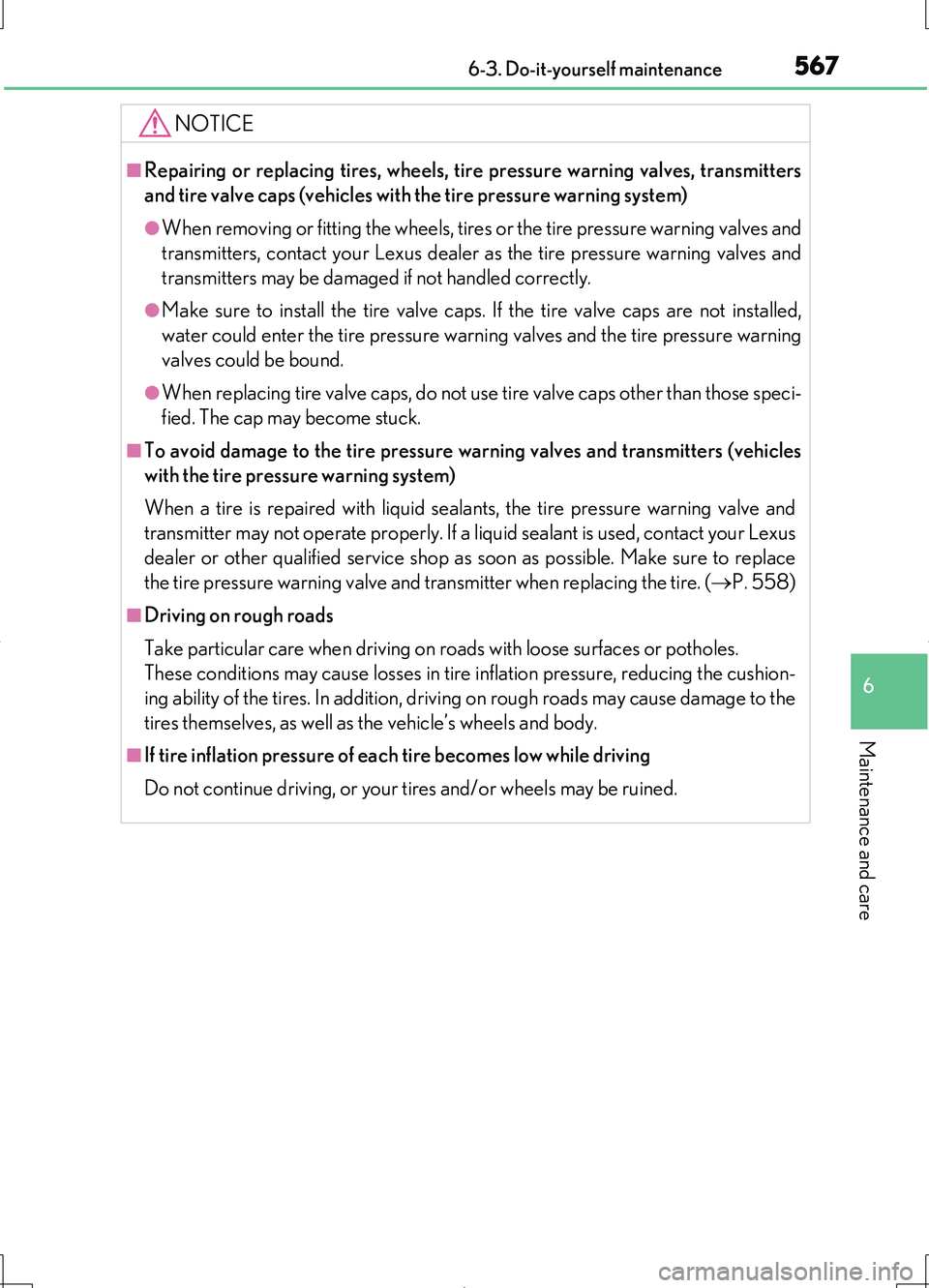

NOTICE
■Repairing or replacing tires, wheels, tire pressure warning valves, transmitters
and tire valve caps (vehicles with the tire pressure warning system)
●When removing or fitting the wheels, tires or the tire pressure warning valves and
transmitters, contact your Lexus dealer as the tire pressure warning valves and
transmitters may be damaged if not handled correctly.
●Make sure to install the tire valve caps. If the tire valve caps are not installed,
water could enter the tire pressure warning valves and the tire pressure warning
valves could be bound.
●When replacing tire valve caps, do not use tire valve caps other than those speci-
fied. The cap may become stuck.
■To avoid damage to the tire pressure wa rning valves and transmitters (vehicles
with the tire pressure warning system)
When a tire is repaired with liquid sealants, the tire pressure warning valve and
transmitter may not operate properly. If a liquid sealant is used, contact your Lexus
dealer or other qualified service shop as soon as possible. Make sure to replace
the tire pressure warning valve and transmitter when replacing the tire. ( P. 558)
■Driving on rough roads
Take particular care when driving on roads with loose surfaces or potholes.
These conditions may cause losses in tire inflation pressure, reducing the cushion-
ing ability of the tires. In addition, driving on rough roads may cause damage to the
tires themselves, as well as the vehicle’s wheels and body.
■If tire inflation pressure of each tire becomes low while driving
Do not continue driving, or your tires and/or wheels may be ruined.

5686-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)

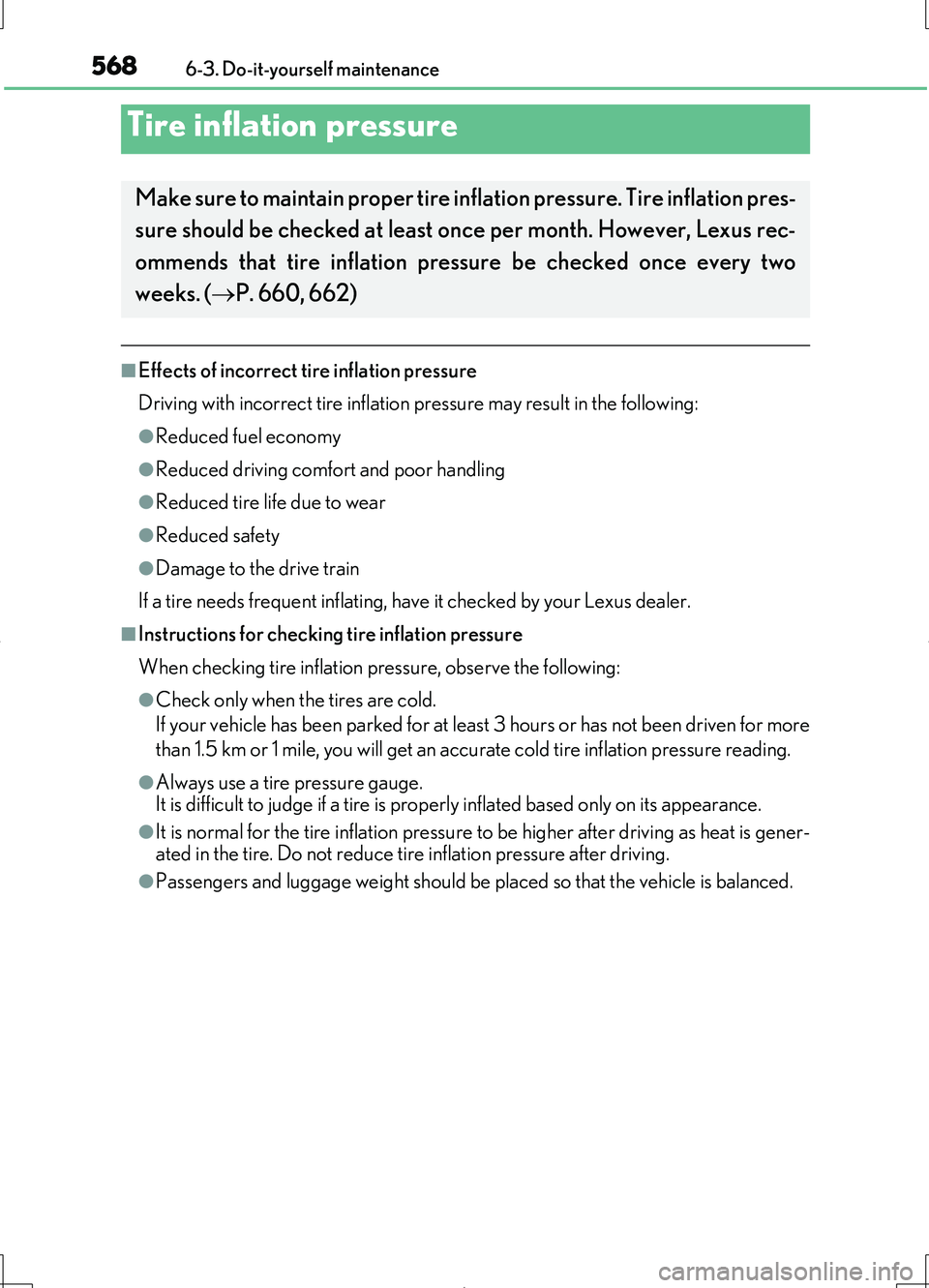

■Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:
●Reduced fuel economy
●Reduced driving comfort and poor handling
●Reduced tire life due to wear
●Reduced safety
●Damage to the drive train
If a tire needs frequent inflating, have it checked by your Lexus dealer.
■Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
●Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been driven for more
than 1.5 km or 1 mile, you will get an accurate cold tire inflation pressure reading.
●Always use a tire pressure gauge.
It is difficult to judge if a tire is properly inflated based only on its appearance.
●It is normal for the tire inflation pressure to be higher after driving as heat is gener-
ated in the tire. Do not reduce tire inflation pressure after driving.
●Passengers and luggage weight should be placed so that the vehicle is balanced.
Tire inflation pressure
Make sure to maintain proper tire in flation pressure. Tire inflation pres-
sure should be checked at least once per month. However, Lexus rec-
ommends that tire inflation pr essure be checked once every two
weeks. ( P. 660, 662)
