198
LS460/LS460L_GE (OM50G06E)

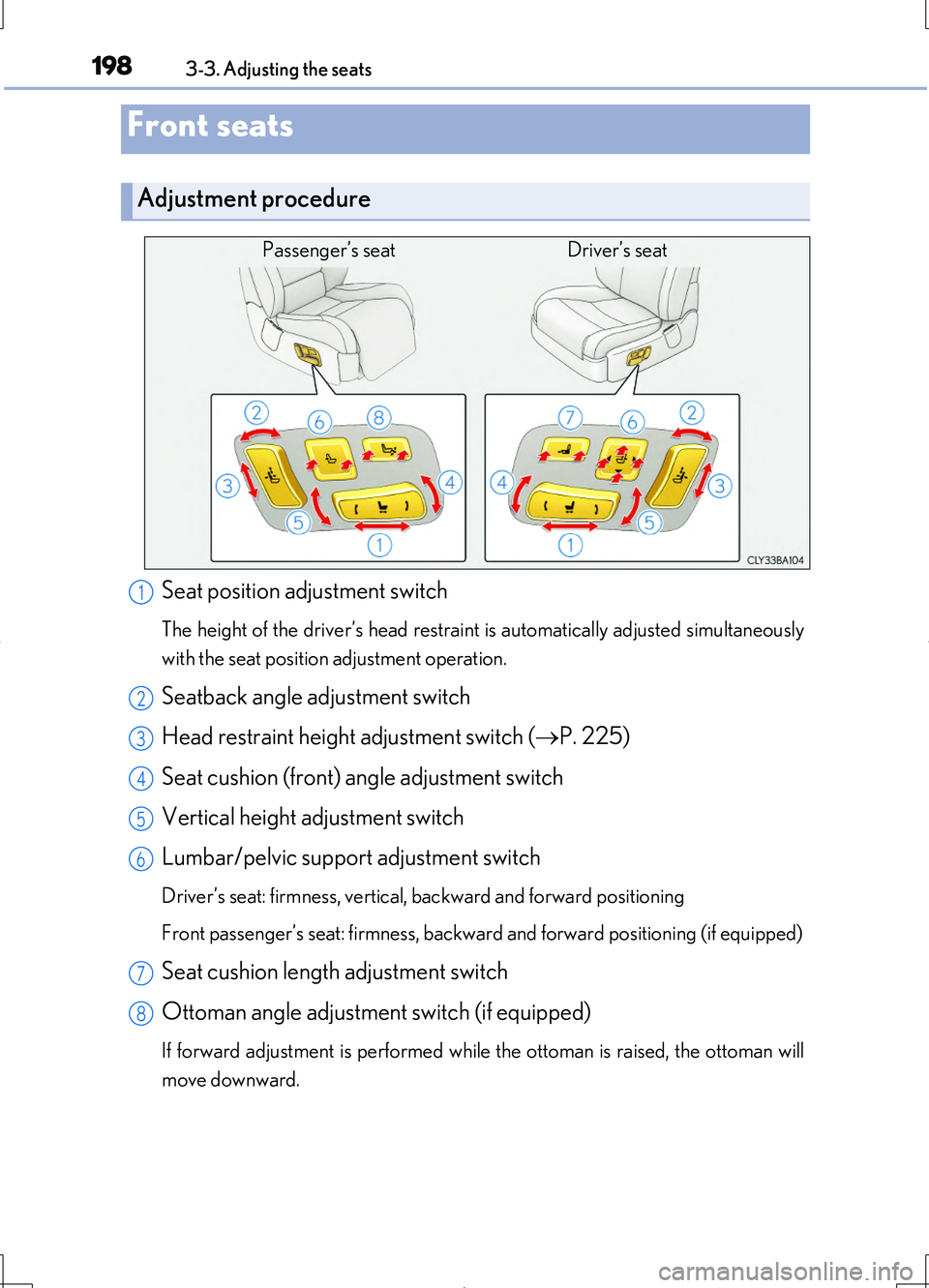

3-3. Adjusting the seats
Front seats
Adjustment procedure
Passenger’s seat Driver’s seat
Seat position adjustment switch
The height of the driver’s head restraint is automatically adjusted simultaneously
with the seat position adjustment operation.
Seatback angle adjustment switch
Head restraint height adjustment switch ( P. 225)
Seat cushion (front) angle adjustment switch
Vertical height adjustment switch
Lumbar/pelvic support adjustment switch
Driver’s seat: firmness, vertical, backward and forward positioning
Front passenger’s seat: firmness, backward and forward positioning (if equipped)
Seat cushion length adjustment switch
Ottoman angle adjustment switch (if equipped)
If forward adjustment is performed while the ottoman is raised, the ottoman will
move downward.
1
2
3
4
5
6
7
8

2023-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)
■Operating the foldable head restraint (vehicles with relaxation seat)
●If the seatback angle is adjusted using the switches located on the side of the front
passenger’s seat or center console when the engine switch is in IGNITION ON
mode, the head restraint will operate as follows:
• When tilting the seatback forward: After the seatback movement ends, the head
restraint starts to rise and fold. A signal beeps once operation is complete. If the
switch is released during the operation, the head restraint will return to the neu-
tral position.
• When tilting the seatback backward: If the head restraint is folded, it will return
to the neutral position.
●In the following situations, the head restraint will not operate even when the seat-
back angle adjustment switch is operated:
• The engine switch is off.
• The weight of an occupant or heavy object, etc. is detected on the front passen-
ger’s seat.
• The front passenger’s seat belt is fastened.
• The front passenger’s door is open.
■Operating the front passenger’s seat from the rear seat (vehicles with relaxation
seat)
The front passenger’s seat can be operated when the engine switch is in IGNITION
ON mode. However, in the following situations, the front passenger’s seat does not
move even when the switch is operated:
●The weight of an occupant or heavy object etc. is detected on the front passenger’s
seat.
●The front passenger’s seat belt is fastened.
●The front passenger’s door is open. (The front seat will not move forward.)
■Seat cushion automatic length adjustment (driver’s seat)
If the front of the cushion gets too close to the area around the instrument panel
when the seat position is being adjusted, the seat cushion will automatically retract.
■Seat operation automatic stop function (vehicles with relaxation seat)
If a front seat is likely to come into contact with the retractable table (4-seat models)
or the ottoman during seat operation or activation of the power easy access system,
a buzzer will sound and seat slide operation will be stopped partway.
(A warning message will be shown on the multi-information display.)

648
LS460/LS460L_GE (OM50G06E)
8-1. Specifications
Dimensions
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall lengthLS460 5090 mm (200.4 in.)
LS460L 5210 mm (205.1 in.)
Overall width1875 mm (73.8 in.)
Overall height*1
2WD
models
1475 mm (58.1 in.)*2
1465 mm (57.7 in.)*3
1455 mm (57.3 in.)*4
AWD
models
1480 mm (58.3 in.)*2
1465 mm (57.7 in.)*3
1455 mm (57.3 in.)*4
WheelbaseLS4602970 mm (116.9 in.)
LS460L3090 mm (121.7 in.)
Tread
Front1615 mm (63.6 in.)*5
1610 mm (63.4 in.)*6
Rear
2WD
models
1620 mm (63.8 in.)*5
1615 mm (63.6 in.)*6
AWD
models
1615 mm (63.6 in.)*5
1610 mm (63.4 in.)*6
