2016 LEXUS LS460L Owners Manual

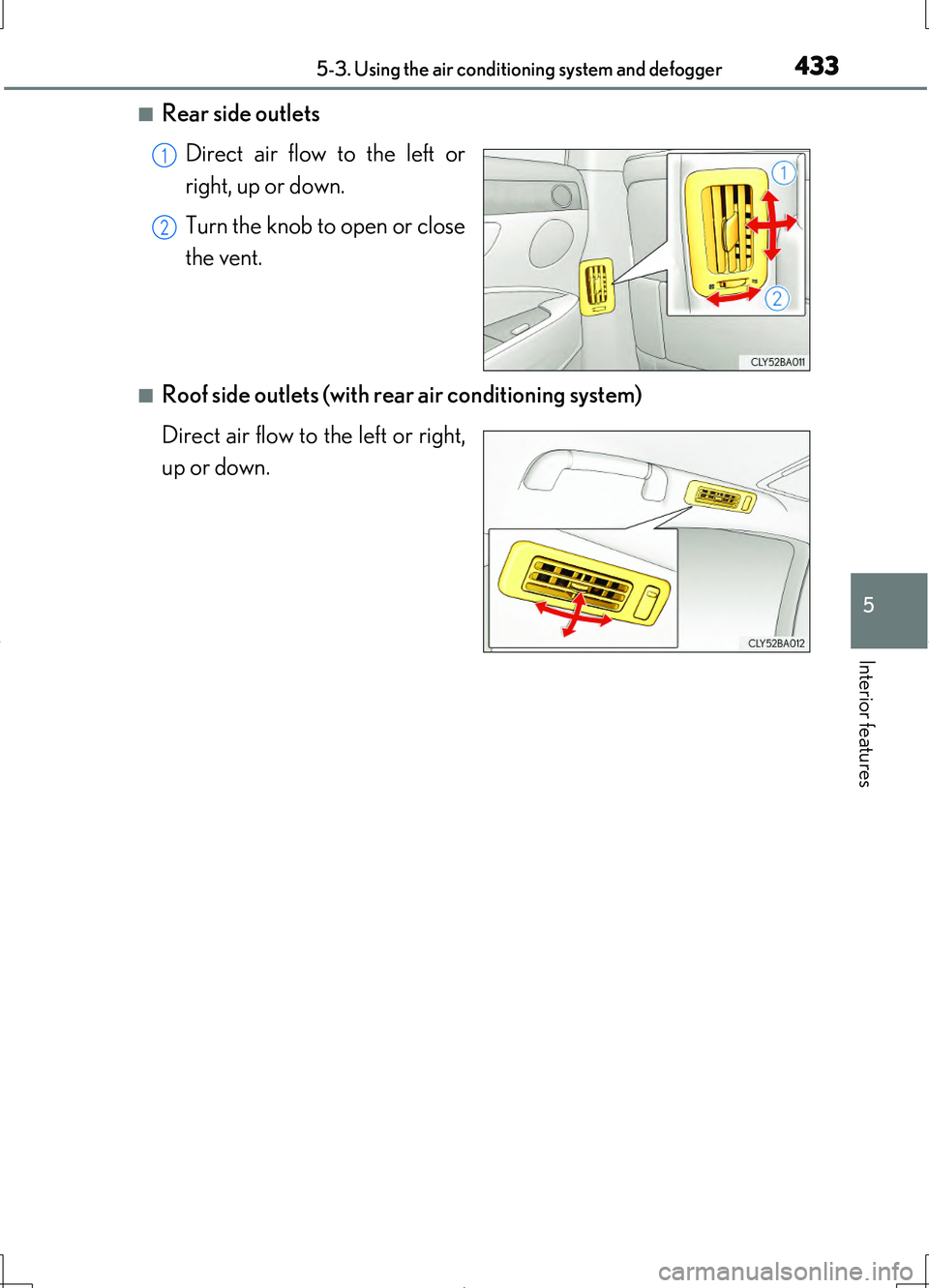

4335-3. Using the air conditioning system and defogger
5
Interior features
LS460/LS460L_GE (OM50G06E)
■Rear side outlets
Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
■Roof side outlets (with rear air conditioning system)
Direct air flow to the left or right,
up or down.
1
2

4345-3. Using the air conditioning system and defogger
LS460/LS460L_GE (OM50G06E)
■Operation of the air conditioning system in Eco drive mode
●In the Eco drive mode, the air conditioning system is controlled as follows to priori-
tize fuel efficiency
• Engine speed and compressor operation controlled to restrict heating/cooling
capacity
• Fan speed restricted when automatic mode is selected
●To improve air conditioning performance, perform the following operations
• Adjust the fan speed
• Turn off Eco drive mode
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature setting and
ambient conditions. As a result, the following may occur:
●Immediately after the “AUTO” switch is pressed, the fan may stop for a while until
warm or cool air is ready to flow.
●Cool air may flow to the area around the upper body when the heater is on.
■Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high. Selecting
“A/C” on will dehumidify the air from the outlets and defog the windshield effec-
tively.
●If you turn “A/C” off, the windows may fog up more easily.
●The windows may fog up if the recirculated air mode is used.
■Outside/recirculated air mode
●When driving on dusty roads such as tunnels or in heavy traffic, set the outside/
recirculated air mode button to the recirculated air mode. This is effective in pre-
venting outside air from entering the vehicle interior. During cooling operation, set-
ting the recirculated air mode will also cool the vehicle interior effectively.
●Outside/recirculated air mode may automatically switch depending on the tem-
perature setting or the inside temperature.

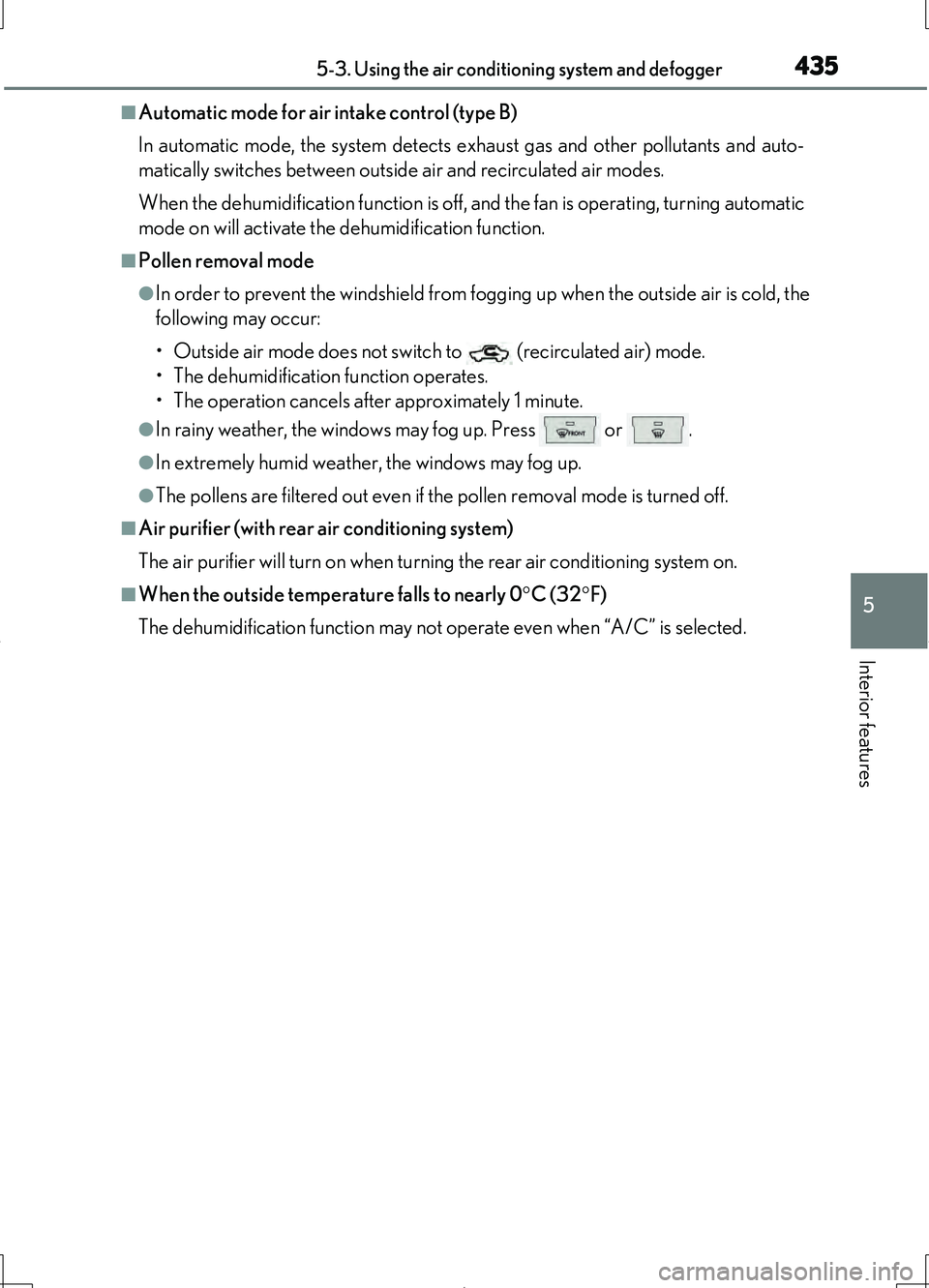

4355-3. Using the air conditioning system and defogger
5
Interior features
LS460/LS460L_GE (OM50G06E)
■Automatic mode for air intake control (type B)
In automatic mode, the system detects exhaust gas and other pollutants and auto-
matically switches between outside air and recirculated air modes.
When the dehumidification function is off, and the fan is operating, turning automatic
mode on will activate the dehumidification function.
■Pollen removal mode
●In order to prevent the windshield from fogging up when the outside air is cold, the
following may occur:
• Outside air mode does not switch to (recirculated air) mode.
• The dehumidification function operates.
• The operation cancels after approximately 1 minute.
●In rainy weather, the windows may fog up. Press or .
●In extremely humid weather, the windows may fog up.
●The pollens are filtered out even if the pollen removal mode is turned off.
■Air purifier (with rear air conditioning system)
The air purifier will turn on when turning the rear air conditioning system on.
■When the outside temperature falls to nearly 0 C (32F)
The dehumidification function may not operate even when “A/C” is selected.

4365-3. Using the air conditioning system and defogger
LS460/LS460L_GE (OM50G06E)
■Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning system to the outside air mode.
●During use, various odors from inside and outside the vehicle may enter into and
accumulate in the air conditioning system. This may then cause odor to be emitted
from the vents.
●To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air mode
prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time immedi-
ately after the air conditioning system is started in automatic mode.
■nanoe  *1
The air conditioning system adopts nanoe  technology. This helps to fill the cabin
with refreshing air by emitting slightly acidic nanoe  ions coated with water parti-
cles through the front center vent on driver’s side*2.
●When the fan is turned on and “nanoe” on the option control screen is selected, the
nanoe  is activated.
●When the fan is operated in the following conditions, system performance will be
maximized. If the following conditions are not met, the nanoe  may not operate at
full capacity.
• The , or air outlets are being used.
• The front center vent on driver’s side is open.
●When nanoe  is generated, a small amount of ozone is emitted and may be faintly
smelled in some situations. However, this is approximately the same as the amount
that already exists in nature, such as in forests, and it has no affect on the human
body.
●A slight noise may be heard during operation. This is not a malfunction.
*1:nanoe  and the nanoe mark are trademarks of Panasonic Corporation.
*2: According to temperature and humidity conditions, fan speed and direction of
the air flow, the nanoe  may not operate at full capacity.

4375-3. Using the air conditioning system and defogger
5
Interior features
LS460/LS460L_GE (OM50G06E)
■Air conditioning filter
 P. 572
■Customization
Some functions can be customized. (Customizable features P. 667)
CAUTION
■To prevent the windshield from fogging up
Do not use
or during cool air operation in extremely humid
weather. The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, blocking your
vision.
■nanoe
Do not disassemble or repair the generator because it contains high voltage parts.
Contact your Lexus dealer if the generator needs repair.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
■To prevent damage to the nanoe
Do not insert anything into the driver’s side vent, attach anything to it, or use sprays
around the driver’s side vent. These th ings may cause the generator not to work
properly.

4385-3. Using the air conditioning system and defogger
LS460/LS460L_GE (OM50G06E)
Rear air conditioning system
: If equipped
Air outlets and fan speed are automatically adjusted according to the
temperature setting.
Left-hand rear seat side tem-
perature control
Left-hand rear seat side air out-
let selector
Automatic mode
Off
Fan speed control
Right-hand rear seat side air
outlet selector
Right-hand rear seat side tem-
perature control
Right-hand rear seat side tem-
perature display
Right-hand rear seat side air
flow display
Fan speed display
Left-hand rear seat side air flow
display
Left-hand rear seat side tem-
perature display
Button lock display
1
2
3
4
5
6
7
8
9
10
11
12
13

4395-3. Using the air conditioning system and defogger
5
Interior features
LS460/LS460L_GE (OM50G06E)
Press the “AUTO” button.
The air conditioning system will operate, and air outlets and fan speed will be
adjusted automatically.
“AUTO” will be displayed on the control panel.
Press “ ” on “TEMP” to increase the temperature and “” to decrease
the temperature.
The temperature for the right-hand and left-hand seats can be adjusted sepa-
rately.
Air outlets for the right-hand and left-hand seats may be set separately depend-
ing on the temperature setting.
When the rear climate control seats are set to “AUTO” mode, the system is oper-
ated automatically according to the set temperature, outside temperature, etc.
■Adjusting the temperature setting
Press “ ” on “TEMP” to increase the temperature and “” to decrease
the temperature.
The temperature for the right-hand and left-hand seats can be adjusted sepa-
rately.
When the rear climate control seats are set to “AUTO” mode, the system is
operated automatically according to the set temperature, outside tempera-
ture, etc.
Using automatic air conditioning system
Adjusting the settings manually
1
2

4405-3. Using the air conditioning system and defogger
LS460/LS460L_GE (OM50G06E)
■Changing the air outlets
Press .
The air outlets change as follows each time is pressed.
Different air outlets for the right-hand and left-hand rear seats can be chosen.
Air flows as shown below according to the mode selected.
When the indicator on “Air Purifier” (on the option control screen) is
on
Upper body
When the indicator on “Air Purifier” (on the option control screen) is
off
Upper body
*: Cool air only
* *
