2016 LEXUS LS460L Owners Manual

2734-2. Driving procedures
4
Driving
LS460/LS460L_GE (OM50G06E)
The Gear Shift Indicator display is a guide to help the driver achieve
improved fuel economy and reduced exhaust emissions within limits of
engine performance.
When not in operation
Shift-up indicator
■Gear Shift Indicator function
●This function automatically operates during M mode.
●By following the Shift-up indicator and shifting up accordingly, it is
possible to achieve improved fu el economy and reduced exhaust
emissions.
●The Gear Shift Indicator does not have a similar function for down-
shifting.
●Depending on the driving conditions, the Gear Shift Indicator may
not display the Shift-up indicator while driving in M mode.
Gear Shift Indicator (if equipped)
1
2

2744-2. Driving procedures
LS460/LS460L_GE (OM50G06E)
■Sport mode/Comfort mode/Eco drive mode
 P. 354
■Snow mode
Snow mode can be selected to suit the conditions when driving on slip-
pery road surfaces, such as on snow.
Press the switch.
The snow mode indicator light will
come on.
Press the switch again to return to
normal mode.
■Automatic deactivation of shift range selection in the D position
Shift range selection in the D position will be deactivated in the following situations:
●When the vehicle comes to a stop
●If the accelerator pedal is depressed for more than a certain period of time
●When the shift lever is shifted to other than D
■Downshifting restrictions warning buzzer
To help ensure safety and driving performance, downshifting operation may some-
times be restricted. In some circumstances, downshifting may not be possible even
when the shift lever or paddle shift switch is operated. (A buzzer will sound twice.)
■When driving with cruise control, dynamic radar cruise control or dynamic radar
cruise control with full speed range activated
Even when performing the following actions with the intent of enabling engine brak-
ing, engine braking will not activate because cruise control, dynamic radar cruise
control or dynamic radar cruise control with full speed range will not be canceled.
●While driving in the D position, downshifting to 7, 6, 5 or 4. ( P. 309, 313, 328)
●When switching the driving mode to sp ort mode while driving in D position.
(  P. 354)
Selecting the driving mode

2754-2. Driving procedures
4
Driving
LS460/LS460L_GE (OM50G06E)
■Snow mode automatic deactivation
Snow mode is automatically deactivated if the engine switch is turned off after driv-
ing in snow mode.
■Shift lock system
The shift lock system is a system to prevent accidental operation of the shift lever in
starting.
The shift lever can be shifted from P only when the engine switch is in IGNITION
ON mode and the brake pedal is being depressed.
■If the shift lever cannot be shifted from P
First, check whether the brake pedal is being depressed.
If the shift lever cannot be shifted with your foot on the brake pedal, there may be a
problem with the shift lock system. Have the vehicle inspected by your Lexus dealer
immediately.
The following steps may be used as an emergency measure to ensure that the shift
lever can be shifted.
Releasing the shift lock: Turn the engine switch to IGNITION ON mode ( P. 260) and check that the
parking brake is set.
Turn the engine switch off.
Depress the brake pedal.
Left-hand drive vehicles
1
2
3
Pry the cover up with a flathead screw-
driver or equivalent tool.
To prevent damage to the cover, cover
the tip of the screwdriver with a rag.
Press the shift lock override button.
The shift lever can be shifted while the
button is pressed.4
5

2764-2. Driving procedures
LS460/LS460L_GE (OM50G06E)
Right-hand drive vehicles
■If the automatic transmission fluid temperature warning message is displayed
If the automatic transmission fluid temperature warning message is displayed while
driving, make sure you return to normal D position driving and reduce speed by eas-
ing off the accelerator pedal. Stop the vehicle in a safe place, shift the shift lever to
the P position and let the engine idle until the warning message goes out.
When the warning message goes out, the vehicle can be driven again.
If the warning message does not go out after waiting a while, have your vehicle
inspected by your Lexus dealer.
■AI-SHIFT
The AI-SHIFT automatically selects the suitable gear according to driver perfor-
mance and driving conditions.
The AI-SHIFT automatically operates when the shift lever is in the D position. (Shift-
ing the shift lever to the M position cancels the function.) Pry the cover up with a flathead screw-
driver or equivalent tool.
To prevent damage to the cover, cover
the tip of the screwdriver with a rag.
Press the shift lock override button.
The shift lever can be shifted while the
button is pressed.
4
5

2774-2. Driving procedures
4
Driving
LS460/LS460L_GE (OM50G06E)
CAUTION
■When driving on slippery road surfaces
Be careful of downshifting and sudden acceleration, as this could result in the vehi-
cle skidding to the side or spinning.
■Gear Shift Indicator display (if equipped)
For safety, the driver should not look only at the display. Refer to the display when it
is safe to do so while considering actual traffic and road conditions.
Failure to do so may lead to an accident.
■To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking brake
and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal when
the shift lock override button is pressed and the shift lever is shifted out of P, the
vehicle may suddenly start, possibly leading to an accident resulting in death or
serious injury.

2784-2. Driving procedures
LS460/LS460L_GE (OM50G06E)
Right turn
Lane change to the right (move
the lever partway and release it)
The right hand signals will flash 3
times.
Lane change to the left (move the
lever partway and release it)
The left hand signals will flash 3 times.
Left turn
■Turn signals can be operated when
The engine switch is in IGNITION ON mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
■If the turn signals stop flashing befo re a lane change has been performed
Operate the lever again.
■To discontinue flashing of the turn signals during a lane change
Operate the lever in the opposite direction.
■Customization
The number of times the turn signals flash during a lane change can be changed.
(Customizable features P. 667)
Turn signal lever
Operating instructions
1
2
3
4

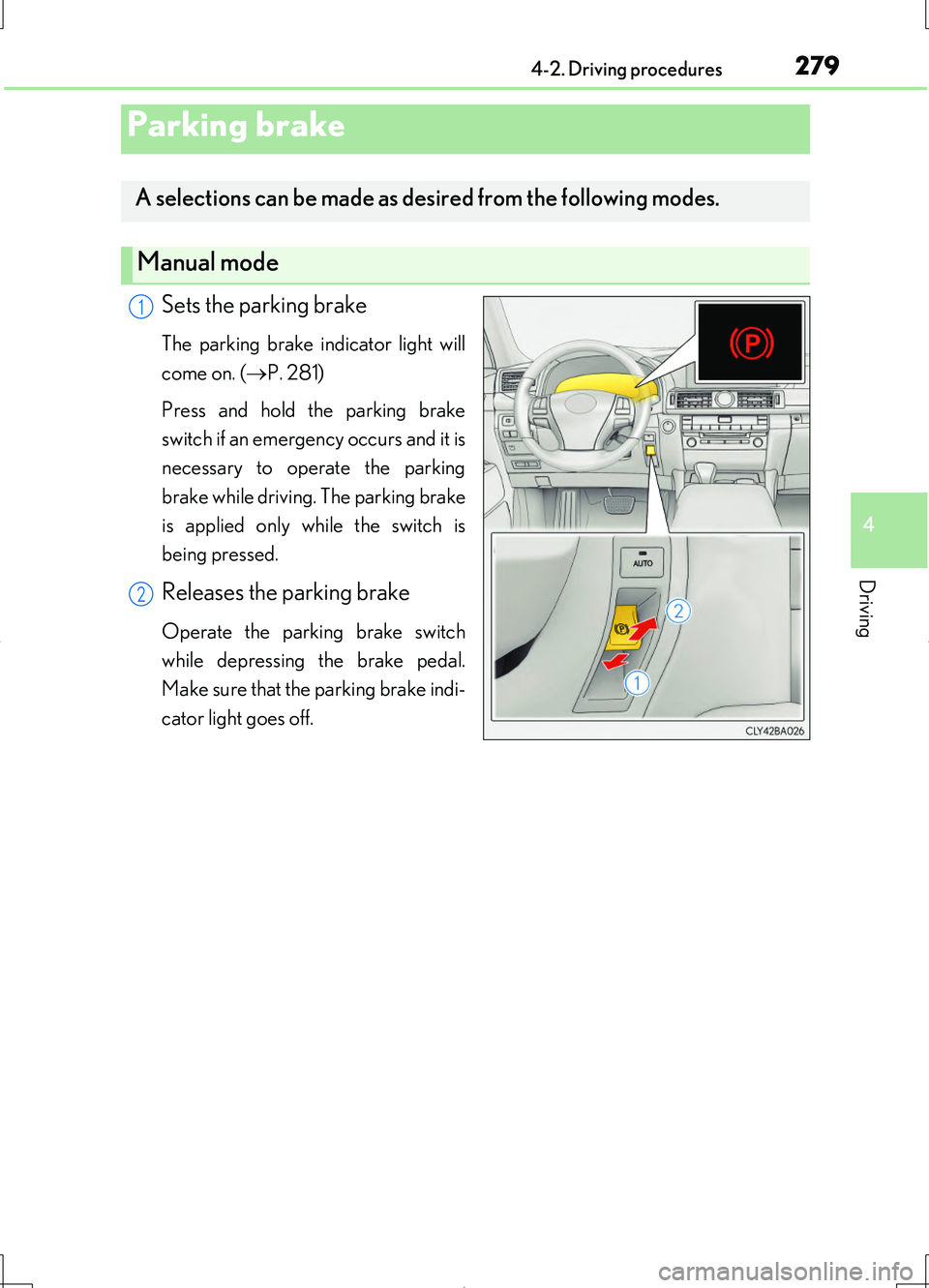

2794-2. Driving procedures
4
Driving
LS460/LS460L_GE (OM50G06E)
Sets the parking brake
The parking brake indicator light will
come on. ( P. 281)
Press and hold the parking brake
switch if an emergency occurs and it is
necessary to operate the parking
brake while driving. The parking brake
is applied only while the switch is
being pressed.
Releases the parking brake
Operate the parking brake switch
while depressing the brake pedal.
Make sure that the parking brake indi-
cator light goes off.
Parking brake
A selections can be made as desired from the following modes.
Manual mode
1
2

2804-2. Driving procedures
LS460/LS460L_GE (OM50G06E)
The parking brake is set or released automatically according to shift lever
operation.
Turns automatic mode on/off
When automatic mode is turned on,
the indicator on the switch comes
on and it operates in the following
manner:
●When the shift lever is moved into
P, the parking brake will be set.
●When the shift lever is moved out
of P, the parking brake will be
released.
Operate the shift lever with the brake
pedal depressed.
■Parking the vehicle
 P. 246
■Parking brake operation
●When the engine switch is not in IGNITION ON mode, the parking brake cannot
be released using the parking brake switch.
●When the engine switch is not in IGNITION ON mode, automatic mode (auto-
matic brake setting and releasing) is not available.
●If the parking brake is operated repeatedly over a short period of time, the system
may restrict operation to prevent overheating. If this happens, refrain from operat-
ing the parking brake. Normal operation will return after about 1 minute.
■Parking brake operation sound
When the parking brake operates, a motor sound (whirring sound) may be heard.
This does not indicate a malfunction.
Automatic mode
