2016 LEXUS LS460L Owners Manual

2413-5. Opening, closing the windows and moon roof
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
■The moon roof can be operated when
The engine switch is in IGNITION ON mode.
■Operating the moon roof after turning the engine off
The moon roof can be operated for approximately 45 seconds after the engine
switch is turned to ACCESSORY mode or turned off. It cannot, however, be oper-
ated once either front door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while the moon roof is
closing or tilting down, travel is stop ped and the moon roof opens slightly.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will open
automatically when the moon roof is opened.
■Door lock linked moon roof operation
●The moon roof can be closed using the entry function. ( P. 155)
●The moon roof can be opened and closed using the mechanical key. (P. 631)

2423-5. Opening, closing the windows and moon roof
LS460/LS460L_GE (OM50G06E)

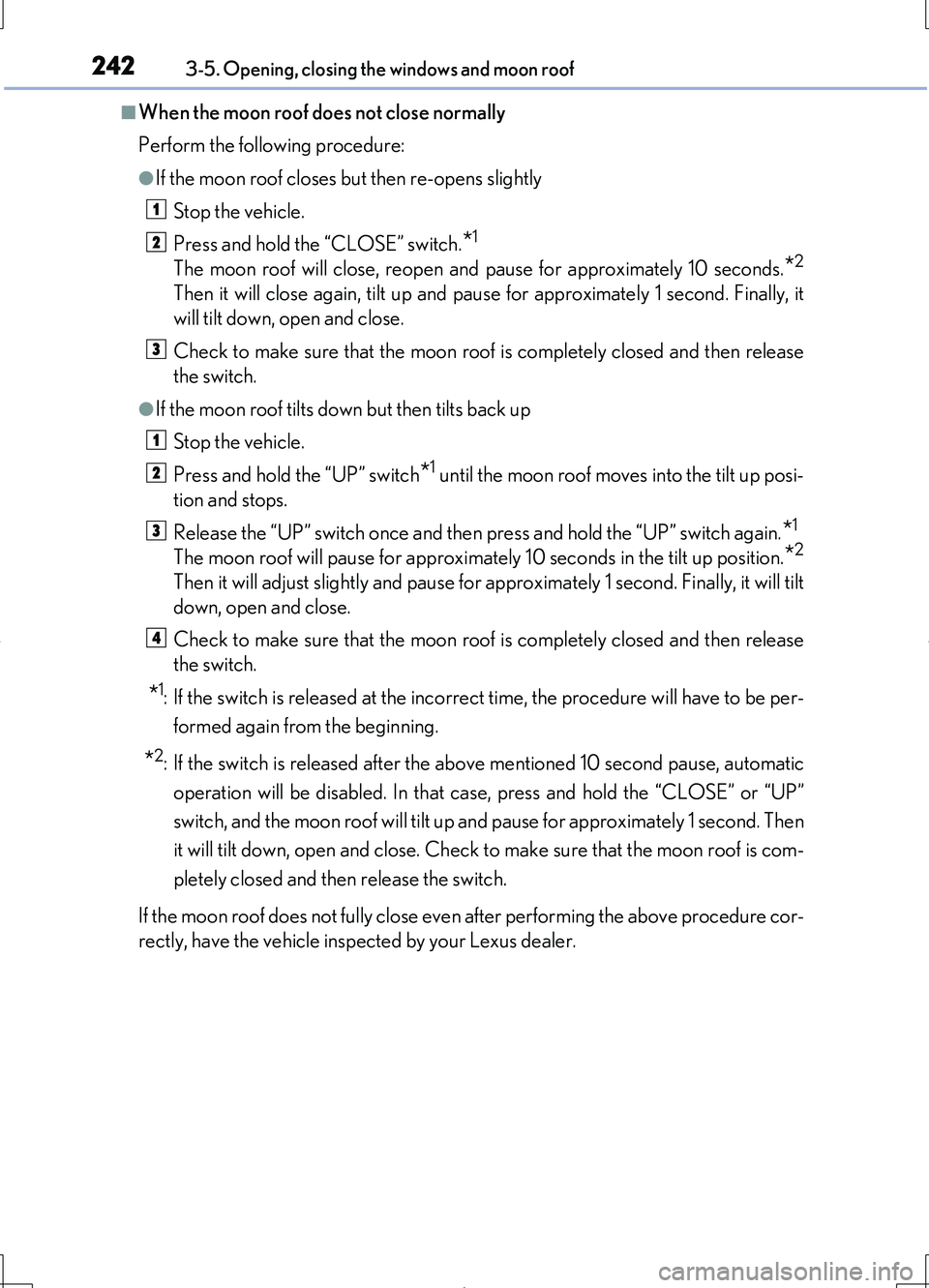

■When the moon roof does not close normally
Perform the following procedure:
●If the moon roof closes but then re-opens slightly
Stop the vehicle.
Press and hold the “CLOSE” switch.*1
The moon roof will close, reopen and pause for approximately 10 seconds.*2
Then it will close again, tilt up and pause for approximately 1 second. Finally, it
will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then release
the switch.
●If the moon roof tilts down but then tilts back up
Stop the vehicle.
Press and hold the “UP” switch*1 until the moon roof moves into the tilt up posi-
tion and stops.
Release the “UP” switch once and then press and hold the “UP” switch again.*1
The moon roof will pause for approximatel y 10 seconds in the tilt up position.*2
Then it will adjust slightly and pause for approximately 1 second. Finally, it will tilt
down, open and close.
Check to make sure that the moon roof is completely closed and then release
the switch.
*1: If the switch is released at the incorrect time, the procedure will have to be per-
formed again from the beginning.
*2: If the switch is released after the above mentioned 10 second pause, automatic
operation will be disabled. In that case, press and hold the “CLOSE” or “UP”
switch, and the moon roof will tilt up and pause for approximately 1 second. Then
it will tilt down, open and close. Check to make sure that the moon roof is com-
pletely closed and then release the switch.
If the moon roof does not fully close even after performing the above procedure cor-
rectly, have the vehicle inspected by your Lexus dealer.
1
2
3
1
2
3
4

2433-5. Opening, closing the windows and moon roof
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
■Moon roof open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the
instrument cluster when the engine switch is turned off and the driver’s door is
opened with the moon roof open.
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features P. 667)
CAUTION
Observe the following precautions.
Failure to do so may cause death or serious injury.
■Opening the moon roof
●Do not allow any passengers to put their hands or heads outside the vehicle while
it is moving.
●Do not sit on top of the moon roof.
■Closing the moon roof
●The driver is responsible for moon roof opening and closing operations.
In order to prevent accidental operation, especially by a child, do not let a child
operate the moon roof. It is possible for children and other passengers to have
body parts caught in the moon roof.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when the moon roof is being operated.
●When using the smart entry & start system, wireless remote control or mechani-
cal key and operating the moon roof, operate the moon roof after checking to
make sure that there is no possibility of any passenger having any of their body
parts caught in the moon roof. Also, do not let a child operate moon roof by the
smart entry & start system, wireless remote control or mechanical key. It is possi-
ble for children and other passengers to get caught in the moon roof.
●When exiting the vehicle, turn the engine switch off, carry the key and exit the
vehicle along with the child. There may be accidental operation, due to mischief,
etc., that may possibly lead to an accident.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the moon roof fully closes.

2443-5. Opening, closing the windows and moon roof
LS460/LS460L_GE (OM50G06E)

245
4Driving
LS460/LS460L_GE (OM50G06E)
4-1. Before driving
Driving the vehicle..................... 246
Cargo and luggage ................... 257
Trailer towing .............................. 258
4-2. Driving procedures
Engine (ignition) switch ...........259
Automatic transmission
(vehicles without paddle
shift switches)............................ 264
Automatic transmission
(vehicles with paddle
shift switches)............................ 269
Turn signal lever ......................... 278
Parking brake .............................. 279
Brake Hold....................................282
Horn.................................................284
4-3. Operating the lights and
wipers
Headlight switch ........................ 285
AHS (Adaptive High-beam
System)......................................... 291
Fog light switch ...........................298
Windshield wipers and
washer ........................................ 300
Headlight cleaner switch ....... 304
4-4. Refueling
Opening the fuel tank cap..... 305
4-5. Using the driving support
systems
Cruise control .............................309
Dynamic radar
cruise control............................. 313
Dynamic radar cruise
control with
full-speed range ......................328
LKA
(Lane-Keeping Assist).......... 344
Driving mode select
switch ........................................... 354
Electronically modulated
air suspension ...........................358
Driving assist systems ..............360
PCS (Pre-Crash
Safety system) ..........................368
BSM
(Blind Spot Monitor) .............. 381
•The Blind Spot Monitor
function .................................... 387
• The RCTA function .............390
Lexus night view ......................... 393
4-6. Driving tips
Winter driving tips ..................... 399
Eco-friendly driving tips ..........403

246
LS460/LS460L_GE (OM50G06E)
4-1. Before driving
P. 259
With the brake pedal depressed, shift the shift lever to D.
( P. 264, 269)
If the parking brake is in manual mode, release the parking brake.
( P. 279)
Gradually release the brake pedal and gently depress the accelerator
pedal to accelerate the vehicle.
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift lever to
P or N. ( P. 264, 269)
With the shift lever in D, depress the brake pedal.
Set parking brake ( P. 279), and shift the shift lever to P
( P. 264, 269).
Press the engine switch to stop the engine.
Lock the door, making sure that you have the electronic key on your
person.
If parking on a hill, block the wheels as needed.
Driving the vehicle
The following procedures should be observed to ensure safe driving:
Starting the engine
Driving
Stopping
Parking the vehicle
1
2
3
1
2
1
2
3
4

2474-1. Before driving
4
Driving
LS460/LS460L_GE (OM50G06E)
Make sure that the parking brake is set and shift the shift lever to D.
Gently depress the accelerator pedal.
Release the parking brake.
■When starting off on a uphill
Hill-start assist control will operate. ( P. 360)
■Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the windows
may become fogged-up, and the road will be slippery.
●Drive carefully when it starts to rain, because the road surface will be especially
slippery.
●Refrain from high speeds when driving on an expressway in the rain, because there
may be a layer of water between the tires and the road surface, preventing the
steering and brakes from operating properly.
■Engine speed while driving
In the following conditions, the engine spee d may become high while driving. This is
due to automatic up-shifting control or down-shifting implementation to meet driv-
ing conditions. It does not indicate sudden acceleration.
●The vehicle is judged to be driving uphill or downhill
●When the accelerator pedal is released
●When the brake pedal is depressed while sport mode is selected
Starting off on a steep uphill
1
2
3

2484-1. Before driving
LS460/LS460L_GE (OM50G06E)
■Breaking in your new Lexus
To extend the life of the vehicle, observing the following precautions is recom-
mended:
●For the first 300 km (186 miles):
Avoid sudden stops.
●For the first 1000 km (621 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in low gears.
• Do not drive at a constant speed for extended periods.
■Drum-in-disc type parking brake system
Your vehicle has a drum-in-disc type parking brake system. This type of brake system
needs bedding-down of the brake shoes periodically or whenever the parking brake
shoes and/or drum are replaced. Have your Lexus dealer perform the bedding
down operation.
■Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability of the
correct fuel. ( P. 652)
■Regarding engine speed when idling (1UR-FSE engine)
When idling with the shift lever in P or N for an extensive period of time, the engine
speed may rise to approximately 1000 rpm (r/min). This is not a malfunction. After a
set period of time, the engine will return to its previous engine speed.
