2016 LEXUS LS460L differential

2564-1. Before driving
LS460/LS460L_GE (OM50G06E)
NOTICE
■When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may cause
the following serious damage to the vehicle:
●Engine stalling
●Short in electrical components
●Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be sure to
have your Lexus dealer check the following:
●Brake function
●Changes in quantity and quality of oil and fluid used for the engine, transmission,
transfer (AWD models), differential, etc.
●Lubricant condition for the propeller shaft, bearings and suspension joints (where
possible), and the function of all joints, bearings, etc.

5226-2. Maintenance
LS460/LS460L_GE (OM50G06E)
CHASSIS AND BODY
13Brake pedal <>IIIIIIII6
14Brake linings and drumsIIII12
15Brake pads and discsIIIIIIII6
16Brake fluidIIIRIIIRI: 6
R: 24
17Brake pipes and hosesIIII12
18Steering wheel, linkage and
steering gear boxIIII12
19Drive shaft bootsIIII24
20Suspension ball joint and
dust coverIIII12
21Automatic transmission fluidII24
22Transfer oil (AWD models)IRIRI: 12
R: 48
23Front differential oil (AWD
models)IRIRI: 12
R: 48
24Rear differential oilIRIRI: 12
R: 48
25Front and rear suspension
<>IIII12
26Tires and inflation pressureIIIIIIII6
27Lights, horns, wipers and
washersIIIIIIII6
28Air conditioning filter
When a message on the multi-information
display indicates that maintenance is
required, replace the filter.
Refrigerant amount for air condi-
tionerIIII12
Maintenance operations:I =Inspect
R =Replace, change or lubricate
SERVICE
INTERVAL:ODOMETER READING
MONTHS(Odometer
reading or
months,
whichever
comes first.)
x1000 km1020304050607080
x1000 miles612182430364248

5296-2. Maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
NOTE:
1. First replace at 160000 km (100000 miles), then replace every 80000 km
(48000 miles).
2. It is possible to replace every 100000 km (60000 miles).
3. Including the filter in fuel tank.
4. Parking brake inspection is not necessary.
CHASSIS AND BODY
17Brake pipes and hosesIIIIII12
18Steering wheel, linkage and steering
gear boxIIIIII12
19Drive shaft bootsIIIIII24
20Suspension ball joint and dust coverIIIIII12
21Automatic transmission fluidII36
22Rear differential oilIRIRIRI: 12
R: 48
23Front and rear suspensionIIIIII12
24Tires and inflation pressureIIIIII12
25Lights, horns, wipers and washersIIIIII12
26Air conditioning filter
When a message on the multi-
information display indicates that
maintenance is required, replace
the filter.
Refrigerant amount for air conditionerIIIIII12
Maintenance operations:I =Inspect
R =Replace, change or lubricate
SERVICE INTERVAL:ODOMETER READING
(Odometer reading or
months, whichever
comes first.)
x1000 km153045607590
MONTHSx1000
miles91827364554

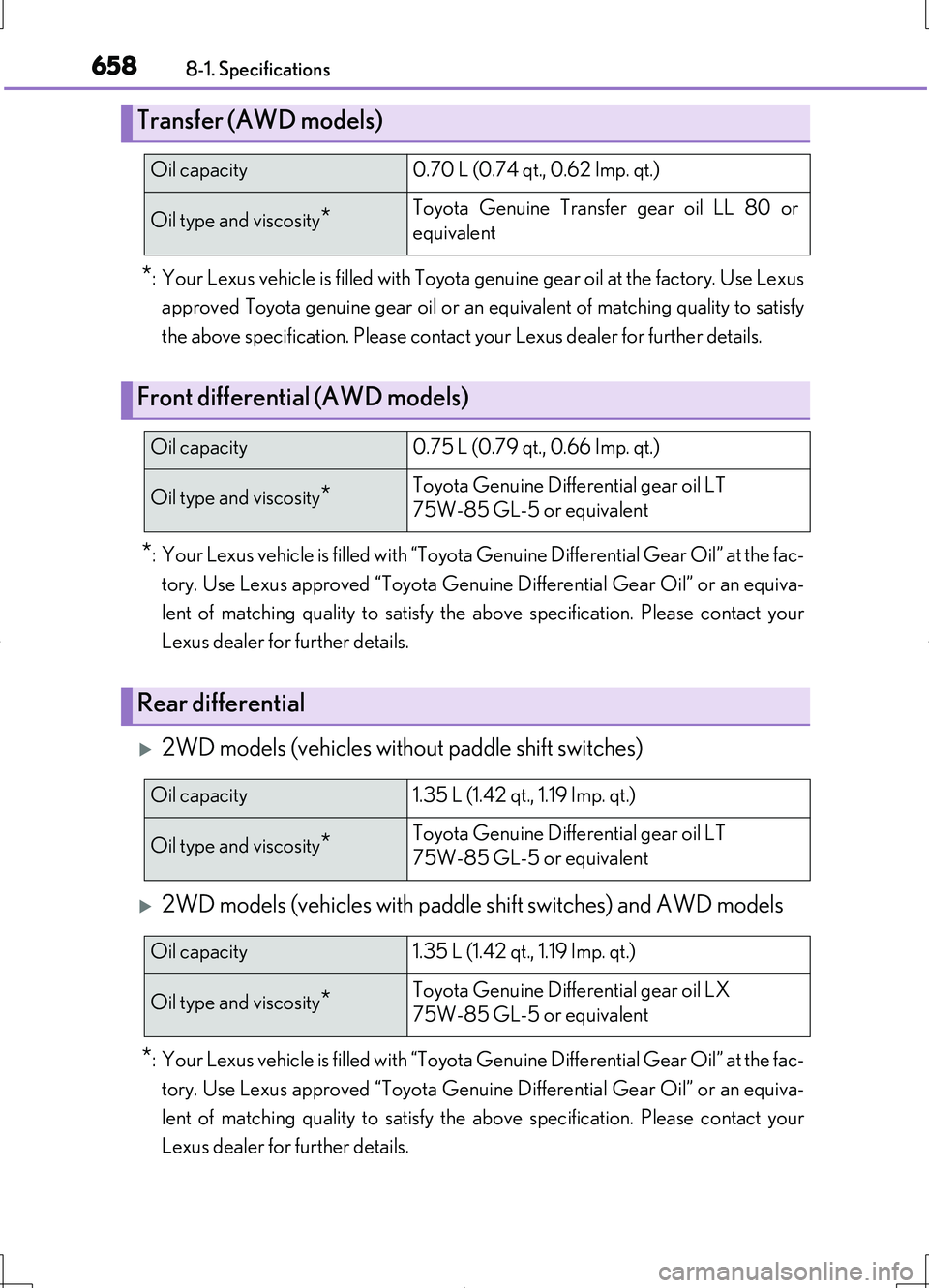

6588-1. Specifications
LS460/LS460L_GE (OM50G06E)
*: Your Lexus vehicle is filled with Toyota genuine gear oil at the factory. Use Lexus
approved Toyota genuine gear oil or an equivalent of matching quality to satisfy
the above specification. Please contact your Lexus dealer for further details.
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the fac-
tory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equiva-
lent of matching quality to satisfy th e above specification. Please contact your
Lexus dealer for further details.
2WD models (vehicles without paddle shift switches)
2WD models (vehicles with paddle shift switches) and AWD models
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the fac-
tory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equiva-
lent of matching quality to satisfy th e above specification. Please contact your
Lexus dealer for further details.
Transfer (AWD models)
Oil capacity0.70 L (0.74 qt., 0.62 Imp. qt.)
Oil type and viscosity*Toyota Genuine Transfer gear oil LL 80 or
equivalent
Front differential (AWD models)
Oil capacity0.75 L (0.79 qt., 0.66 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Rear differential
Oil capacity1.35 L (1.42 qt., 1.19 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Oil capacity1.35 L (1.42 qt., 1.19 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential gear oil LX
75W-85 GL-5 or equivalent

691Alphabetical index
LS460/LS460L_GE (OM50G06E)
Climate control seat ............................ 478
Climate control seat filter................... 481
Clock ......................................................... 469
Clock light ............................................... 447
Coat hooks .............................................. 496
Coin holder ............................................. 454
Condenser .............................................. 549
Console box ........................................... 457
Cool box................................................... 459
Coolant ..................................................... 547
Capacity ................................................ 656
Checking ............................................... 547
Preparing and checking
before winter ....................................399
Cooling system ...................................... 547
Engine overheating ............................641
Cruise control
Cruise control .................................... 309
Dynamic radar cruise control .......313
Dynamic radar cruise control
with full-speed range.................... 328
Cup holders ............................................455
Curtain shield airbags............................ 52
Customizable features ....................... 667
Daytime running light system .......... 288
Defogger
Front windshield.................................. 427
Outside rear view mirrors ............ 445
Rear window........................................ 445
Differential
Front differential .................................658
Rear differential ..................................658
Dimensions ............................................. 648
Display
Dynamic radar cruise control ....... 313
Dynamic radar cruise control
with full-speed range ................... 328
LKA (Lane-Keeping Assist) ........ 348
Multi-information display................. 129
Remote Touch screen .................... 406
Trip information...................................... 131
Warning message ............................. 614
Do-it-yourself maintenance ............. 533
Door courtesy lights.............................447
Door lock
Doors.........................................................186
Smart entry & start system ............. 153
Wireless remote control ..................177
Door pockets ......................................... 454
D

698Alphabetical index
LS460/LS460L_GE (OM50G06E)
Maintenance
Do-it-yourself maintenance .........533
Maintenance data............................. 648
Maintenance requirements ............517
Scheduled maintenance ................520
Malfunction indicator lamp ..............606
Master warning light .......................... 608
Meter .......................................................... 125
Indicators ................................................. 123
Instrument panel li ght control........126
Meters .......................................................125
Multi-information display .................129
Warning lights ....................................... 122
Mirrors
Inside rear view mirror.................... 229
Outside rear view mirror
defoggers........................................... 445
Outside rear view mirrors............. 232
Vanity mirrors...................................... 467
Moon roof ................................................ 240
Door lock linked moon roof
operation .............................................. 241
Jam protection function....................241
Operation..............................................240
Multi-information display ................... 129
Dynamic radar cruise control .......313
Dynamic radar cruise control
with full-speed range.................... 328
Lane-Keeping Assist........................348
Language................................................ 135
Switching the display .......................... 131
Trip information ..................................... 131
Warning message...............................614
nanoe .................................................... 436
Navigation system*
Noise from under vehicle ....................... 8
Odometer .................................................125
Oil
Engine oil ............................................... 653
Front differential oil ...........................658
Rear differential oil ............................658
Opener
Fuel filler door ..................................... 307
Hood ....................................................... 536
Trunk............................................................191
Outer foot lights
Location ..................................................447
Replacing light bulbs .......................590
Outside rear view mirrors ................ 232
Adjusting and folding .......................232
BSM (Blind Sport Monitor) ...........381
Linked mirror function when
reversing .............................................234
Mirror position memory .................. 218
Outside rear view mirror
defoggers .......................................... 445
Outside temperature display ............125
Overheating, Engine ............................641
MN
O
