2014 MITSUBISHI MIRAGE Owners Manual

Specifications
9-7
9 Engine specifications
N01147700514
Engine model3A92Engine displacement
72.8 CID (1,193 cm
3)
No. of cylinders and cylinder arrangement Inline-3Bore2.95 in (75.0 mm)Stroke3.54 in (90.0 mm)Compression ratio10.5:1Thermostat valve opening temperature 189 °F (87 °C)Spark plugs
NGK LZFR5BI-11
Spark plug gap .040 to .043 in (1.0 to 1.1 mm)Firing order1-3-2
BK0162600US.book 7 ページ ２０１３年３月２２日　金曜日　午後２時４１分

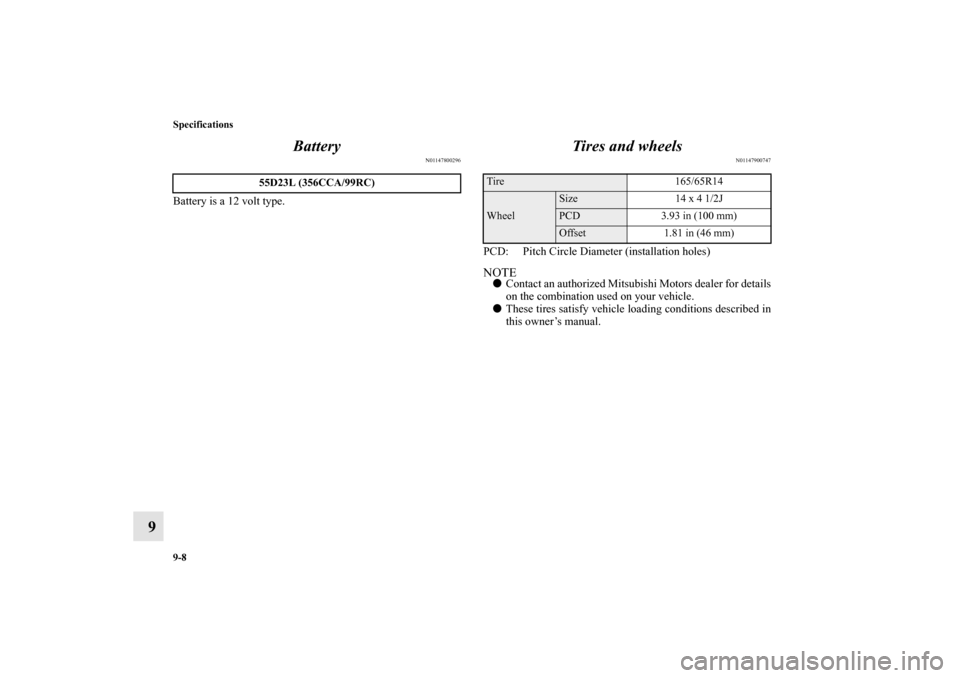

9-8 Specifications
9Battery
N01147800296
Battery is a 12 volt type.
Tires and wheels
N01147900747
PCD: Pitch Circle Diameter (installation holes)NOTE
Contact an authorized Mitsubishi Motors dealer for details
on the combination used on your vehicle.

These tires satisfy vehicle loading conditions described in
this owner’s manual.
55D23L (356CCA/99RC)
Tire 165/65R14Wheel
Size 14 x 4 1/2JPCD 3.93 in (100 mm)Offset 1.81 in (46 mm)
BK0162600US.book 8 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Specifications
9-9
9 Capacity
N01148001061
*: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid
organic acid technology
Item
Capacity
Lubricants
Fuel
(approximate)9.2 gal (35 L) Refer to “Fuel selection” on page 1-2Engine oil
Oil pan 2.9 qt (2.8 L) Engine oils displaying the ILSAC certification mark (“star-
burst” symbol) on the container.
If these oils are not available, an API classification SN or
higher can be used.Oil filter .21 qt (0.2 L)
Manual transaxle 1.7 qt (1.6 L)Mitsubishi Motors Genuine NEW MULTI GEAR OIL ECO
API classification GL-4 SAE 75W-80Continuously variable transmission (CVT) 7.4 qt (7.0 L) Mitsubishi Motors Genuine CVTF - J4Brake As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2Engine coolant
{Includes .53 qt (0.5 L) in reserve
tank}
M/T 4.2 qt (4.0 L)
Mitsubishi Motors Genuine Super Long Life Coolant Pre-
mium or equivalent*CVT 4.8 qt (4.6 L)
Washer fluid 2.6 qt (2.5 L) —Refrigerant (air conditioning)Refer to the “Air
conditioning label”
on page 9-2.HFC-134a
BK0162600US.book 9 ページ ２０１３年３月２２日　金曜日　午後２時４１分

BK0162600US.book 10 ページ ２０１３年３月２２日　金曜日　午後２時４１分

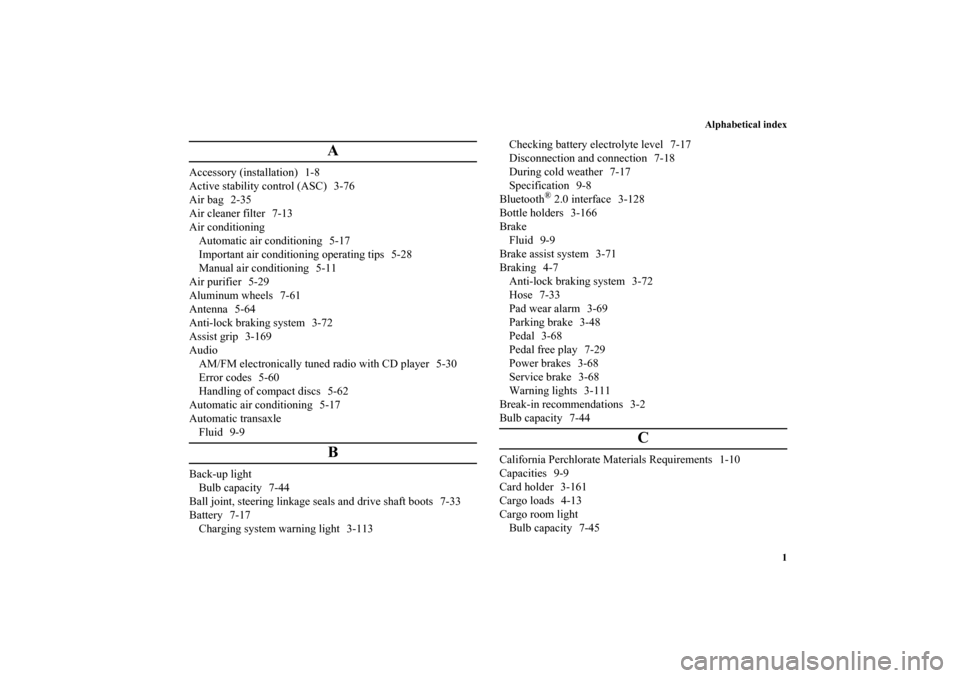

Alphabetical index
1
A
Accessory (installation) 1-8
Active stability control (ASC) 3-76
Air bag 2-35
Air cleaner filter 7-13
Air conditioning
Automatic air conditioning 5-17
Important air conditioning operating tips 5-28
Manual air conditioning 5-11
Air purifier 5-29
Aluminum wheels 7-61
Antenna 5-64
Anti-lock braking system 3-72
Assist grip 3-169
Audio
AM/FM electronically tuned radio with CD player 5-30
Error codes 5-60
Handling of compact discs 5-62
Automatic air conditioning 5-17
Automatic transaxle
Fluid 9-9
B
Back-up light
Bulb capacity 7-44
Ball joint, steering linkage seals and drive shaft boots 7-33
Battery 7-17
Charging system warning light 3-113Checking battery electrolyte level 7-17
Disconnection and connection 7-18
During cold weather 7-17
Specification 9-8
Bluetooth
® 2.0 interface 3-128
Bottle holders 3-166
Brake
Fluid 9-9
Brake assist system 3-71
Braking 4-7
Anti-lock braking system 3-72
Hose 7-33
Pad wear alarm 3-69
Parking brake 3-48
Pedal 3-68
Pedal free play 7-29
Power brakes 3-68
Service brake 3-68
Warning lights 3-111
Break-in recommendations 3-2
Bulb capacity 7-44
C
California Perchlorate Materials Requirements 1-10
Capacities 9-9
Card holder 3-161
Cargo loads 4-13
Cargo room light
Bulb capacity 7-45
BK0162600US.book 1 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Alphabetical index
2Catalytic converter 7-4
Certification label 9-5
Charging system warning light 3-113
Child restraint systems 2-24
Child safety locks for rear door 3-40
Cleaning
Inside of your vehicle 7-56
Outside of your vehicle 7-58
Clutch
Pedal free play 7-28
Consumer information 8-2
Continuously variable transmission (CVT) 3-61
Fluid 7-15
,9-9
Selector lever operation 3-61
Selector lever positions 3-64
Convenience hook 3-168
Coolant (engine) 7-11
,9-9
Cruise control 3-80
Cup holders 3-165
D
Daytime running lights
Bulb capacity 7-44
Defogger (rear window) 3-125
Defrosting or defogging (windshield, door windows) 5-15
,5-
26
Dimensions 9-5
Dimmer (high/low beam change) 3-117
Disc brake pads 7-33Dome light
Bulb capacity 7-45
Door-ajar warning buzzer 3-114
Door-ajar warning light 3-114
Doors
Lock 3-35
Power door locks 3-38
Driving during cold weather 4-6
Driving, alcohol and drugs 4-2
E
Electric power steering system (EPS) 3-75
Electric rear window defogger switch 3-125
Electronic immobilizer (Anti-theft starting system) 3-5
,3-28
Emission-control system maintenance 7-31
Engine
Compartment 7-7
Coolant 7-11
,9-9
High coolant temperature warning light 3-113
Hood 7-5
Oil and oil filter 7-8
,9-9
Overheating 6-5
Serial number 9-2
Specification 9-7
Engine hood 7-5
Engine switch 3-20
Error codes 5-60
Exhaust system 7-34
BK0162600US.book 2 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Alphabetical index
3
F
Floor mat 4-3
Fluid
Brake fluid 9-9
Continuously variable transmission (CVT) fluid 7-15
,9-9
Engine coolant 7-11
,9-9
Manual transaxle 9-9
Washer fluid 7-15
,9-9
Fluid capacities and lubricants 9-9
Free-hand advanced security transmitter (F.A.S.T.-key) 3-13
Front fog lights
Bulb capacity 7-44
Indicators 3-110
Replacement 7-50
Switch 3-120
Front seat adjustment 2-3
Front side-marker lights
Bulb capacity 7-44
Replacement 7-47
Front turn signal light
Bulb capacity 7-44
Replacement 7-48
Fuel
Filling the fuel tank 1-4
Fuel economy 4-2
Fuel hoses 7-31
Fuel remaining warning display 3-103
Fuel selection 1-2Tank capacity 9-9
Fuel remaining display 3-102
Fuses 7-36
Fusible links 7-35
G
General maintenance
Maintenance 7-33
General vehicle data 9-5
Genuine parts 1-9
Glove compartment 3-165
H
Hazard warning flasher switch 3-119
Hazard warning lights 3-110
Head restraints 2-11
Headlights
Bulb capacity 7-44
Dimmer 3-117
Headlight flasher 3-118
Switch 3-114
Heater without air conditioning function 5-6
High beam indicator 3-110
High coolant temperature warning light 3-113
High-mounted stop light
Bulb capacity 7-44
Hill start assist 3-69
Hood lock release mechanism and safety catch 7-34
Hook
BK0162600US.book 3 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Alphabetical index
4Convenience hook 3-168
Horn switch 3-127
I
If the vehicle breaks down 6-2
Ignition switch 3-54
Important facts to know in case of an accident 8-5
Indicator and warning light package 3-109
Indicators 3-110
Information display 3-99
Inside rearview mirror 3-50
Instrument panel light dimmer control 3-100
Interior lights 3-162
J
Jack
Garage jack up position 7-3
Storage 6-7
Jump-starting the engine 6-2
K
Key slot 3-26
Keyless entry system 3-8
,3-31
Keys 3-2
L
Labeling 9-2
License plate light
Bulb capacity 7-44Replacement 7-54
Liftgate 3-41
Link System 3-127
Loading information 4-9
Lubricants 9-9
M
Malfunction indicator light 3-112
Manual air conditioning 5-11
Manual transaxle 3-59
Oil 7-14
,9-9
Shift points 3-59
Manual window control 3-43
Modifications to and racing of your vehicle 1-7
Multi-information display 3-96
,3-98
O
Octane rating 1-2
Oil
Engine oil 7-8
,9-9
Manual transaxle oil 7-14
,9-9
Oil pressure warning light 3-113
Operation mode 3-20
Operation under adverse driving conditions 6-32
Outside rearview mirrors 3-52
Overheating 6-5P
Parking 4-8
