For emergencies
6-13
6

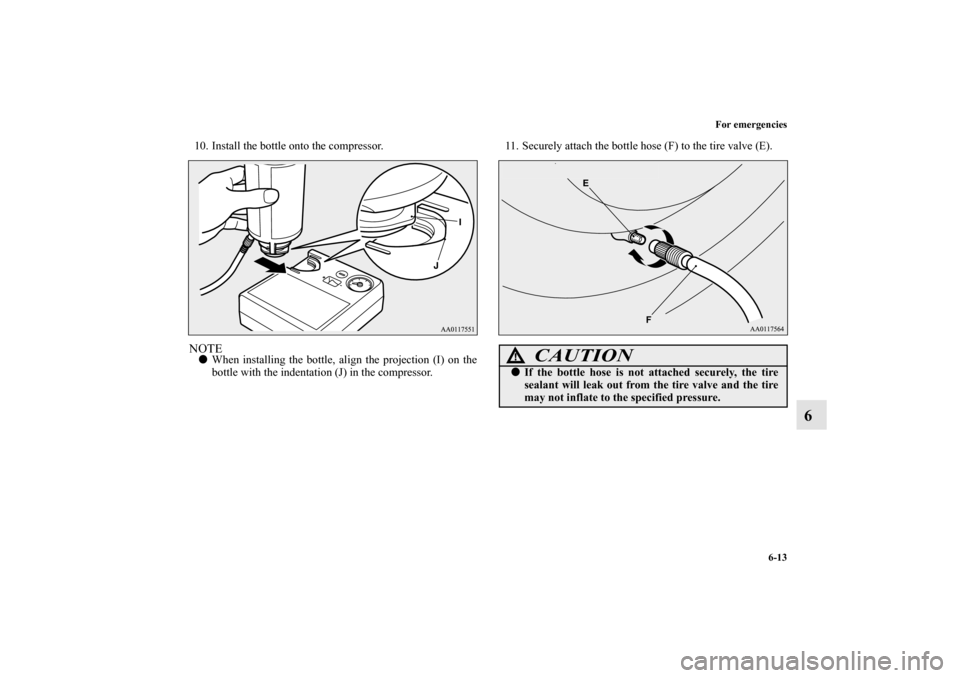

10. Install the bottle onto the compressor.NOTE
When installing the bottle, align the projection (I) on the
bottle with the indentation (J) in the compressor.11. Securely attach the bottle hose (F) to the tire valve (E).
CAUTION
!
If the bottle hose is not attached securely, the tire
sealant will leak out from the tire valve and the tire
may not inflate to the specified pressure.
BK0162600US.book 13 ページ ２０１３年３月２２日　金曜日　午後２時４１分

6-14 For emergencies
6

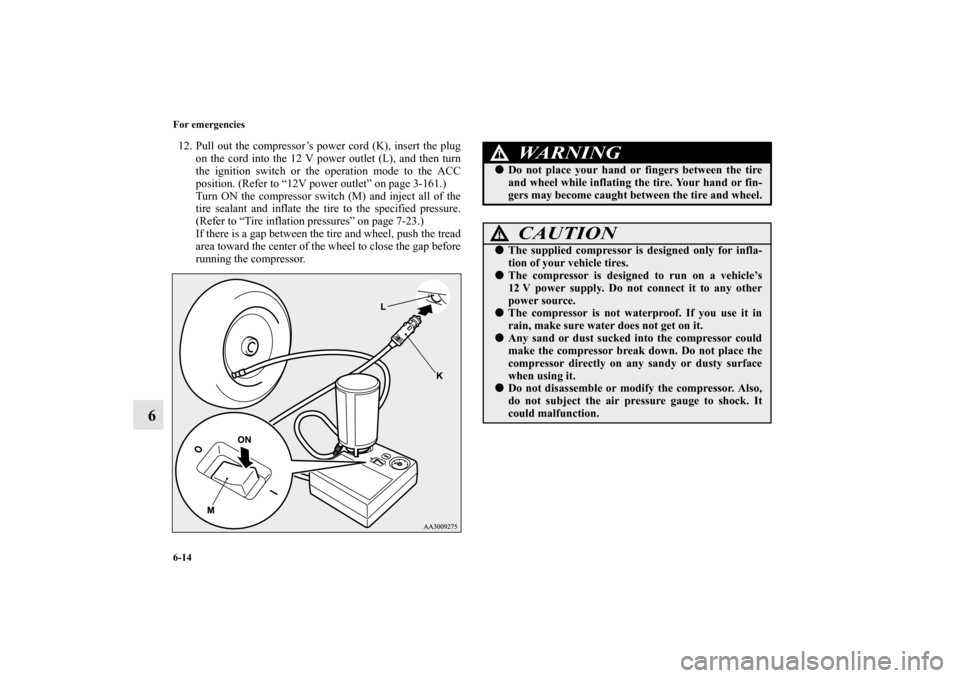

12. Pull out the compressor’s power cord (K), insert the plug
on the cord into the 12 V power outlet (L), and then turn
the ignition switch or the operation mode to the ACC
position. (Refer to “12V power outlet” on page 3-161.)
Turn ON the compressor switch (M) and inject all of the
tire sealant and inflate the tire to the specified pressure.
(Refer to “Tire inflation pressures” on page 7-23.)
If there is a gap between the tire and wheel, push the tread
area toward the center of the wheel to close the gap before
running the compressor.
WA R N I N G
!
Do not place your hand or fingers between the tire
and wheel while inflating the tire. Your hand or fin-
gers may become caught between the tire and wheel.
CAUTION
!
The supplied compressor is designed only for infla-
tion of your vehicle tires.
The compressor is designed to run on a vehicle’s
12 V power supply. Do not connect it to any other
power source.
The compressor is not waterproof. If you use it in
rain, make sure water does not get on it.
Any sand or dust sucked into the compressor could
make the compressor break down. Do not place the
compressor directly on any sandy or dusty surface
when using it.
Do not disassemble or modify the compressor. Also,
do not subject the air pressure gauge to shock. It
could malfunction.
BK0162600US.book 14 ページ ２０１３年３月２２日　金曜日　午後２時４１分

For emergencies
6-15
6

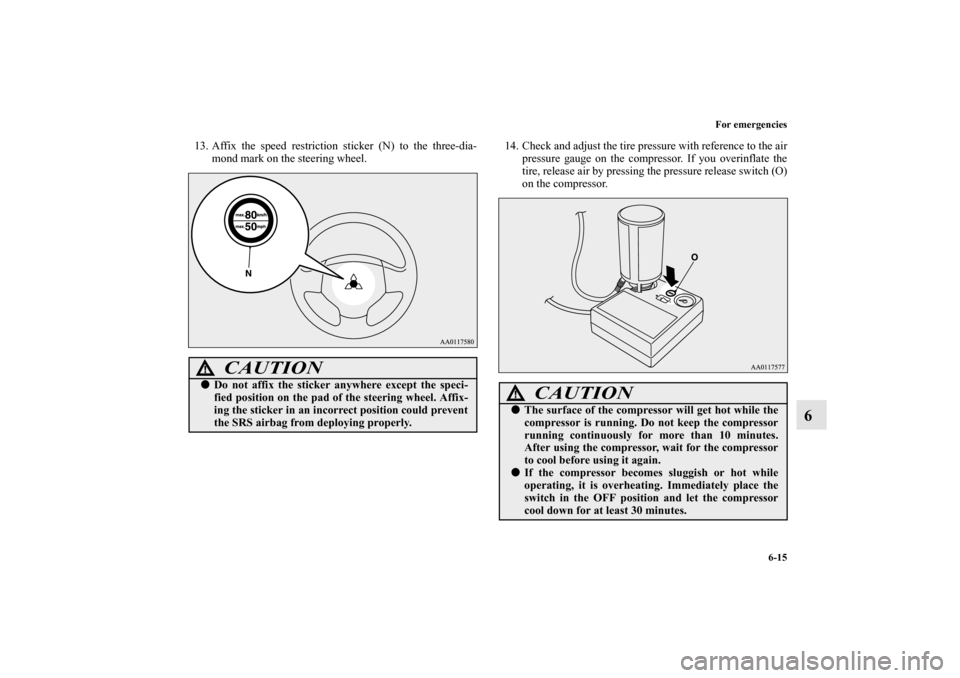

13. Affix the speed restriction sticker (N) to the three-dia-
mond mark on the steering wheel.14. Check and adjust the tire pressure with reference to the air
pressure gauge on the compressor. If you overinflate the
tire, release air by pressing the pressure release switch (O)
on the compressor.
CAUTION
!
Do not affix the sticker anywhere except the speci-
fied position on the pad of the steering wheel. Affix-
ing the sticker in an incorrect position could prevent
the SRS airbag from deploying properly.
CAUTION
!
The surface of the compressor will get hot while the
compressor is running. Do not keep the compressor
running continuously for more than 10 minutes.
After using the compressor, wait for the compressor
to cool before using it again.
If the compressor becomes sluggish or hot while
operating, it is overheating. Immediately place the
switch in the OFF position and let the compressor
cool down for at least 30 minutes.
BK0162600US.book 15 ページ ２０１３年３月２２日　金曜日　午後２時４１分

6-16 For emergencies
6
NOTE
If the tire pressure does not rise to the specified level
within 10 minutes, the tire may be so severely damaged
that the tire sealant cannot be used for emergency repair.
Do not drive the vehicle. Please contact an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
15. Turn OFF the compressor switch, then pull the power cord
plug out of the 12 V power outlet.NOTE
At this point the puncture hole is not sealed yet. Air will
continue to leak through the puncture hole until the emer-
gency repair procedure is completed (through step 17 or
step 18 of these instructions).
16. When you have inflated the tire to the specified pressure,
stow the compressor and bottle in the vehicle and
promptly start driving the vehicle so that the tire sealant
can spread evenly in the tire. Drive with great care. Do not
exceed a speed of 50 mph (80 km/h). Observe local speed
limits.17. After driving for 10 minutes or 3 miles (5 km), park the
vehicle in a safe place. Remove the air compressor from
the stowed position. Check the tire pressure using the air
pressure gauge on the compressor. If the tire pressure has
not dropped, the emergency repair procedure is complete.
Proceed to step 19.
If the tire pressure is insufficient, inflate the tire to the
specified pressure again and drive the vehicle carefully
without exceeding a speed of 50 mph (80 km/h).
Before driving, make sure that the compressor is stowed.
CAUTION
!
If you sense any abnormality while driving, stop the
vehicle and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
Otherwise the tire pressure may drop before the
emergency repair procedure is completed, rendering
the vehicle unsafe to drive.
CAUTION
!
If the tire pressure is lower than the minimum per-
mitted pressure (18 psi {130 kPa}), the tire cannot
successfully be repaired with the tire sealant. Do not
drive the vehicle any further. Contact an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
BK0162600US.book 16 ページ ２０１３年３月２２日　金曜日　午後２時４１分

For emergencies
6-17
6

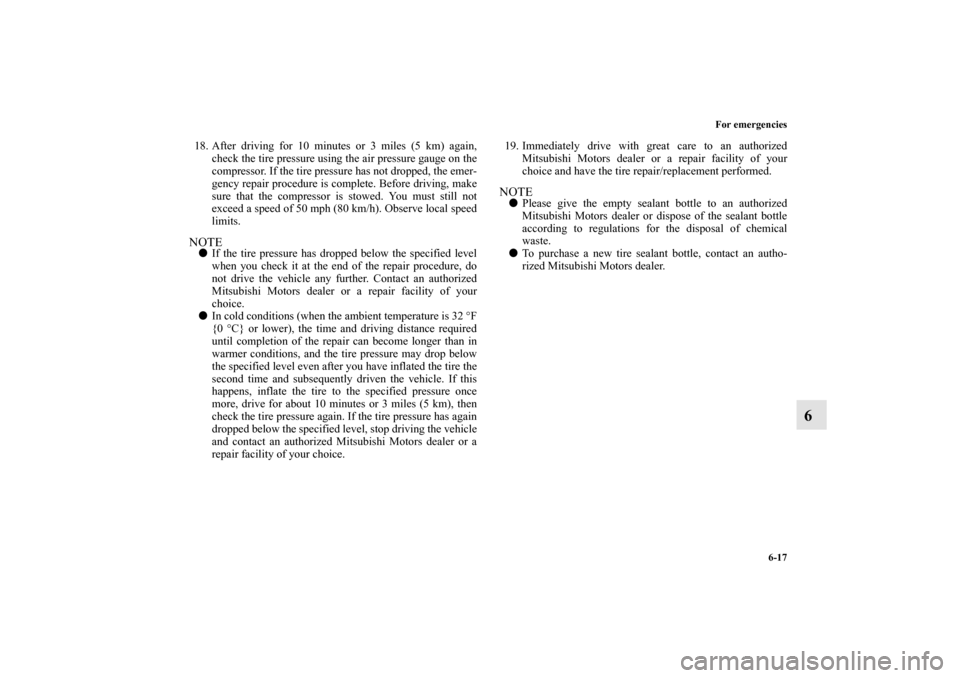

18. After driving for 10 minutes or 3 miles (5 km) again,
check the tire pressure using the air pressure gauge on the
compressor. If the tire pressure has not dropped, the emer-
gency repair procedure is complete. Before driving, make
sure that the compressor is stowed. You must still not
exceed a speed of 50 mph (80 km/h). Observe local speed
limits.NOTE
If the tire pressure has dropped below the specified level
when you check it at the end of the repair procedure, do
not drive the vehicle any further. Contact an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.

In cold conditions (when the ambient temperature is 32 °F
{0 °C} or lower), the time and driving distance required
until completion of the repair can become longer than in
warmer conditions, and the tire pressure may drop below
the specified level even after you have inflated the tire the
second time and subsequently driven the vehicle. If this
happens, inflate the tire to the specified pressure once
more, drive for about 10 minutes or 3 miles (5 km), then
check the tire pressure again. If the tire pressure has again
dropped below the specified level, stop driving the vehicle
and contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice.19. Immediately drive with great care to an authorized
Mitsubishi Motors dealer or a repair facility of your
choice and have the tire repair/replacement performed.
NOTE
Please give the empty sealant bottle to an authorized
Mitsubishi Motors dealer or dispose of the sealant bottle
according to regulations for the disposal of chemical
waste.

To purchase a new tire sealant bottle, contact an autho-
rized Mitsubishi Motors dealer.
BK0162600US.book 17 ページ ２０１３年３月２２日　金曜日　午後２時４１分

6-18 For emergencies
6How to change a tire (Vehicles equipped
with spare tire)
N00836900819
Before changing a tire, first stop your vehicle in a safe, flat
location.
1. Park the vehicle on level and stable ground.
2. Set the parking brake firmly.
3. On vehicles equipped with manual transaxle, stop the
engine and move the gearshift lever to the “R” (Reverse)
position.
On vehicles equipped with continuously variable trans-
mission (CVT), move the selector lever to the “P”
(PARK) position, and stop the engine.
4. Turn on the hazard flashers and set up a warning triangle,
flashing signal light, etc., at an adequate distance from the
vehicle, and have all your passengers exit the vehicle.5. To prevent the vehicle from rolling when it is raised on the
jack, place chocks or blocks (A) at the tire that is diago-
nally opposite from the tire (B) you are changing.
WA R N I N G
!
The jack should not be used for any purpose other
than to change a tire.
Never get under the vehicle or put any portion of
your body under the vehicle while it is supported by
the jack.
BK0162600US.book 18 ページ ２０１３年３月２２日　金曜日　午後２時４１分

For emergencies
6-19
6
NOTE
The chocks shown in the illustration do not come with
your vehicle. It is recommended that you purchase chocks
or blocks and keep them in the vehicle for use if needed.

If chocks or blocks are not available, use stones or any
other objects that are large enough to hold the wheel in
position.
6. Get the jack, bar and wheel nut wrench ready.
(Refer to “Jack and tools” on page 6-7.)
Spare tire information
N00849600344
Compact spare tireThe compact spare tire is stowed beneath the floor board of the
cargo area. It is designed to save space in the cargo area. Its
lighter weight makes it easier to use if a flat tire occurs.
WA R N I N G
!
Be sure to apply chocks or blocks to the correct tire
when jacking up the vehicle. If the vehicle moves
while jacked up, the jack could slip out of position,
leading to an accident.
WA R N I N G
!
Tires, including spare tire, degrade over time with
age even when they are not being used. It is recom-
mended that tires over 6 years generally be replaced
even if damage is not obvious.
CAUTION
!
While the compact spare tire is stowed, the inflation
pressure should be checked at least once a month to
assure that it remains at the recommended inflation
pressure. See the tire and loading information plac-
ard attached to the driver’s door sill. Refer to “Tire
and loading information placard” on page 9-4.
Driving with an improperly inflated tire can cause
an accident. If you have no choice but to drive with
an under-inflated tire, keep your speed down and
avoid sudden steering or braking, if possible. Inflate
the tire to the correct pressure as soon as possible.
Refer to “Tire inflation pressures” on page 7-23.
BK0162600US.book 19 ページ ２０１３年３月２２日　金曜日　午後２時４１分

6-20 For emergencies
6
To remove spare tire
N00849700286
1. Lift up the floor board of the cargo area.
2. To remove the spare tire, remove the installation clamp
(A) by turning it counterclockwise.NOTE
The flat tire with a normal size wheel cannot be stored
beneath the floor board. Store the flat tire in the cargo
area.

The compact spare tire should be used only tempo-
rarily. While the compact spare tire is being used,
the tire pressure monitoring system will not function
properly. Have the tire replaced or repaired at an
authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.
Do not go over 50 mph (80 km/h) when driving with
the compact spare tire.
Avoid sudden starting and braking when driving
with the compact spare tire.
Do not drive through automatic car washes and over
obstacles that could possibly damage the underside
of your vehicle. Because the compact spare tire is
smaller than the original tire, there is less clearance
between the ground and your vehicle.
Because the compact spare tire is designed only for
your vehicle, do not use it on any other vehicle.
Do not put the compact spare tire on a different
wheel, and do not put standard tires, snow tires,
wheel covers or trim rings on the compact spare
wheel. Otherwise, you could damage these parts or
other parts on your vehicle.
Do not use tire chains with your compact spare tire.
Using a chain could cause damage to your vehicle
and loss of the chains.
CAUTION
!
