2014 MITSUBISHI MIRAGE Owners Manual

Features and controls
3-153
3
Enrollment commands
N00566400038
USB input terminal
(if so equipped)
N00566700015
You can connect your USB memory device or iPod* to play
music files stored in the USB memory device or iPod.
The following explains how to connect and remove a USB
memory device or iPod.
Refer to the following sections for details on how to play music
files:
Refer to “To play tracks from USB device” on page 5-43.
*: “iPod” is a registered trademark of Apple Inc. in the United
States and other countries.
BK0162600US.book 153 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-154 Features and controls
3
How to connect a USB memory device
N00566800104
To connect1. Park your vehicle in a safe place and turn the ignition
switch to the “OFF” position or put the operation mode in
OFF.
2. Open the glove compartment and remove the connector
cable (A, B) from clips (C).3. Connect a commercially available USB connector cable
(D) to the USB memory device (E).
BK0162600US.book 154 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-155
3
4. Connect the commercially available USB connector cable
(D) to the vehicle’s connector cable (B).
Be sure to hold the terminal part (A) of the connector
cable as shown in the illustration.
5. Fix the connector cable (A, B) on the clips.
NOTE
Do not connect the USB memory device to the vehicle’s
connector cable directly.
The USB memory device may be damaged.

When closing the glove compartment, be careful not to
trap the connector cable and USB memory device.To r e m o v e1. Turn the ignition switch to the “OFF” position or put the
operation mode in OFF.
2. Remove the commercially available USB connector cable
(D).
Be sure to hold the terminal part (A) of the connector
cable as shown in the illustration.
3. Fix the connector cable on the clips and close the glove
compartment.
WA R N I N G
!
An open glove compartment door can cause a seri-
ous injury or death to the front passenger in an acci-
dent, even if the passenger is wearing his/her seat
belt. Always keep the glove compartment door
closed when driving.
BK0162600US.book 155 ページ ２０１３年３月２２日　金曜日　午後２時４１分

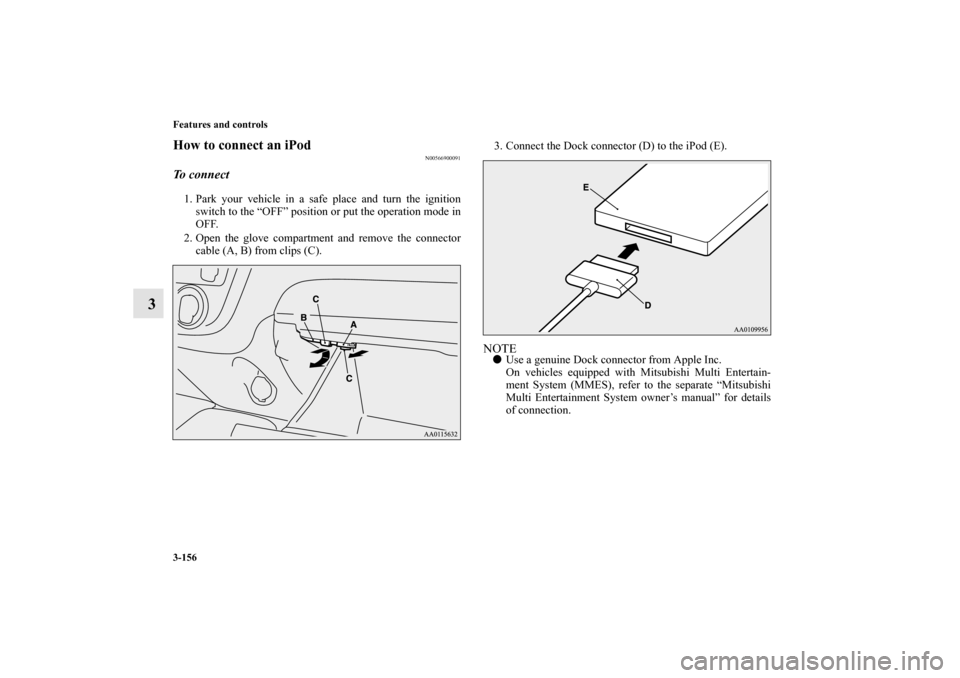

3-156 Features and controls
3
How to connect an iPod
N00566900091
To connect1. Park your vehicle in a safe place and turn the ignition
switch to the “OFF” position or put the operation mode in
OFF.
2. Open the glove compartment and remove the connector
cable (A, B) from clips (C).3. Connect the Dock connector (D) to the iPod (E).
NOTE
Use a genuine Dock connector from Apple Inc.
On vehicles equipped with Mitsubishi Multi Entertain-
ment System (MMES), refer to the separate “Mitsubishi
Multi Entertainment System owner’s manual” for details
of connection.
BK0162600US.book 156 ページ ２０１３年３月２２日　金曜日　午後２時４１分

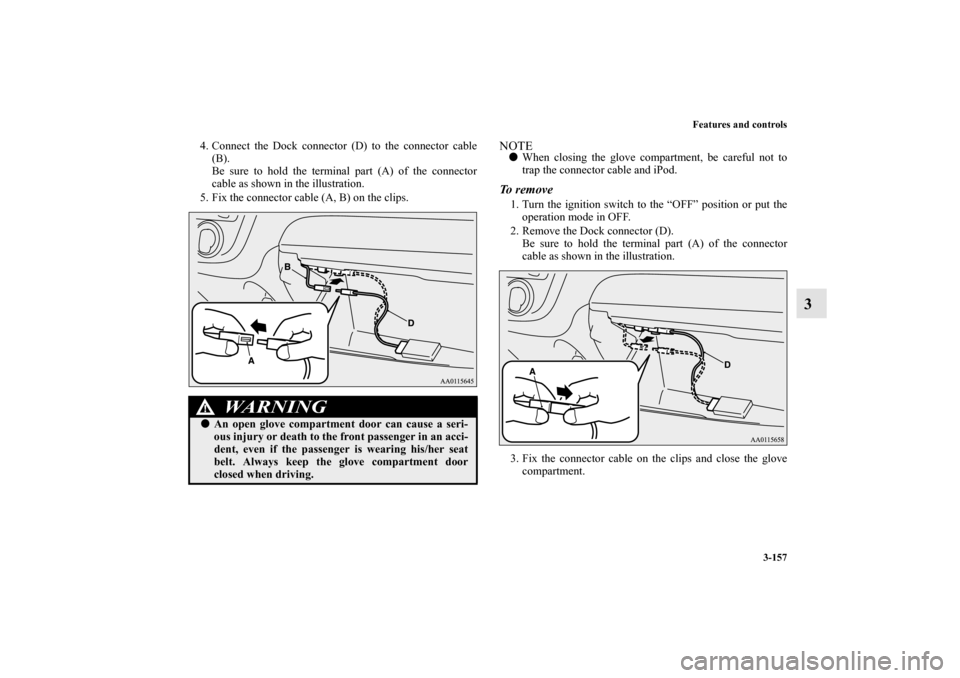

Features and controls
3-157
3
4. Connect the Dock connector (D) to the connector cable
(B).
Be sure to hold the terminal part (A) of the connector
cable as shown in the illustration.
5. Fix the connector cable (A, B) on the clips.
NOTE
When closing the glove compartment, be careful not to
trap the connector cable and iPod.To r e m o v e1. Turn the ignition switch to the “OFF” position or put the
operation mode in OFF.
2. Remove the Dock connector (D).
Be sure to hold the terminal part (A) of the connector
cable as shown in the illustration.
3. Fix the connector cable on the clips and close the glove
compartment.
WA R N I N G
!
An open glove compartment door can cause a seri-
ous injury or death to the front passenger in an acci-
dent, even if the passenger is wearing his/her seat
belt. Always keep the glove compartment door
closed when driving.
BK0162600US.book 157 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-158 Features and controls
3
Types of connectable devices and supported file
specifications
N00567000015
Device types
N00567100117
Devices of the following types can be connected.
*: “iPod,” “iPod classic,” “iPod nano,” “iPod touch” and
“iPhone” are registered trademarks of Apple Inc. in the United
States and other countries.
NOTE
Depending on the type of the USB memory device or
other device connected, the connected device may not
function properly or the available functions may be lim-
ited.

It is recommended to use an iPod with firmware updated
to the latest version.

You can charge your iPod by connecting it to the USB
input terminal when the ignition switch or the operation
mode is in ON or ACC.

Do not keep your USB memory device or iPod in your
vehicle.

It is recommended that you back up the files in case of
data damage.
Model name
Condition
USB memory deviceStorage capacity of 256
Mbytes or more
iPod* fifth generation F/W Ver.1.3 or later
iPod classic*80GB/180GB F/W Ver.1.1.2 or later
120GB F/W Ver.2.0.1 or later
160GB (late 2009) F/W Ver.2.0.4 or later
iPod nano*first generation F/W Ver.1.3.1 or later
second generation F/W Ver.1.1.3 or later
third generation F/W Ver.1.1.3 or later
fourth generation F/W Ver.1.0.4 or later
fifth generation F/W Ver.1.0.2 or later
sixth generation F/W Ver.1.0 or later
iPod touch*first generation F/W Ver.3.1.3 or later
second generation F/W Ver.4.2.1 or later
third generation F/W Ver.4.3.1 or later
fourth generation F/W Ver.4.3.1 or later
iPhone*iPhone F/W Ver.3.1.3 or later
iPhone 3G F/W Ver.4.2.1 or later
iPhone 3GS F/W Ver.4.3.1 or later
iPhone 4 F/W Ver.4.3.1 or later
iPhone 4S F/W Ver.5.0.1 or later
Models other than USB memory
devices and iPodsDigital audio player sup-
porting mass storage classModel name
Condition
BK0162600US.book 158 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-159
3

Do not connect to the USB input terminal any device
(hard disk, card reader, memory reader, etc.) other than
the connectable devices specified in the previous section.
The device and/or data may be damaged. If any of these
devices was connected by mistake, remove it after turning
the ignition switch to the “OFF” position or putting the
operation mode in OFF.
File specifications
N00567200020
You can play music files of the following specifications that
are saved in a USB memory device or other device supporting
mass storage class. When you connect your iPod, playable file
specifications depend on the connected iPod.Item
Condition
File format MP3, WMA, AAC
Maximum number of levels
(including the root)Level 8
Number of folders 700
Number of files 65,535
BK0162600US.book 159 ページ ２０１３年３月２２日　金曜日　午後２時４１分

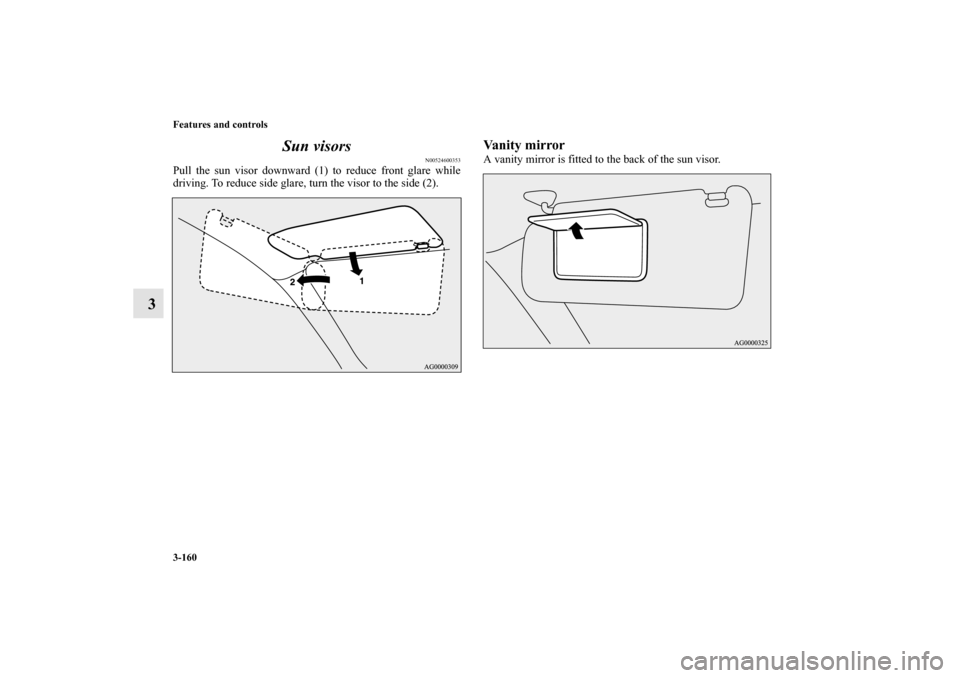

3-160 Features and controls
3Sun visors
N00524600353
Pull the sun visor downward (1) to reduce front glare while
driving. To reduce side glare, turn the visor to the side (2).
Vanity mirrorA vanity mirror is fitted to the back of the sun visor.
