2014 MITSUBISHI MIRAGE Owners Manual

Features and controls
3-49

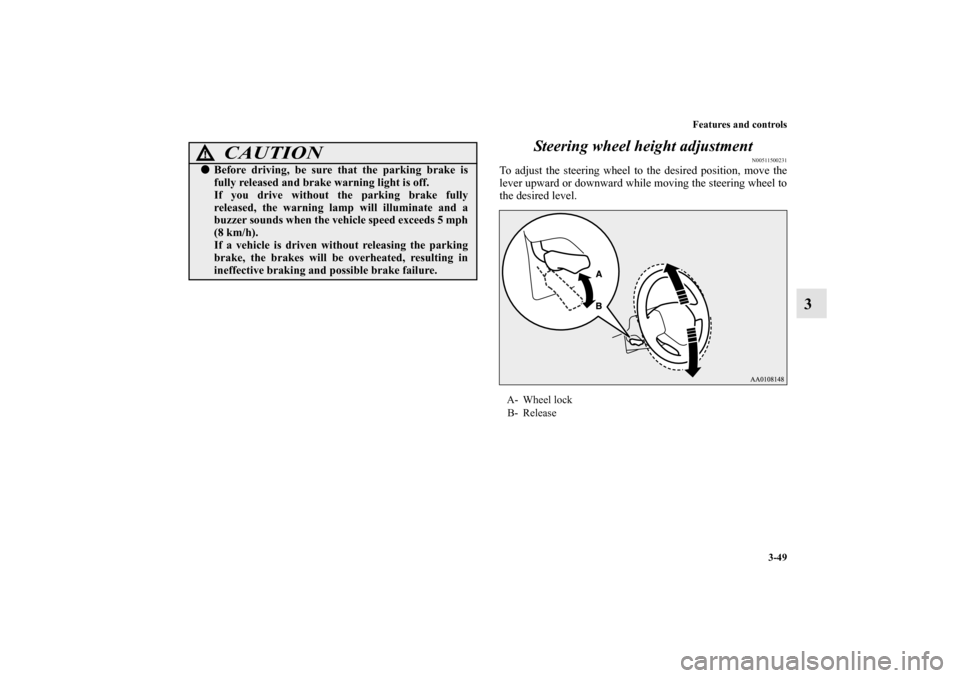

3 Steering wheel height adjustment
N00511500231
To adjust the steering wheel to the desired position, move the
lever upward or downward while moving the steering wheel to
the desired level.
CAUTION
!
Before driving, be sure that the parking brake is
fully released and brake warning light is off.
If you drive without the parking brake fully
released, the warning lamp will illuminate and a
buzzer sounds when the vehicle speed exceeds 5 mph
(8 km/h).
If a vehicle is driven without releasing the parking
brake, the brakes will be overheated, resulting in
ineffective braking and possible brake failure.
A- Wheel lock
B- Release
BK0162600US.book 49 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-50 Features and controls

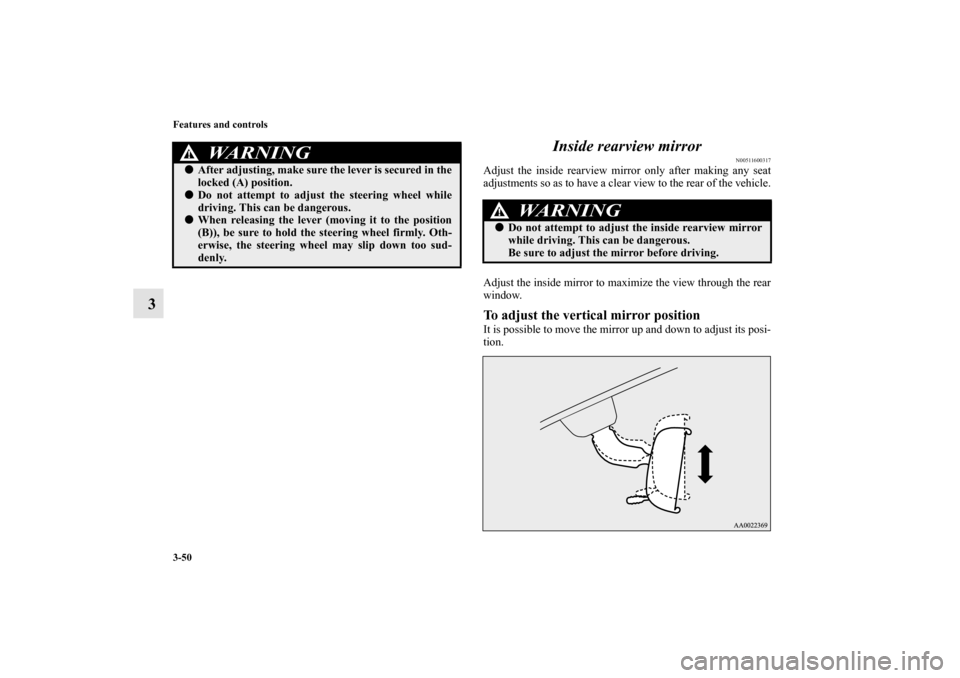

3Inside rearview mirror
N00511600317
Adjust the inside rearview mirror only after making any seat
adjustments so as to have a clear view to the rear of the vehicle.
Adjust the inside mirror to maximize the view through the rear
window.To adjust the vertical mirror positionIt is possible to move the mirror up and down to adjust its posi-
tion.
WA R N I N G
!
After adjusting, make sure the lever is secured in the
locked (A) position.
Do not attempt to adjust the steering wheel while
driving. This can be dangerous.
When releasing the lever (moving it to the position
(B)), be sure to hold the steering wheel firmly. Oth-
erwise, the steering wheel may slip down too sud-
denly.
WA R N I N G
!
Do not attempt to adjust the inside rearview mirror
while driving. This can be dangerous.
Be sure to adjust the mirror before driving.
BK0162600US.book 50 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-51
3

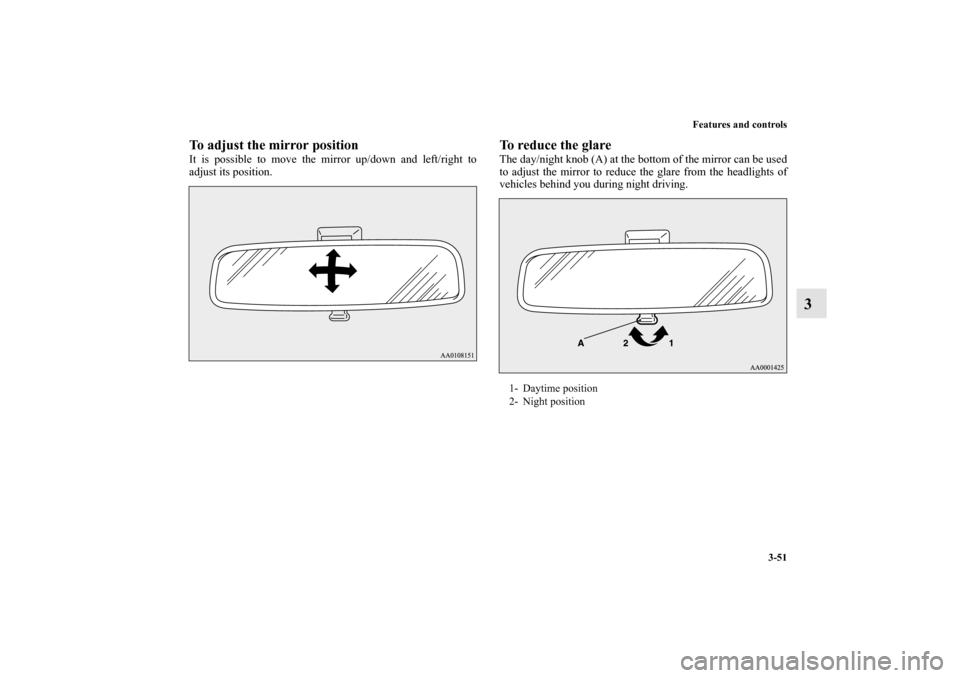

To adjust the mirror positionIt is possible to move the mirror up/down and left/right to
adjust its position.
To reduce the glareThe day/night knob (A) at the bottom of the mirror can be used
to adjust the mirror to reduce the glare from the headlights of
vehicles behind you during night driving.1- Daytime position
2- Night position
BK0162600US.book 51 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-52 Features and controls

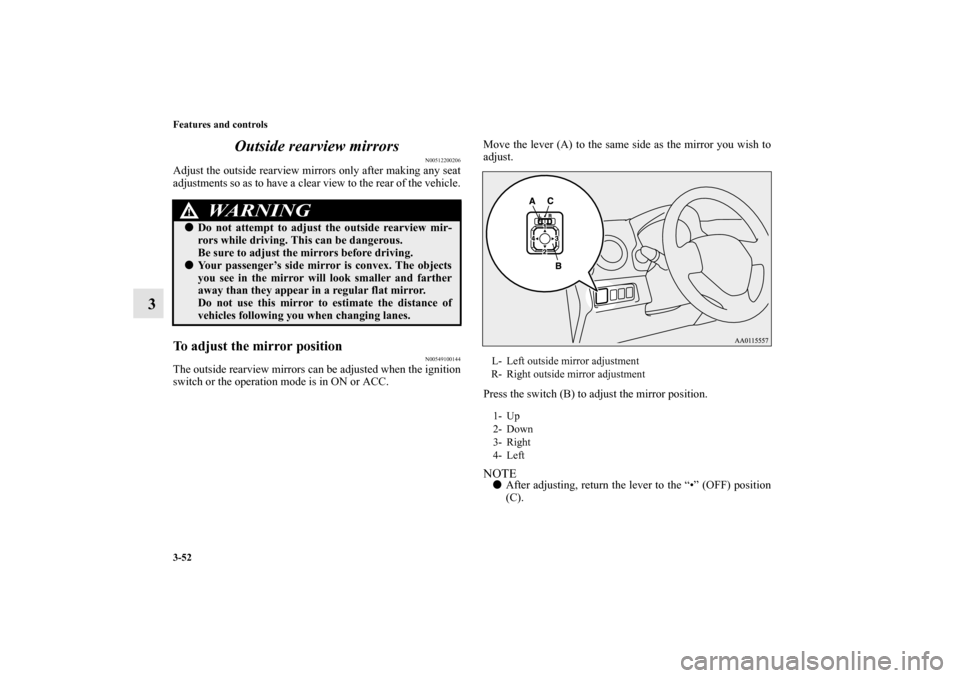

3Outside rearview mirrors
N00512200206
Adjust the outside rearview mirrors only after making any seat
adjustments so as to have a clear view to the rear of the vehicle.To adjust the mirror position
N00549100144
The outside rearview mirrors can be adjusted when the ignition
switch or the operation mode is in ON or ACC.Move the lever (A) to the same side as the mirror you wish to
adjust.
Press the switch (B) to adjust the mirror position.
NOTE
After adjusting, return the lever to the “•” (OFF) position
(C).
WA R N I N G
!
Do not attempt to adjust the outside rearview mir-
rors while driving. This can be dangerous.
Be sure to adjust the mirrors before driving.
Your passenger’s side mirror is convex. The objects
you see in the mirror will look smaller and farther
away than they appear in a regular flat mirror.
Do not use this mirror to estimate the distance of
vehicles following you when changing lanes.
L- Left outside mirror adjustment
R- Right outside mirror adjustment
1- Up
2- Down
3- Right
4- Left
BK0162600US.book 52 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-53
3
To fold the mirror
N00549200099
The outside mirror can be manually folded in towards the side
window to prevent damage when parking in tight locations.
Door mirror heater
(if so equipped)
N00549300218
When the rear window defogger switch is pressed with the
engine running, the outside rearview mirrors are defogged or
defrosted. Current will flow through the heater element inside
the mirrors, thus clearing away frost or condensation.
The indicator light (A) will illuminate while the defogger is on.
The heater will be turned off automatically in about 20 min-
utes.Ty p e 1
BK0162600US.book 53 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-54 Features and controls
3Ignition switch
N00512400686
[For vehicles equipped with the Free-hand Advanced Secu-
rity Transmitter (F.A.S.T.-key)]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Engine switch”on page 3-20.
[Except for vehicles equipped with the Free-hand
Advanced Security Transmitter (F.A.S.T.-key)]
Ty p e 2BK0162600US.book 54 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-55
3
OFFThe engine is off. The key can be inserted and removed only
when the switch is in this position.ACCAllows operation of some electrical accessories with the engine
off.ONThe engine runs and all accessories can be used.STARTEngages the starter. Release the key when the engine starts.It
will automatically return to the “ON” position.NOTE
Your vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the transponder
inside the key sends must match the one registered to the
immobilizer computer. (Refer to “Electronic immobilizer”
on page 3-28.)
To remove the key
N00550900201
1. Set the selector lever to the “P” (PARK) position {contin-
uously variable transmission (CVT)}.
2. Turn the key to the “OFF” position and remove it.
BK0162600US.book 55 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-56 Features and controls
3Starting the engine
N00512600789
[For vehicles equipped with the Free-hand Advanced Secu-
rity Transmitter (F.A.S.T.-key)]
For information on operation for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Starting and stopping the engine” on page 3-24.
[Except for vehicles equipped with the Free-hand
Advanced Security Transmitter (F.A.S.T.-key)]Tips for starting
Do not operate the starter motor continuously for longer
than 15 seconds as this could run the battery down or
damage the starter motor. If the engine does not start, turn
the ignition switch back to the “OFF” position, wait a few
seconds, and then try again. Trying repeatedly with the
engine or starter motor still turning will damage the starter
mechanism.

If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” (on page
6-2) for instructions.

A longer warm up period will only consume extra fuel.
The engine is warmed up enough for driving when the low
coolant temperature indicator goes out.
Refer to “Low coolant temperature indicator” on page 3-
110.
CAUTION
!
If the engine is stopped while driving, the brake ser-
vomechanism will cease to function and braking
efficiency will deteriorate. Also, the power steering
system will not function and it will require greater
manual effort to operate the steering.
Do not leave the key in the “ON” position for a long
time when the engine is not running, doing so will
cause the battery to be discharged.
Do not turn the key to the “START” position when
the engine is running, doing so could damage the
starter motor.
