2014 MITSUBISHI MIRAGE Owners Manual

Features and controls
3-9
3
To l o c kPress the LOCK button (1) to lock all the doors and the liftgate.
The turn signal lights will also blink once.NOTE
If you press the LOCK button (1) twice the horn will
sound once.To u n l o c kPress the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors and liftgate.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.NOTE
The door and liftgate unlock function can be set so that all
doors and liftgate unlock when the UNLOCK button (2) is
pressed once.
Refer to “Setting of door and liftgate unlock function” on
page 3-10.
Answerback functionThe horn of the keyless entry system answerback function can
be changed as required. This is done with the key removed
from the ignition switch.NOTE
The answerback function will not operate if any of the
doors are open.Horn deactivation/reactivationThe answerback function can be set in the following three
ways.
Each time the answerback function is set, a chime will sound to
tell you the condition of the answerback function.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the UNLOCK button in step
3.Turn signal lights deactivation/reactivationThe turn signal lights answerback function can be changed.
If you want to change the answerback function, please contact
an authorized Mitsubishi Motors dealer.One chime: The horn will not sound.
Two chimes: The horn will sound.
Four chimes: The horn will sound if the LOCK button is
pressed twice within 1 second.
BK0162600US.book 9 ページ ２０１３年３月２２日　金曜日　午後２時４１分

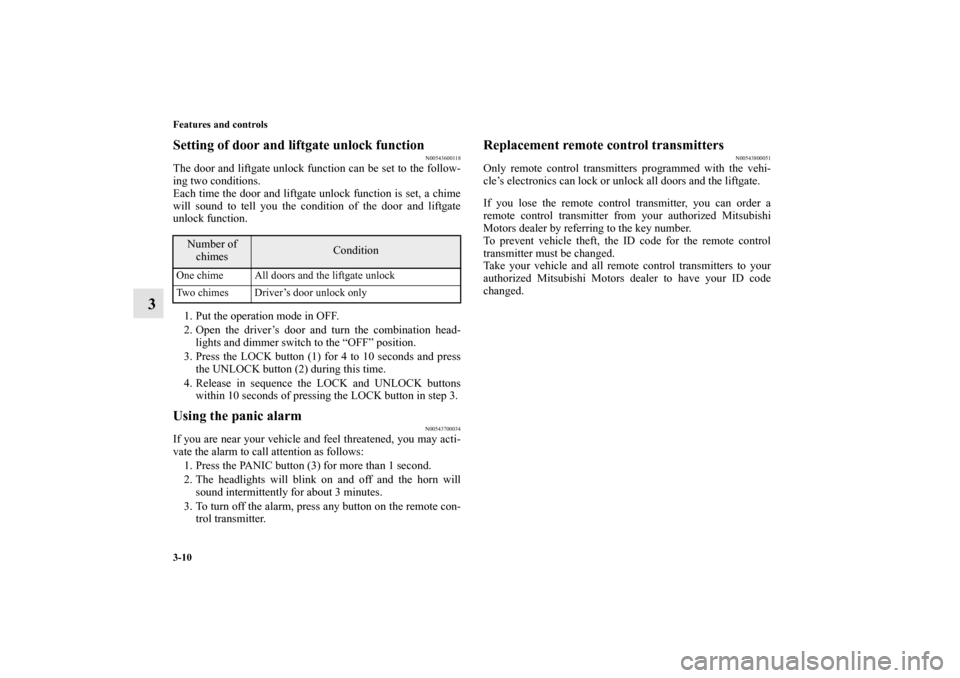

3-10 Features and controls
3
Setting of door and liftgate unlock function
N00543600118
The door and liftgate unlock function can be set to the follow-
ing two conditions.
Each time the door and liftgate unlock function is set, a chime
will sound to tell you the condition of the door and liftgate
unlock function.
1. Put the operation mode in OFF.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.Using the panic alarm
N00543700034
If you are near your vehicle and feel threatened, you may acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.
Replacement remote control transmitters
N00543800051
Only remote control transmitters programmed with the vehi-
cle’s electronics can lock or unlock all doors and the liftgate.
If you lose the remote control transmitter, you can order a
remote control transmitter from your authorized Mitsubishi
Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the remote control
transmitter must be changed.
Take your vehicle and all remote control transmitters to your
authorized Mitsubishi Motors dealer to have your ID code
changed.
Number of
chimes
Condition
One chime All doors and the liftgate unlock
Two chimes Driver’s door unlock onlyBK0162600US.book 10 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-11
3
Additional remote control transmitters
N00543900078
To add a remote control transmitter, you must already have 1
registered remote control transmitter.
Registering the ID code can be done by your authorized
Mitsubishi Motors dealer.
Take your vehicle and any remaining keys to your authorized
Mitsubishi Motors dealer.NOTE
You are provided with 2 remote control transmitters, but
you may register up to 4 remote control transmitters.General information
N00546100114
Your keyless entry system operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
FCC Rules and Industry Canada licence-exempt RSS stan-
dard(s).
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation of this
device.
Procedure for replacing the remote control trans-
mitter battery
N00544100080
1. Before replacing the battery, remove static electricity from
your body by touching a metal grounded object.
2. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
buttons may come out.
WA R N I N G
!
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
BK0162600US.book 11 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-12 Features and controls
3
3. Remove the remote control transmitter from the remote
control transmitter case. Then, open the remote control
transmitter using the method described in step 2.
4. Remove the old battery.5. Install a new battery with the + side (A) down.
6. Close the remote control transmitter firmly.
7. Place the remote control transmitter in the remote control
transmitter case, then securely close the remote control
transmitter case.
8. Check the keyless entry system to see that it works.
NOTE
You may purchase a replacement battery at an electric
appliance store.

An authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
+ side
- side
Coin type battery CR1620
BK0162600US.book 12 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-13
3 Free-hand Advanced Security Transmitter
(F.A.S.T.-key)
(if so equipped)
N00503100124
The Free-hand Advanced Security Transmitter (F.A.S.T.-key)
enables the doors and the liftgate to be locked and unlocked,
the engine to be started and the operation mode to be changed
simply by carrying it.
The F.A.S.T.-key can also be used as the remote control trans-
mitter of the keyless entry system.
Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-
key): Keyless entry system” on page 3-31.
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-
key is required for vehicle operations such as locking and
unlocking the doors and the liftgate, starting the engine, and
changing the operation mode. When leaving the vehicle,
make sure you are carrying the F.A.S.T.-key and then lock
the vehicle.
WA R N I N G
!
Individuals who use implantable pacemakers or
implantable cardiovascular-defibrillators should
keep away from the external and internal transmit-
ters. The electromagnetic waves used in the F.A.S.T.-
key may affect the operation of implantable pace-
makers and implantable cardiovascular-defibrilla-
tors.
BK0162600US.book 13 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-14 Features and controls
3
The operations possible with the F.A.S.T.-key can be
modified as stated below. (Keyless entry operations are
possible.) For details, contact an authorized Mitsubishi
Motors dealer.
• Enabling only the locking and unlocking of the doors
and the liftgate
• Enabling only the starting of the engine
• Deactivating the F.A.S.T.-key
A- External transmitter
B- Internal transmitter
WA R N I N G
!
Individuals using other electro-medical apparatus
besides implantable pacemakers and implantable
cardiovascular-defibrillators should check with the
manufacturer of the apparatus to confirm the effect
of the electromagnetic waves used by the F.A.S.T.-
key. The electromagnetic waves may affect the oper-
ations of the electro-medical apparatus.
BK0162600US.book 14 ページ ２０１３年３月２２日　金曜日　午後２時４１分

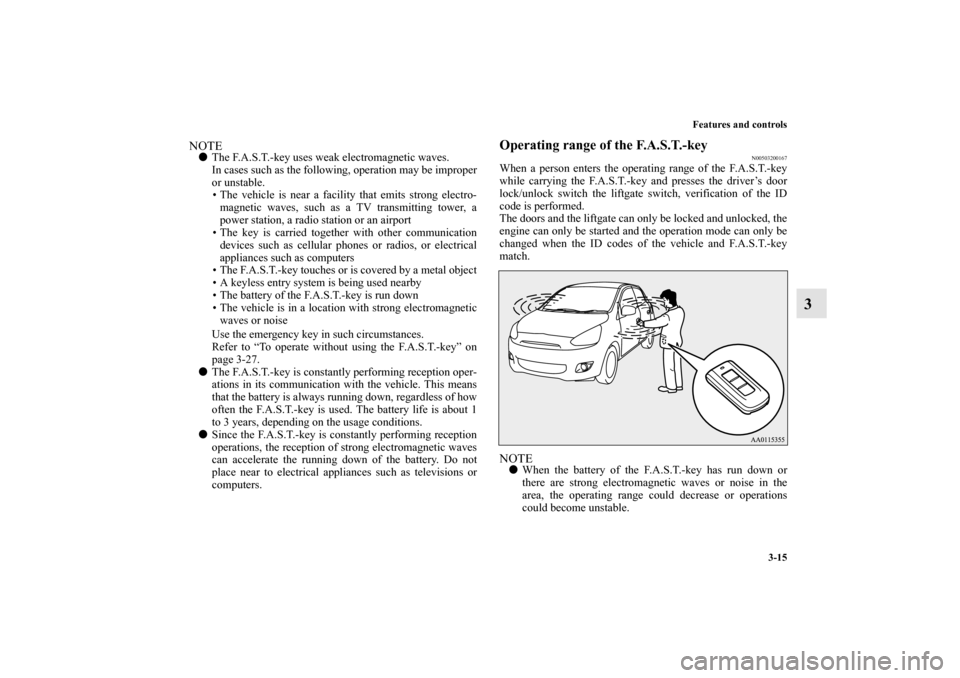

Features and controls
3-15
3
NOTE
The F.A.S.T.-key uses weak electromagnetic waves.
In cases such as the following, operation may be improper
or unstable.
• The vehicle is near a facility that emits strong electro-
magnetic waves, such as a TV transmitting tower, a
power station, a radio station or an airport
• The key is carried together with other communication
devices such as cellular phones or radios, or electrical
appliances such as computers
• The F.A.S.T.-key touches or is covered by a metal object
• A keyless entry system is being used nearby
• The battery of the F.A.S.T.-key is run down
• The vehicle is in a location with strong electromagnetic
waves or noise
Use the emergency key in such circumstances.
Refer to “To operate without using the F.A.S.T.-key” on
page 3-27.

The F.A.S.T.-key is constantly performing reception oper-
ations in its communication with the vehicle. This means
that the battery is always running down, regardless of how
often the F.A.S.T.-key is used. The battery life is about 1
to 3 years, depending on the usage conditions.

Since the F.A.S.T.-key is constantly performing reception
operations, the reception of strong electromagnetic waves
can accelerate the running down of the battery. Do not
place near to electrical appliances such as televisions or
computers.
Operating range of the F.A.S.T.-key
N00503200167
When a person enters the operating range of the F.A.S.T.-key
while carrying the F.A.S.T.-key and presses the driver’s door
lock/unlock switch the liftgate switch, verification of the ID
code is performed.
The doors and the liftgate can only be locked and unlocked, the
engine can only be started and the operation mode can only be
changed when the ID codes of the vehicle and F.A.S.T.-key
match.NOTE
When the battery of the F.A.S.T.-key has run down or
there are strong electromagnetic waves or noise in the
area, the operating range could decrease or operations
could become unstable.
BK0162600US.book 15 ページ ２０１３年３月２２日　金曜日　午後２時４１分

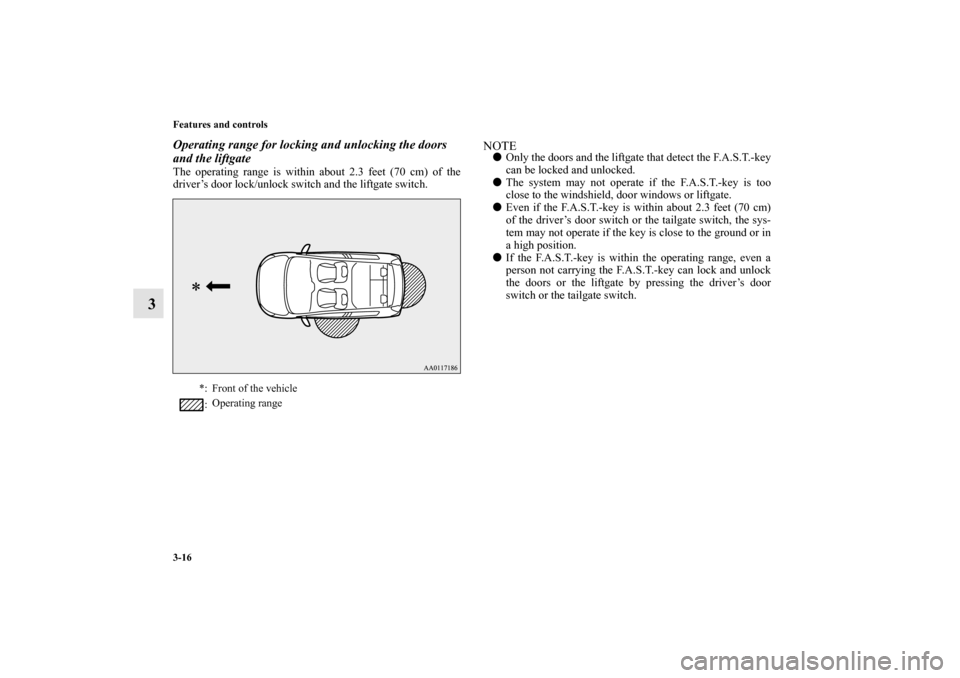

3-16 Features and controls
3
Operating range for locking and unlocking the doors
and the liftgateThe operating range is within about 2.3 feet (70 cm) of the
driver’s door lock/unlock switch and the liftgate switch.
NOTE
Only the doors and the liftgate that detect the F.A.S.T.-key
can be locked and unlocked.

The system may not operate if the F.A.S.T.-key is too
close to the windshield, door windows or liftgate.

Even if the F.A.S.T.-key is within about 2.3 feet (70 cm)
of the driver’s door switch or the tailgate switch, the sys-
tem may not operate if the key is close to the ground or in
a high position.

If the F.A.S.T.-key is within the operating range, even a
person not carrying the F.A.S.T.-key can lock and unlock
the doors or the liftgate by pressing the driver’s door
switch or the tailgate switch.
*: Front of the vehicle
:Operating range
BK0162600US.book 16 ページ ２０１３年３月２２日　金曜日　午後２時４１分
