2014 MITSUBISHI MIRAGE Defogger

Overview
Audio (if so equipped) P.5-30
Mitsubishi Multi Entertainment
System (if so equipped)
Refer to the separate “Mitsubishi
Multi Entertainment System
owner’s manual”
Clock (if so equipped) P.5-39Center vents P.5-2 Supplemental restraint system
(SRS)-airbag (for front passenger)
P.2-35, 2-45
Side vents P.5-2
Engine hood release lever
P. 7 - 5
Fuel tank filler door release
lever P.1-4Cup holder (for the
front seat) P.3-165
Gearshift lever (if so equipped)
P.3-59
Selector lever (if so equipped)
P.3-61
Cup holder (for the rear seat)
P. 3 - 1 6 5Parking brake lever P.3-48Key slot (if so
equipped) P.3-2912 V power outlets
P.3-161Compartment
P. 3 - 1 6 5
Electric rear window defogger
switch P.3-125 Automatic air conditioning (if so
equipped) P.5-17 Heater (if so equipped) P.5-6
Manual air conditioning (if so
equipped) P.5-11
Electric rear window defogger
switch P.3-125
BK0162600US.book 2 ページ ２０１３年３月２２日　金曜日　午後２時４１分

6 Quick indexCannot shift the selector lever
from the “P” (PARK) position.
(for vehicles with continuously
variable transmission (CVT))Shift the selector lever while pressing the brake pedal.
Check that the ignition switch or the operation mode is in ON.P. 3 - 6 1
The windows are fogged up.
Vehicles equipped with the heater without air conditioning function or the manual
air conditioning:
1. Set the mode selection dial to the “ ” or “ ” position.
2. Turn on the blower.
Vehicles equipped with the automatic air conditioning:
Push the defogger switch to change the “ ” mode.P. 5-9, 5-15,
5-21
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.Have the battery checked. Recharge or replace as needed.P. 6 - 2 ,
P. 7 - 1 7
The high coolant temperature
warning light is illuminates.
Steam comes out of the engine
compartment.The engine is overheated.
Carefully stop the vehicle in a safe place.P. 6 - 5
Problem
Do this
Ref. Page
BK0162600US.book 6 ページ ２０１３年３月２２日　金曜日　午後２時４１分

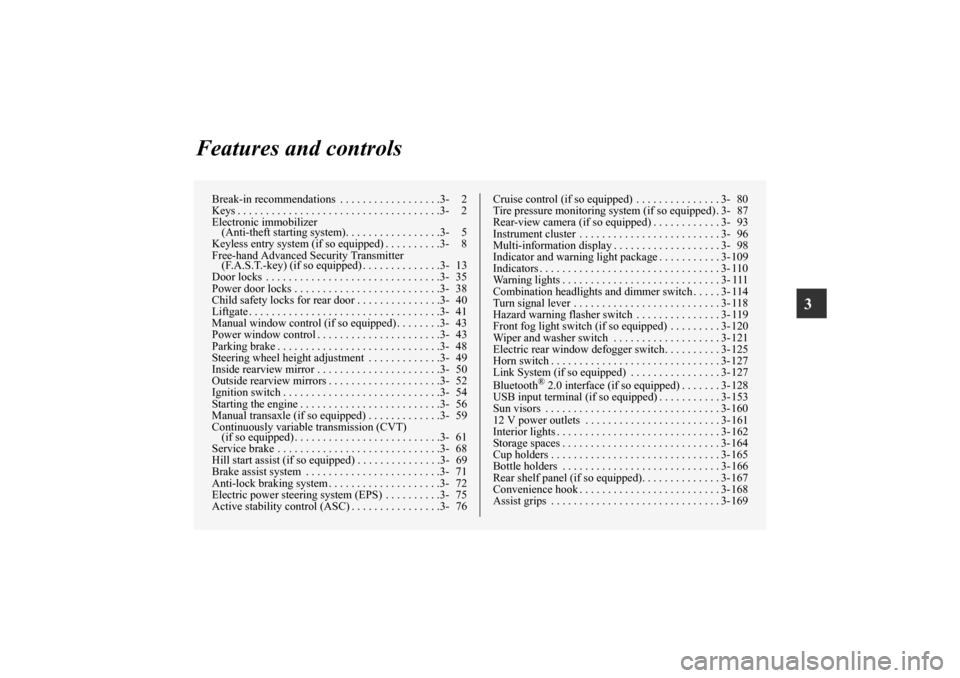

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer
(Anti-theft starting system). . . . . . . . . . . . . . . . .3- 5
Keyless entry system (if so equipped) . . . . . . . . . .3- 8
Free-hand Advanced Security Transmitter
(F.A.S.T.-key) (if so equipped) . . . . . . . . . . . . . .3- 13
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 35
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . .3- 38
Child safety locks for rear door . . . . . . . . . . . . . . .3- 40
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 41
Manual window control (if so equipped) . . . . . . . .3- 43
Power window control . . . . . . . . . . . . . . . . . . . . . .3- 43
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 48
Steering wheel height adjustment . . . . . . . . . . . . .3- 49
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . .3- 50
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . .3- 52
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 54
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . .3- 56
Manual transaxle (if so equipped) . . . . . . . . . . . . .3- 59
Continuously variable transmission (CVT)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .3- 61
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 68
Hill start assist (if so equipped) . . . . . . . . . . . . . . .3- 69
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . .3- 71
Anti-lock braking system . . . . . . . . . . . . . . . . . . . .3- 72
Electric power steering system (EPS) . . . . . . . . . .3- 75
Active stability control (ASC) . . . . . . . . . . . . . . . .3- 76Cruise control (if so equipped) . . . . . . . . . . . . . . . 3- 80
Tire pressure monitoring system (if so equipped) . 3- 87
Rear-view camera (if so equipped) . . . . . . . . . . . . 3- 93
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 3- 96
Multi-information display . . . . . . . . . . . . . . . . . . . 3- 98
Indicator and warning light package . . . . . . . . . . . 3- 109
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 110
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 111
Combination headlights and dimmer switch . . . . . 3- 114
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 118
Hazard warning flasher switch . . . . . . . . . . . . . . . 3- 119
Front fog light switch (if so equipped) . . . . . . . . . 3- 120
Wiper and washer switch . . . . . . . . . . . . . . . . . . . 3- 121
Electric rear window defogger switch. . . . . . . . . . 3- 125
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 127
Link System (if so equipped) . . . . . . . . . . . . . . . . 3- 127
Bluetooth
® 2.0 interface (if so equipped) . . . . . . . 3- 128
USB input terminal (if so equipped) . . . . . . . . . . . 3- 153
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 160
12 V power outlets . . . . . . . . . . . . . . . . . . . . . . . . 3- 161
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 162
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 164
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 165
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 166
Rear shelf panel (if so equipped). . . . . . . . . . . . . . 3- 167
Convenience hook . . . . . . . . . . . . . . . . . . . . . . . . . 3- 168
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 169
BK0162600US.book 1 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-25
3
3. Press and hold the brake pedal down with your right foot.
4. Press and hold the clutch pedal all the way down (manual
transaxle).
5. On vehicles equipped with manual transaxle, place the
gearshift lever in the “N” (Neutral) position.
On vehicles equipped with continuously variable trans-
mission (CVT), make sure the selector lever is in the “P”
(PARK) position.NOTE
On vehicles equipped with continuously variable trans-
mission (CVT), the engine can only be started when the
selector lever is in the “P” (PARK) or “N” (NEUTRAL)
position.
For safety reasons, the engine should be started when the
selector lever is in the “P” (PARK) position in which the
driving wheels lock.
6. Press the engine switch.
7. Confirm that all warning lights and warning displays are
functioning properly.NOTE
Minor noises may be heard on engine start-up. These will
disappear as the engine warms up.
When the engine is hard to start
After several attempts, you may experience that the engine still
does not start.
1. Make sure that all electric devices, such as lights, air con-
ditioning blower and rear window defogger, are turned
off.2. While depressing the brake pedal {continuously variable
transmission (CVT)} or the clutch pedal (manual
transaxle), press the accelerator pedal halfway and hold it
there, then crank the engine. Release the accelerator
pedal, immediately after the engine starts.
3. If the engine still will not start, the engine could be
flooded with too much gasoline. While depressing the
brake pedal (CVT) or the clutch pedal (manual transaxle),
push the accelerator pedal all the way down and hold it
there, then press the engine switch to crank the engine. If
the engine does not start after 5 to 6 seconds, push the
engine switch to stop cranking the engine, and release the
accelerator pedal. Put the operation mode in OFF. Wait a
few seconds, and then press the engine switch to crank the
engine again while depressing the brake pedal (CVT) or
the clutch pedal (manual transaxle), but do not push the
accelerator pedal. If the engine fails to start, repeat these
procedures. If the engine still will not start, contact your
local Mitsubishi Motors dealer or a repair facility of your
choice for assistance.
BK0162600US.book 25 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-53
3
To fold the mirror
N00549200099
The outside mirror can be manually folded in towards the side
window to prevent damage when parking in tight locations.
Door mirror heater
(if so equipped)
N00549300218
When the rear window defogger switch is pressed with the
engine running, the outside rearview mirrors are defogged or
defrosted. Current will flow through the heater element inside
the mirrors, thus clearing away frost or condensation.
The indicator light (A) will illuminate while the defogger is on.
The heater will be turned off automatically in about 20 min-
utes.Ty p e 1
BK0162600US.book 53 ページ ２０１３年３月２２日　金曜日　午後２時４１分

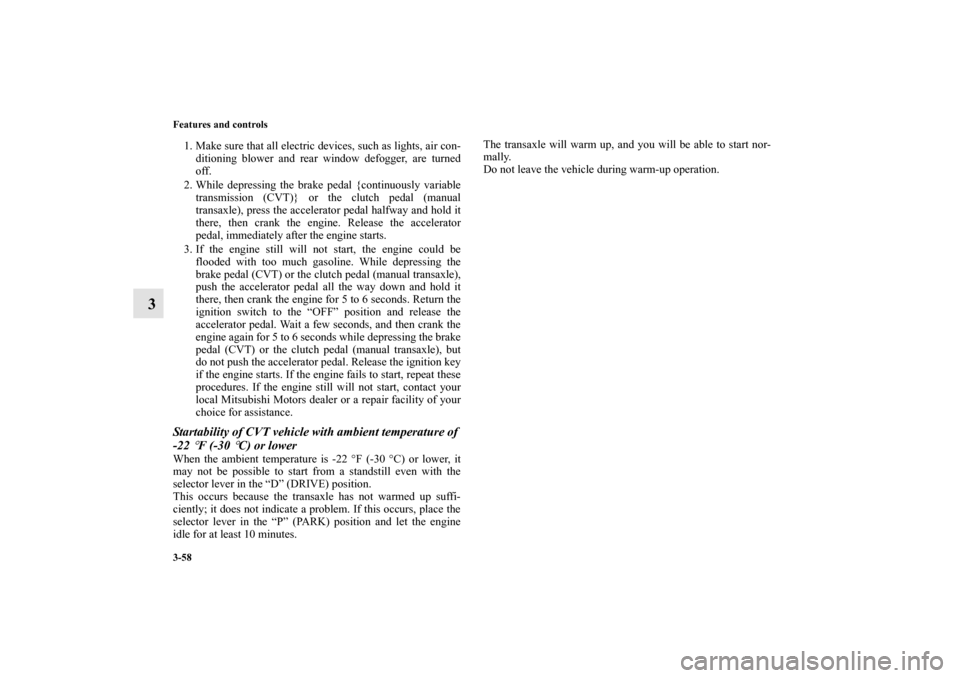

3-58 Features and controls
3
1. Make sure that all electric devices, such as lights, air con-
ditioning blower and rear window defogger, are turned
off.
2. While depressing the brake pedal {continuously variable
transmission (CVT)} or the clutch pedal (manual
transaxle), press the accelerator pedal halfway and hold it
there, then crank the engine. Release the accelerator
pedal, immediately after the engine starts.
3. If the engine still will not start, the engine could be
flooded with too much gasoline. While depressing the
brake pedal (CVT) or the clutch pedal (manual transaxle),
push the accelerator pedal all the way down and hold it
there, then crank the engine for 5 to 6 seconds. Return the
ignition switch to the “OFF” position and release the
accelerator pedal. Wait a few seconds, and then crank the
engine again for 5 to 6 seconds while depressing the brake
pedal (CVT) or the clutch pedal (manual transaxle), but
do not push the accelerator pedal. Release the ignition key
if the engine starts. If the engine fails to start, repeat these
procedures. If the engine still will not start, contact your
local Mitsubishi Motors dealer or a repair facility of your
choice for assistance.Startability of CVT vehicle with ambient temperature of
-22
°F (-30
°C) or lower
When the ambient temperature is -22 °F (-30 °C) or lower, it
may not be possible to start from a standstill even with the
selector lever in the “D” (DRIVE) position.
This occurs because the transaxle has not warmed up suffi-
ciently; it does not indicate a problem. If this occurs, place the
selector lever in the “P” (PARK) position and let the engine
idle for at least 10 minutes.The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.BK0162600US.book 58 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-125
3

Replace the wiper blades when they are worn. Use the
proper size replacement blades. For further information,
please contact your authorized Mitsubishi Motors dealer.
Electric rear window defogger switch
N00523700403
The rear window defogger can be used when the engine is run-
ning.
The indicator light (A) will come on when you press the elec-
tric rear window defogger switch. Electric current will flow
through the heating wires on the rear window to help clear
away moisture or frost.Ty p e 1
BK0162600US.book 125 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-126 Features and controls
3
After about 20 minutes of operation, the system will shut off
automatically.
To switch the defogger OFF before 20 minutes have passed,
press the switch again. The indicator light will go out and the
defogger will turn off.
If you need the defogger for more than 20 minutes, press the
switch again. This will add 20 more minutes.
NOTE
If your vehicle is equipped with heated mirrors, mist can
also be removed from the outside rearview mirrors when
the rear window defogger switch is pressed. (Refer to
“Door mirror heater” on page 3-53.)
CAUTION
!
The rear window defogger is not designed to melt
snow. Remove any snow manually before using the
rear window defogger.
Use the rear window defogger only after the engine
has started and is running. Be sure to turn the
defogger switch off immediately after the window is
clear to save on battery power.Ty p e 2

Do not place stickers, tape, or other items that are
attached with adhesive over the grid wires on the
rear window.
When cleaning the inside rear window, use a soft
cloth and wipe lightly over the grid wires.
CAUTION
!
BK0162600US.book 126 ページ ２０１３年３月２２日　金曜日　午後２時４１分
