Comfort controls
5-25
5
AUTO switch
N00703500016
When the AUTO switch is pressed, the mode selection, blower
speed adjustment, recirculated/outside air selection, tempera-
ture adjustment, and air conditioner ON/OFF status are all con-
trolled automatically.
The “AUTO” indicator will be shown in the display (A).
OFF switch
N00703600017
Push the switch to turn off the air conditioning system.
BK0162600US.book 25 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-26 Comfort controls
5
Operating the air conditioning system (automatic
mode)
N00731700361
In normal conditions, use the system in the AUTO mode and
follow these procedures:
1. Push the AUTO switch.
2. Set the temperature control switch to the desired tempera-
ture. The temperature can be set within a range of around
61 to 89 (Type 1) or 17 to 31 (Type 2).
The vents, recirculation/outside air, blower speed, temperature
adjustment and ON/OFF of air conditioning will be controlled
automatically.NOTE
Set the temperature at about 75 (Type 1) or 24 (Type 2)
under normal conditions.
Operating the air conditioning system (manual
mode)
N00731800115
Blower speed and vent mode may be controlled manually by
setting the blower speed selection switch and the MODE
switch to the desired positions. To return to automatic opera-
tion, press the AUTO switch.Defrosting or defogging (windshield, door windows)
N00732400466
To remove frost or mist from the windshield and door win-
dows, use the MODE switch or defogger switch (“ ” or
“”).
CAUTION
!
For safety, make sure you have a clear view through
all the windows.
BK0162600US.book 26 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Comfort controls
5-27
5
For ordinary defrosting
Use this setting to keep the windshield and door windows clear
of mist, and to keep the leg area heated (when driving in rain or
snow).
1. Set the MODE switch to the “ ” position.
2. Set the air selection switch to the outside air position.
3. Select your desired blower speed by pressing the blower
speed selection switch.
4. Select your desired temperature by pressing the tempera-
ture control switch.
5. Push the air conditioning switch.For quick defrosting

1. Push the defogger switch to change to the “ ” position.
2. Set your blower to the maximum speed.
3. Set the temperature to the highest position.
BK0162600US.book 27 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-28 Comfort controls
5
NOTE
While the mode selection is set “ ” position, the air con-
ditioning compressor will run automatically. The outside
air position will also be selected automatically.

If the mode selection is set “ ” position, you cannot turn
the air conditioning off or select the recirculation position.
This prevents the windows from fogging up.

To defog quickly, direct the air flow from the side vents
toward the door windows.

When defrosting, do not set the temperature to the maxi-
mum cool position. This will blow cool air on the window
glass and fog it up.
Important air conditioning operating tips
N00733700336
1. Park the vehicle in the shade whenever possible. Parking
in the hot sun makes the vehicle interior extremely hot
which then requires more time to cool. If it is necessary to
park in the sun, open the windows for the first few min-
utes of air conditioning to expel the hot air.
2. Afterwards, keep the windows closed when the air condi-
tioning is in use. The entry of outside air through open
windows will reduce cooling efficiency.
3. When running the air conditioning, make sure the air
intake, which is located in front of the windshield, is free
of obstructions such as leaves. Leaves collected in the air-
intake chamber may reduce air flow and plug the water
drains.Air conditioning system refrigerant and lubri-
cant recommendationsIf the air conditioning seems less effective than usual, the cause
might be a refrigerant leak.
Have the system inspected by your authorized Mitsubishi
Motors dealer or a repair facility of your choice.
BK0162600US.book 28 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Comfort controls
5-29
5

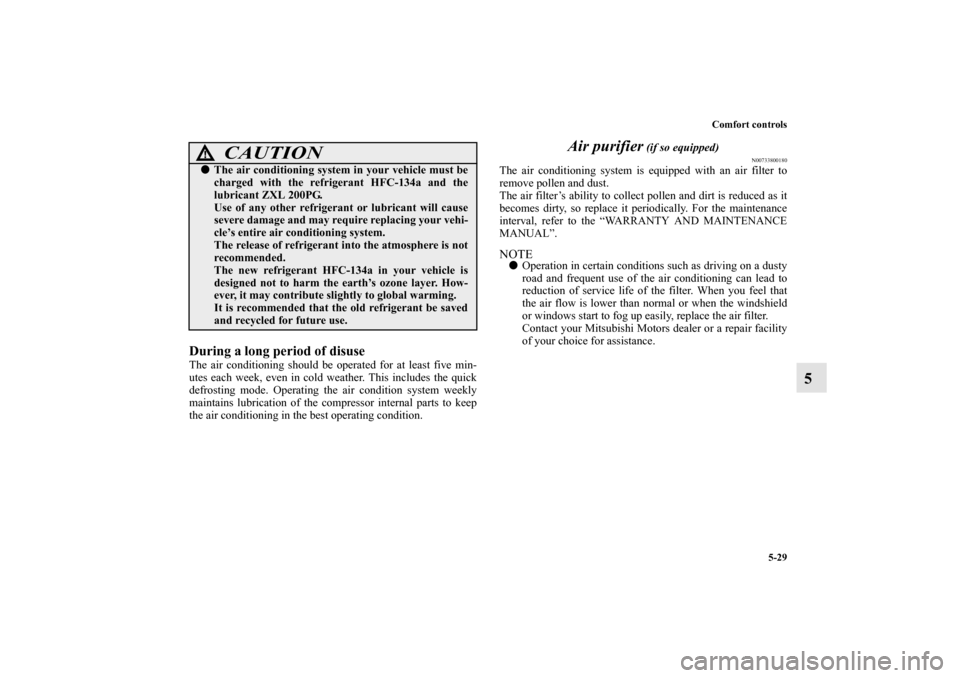

During a long period of disuseThe air conditioning should be operated for at least five min-
utes each week, even in cold weather. This includes the quick
defrosting mode. Operating the air condition system weekly
maintains lubrication of the compressor internal parts to keep
the air conditioning in the best operating condition.
Air purifier
(if so equipped)
N00733800180
The air conditioning system is equipped with an air filter to
remove pollen and dust.
The air filter’s ability to collect pollen and dirt is reduced as it
becomes dirty, so replace it periodically. For the maintenance
interval, refer to the “WARRANTY AND MAINTENANCE
MANUAL”.NOTE
Operation in certain conditions such as driving on a dusty
road and frequent use of the air conditioning can lead to
reduction of service life of the filter. When you feel that
the air flow is lower than normal or when the windshield
or windows start to fog up easily, replace the air filter.
Contact your Mitsubishi Motors dealer or a repair facility
of your choice for assistance.
CAUTION
!
The air conditioning system in your vehicle must be
charged with the refrigerant HFC-134a and the
lubricant ZXL 200PG.
Use of any other refrigerant or lubricant will cause
severe damage and may require replacing your vehi-
cle’s entire air conditioning system.
The release of refrigerant into the atmosphere is not
recommended.
The new refrigerant HFC-134a in your vehicle is
designed not to harm the earth’s ozone layer. How-
ever, it may contribute slightly to global warming.
It is recommended that the old refrigerant be saved
and recycled for future use.
BK0162600US.book 29 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-30 Comfort controls
5AM/FM electronically tuned radio with CD
player
(if so equipped)
N00734301075
The audio system can only be used when the ignition switch or
the operation mode is in ON or ACC.NOTE
To listen to the audio system while the engine is not run-
ning, turn the ignition switch to the “ACC” position or put
the operation mode in ACC.

If a cellular phone is used inside the vehicle, it may create
noise in the audio equipment. This does not mean that
anything is wrong with your audio equipment. In such a
case, use the cellular phone at a place as far away as possi-
ble from the audio equipment.

If foreign objects or water get into the audio equipment, or
if smoke or a strange odor comes from it, immediately
turn off the audio system and have it checked at an autho-
rized Mitsubishi Motors dealer or a repair facility of your
choice. Never try to repair it yourself. Avoid using the
audio system until it is inspected by a qualified person.

If the audio system is damaged by foreign objects, water,
or fire, have the system checked by a qualified Mitsubishi
Motors technician.
Volume and tone control panel
N00711900729
To adjust the volume
N00712000411
Turn the VOL knob clockwise to increase the volume; counter-
clockwise to decrease the volume.
The status will be displayed in the display.1- PWR (On-Off) switch
2- VOL (Volume control) knob
3- Display
4-
/MENU (Mode change) button
5- Sound control button
BK0162600US.book 30 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Comfort controls
5-31
5
To adjust the tone
N00712100685
Press the /MENU button to select BASS → TREBLE →
FA D E R → BALANCE → Sound control mode off.BASS (Bass tone control)Press the sound control button either or to select the
desired bass level.TREBLE (Treble tone control)Press the sound control button either or to select the
desired treble level.FADER (Front/Rear balance control) (if equipped with
rear speakers)Press the sound control button either or to balance the
volume of sound from the front and the rear speakers.BALANCE (Left/Right balance control)Press the sound control button either or to balance the
volume of sound from the left and the right speakers.NOTE
The sound control mode will be canceled when the
another mode is selected or no adjustment is performed
for more than 10 seconds.

In a two-speakers vehicle, keep the FADER setting in the
middle position. Since no rear speakers are connected,
adjusting the FADER setting toward the “REAR” side
will result in a loss of sound output.
Radio control panel and display
N00734900915
1- RADIO (AM/FM selection) button
2- PWR (On-Off) switch
3- Display
4- Seek (Down-seek) button
5- Seek (Up-seek) button
6- Memory select buttons
BK0162600US.book 31 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-32 Comfort controls
5
To listen to the radio
N00735000926
1. Press the PWR switch or the RADIO button to turn on the
radio.
Press and hold the PWR switch for 2 seconds or longer to
turn off the radio.
2. Press the RADIO button to select the desired band
(AM/FM1/FM2).
3. Press the seek button to tune to a station, or press one of
the memory select buttons to tune in to a station memo-
rized for that button.
Refer to “Automatic tuning”, “Manual tuning” or “To
enter frequencies into the memory”.To tune the radioManual tuning
The frequency changes every time the seek button is pressed.
Press the button to select the desired station.
Automatic tuning
After keeping the seek button depressed until it beeps, release
the button, and the selected station reception will start.
To enter frequencies into the memoryAs many as 6 AM and 12 FM stations can be entered into the
memory.
To store a frequency in the memory, follow these steps:
1. Press the seek button to tune to the frequency you wish to
keep in the memory.
2. Press one of the memory select buttons until it beeps.
The sound will be momentarily interrupted while the fre-
quency is being entered into the memory. The number of
the button matching the entry in the memory as well as the
frequency is displayed.
3. The preset memory setting is retrieved by pressing the
button and then releasing it within 1 second.
