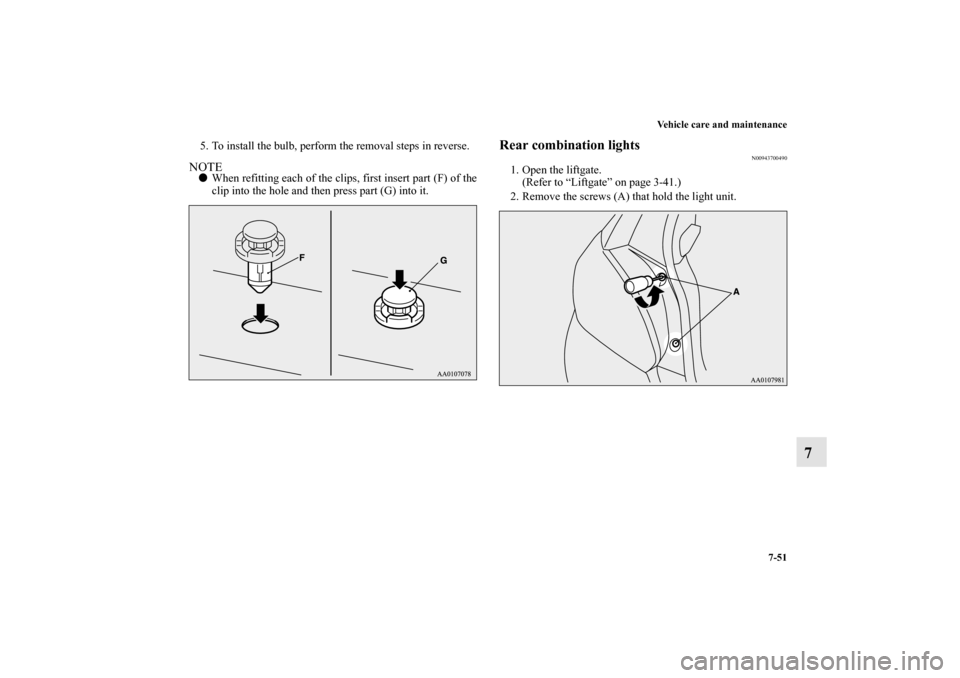

2014 MITSUBISHI MIRAGE Owners Manual

Vehicle care and maintenance
7-51
7
5. To install the bulb, perform the removal steps in reverse.NOTE
When refitting each of the clips, first insert part (F) of the
clip into the hole and then press part (G) into it.
Rear combination lights
N00943700490
1. Open the liftgate.
(Refer to “Liftgate” on page 3-41.)
2. Remove the screws (A) that hold the light unit.
BK0162600US.book 51 ページ ２０１３年３月２２日　金曜日　午後２時４１分

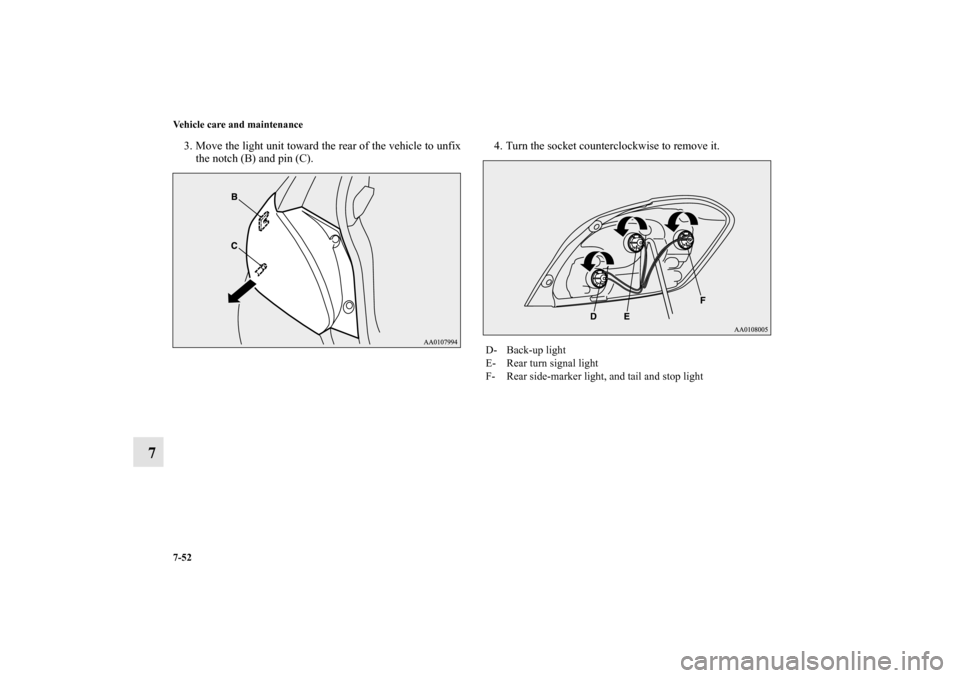

7-52 Vehicle care and maintenance
7
3. Move the light unit toward the rear of the vehicle to unfix
the notch (B) and pin (C).4. Turn the socket counterclockwise to remove it.
D- Back-up light
E- Rear turn signal light
F- Rear side-marker light, and tail and stop light
BK0162600US.book 52 ページ ２０１３年３月２２日　金曜日　午後２時４１分

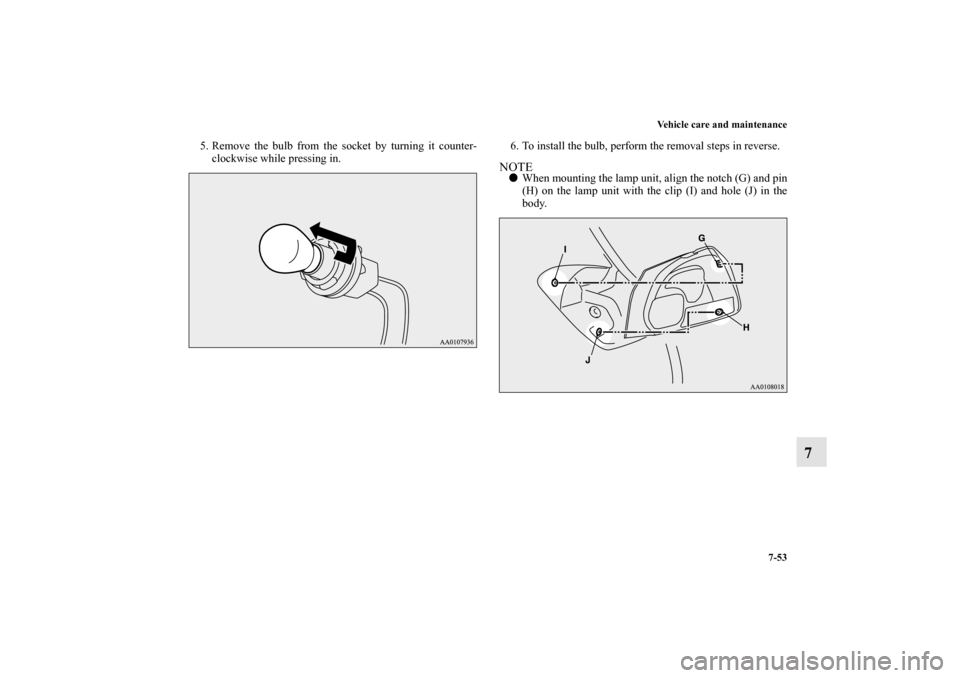

Vehicle care and maintenance
7-53
7
5. Remove the bulb from the socket by turning it counter-
clockwise while pressing in.6. To install the bulb, perform the removal steps in reverse.
NOTE
When mounting the lamp unit, align the notch (G) and pin
(H) on the lamp unit with the clip (I) and hole (J) in the
body.
BK0162600US.book 53 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-54 Vehicle care and maintenance
7
License plate light
N00944000403
1. Remove the screws (A) that hold the light unit and remove
the light unit.2. Turn the socket counterclockwise to remove it.
BK0162600US.book 54 ページ ２０１３年３月２２日　金曜日　午後２時４１分

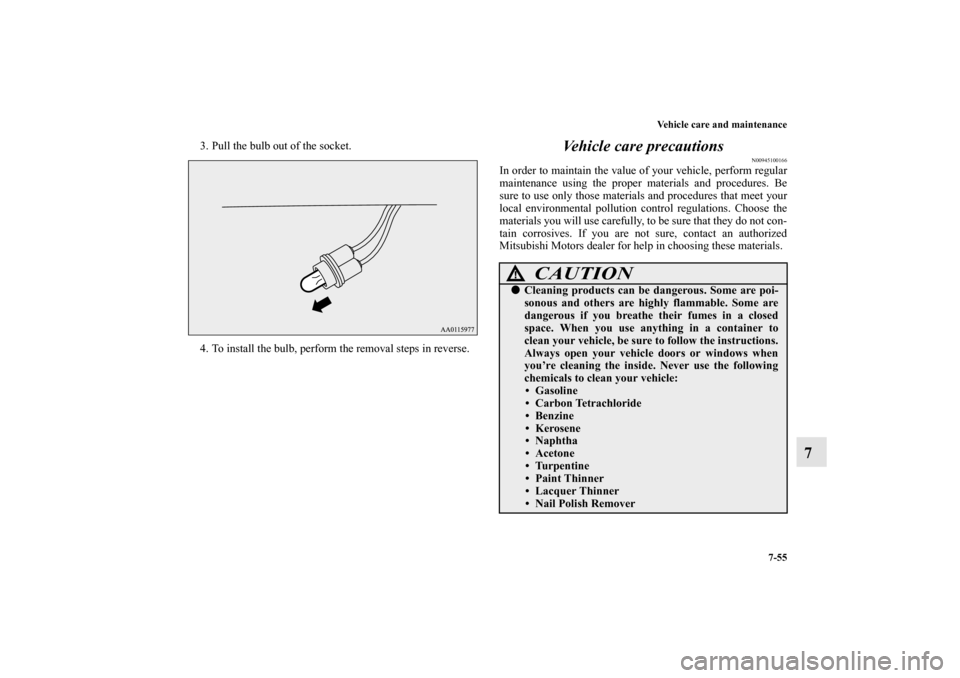

Vehicle care and maintenance
7-55
7
3. Pull the bulb out of the socket.
4. To install the bulb, perform the removal steps in reverse.
Vehicle care precautions
N00945100166
In order to maintain the value of your vehicle, perform regular
maintenance using the proper materials and procedures. Be
sure to use only those materials and procedures that meet your
local environmental pollution control regulations. Choose the
materials you will use carefully, to be sure that they do not con-
tain corrosives. If you are not sure, contact an authorized
Mitsubishi Motors dealer for help in choosing these materials.
CAUTION
!
Cleaning products can be dangerous. Some are poi-
sonous and others are highly flammable. Some are
dangerous if you breathe their fumes in a closed
space. When you use anything in a container to
clean your vehicle, be sure to follow the instructions.
Always open your vehicle doors or windows when
you’re cleaning the inside. Never use the following
chemicals to clean your vehicle:
• Gasoline
• Carbon Tetrachloride
• Benzine
• Kerosene
• Naphtha
• Acetone
• Turpentine
• Paint Thinner
• Lacquer Thinner
• Nail Polish Remover
BK0162600US.book 55 ページ ２０１３年３月２２日　金曜日　午後２時４１分

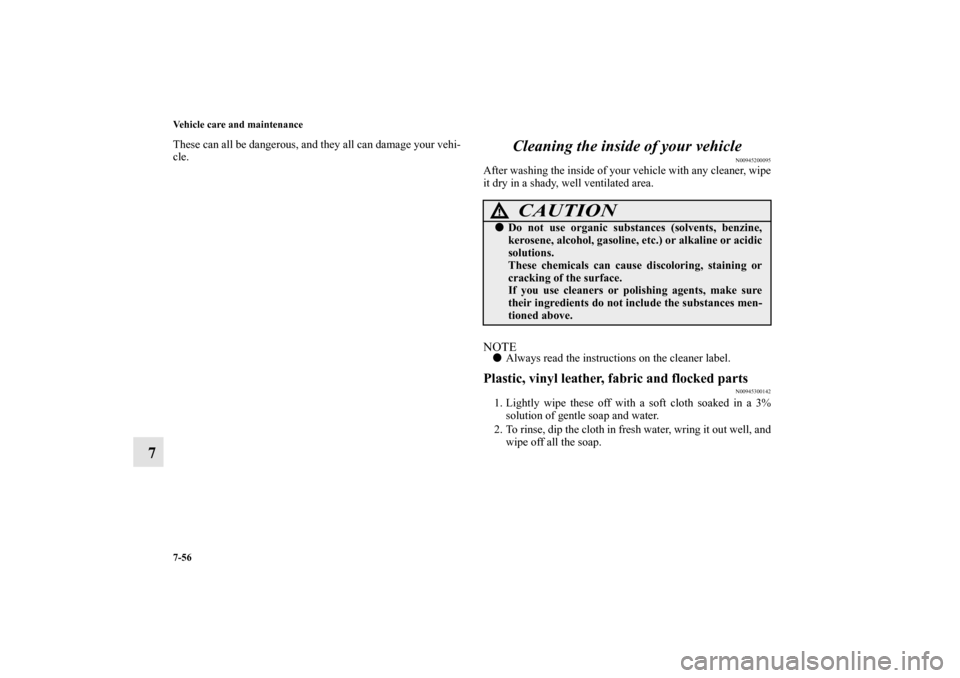

7-56 Vehicle care and maintenance
7
These can all be dangerous, and they all can damage your vehi-
cle.
Cleaning the inside of your vehicle
N00945200095
After washing the inside of your vehicle with any cleaner, wipe
it dry in a shady, well ventilated area.NOTE
Always read the instructions on the cleaner label.Plastic, vinyl leather, fabric and flocked parts
N00945300142
1. Lightly wipe these off with a soft cloth soaked in a 3%
solution of gentle soap and water.
2. To rinse, dip the cloth in fresh water, wring it out well, and
wipe off all the soap.
CAUTION
!
Do not use organic substances (solvents, benzine,
kerosene, alcohol, gasoline, etc.) or alkaline or acidic
solutions.
These chemicals can cause discoloring, staining or
cracking of the surface.
If you use cleaners or polishing agents, make sure
their ingredients do not include the substances men-
tioned above.
BK0162600US.book 56 ページ ２０１３年３月２２日　金曜日　午後２時４１分

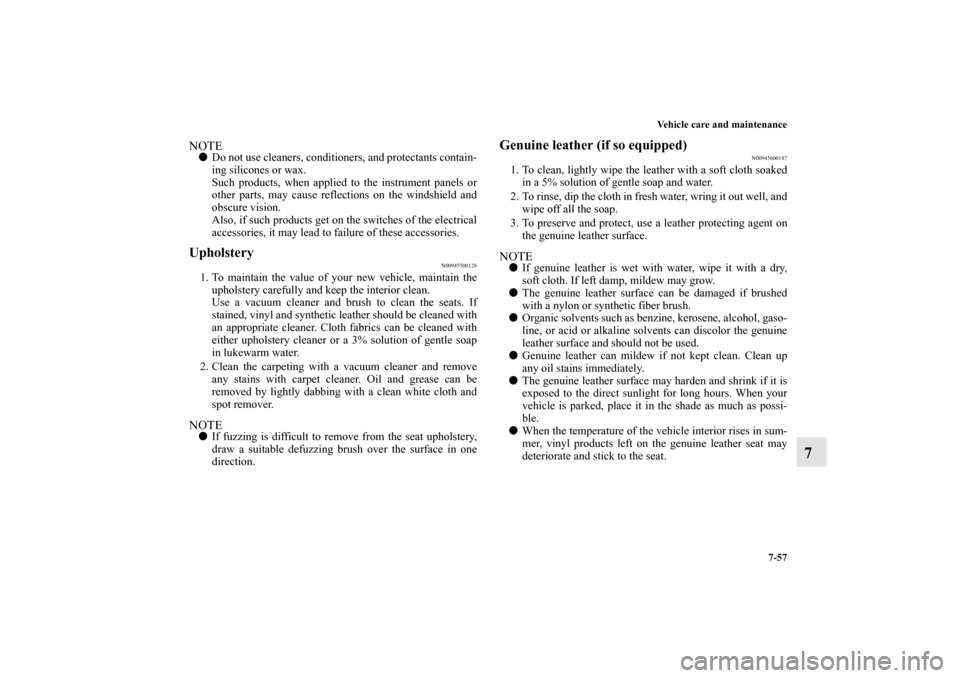

Vehicle care and maintenance
7-57
7
NOTE
Do not use cleaners, conditioners, and protectants contain-
ing silicones or wax.
Such products, when applied to the instrument panels or
other parts, may cause reflections on the windshield and
obscure vision.
Also, if such products get on the switches of the electrical
accessories, it may lead to failure of these accessories.Upholstery
N00945500128
1. To maintain the value of your new vehicle, maintain the
upholstery carefully and keep the interior clean.
Use a vacuum cleaner and brush to clean the seats. If
stained, vinyl and synthetic leather should be cleaned with
an appropriate cleaner. Cloth fabrics can be cleaned with
either upholstery cleaner or a 3% solution of gentle soap
in lukewarm water.
2. Clean the carpeting with a vacuum cleaner and remove
any stains with carpet cleaner. Oil and grease can be
removed by lightly dabbing with a clean white cloth and
spot remover.NOTE
If fuzzing is difficult to remove from the seat upholstery,
draw a suitable defuzzing brush over the surface in one
direction.
Genuine leather (if so equipped)
N00945600187
1. To clean, lightly wipe the leather with a soft cloth soaked
in a 5% solution of gentle soap and water.
2. To rinse, dip the cloth in fresh water, wring it out well, and
wipe off all the soap.
3. To preserve and protect, use a leather protecting agent on
the genuine leather surface.NOTE
If genuine leather is wet with water, wipe it with a dry,
soft cloth. If left damp, mildew may grow.

The genuine leather surface can be damaged if brushed
with a nylon or synthetic fiber brush.

Organic solvents such as benzine, kerosene, alcohol, gaso-
line, or acid or alkaline solvents can discolor the genuine
leather surface and should not be used.

Genuine leather can mildew if not kept clean. Clean up
any oil stains immediately.

The genuine leather surface may harden and shrink if it is
exposed to the direct sunlight for long hours. When your
vehicle is parked, place it in the shade as much as possi-
ble.

When the temperature of the vehicle interior rises in sum-
mer, vinyl products left on the genuine leather seat may
deteriorate and stick to the seat.
BK0162600US.book 57 ページ ２０１３年３月２２日　金曜日　午後２時４１分

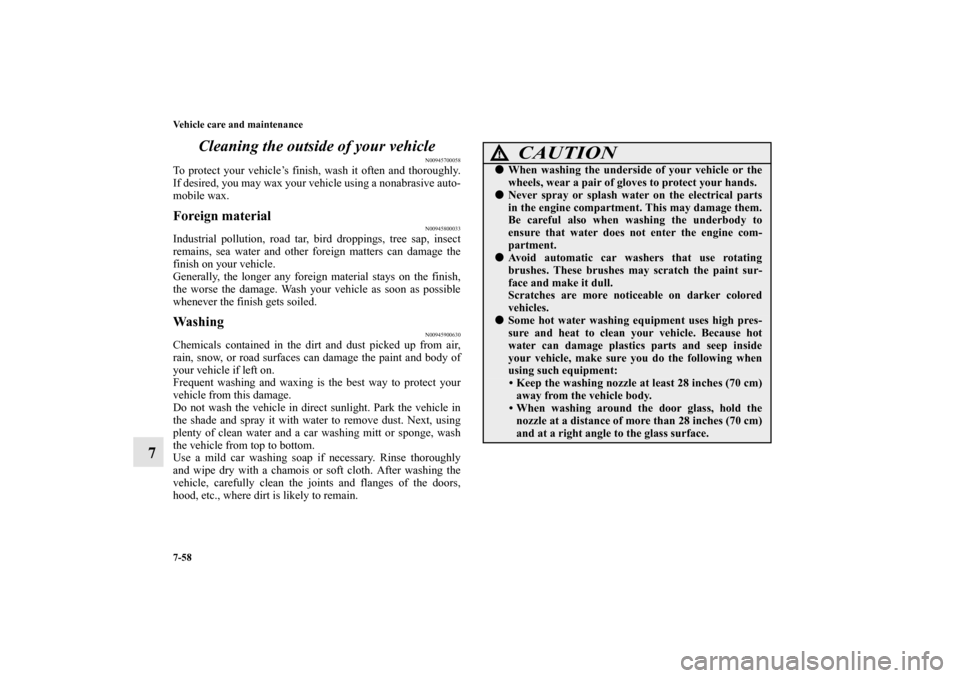

7-58 Vehicle care and maintenance
7Cleaning the outside of your vehicle
N00945700058
To protect your vehicle’s finish, wash it often and thoroughly.
If desired, you may wax your vehicle using a nonabrasive auto-
mobile wax.Foreign material
N00945800033
Industrial pollution, road tar, bird droppings, tree sap, insect
remains, sea water and other foreign matters can damage the
finish on your vehicle.
Generally, the longer any foreign material stays on the finish,
the worse the damage. Wash your vehicle as soon as possible
whenever the finish gets soiled.Wa s h i n g
N00945900630
Chemicals contained in the dirt and dust picked up from air,
rain, snow, or road surfaces can damage the paint and body of
your vehicle if left on.
Frequent washing and waxing is the best way to protect your
vehicle from this damage.
Do not wash the vehicle in direct sunlight. Park the vehicle in
the shade and spray it with water to remove dust. Next, using
plenty of clean water and a car washing mitt or sponge, wash
the vehicle from top to bottom.
Use a mild car washing soap if necessary. Rinse thoroughly
and wipe dry with a chamois or soft cloth. After washing the
vehicle, carefully clean the joints and flanges of the doors,
hood, etc., where dirt is likely to remain.
CAUTION
!
When washing the underside of your vehicle or the
wheels, wear a pair of gloves to protect your hands.
Never spray or splash water on the electrical parts
in the engine compartment. This may damage them.
Be careful also when washing the underbody to
ensure that water does not enter the engine com-
partment.
Avoid automatic car washers that use rotating
brushes. These brushes may scratch the paint sur-
face and make it dull.
Scratches are more noticeable on darker colored
vehicles.
Some hot water washing equipment uses high pres-
sure and heat to clean your vehicle. Because hot
water can damage plastics parts and seep inside
your vehicle, make sure you do the following when
using such equipment:
• Keep the washing nozzle at least 28 inches (70 cm)
away from the vehicle body.
• When washing around the door glass, hold the
nozzle at a distance of more than 28 inches (70 cm)
and at a right angle to the glass surface.
