2014 MITSUBISHI MIRAGE Owners Manual

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer
(Anti-theft starting system). . . . . . . . . . . . . . . . .3- 5
Keyless entry system (if so equipped) . . . . . . . . . .3- 8
Free-hand Advanced Security Transmitter
(F.A.S.T.-key) (if so equipped) . . . . . . . . . . . . . .3- 13
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 35
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . .3- 38
Child safety locks for rear door . . . . . . . . . . . . . . .3- 40
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 41
Manual window control (if so equipped) . . . . . . . .3- 43
Power window control . . . . . . . . . . . . . . . . . . . . . .3- 43
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 48
Steering wheel height adjustment . . . . . . . . . . . . .3- 49
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . .3- 50
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . .3- 52
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 54
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . .3- 56
Manual transaxle (if so equipped) . . . . . . . . . . . . .3- 59
Continuously variable transmission (CVT)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .3- 61
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 68
Hill start assist (if so equipped) . . . . . . . . . . . . . . .3- 69
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . .3- 71
Anti-lock braking system . . . . . . . . . . . . . . . . . . . .3- 72
Electric power steering system (EPS) . . . . . . . . . .3- 75
Active stability control (ASC) . . . . . . . . . . . . . . . .3- 76Cruise control (if so equipped) . . . . . . . . . . . . . . . 3- 80
Tire pressure monitoring system (if so equipped) . 3- 87
Rear-view camera (if so equipped) . . . . . . . . . . . . 3- 93
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 3- 96
Multi-information display . . . . . . . . . . . . . . . . . . . 3- 98
Indicator and warning light package . . . . . . . . . . . 3- 109
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 110
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 111
Combination headlights and dimmer switch . . . . . 3- 114
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 118
Hazard warning flasher switch . . . . . . . . . . . . . . . 3- 119
Front fog light switch (if so equipped) . . . . . . . . . 3- 120
Wiper and washer switch . . . . . . . . . . . . . . . . . . . 3- 121
Electric rear window defogger switch. . . . . . . . . . 3- 125
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 127
Link System (if so equipped) . . . . . . . . . . . . . . . . 3- 127
Bluetooth
® 2.0 interface (if so equipped) . . . . . . . 3- 128
USB input terminal (if so equipped) . . . . . . . . . . . 3- 153
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 160
12 V power outlets . . . . . . . . . . . . . . . . . . . . . . . . 3- 161
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 162
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 164
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 165
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 166
Rear shelf panel (if so equipped). . . . . . . . . . . . . . 3- 167
Convenience hook . . . . . . . . . . . . . . . . . . . . . . . . . 3- 168
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 169
BK0162600US.book 1 ページ ２０１３年３月２２日　金曜日　午後２時４１分

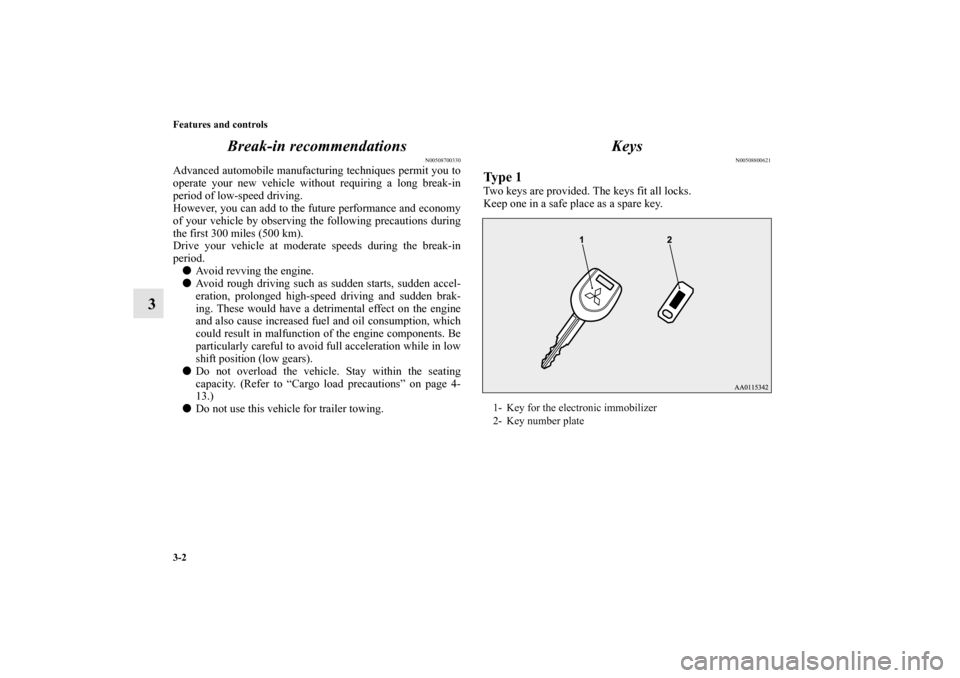

3-2 Features and controls
3Break-in recommendations
N00508700330
Advanced automobile manufacturing techniques permit you to
operate your new vehicle without requiring a long break-in
period of low-speed driving.
However, you can add to the future performance and economy
of your vehicle by observing the following precautions during
the first 300 miles (500 km).
Drive your vehicle at moderate speeds during the break-in
period.

Avoid revving the engine.

Avoid rough driving such as sudden starts, sudden accel-
eration, prolonged high-speed driving and sudden brak-
ing. These would have a detrimental effect on the engine
and also cause increased fuel and oil consumption, which
could result in malfunction of the engine components. Be
particularly careful to avoid full acceleration while in low
shift position (low gears).

Do not overload the vehicle. Stay within the seating
capacity. (Refer to “Cargo load precautions” on page 4-
13.)

Do not use this vehicle for trailer towing.
Keys
N00508800621
Ty p e 1Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.1- Key for the electronic immobilizer
2- Key number plate
BK0162600US.book 2 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-3
3
Ty p e 2Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.
Ty p e 3Two F.A.S.T.-keys and two emergency keys are provided.
Keep one F.A.S.T.-key and one emergency key in a safe place
together as a set of spare keys.
1- Key for the electronic immobilizer and keyless entry system
2- Key number plate
1- F.A.S.T.-key
(with electronic immobilizer and keyless entry system func-
tion)
2- Emergency key
3- Key number plate
BK0162600US.book 3 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-4 Features and controls
3
NOTE
The keyless entry key and F.A.S.T.-key are a precision
electronic device with a built-in signal transmitter. Please
observe the following in order to prevent damage.
• Do not leave where it may be exposed to heat caused by
direct sunlight, such as on top of the dashboard.
• Do not take the remote control transmitter apart.
• Do not excessively bend the key or subject it to strong
impacts.
• Keep the remote control transmitter dry.
• Keep away from magnetic objects such as key rings.
• Keep away from devices that produce magnetism, such
as audio systems, computers and televisions.
• Keep away from devices that emit strong electromag-
netic waves, such as cellular phones, wireless devices
and high frequency equipment (including medical
devices).
• Do not clean with ultrasonic cleaners.
• Do not leave the key where it may be exposed to high
temperature or high humidity.

If you lose your key, to prevent the theft of the vehicle
immediately contact an authorized Mitsubishi Motors
dealer.
If you notify an authorized Mitsubishi Motors dealer of
the key number, they can make a new key. The key num-
ber is stamped on the key number plate. Keep the key
number plate in a safe place separate from the key itself.
No keys other than those registered in advance can be
used to start the engine.
Refer to “Electronic immobilizer (Anti-theft starting sys-
tem)” on page 3-5.
Refer to “Free-hand Advanced Security Transmitter
(F.A.S.T.-key): “Electronic immobilizer (Anti-theft start-
ing system)” on page 3-28.

When the theft-alarm is in the system operational status,
the alarm operates if a door or liftgate is opened after
using the key, the door lock knob or the power door lock
switch to unlock the vehicle.

The system does not enter the preparation status if the
keyless entry system or the F.A.S.T.-key was not used to
lock the vehicle.
BK0162600US.book 4 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-5
3 Electronic immobilizer (Anti-theft starting
system)
N00509100780
[For vehicles equipped with the Free-hand Advanced Security
Transmitter (F.A.S.T.-key)]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Electronic immobilizer (Anti-theft starting system)” on page 3-
28.
[Except for vehicles equipped with the Free-hand Advanced
Security Transmitter (F.A.S.T.-key)]
The electronic immobilizer is designed to significantly reduce
the possibility of vehicle theft. The purpose of the system is to
immobilize the vehicle if an invalid start is attempted. A valid
start attempt can only be achieved (subject to certain condi-
tions) using a key “registered” to the immobilizer system.
All of the keys provided with your new vehicle have been pro-
grammed to the vehicle’s electronics.
NOTE
In the following cases, the vehicle may not be able to rec-
ognize the registered ID code from the key. This means
the engine will not start even when the key is turned to the
“START” position.
• When the key contacts a key ring or other metallic or
magnetic object (Type A)
• When the key grip contacts metal of another key (Type
B)
• When the key contacts or is close to other immobilizer
keys (including keys of other vehicles) (Type C)

In cases like the above, move the offending object(s) away
from the key and turn the key back to the “ACC” or
“OFF” position. Then try to start the engine again. If the
engine does not start, contact an authorized Mitsubishi
Motors dealer.
BK0162600US.book 5 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-6 Features and controls
3
NOTE
The key may not operate properly when it is near an
object or facility that emits strong electromagnetic waves.

Electronic immobilizer is not compatible with commer-
cially available remote starting systems. Use of commer-
cially available remote starting systems may result in
vehicle starting problems and a loss of security protection.

A system failure is suspected when the ignition switch is
turned to the “START” position, and the engine does not
start. In such a case, contact an authorized Mitsubishi
Motors dealer.Replacement keysOnly keys that have been programmed to the vehicle’s elec-
tronics can be used to start the vehicle.
If you lose the key, you can order a key from your authorized
Mitsubishi Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the vehicle keys must
be changed.
Take your vehicle and all remaining keys to your authorized
Mitsubishi Motors dealer to have your ID code changed.Additional keysTo add a key, you must already have 2 registered keys. You
need to register the ID code to the vehicle.
CAUTION
!
Do not make any alterations or additions to the
immobilizer system. Alterations or additions could
cause failure of the immobilizer.
BK0162600US.book 6 ページ ２０１３年３月２２日　金曜日　午後２時４１分

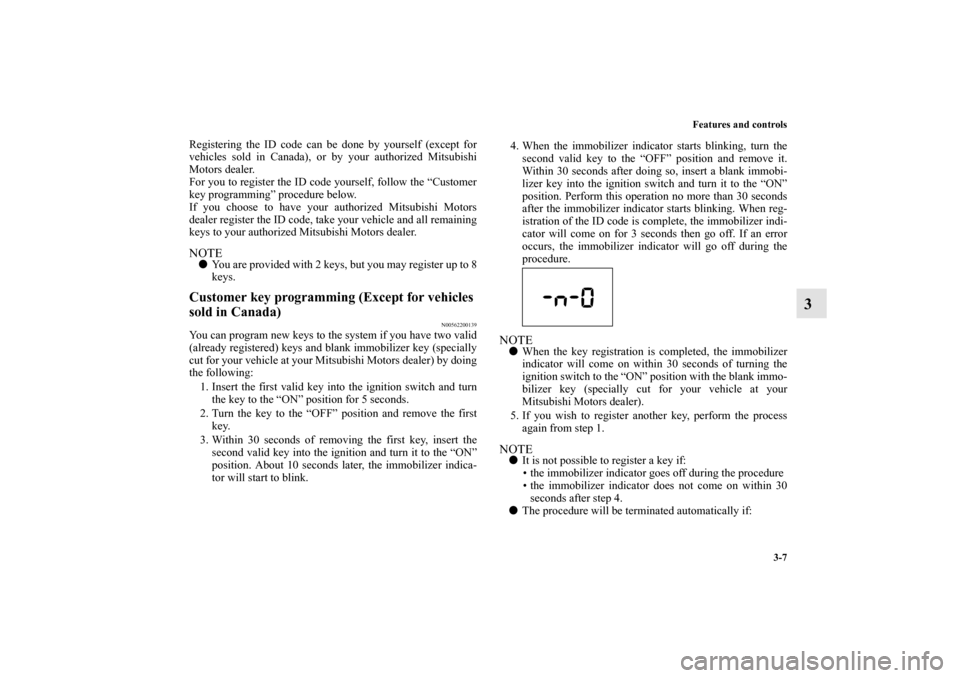

Features and controls
3-7
3
Registering the ID code can be done by yourself (except for
vehicles sold in Canada), or by your authorized Mitsubishi
Motors dealer.
For you to register the ID code yourself, follow the “Customer
key programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and all remaining
keys to your authorized Mitsubishi Motors dealer.NOTE
You are provided with 2 keys, but you may register up to 8
keys.Customer key programming (Except for vehicles
sold in Canada)
N00562200139
You can program new keys to the system if you have two valid
(already registered) keys and blank immobilizer key (specially
cut for your vehicle at your Mitsubishi Motors dealer) by doing
the following:
1. Insert the first valid key into the ignition switch and turn
the key to the “ON” position for 5 seconds.
2. Turn the key to the “OFF” position and remove the first
key.
3. Within 30 seconds of removing the first key, insert the
second valid key into the ignition and turn it to the “ON”
position. About 10 seconds later, the immobilizer indica-
tor will start to blink.4. When the immobilizer indicator starts blinking, turn the
second valid key to the “OFF” position and remove it.
Within 30 seconds after doing so, insert a blank immobi-
lizer key into the ignition switch and turn it to the “ON”
position. Perform this operation no more than 30 seconds
after the immobilizer indicator starts blinking. When reg-
istration of the ID code is complete, the immobilizer indi-
cator will come on for 3 seconds then go off. If an error
occurs, the immobilizer indicator will go off during the
procedure.
NOTE
When the key registration is completed, the immobilizer
indicator will come on within 30 seconds of turning the
ignition switch to the “ON” position with the blank immo-
bilizer key (specially cut for your vehicle at your
Mitsubishi Motors dealer).
5. If you wish to register another key, perform the process
again from step 1.NOTE
It is not possible to register a key if:
• the immobilizer indicator goes off during the procedure
• the immobilizer indicator does not come on within 30
seconds after step 4.

The procedure will be terminated automatically if:
BK0162600US.book 7 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-8 Features and controls
3
• a period of 30 seconds or longer elapses from the
moment when the first key is turned to the “OFF” posi-
tion to the moment when the second key is turned to the
“ON” position
• a period of 30 seconds or longer elapses from the
moment when the second key is turned to the “OFF”
position to the moment when the blank immobilizer key
is turned to the “ON” position
• more than 20 seconds elapses after the immobilizer indi-
cator starts blinking
General information
N00562300097
Your electronic immobilizer operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with part 15 of
FCC Rules and Industry Canada licence-exempt RSS stan-
dard(s).
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation of this
device.
Keyless entry system
(if so equipped)
N00509000923
Press the remote control transmitter buttons to lock or unlock
the doors and the liftgate.
It can also help you signal for attention by setting off the panic
alarm.
WA R N I N G
!
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button
4- Indicator light
BK0162600US.book 8 ページ ２０１３年３月２２日　金曜日　午後２時４１分
