2014 MITSUBISHI MIRAGE Owners Manual

Features and controls
3-81
3

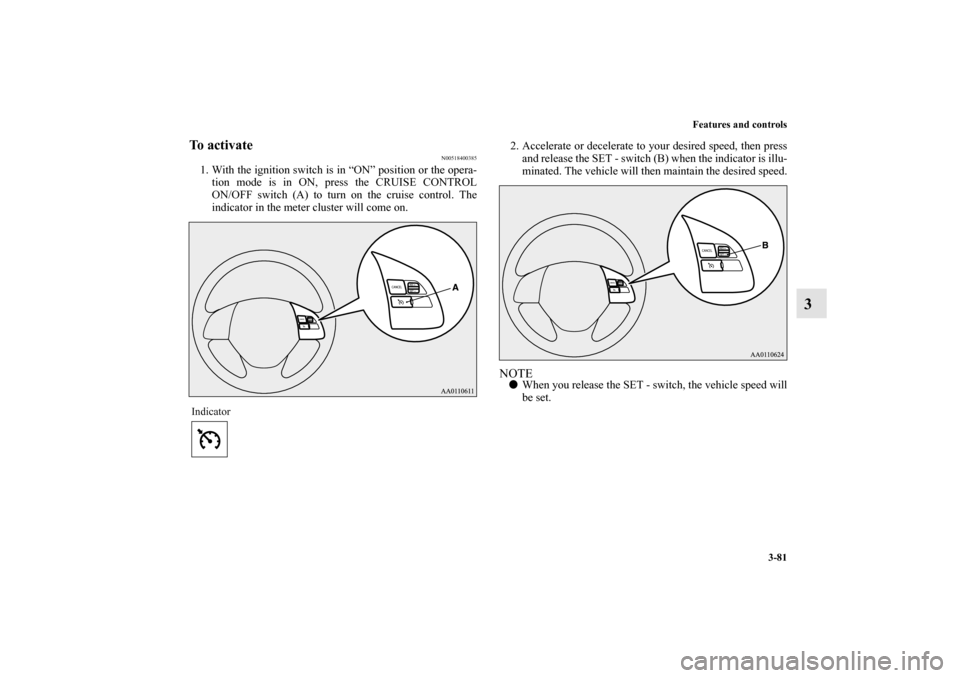

To activate
N00518400385
1. With the ignition switch is in “ON” position or the opera-
tion mode is in ON, press the CRUISE CONTROL
ON/OFF switch (A) to turn on the cruise control. The
indicator in the meter cluster will come on.2. Accelerate or decelerate to your desired speed, then press
and release the SET - switch (B) when the indicator is illu-
minated. The vehicle will then maintain the desired speed.
NOTE
When you release the SET - switch, the vehicle speed will
be set.
Indicator
BK0162600US.book 81 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-82 Features and controls
3

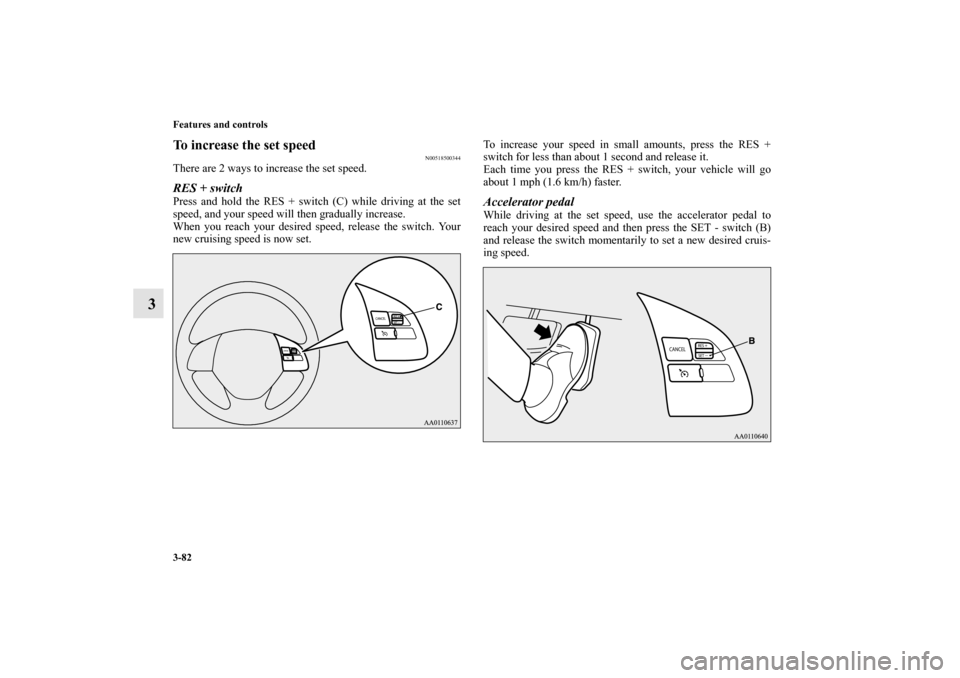

To increase the set speed
N00518500344
There are 2 ways to increase the set speed.RES + switchPress and hold the RES + switch (C) while driving at the set
speed, and your speed will then gradually increase.
When you reach your desired speed, release the switch. Your
new cruising speed is now set.To increase your speed in small amounts, press the RES +
switch for less than about 1 second and release it.
Each time you press the RES + switch, your vehicle will go
about 1 mph (1.6 km/h) faster.
Accelerator pedalWhile driving at the set speed, use the accelerator pedal to
reach your desired speed and then press the SET - switch (B)
and release the switch momentarily to set a new desired cruis-
ing speed.
BK0162600US.book 82 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-83
3
To decrease the set speed
N00518600273
There are 2 ways to decrease the set speed.SET - switchPress and hold the SET - switch (B) while driving at the set
speed, and your speed will slow down gradually.
When you reach your desired speed, release the switch. Your
new cruising speed is now set.To slow down your speed in small amounts, press the SET -
switch for less than about 1 second and release it.
Each time you press the SET - switch, your vehicle will slow
down by about 1 mph (1.6 km/h).
Brake pedalWhile driving at the set speed, use the brake pedal, which dis-
engages the cruise control, then press the SET - switch (B) and
release the switch momentarily to set a new desired cruising
speed.
BK0162600US.book 83 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-84 Features and controls
3

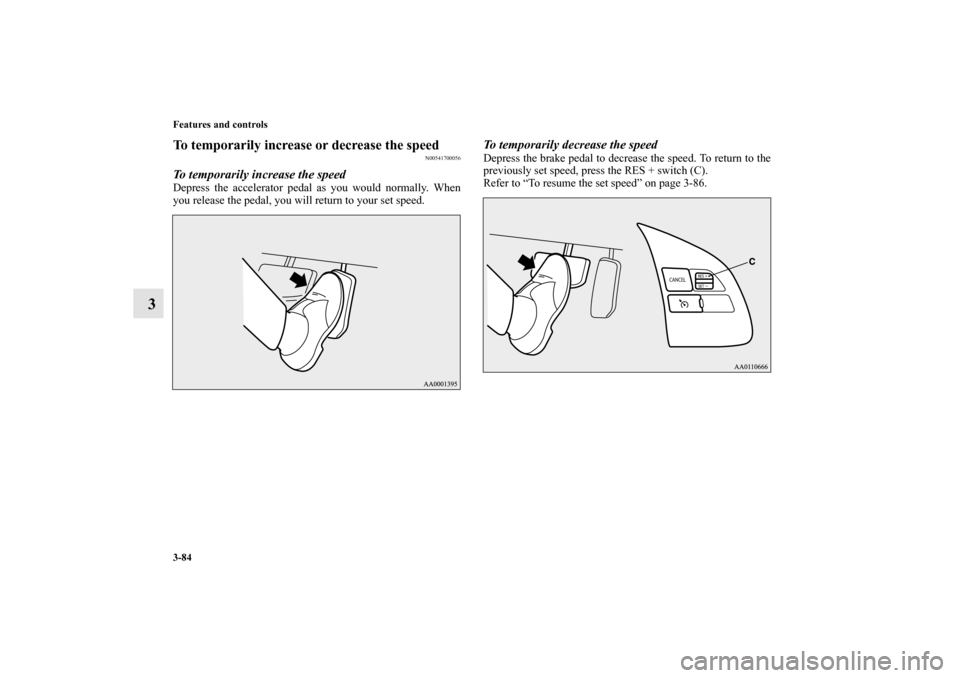

To temporarily increase or decrease the speed
N00541700056
To temporarily increase the speedDepress the accelerator pedal as you would normally. When
you release the pedal, you will return to your set speed.
To temporarily decrease the speedDepress the brake pedal to decrease the speed. To return to the
previously set speed, press the RES + switch (C).
Refer to “To resume the set speed” on page 3-86.
BK0162600US.book 84 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-85
3

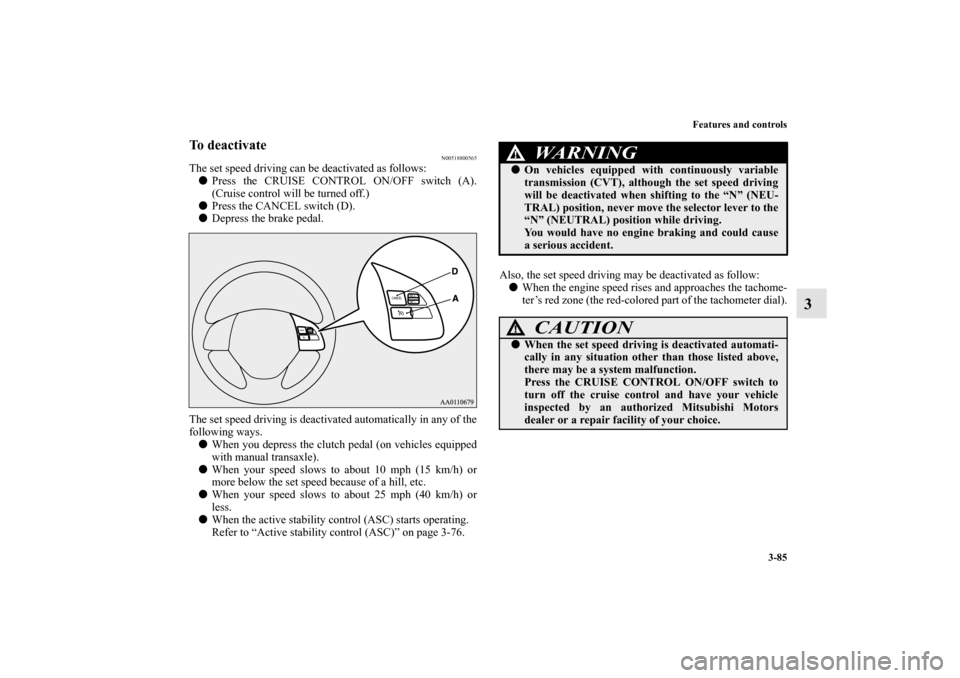

To deactivate
N00518800565
The set speed driving can be deactivated as follows:

Press the CRUISE CONTROL ON/OFF switch (A).
(Cruise control will be turned off.)

Press the CANCEL switch (D).

Depress the brake pedal.
The set speed driving is deactivated automatically in any of the
following ways.

When you depress the clutch pedal (on vehicles equipped
with manual transaxle).

When your speed slows to about 10 mph (15 km/h) or
more below the set speed because of a hill, etc.

When your speed slows to about 25 mph (40 km/h) or
less.

When the active stability control (ASC) starts operating.
Refer to “Active stability control (ASC)” on page 3-76.Also, the set speed driving may be deactivated as follow:

When the engine speed rises and approaches the tachome-
ter’s red zone (the red-colored part of the tachometer dial).
WA R N I N G
!
On vehicles equipped with continuously variable
transmission (CVT), although the set speed driving
will be deactivated when shifting to the “N” (NEU-
TRAL) position, never move the selector lever to the
“N” (NEUTRAL) position while driving.
You would have no engine braking and could cause
a serious accident.
CAUTION
!
When the set speed driving is deactivated automati-
cally in any situation other than those listed above,
there may be a system malfunction.
Press the CRUISE CONTROL ON/OFF switch to
turn off the cruise control and have your vehicle
inspected by an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
BK0162600US.book 85 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-86 Features and controls
3

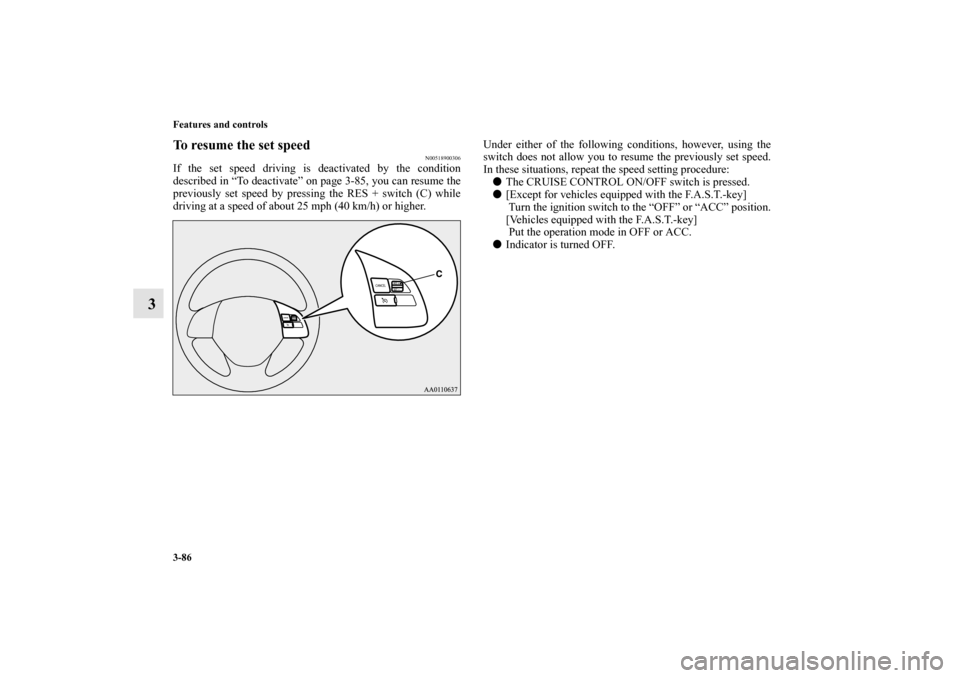

To resume the set speed
N00518900306
If the set speed driving is deactivated by the condition
described in “To deactivate” on page 3-85, you can resume the
previously set speed by pressing the RES + switch (C) while
driving at a speed of about 25 mph (40 km/h) or higher.Under either of the following conditions, however, using the
switch does not allow you to resume the previously set speed.
In these situations, repeat the speed setting procedure:

The CRUISE CONTROL ON/OFF switch is pressed.

[Except for vehicles equipped with the F.A.S.T.-key]
Turn the ignition switch to the “OFF” or “ACC” position.
[Vehicles equipped with the F.A.S.T.-key]
Put the operation mode in OFF or ACC.

Indicator is turned OFF.BK0162600US.book 86 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-87

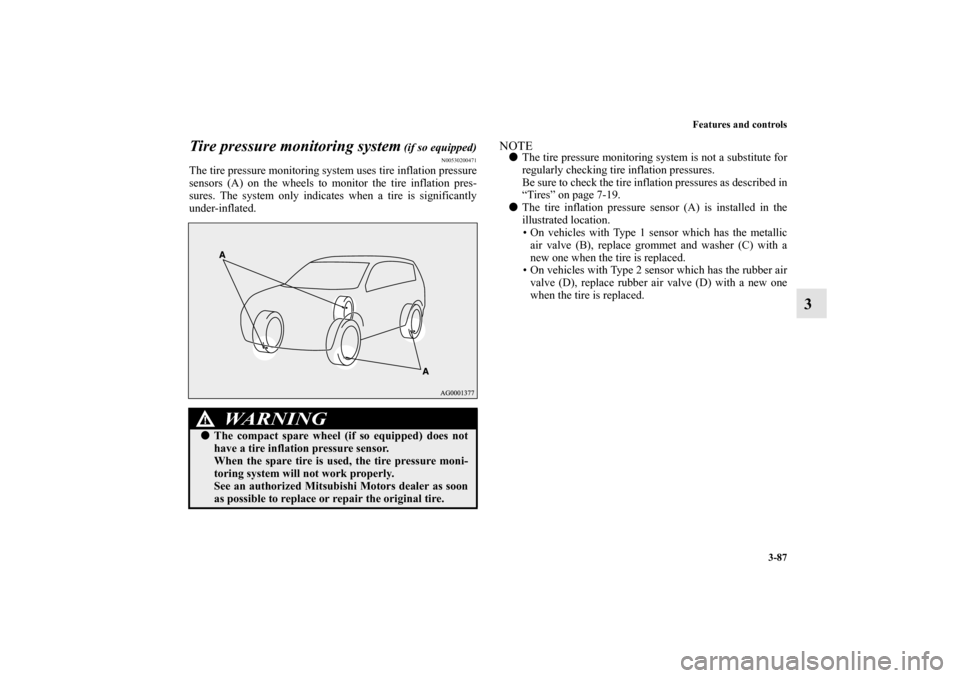

3 Tire pressure monitoring system
(if so equipped)
N00530200471
The tire pressure monitoring system uses tire inflation pressure
sensors (A) on the wheels to monitor the tire inflation pres-
sures. The system only indicates when a tire is significantly
under-inflated.
NOTE
The tire pressure monitoring system is not a substitute for
regularly checking tire inflation pressures.
Be sure to check the tire inflation pressures as described in
“Tires” on page 7-19.

The tire inflation pressure sensor (A) is installed in the
illustrated location.
• On vehicles with Type 1 sensor which has the metallic
air valve (B), replace grommet and washer (C) with a
new one when the tire is replaced.
• On vehicles with Type 2 sensor which has the rubber air
valve (D), replace rubber air valve (D) with a new one
when the tire is replaced.
WA R N I N G
!
The compact spare wheel (if so equipped) does not
have a tire inflation pressure sensor.
When the spare tire is used, the tire pressure moni-
toring system will not work properly.
See an authorized Mitsubishi Motors dealer as soon
as possible to replace or repair the original tire.
BK0162600US.book 87 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-88 Features and controls
3

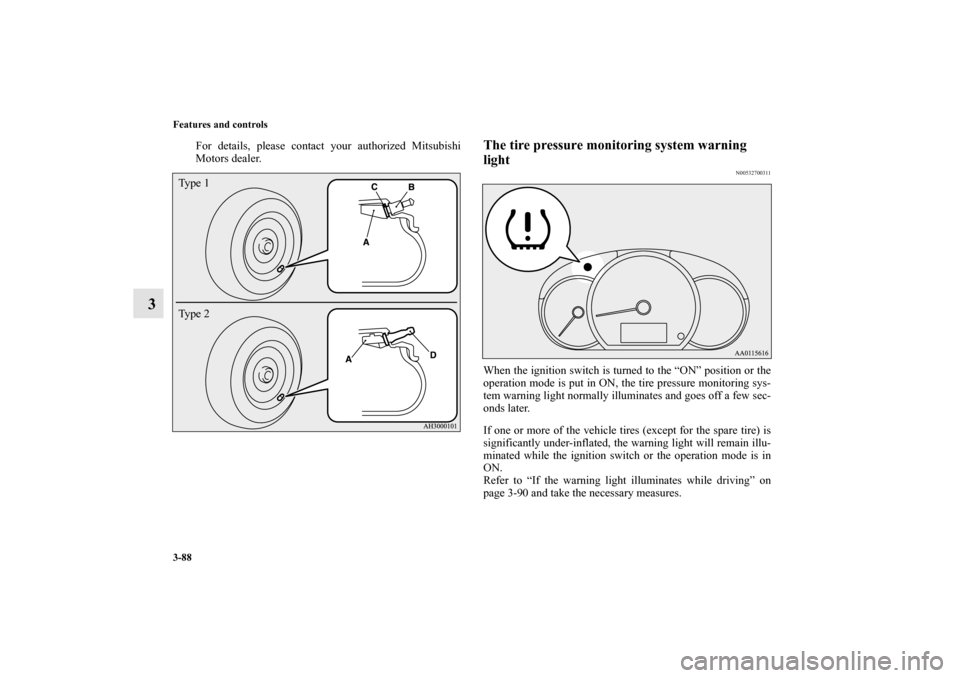

For details, please contact your authorized Mitsubishi
Motors dealer.
The tire pressure monitoring system warning
light
N00532700311
When the ignition switch is turned to the “ON” position or the
operation mode is put in ON, the tire pressure monitoring sys-
tem warning light normally illuminates and goes off a few sec-
onds later.
If one or more of the vehicle tires (except for the spare tire) is
significantly under-inflated, the warning light will remain illu-
minated while the ignition switch or the operation mode is in
ON.
Refer to “If the warning light illuminates while driving” on
page 3-90 and take the necessary measures.
Ty p e 1
Ty p e 2BK0162600US.book 88 ページ ２０１３年３月２２日　金曜日　午後２時４１分
