2014 MITSUBISHI MIRAGE Owners Manual

For emergencies
6-29
6

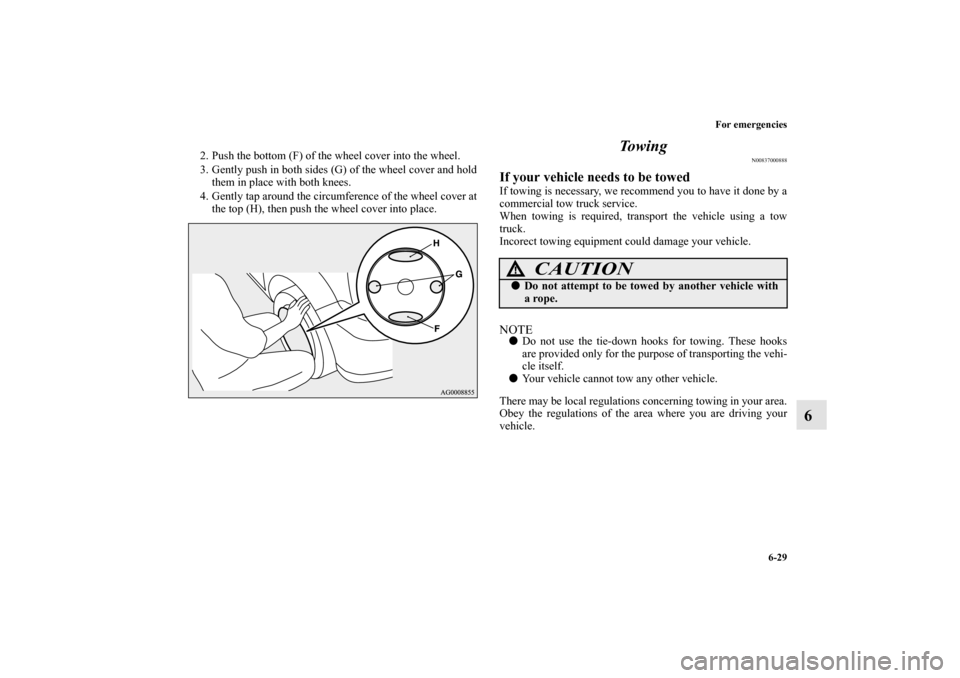

2. Push the bottom (F) of the wheel cover into the wheel.
3. Gently push in both sides (G) of the wheel cover and hold
them in place with both knees.
4. Gently tap around the circumference of the wheel cover at
the top (H), then push the wheel cover into place.
To w i n g
N00837000888
If your vehicle needs to be towedIf towing is necessary, we recommend you to have it done by a
commercial tow truck service.
When towing is required, transport the vehicle using a tow
truck.
Incorect towing equipment could damage your vehicle.NOTE
Do not use the tie-down hooks for towing. These hooks
are provided only for the purpose of transporting the vehi-
cle itself.

Your vehicle cannot tow any other vehicle.
There may be local regulations concerning towing in your area.
Obey the regulations of the area where you are driving your
vehicle.
CAUTION
!
Do not attempt to be towed by another vehicle with
a rope.
BK0162600US.book 29 ページ ２０１３年３月２２日　金曜日　午後２時４１分

6-30 For emergencies
6

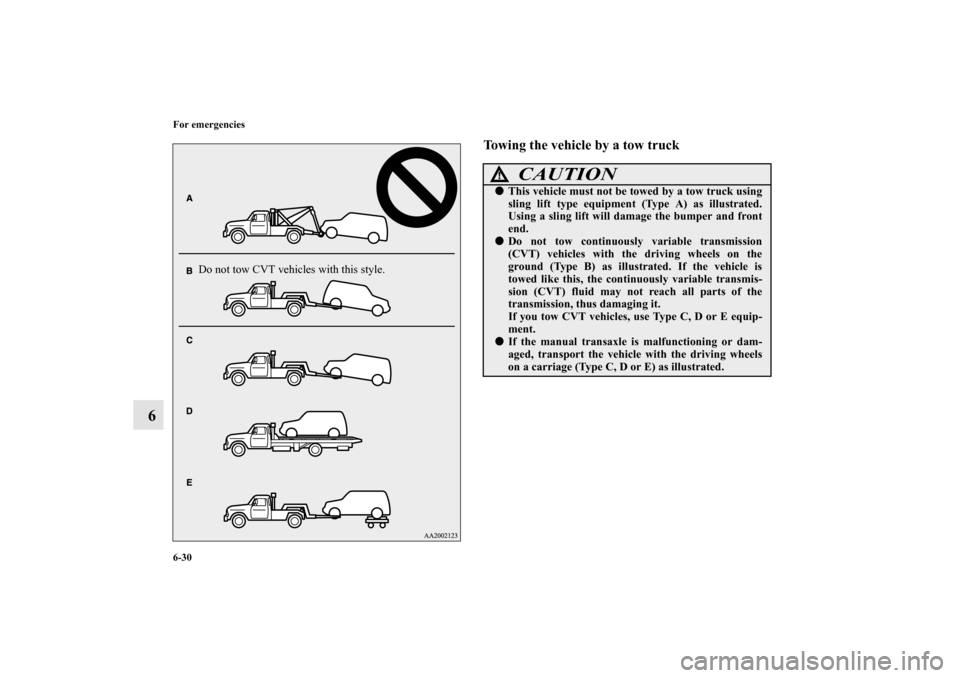

Towing the vehicle by a tow truck
Do not tow CVT vehicles with this style.
CAUTION
!
This vehicle must not be towed by a tow truck using
sling lift type equipment (Type A) as illustrated.
Using a sling lift will damage the bumper and front
end.
Do not tow continuously variable transmission
(CVT) vehicles with the driving wheels on the
ground (Type B) as illustrated. If the vehicle is
towed like this, the continuously variable transmis-
sion (CVT) fluid may not reach all parts of the
transmission, thus damaging it.
If you tow CVT vehicles, use Type C, D or E equip-
ment.
If the manual transaxle is malfunctioning or dam-
aged, transport the vehicle with the driving wheels
on a carriage (Type C, D or E) as illustrated.
BK0162600US.book 30 ページ ２０１３年３月２２日　金曜日　午後２時４１分

For emergencies
6-31
6

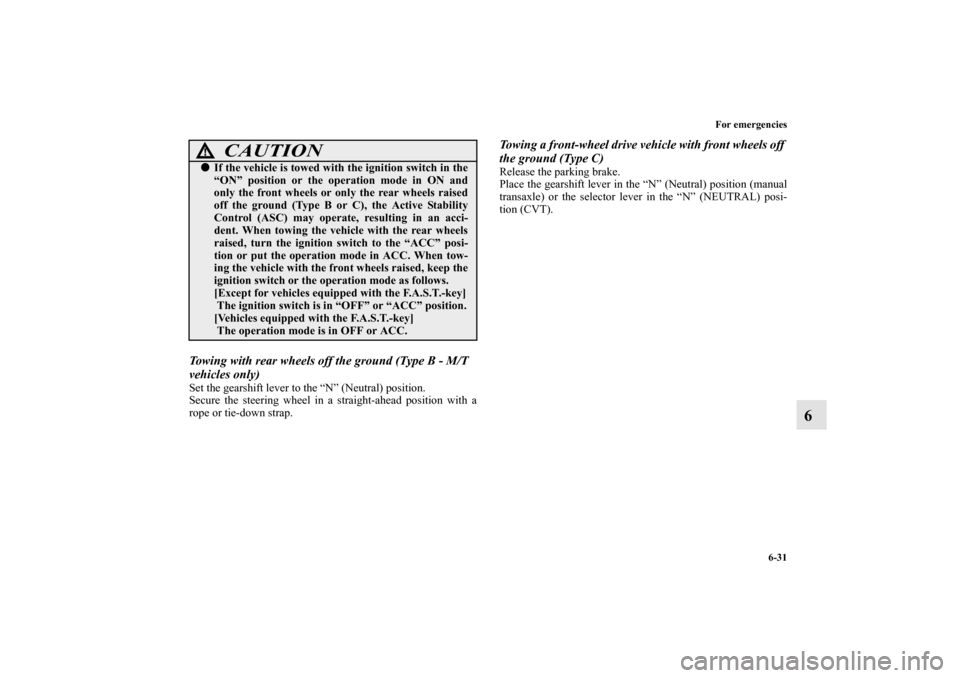

Towing with rear wheels off the ground (Type B - M/T
vehicles only)Set the gearshift lever to the “N” (Neutral) position.
Secure the steering wheel in a straight-ahead position with a
rope or tie-down strap.
Towing a front-wheel drive vehicle with front wheels off
the ground (Type C)Release the parking brake.
Place the gearshift lever in the “N” (Neutral) position (manual
transaxle) or the selector lever in the “N” (NEUTRAL) posi-
tion (CVT).

If the vehicle is towed with the ignition switch in the
“ON” position or the operation mode in ON and
only the front wheels or only the rear wheels raised
off the ground (Type B or C), the Active Stability
Control (ASC) may operate, resulting in an acci-
dent. When towing the vehicle with the rear wheels
raised, turn the ignition switch to the “ACC” posi-
tion or put the operation mode in ACC. When tow-
ing the vehicle with the front wheels raised, keep the
ignition switch or the operation mode as follows.
[Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch is in “OFF” or “ACC” position.
[Vehicles equipped with the F.A.S.T.-key]
The operation mode is in OFF or ACC.
CAUTION
!
BK0162600US.book 31 ページ ２０１３年３月２２日　金曜日　午後２時４１分

6-32 For emergencies
6Operation under adverse driving conditions
N00837200750
If your vehicle becomes stuck in sand, mud or
snowIf your vehicle becomes stuck in snow, sand, or mud, it can
often be moved by a rocking motion. Rock your vehicle back
and forth to free it.
Do not rev the engine or spin the wheels. Constant efforts to
free a stuck vehicle can cause overheating and transaxle fail-
ure. Let the engine idle for a few minutes to cool the transaxle
before trying again.
If your vehicle is still stuck after several rocking attempts, call
for a commercial tow truck service.
On wet roads
WA R N I N G
!
When trying to rock your vehicle out of a stuck posi-
tion, make sure that there are no people nearby. The
rocking motion can make your vehicle suddenly
lurch forward or backward, and injure any
bystanders.
CAUTION
!
Avoid flooded roads. Water is often deeper than it
looks, and you could be seriously hurt by driving
into flood water.
When driving in rain, on water-covered roads, or
through a car wash, water could get into the brake
discs and make them fail temporarily. In such cases,
lightly press the brake pedal to see if they are work-
ing properly. If they are not, press the pedal lightly
several times while driving to dry the brake pads or
linings, then check them again.
When driving in rain, a layer of water may form
between the tires and the road surface (hydroplan-
ing). This loosens your tires’ grip on the road, mak-
ing it difficult to steer or brake properly. When
driving on a wet road:
• Drive your vehicle at a safe speed.
• Do not drive on worn tires.
• Always keep the tires at the correct inflation pres-
sures.
BK0162600US.book 32 ページ ２０１３年３月２２日　金曜日　午後２時４１分

For emergencies
6-33
6
On snowy or icy roads
When driving on a road covered with snow or ice, use
snow tires. Tire chains cannot be used on your vehicle.
There may be state or local regulations about using snow
tires. Always check the regulations in your local area
before using them. Refer to “Snow tires” on page 7-28
and “Tire chains” on page 7-28.

Drive slowly. Do not make sudden starts or stops, sharp
turns, or slam on the brakes.

Allow extra distance between your vehicle and the vehicle
in front of you, and avoid sudden braking.

If a skid occurs when the accelerator pedal is depressed,
take your foot off the pedal. Steer gently in the direction
of the skid.

Your vehicle is equipped with an anti-lock braking system
(ABS). Hold the brake pedal down firmly and keep it
depressed. Do not pump the brake pedal which will result
in reduced braking performance.

After parking on snowy or icy roads, it may be difficult to
move your vehicle due to the brake being frozen. Depress
the accelerator pedal little by little to move the vehicle
when safe to do so.
On a bumpy or rutted road
Drive as slow as possible when driving on bumpy, rutted
roads or over potholes etc.
CAUTION
!
Do not depress the accelerator pedal rapidly. The
vehicle could start moving when it breaks free from
the ice, possibly resulting in an accident.
CAUTION
!
Driving on bumpy, rutted roads or over potholes can
damage the tires and wheels.
Wheels with low-profiles tires or under-inflated tires
are especially at risk for damage.
The vehicle’s body, bumper, muffler and other parts
may be damaged if the vehicle is:
• driven over a step (for example, at the entrance or
exit of a parking lot);
• parked too closely against a curb or parking block,
or by the side of a road with curbstones;
• driven on a steep slope.
BK0162600US.book 33 ページ ２０１３年３月２２日　金曜日　午後２時４１分

BK0162600US.book 34 ページ ２０１３年３月２２日　金曜日　午後２時４１分

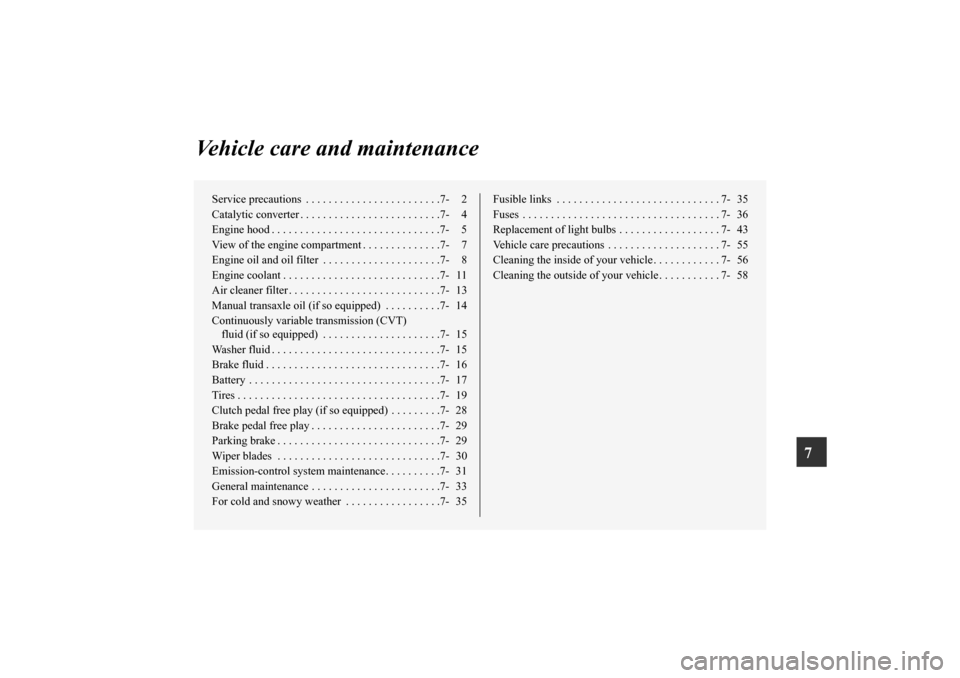

7
Vehicle care and maintenance
Service precautions . . . . . . . . . . . . . . . . . . . . . . . .7- 2
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . .7- 4
Engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 5
View of the engine compartment . . . . . . . . . . . . . .7- 7
Engine oil and oil filter . . . . . . . . . . . . . . . . . . . . .7- 8
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 11
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 13
Manual transaxle oil (if so equipped) . . . . . . . . . .7- 14
Continuously variable transmission (CVT)
fluid (if so equipped) . . . . . . . . . . . . . . . . . . . . .7- 15
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 15
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 16
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 17
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 19
Clutch pedal free play (if so equipped) . . . . . . . . .7- 28
Brake pedal free play . . . . . . . . . . . . . . . . . . . . . . .7- 29
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 29
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 30
Emission-control system maintenance. . . . . . . . . .7- 31
General maintenance . . . . . . . . . . . . . . . . . . . . . . .7- 33
For cold and snowy weather . . . . . . . . . . . . . . . . .7- 35Fusible links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 35
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 36
Replacement of light bulbs . . . . . . . . . . . . . . . . . . 7- 43
Vehicle care precautions . . . . . . . . . . . . . . . . . . . . 7- 55
Cleaning the inside of your vehicle . . . . . . . . . . . . 7- 56
Cleaning the outside of your vehicle . . . . . . . . . . . 7- 58
BK0162600US.book 1 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-2 Vehicle care and maintenance
7Service precautions
N00937300387
Taking regular care of your vehicle will preserve its value and
appearance as long as possible.
You can do some of the maintenance work yourself, and the
rest should only be performed by an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
If you discover a malfunction or other problem, have it cor-
rected by an authorized Mitsubishi Motors dealer or a repair
facility of your choice.
This section describes the maintenance inspections that you
can do yourself, if you so desire. Follow the instructions and
precautions for each procedure.
Have you purchased the Mitsubishi Motors Diamond Care Pro-
tection Plan? The Plan supplements your new vehicle warran-
ties. See your authorized Mitsubishi Motors dealer for details.
WA R N I N G
!
When checking or servicing the inside of the engine
compartment, be sure the engine is stopped and has
had a chance to cool down.
If you need to work in the engine compartment with
the engine running, be especially careful that your
clothing, hair, etc. does not get caught in the fan,
drive belts, or other moving parts.
The fan can turn on automatically even if the engine
is not running. Turn the ignition switch to the
“OFF” position or put the operation mode in OFF to
be safe while you work in the engine compartment.
Do not smoke or allow open flames around fuel or
the battery. The fumes are flammable.

Be extremely careful when working around the bat-
tery. It contains poisonous and corrosive sulfuric
acid.
Do not get under your vehicle while it is on a jack.
Always use properly rated automotive jack stands.
Handling your vehicle’s parts and materials in the
wrong way can injure you. Ask an authorized
Mitsubishi Motors dealer or a repair facility of your
choice if you have questions.
WA R N I N G
!
