2014 MITSUBISHI MIRAGE Owners Manual

Quick index
1
If this warning light comes on or flashes while you’re driving...
N00200701136
NOTE
These warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to “ON” or the
operation mode is put in ON.
Warning lights
Do this
Ref. Page
Charging system warning light
Park your vehicle in a safe place and stop the engine.
Contact your Mitsubishi Motors dealer or a repair facility of your choice for
assistance.P. 3 - 1 1 3
(Illuminates and intermittent sounds)
Park your vehicle in a safe place and stop the engine.
Contact your Mitsubishi Motors dealer or a repair facility of your choice for
assistance.P. 3 - 2 1
Oil pressure warning light
Park your vehicle in a safe place and stop the engine, then check the engine
oil level.
If the light comes on while the engine oil level is normal, have the system
checked at an authorized Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.P. 3 - 1 1 3
BK0162600US.book 1 ページ ２０１３年３月２２日　金曜日　午後２時４１分

2 Quick index
or
Brake warning light
If this light comes on while driving, check to see that the parking brake is
fully released.

If this light stays on after releasing the parking brake, immediately stop and
check the brake fluid level.

If the brake fluid level is correct, there may be a system malfunction. Avoid
hard braking and high speed, and contact an authorized Mitsubishi Motors
dealer or a repair facility of your choice for assistance.P. 3-111
Selector lever position indicator in
the instrument cluster flasher rapidly
(once per second)
Park your vehicle in a safe place.
Idle the engine until the selector lever position indicator stops flashing.
If the indicator does not go off, have the system checked at an authorized
Mitsubishi Motors dealer or a repair facility of your choice as soon as possi-
ble.P. 3-65
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or
“Check engine light”)
Although your vehicle will usually be drivable and not need towing, have the
engine system checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible. If the vehicle is not drivable, con-
tact emergency roadside assistance at 1-888-648-7820 (for vehicles sold in
U.S.A.) or 1-888-576-4878 (for vehicles sold in Canada), an authorized
Mitsubishi Motors dealer, or local towing company for assistance.P. 3 - 1 1 2
Electric power steering system
(EPS) warning light
If this light comes on while the engine is running, it may become harder to
turn the steering wheel. Have your vehicle inspected at an authorized
Mitsubishi Motors dealer or a repair facility of your choice as soon as possi-
ble.P. 3-75
Warning lights
Do this
Ref. Page
BK0162600US.book 2 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Quick index
3
Anti-lock braking system warning
light
When this light comes on, the anti-lock braking system is not functioning and
only the ordinary braking system is functioning.

Park your vehicle in a safe place and stop the engine.
Test the system as described on page 3-73.

If the light does not go out after the test, or if it comes on again, we recom-
mend that you have the system checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.P. 3 - 7 3
SRS warning light
Immediately have the airbag and the pre-tensioner seat belt system checked at
an authorized Mitsubishi Motors dealer.P. 2 - 4 4
Selector lever position indicator in
the instrument cluster flasher slowly
(every 2 seconds)
Have your continuously variable transmission (CVT) checked at an autho-
rized Mitsubishi Motors dealer or a repair facility of your choice as soon as
possible.P. 3 - 6 5
and
ASC indicator and ASC OFF indica-
tor
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the indicator goes out.

If the indicator does not go out, or if it comes on again, have your vehicle
inspected by an authorized Mitsubishi Motors dealer or a repair facility of
your choice as soon as possible.

When this indicator comes on, the active stability control is not functioning.P. 3 - 7 9
Warning lights
Do this
Ref. Page
BK0162600US.book 3 ページ ２０１３年３月２２日　金曜日　午後２時４１分

4 Quick index
ASC indicator
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the indicator goes out.

If the indicator does not go out, or if it comes on again, have your vehicle
inspected by an authorized Mitsubishi Motors dealer or a repair facility of
your choice as soon as possible.

When this indicator comes on, the hill start assist is not functioning.
Start off carefully on a steep uphill slope.P. 3-71
Tire pressure monitoring system
warning light (if so equipped)
If the warning light comes on, you should stop and adjust the tires to the
proper inflation pressure as soon as possible.
(See “Tire inflation pressures” on page 7-23.)
Once adjustments have been made, the warning light will go off after a few
minutes of driving.

If the warning light blinks for approximately 1 minute and then remains con-
tinuously illuminated, the system is not operating properly. If the system
returns to normal, the warning light will go off. If the warning light does not
go off, have the vehicle inspected at an authorized Mitsubishi Motors dealer.P. 3-87Warning lights
Do this
Ref. Page
BK0162600US.book 4 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Quick index5
If this problem occurs...
N00200900870
Problem
Do this
Ref. Page
Unable to turn the key.
(except for vehicles equipped
with the F.A.S.T.-key) From “ACC” to “OFF”
Vehicles with continuously variable transmission (CVT):
Check the position of the selector lever.
The key cannot be removed unless the selector lever is set to the “P” (PARK) position. P. 3-55
The engine does not start when
the engine switch is pressed.
(for vehicles equipped with the
F. A . S . T. - k e y ) Make sure the F.A.S.T.-key is in the vehicle.
Vehicles with manual transaxle:
Press and hold the clutch pedal all the way down, and then press the engine switch while
depressing the brake pedal.
Vehicles with continuously variable transmission (CVT):
Make sure the selector lever is in the “P” (PARK) position, and then press the engine
switch while depressing the brake pedal.
P. 3-24
The F.A.S.T.-key does not
operate.
(for vehicles equipped with the
F. A . S . T. - k e y ) Use the emergency key to lock and unlock the door.
Insert the F.A.S.T.-key into the key slot of the floor console, and then start the engine or
change the operation mode.
P. 3-26, 3-27
BK0162600US.book 5
\bM\bo\b+ ２０１３年３月２２日　金曜日　午後２時４１\f

6 Quick indexCannot shift the selector lever
from the “P” (PARK) position.
(for vehicles with continuously
variable transmission (CVT))Shift the selector lever while pressing the brake pedal.
Check that the ignition switch or the operation mode is in ON.P. 3 - 6 1
The windows are fogged up.
Vehicles equipped with the heater without air conditioning function or the manual
air conditioning:
1. Set the mode selection dial to the “ ” or “ ” position.
2. Turn on the blower.
Vehicles equipped with the automatic air conditioning:
Push the defogger switch to change the “ ” mode.P. 5-9, 5-15,
5-21
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.Have the battery checked. Recharge or replace as needed.P. 6 - 2 ,
P. 7 - 1 7
The high coolant temperature
warning light is illuminates.
Steam comes out of the engine
compartment.The engine is overheated.
Carefully stop the vehicle in a safe place.P. 6 - 5
Problem
Do this
Ref. Page
BK0162600US.book 6 ページ ２０１３年３月２２日　金曜日　午後２時４１分

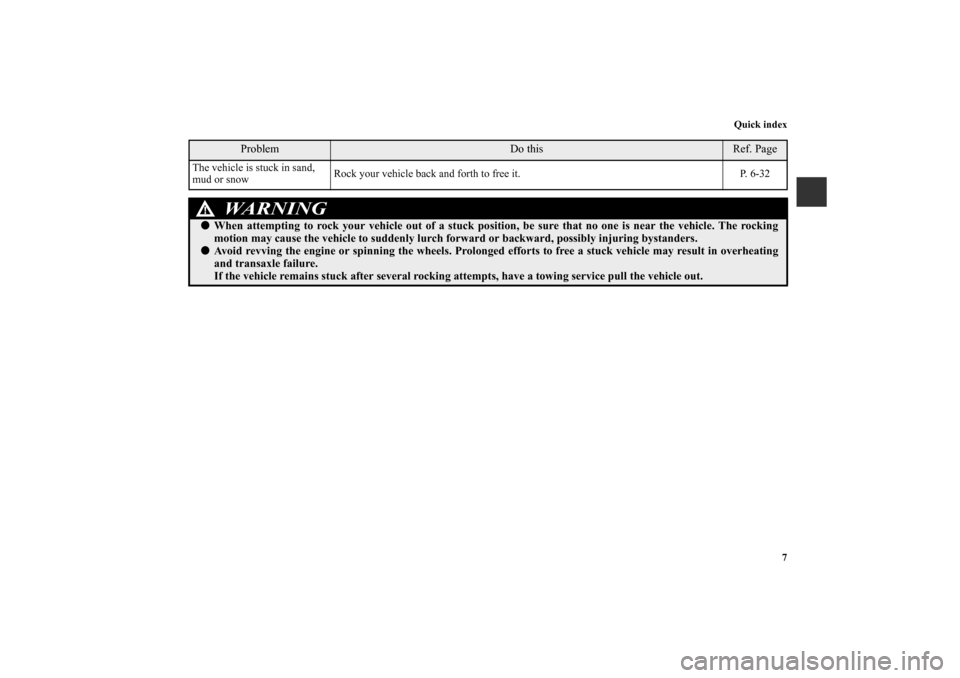

Quick index
7
The vehicle is stuck in sand,
mud or snowRock your vehicle back and forth to free it. P. 6-32
WA R N I N G
!
When attempting to rock your vehicle out of a stuck position, be sure that no one is near the vehicle. The rocking
motion may cause the vehicle to suddenly lurch forward or backward, possibly injuring bystanders.
Avoid revving the engine or spinning the wheels. Prolonged efforts to free a stuck vehicle may result in overheating
and transaxle failure.
If the vehicle remains stuck after several rocking attempts, have a towing service pull the vehicle out.
Problem
Do this
Ref. Page
BK0162600US.book 7 ページ ２０１３年３月２２日　金曜日　午後２時４１分

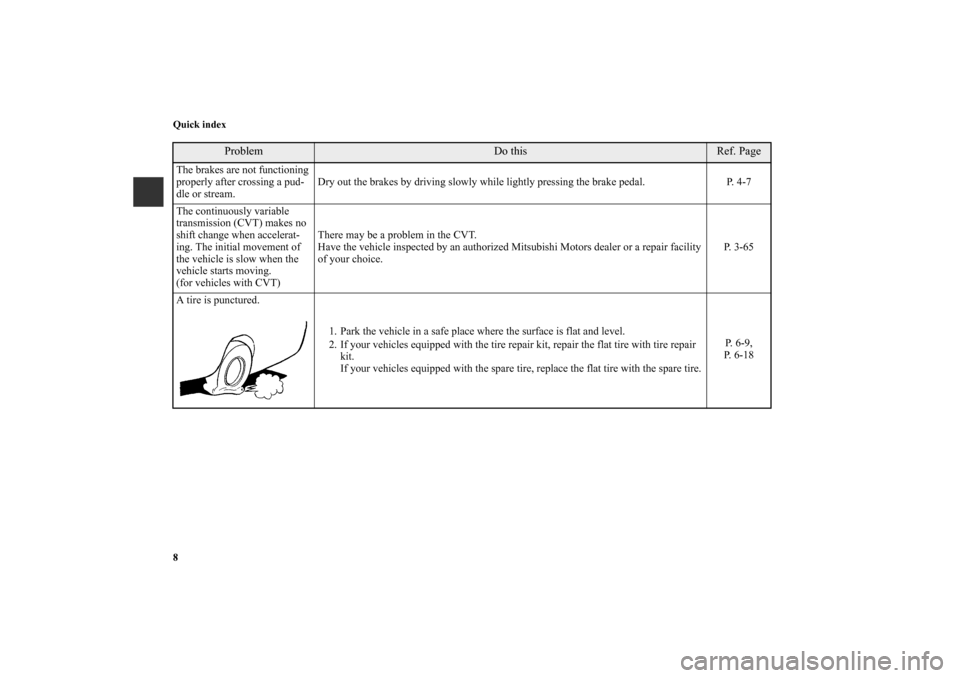

8 Quick index
Problem
Do this
Ref. Page
The brakes are not functioning
properly after crossing a pud-
dle or stream.Dry out the brakes by driving slowly while lightly pressing the brake pedal. P. 4-7
The continuously variable
transmission (CVT) makes no
shift change when accelerat-
ing. The initial movement of
the vehicle is slow when the
vehicle starts moving.
(for vehicles with CVT)There may be a problem in the CVT.
Have the vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility
of your choice.P. 3 - 6 5
A tire is punctured.
1. Park the vehicle in a safe place where the surface is flat and level.
2. If your vehicles equipped with the tire repair kit, repair the flat tire with tire repair
kit.
If your vehicles equipped with the spare tire, replace the flat tire with the spare tire.P. 6 - 9 ,
P. 6 - 1 8BK0162600US.book 8 ページ ２０１３年３月２２日　金曜日　午後２時４１分
