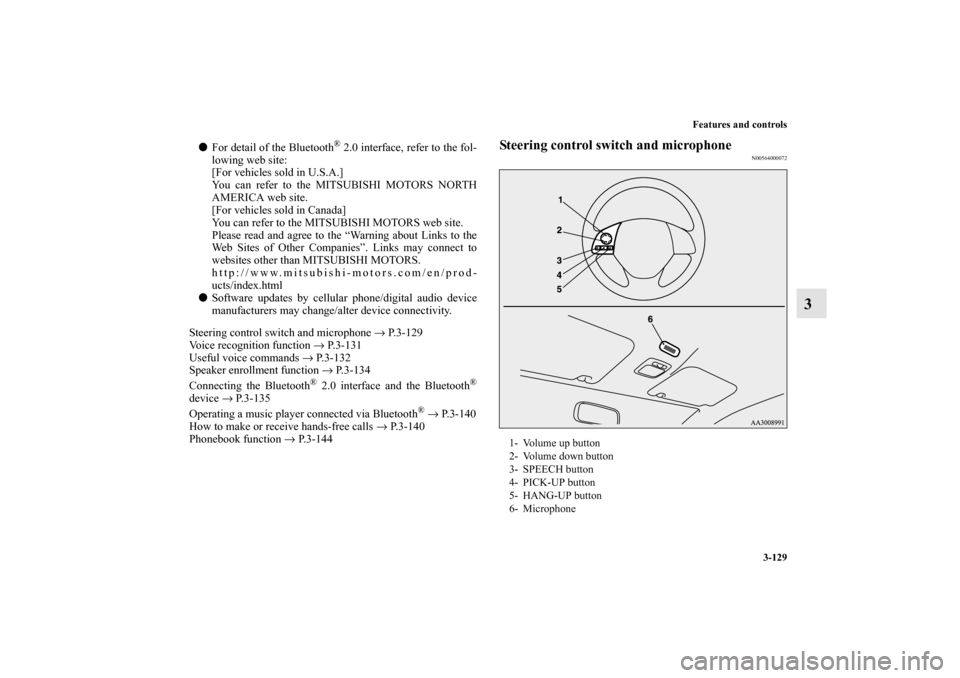

2014 MITSUBISHI MIRAGE Owners Manual

Features and controls
3-129
3

For detail of the Bluetooth
® 2.0 interface, refer to the fol-
lowing web site:
[For vehicles sold in U.S.A.]
You can refer to the MITSUBISHI MOTORS NORTH
AMERICA web site.
[For vehicles sold in Canada]
You can refer to the MITSUBISHI MOTORS web site.
Please read and agree to the “Warning about Links to the
Web Sites of Other Companies”. Links may connect to
websites other than MITSUBISHI MOTORS.
http://www.mitsubishi-motors.com/en/prod-
ucts/index.html

Software updates by cellular phone/digital audio device
manufacturers may change/alter device connectivity.
Steering control switch and microphone → P. 3 - 1 2 9
Voice recognition function → P. 3 - 1 3 1
Useful voice commands → P.3-132
Speaker enrollment function → P. 3 - 1 3 4
Connecting the Bluetooth
® 2.0 interface and the Bluetooth
®
device→ P. 3 - 1 3 5
Operating a music player connected via Bluetooth
® → P. 3 - 1 4 0
How to make or receive hands-free calls → P.3-140
Phonebook function → P.3-144
Steering control switch and microphone
N00564000072
1- Volume up button
2- Volume down button
3- SPEECH button
4- PICK-UP button
5- HANG-UP button
6- Microphone
BK0162600US.book 129 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-130 Features and controls
3
Volume up buttonPress this button to increase the volume. Volume down buttonPress this button to decrease the volume.SPEECH button
Press this button to change to voice recognition mode.
While the system is in voice recognition mode, “Listen-
ing” will appear on the audio display.

If you press the button briefly while in voice recognition
mode, it will interrupt prompting and allow voice com-
mand input.
Pressing the button longer will deactivate the voice recog-
nition mode.

Pressing this button briefly during a call will enable voice
recognition and allow voice command input.PICK-UP button
Press this button when an incoming call is received to
answer the telephone.

When another call is received during a call, press this but-
ton to put the first caller on hold and talk to the new caller.
• In such circumstances, you can press the button briefly
to switch between callers. You will switch to the first
caller and the other caller will be put on hold.
• To establish a three-way call in such situations, press the
SPEECH button to enter voice recognition mode and
then say “Join calls.”
HANG-UP button
Press this button when an incoming call is received to
refuse the call.

Press this button during a call to end the current call.
When another call is on hold, you will switch to that call.

If this button is pressed in the voice recognition mode, the
voice recognition mode will be deactivated.NOTE
When you press the SPEECH button to enter voice recog-
nition mode with a cellular phone paired to the system,
current information on the cellular phone, such as
“remaining battery life,” “signal strength” or “roaming,”
will be displayed on the audio display.*
*: Some cellular phones will not send this information to
the Bluetooth
® 2.0 interface.

Call waiting and three-way calls can be used by the
Bluetooth
® 2.0 interface, only if it is possible to use those
services with your cellular phone.
MicrophoneYour voice will be recognized by a microphone in the overhead
console, allowing you to make hands-free calls with voice
commands.NOTE
If a cellular phone is within close proximity of the micro-
phone, it may distort the sound quality. In this case, place
the cellular phone as far as possible from the microphone.
BK0162600US.book 130 ページ ２０１３年３月２２日　金曜日　午後２時４１分

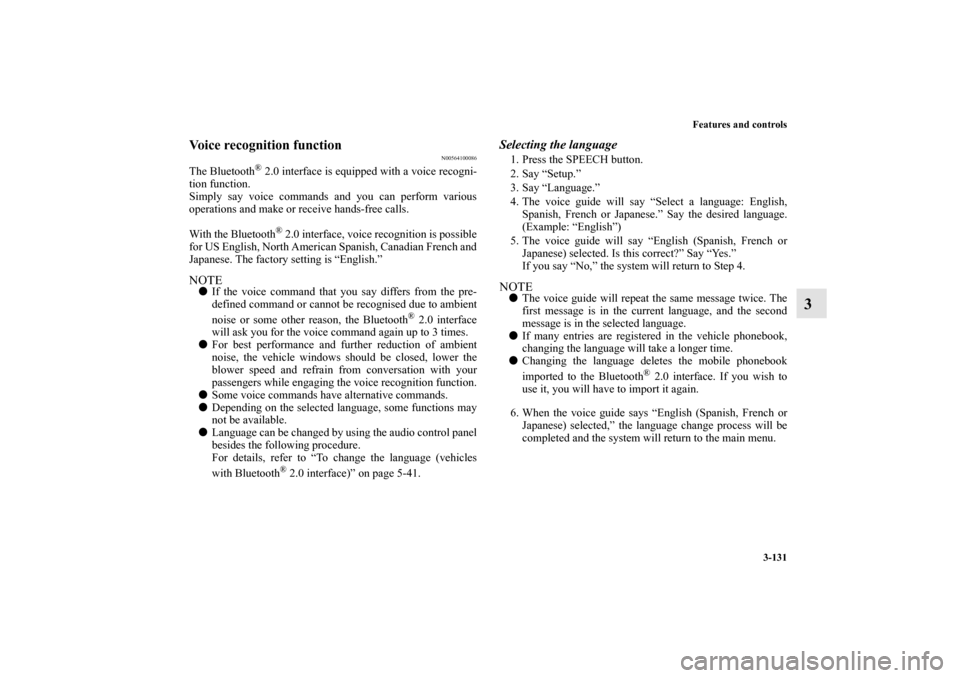

Features and controls
3-131
3
Voice recognition function
N00564100086
The Bluetooth
® 2.0 interface is equipped with a voice recogni-
tion function.
Simply say voice commands and you can perform various
operations and make or receive hands-free calls.
With the Bluetooth
® 2.0 interface, voice recognition is possible
for US English, North American Spanish, Canadian French and
Japanese. The factory setting is “English.”
NOTE
If the voice command that you say differs from the pre-
defined command or cannot be recognised due to ambient
noise or some other reason, the Bluetooth
® 2.0 interface
will ask you for the voice command again up to 3 times.

For best performance and further reduction of ambient
noise, the vehicle windows should be closed, lower the
blower speed and refrain from conversation with your
passengers while engaging the voice recognition function.

Some voice commands have alternative commands.

Depending on the selected language, some functions may
not be available.

Language can be changed by using the audio control panel
besides the following procedure.
For details, refer to “To change the language (vehicles
with Bluetooth
® 2.0 interface)” on page 5-41.
Selecting the language1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Language.”
4. The voice guide will say “Select a language: English,
Spanish, French or Japanese.” Say the desired language.
(Example: “English”)
5. The voice guide will say “English (Spanish, French or
Japanese) selected. Is this correct?” Say “Yes.”
If you say “No,” the system will return to Step 4.NOTE
The voice guide will repeat the same message twice. The
first message is in the current language, and the second
message is in the selected language.

If many entries are registered in the vehicle phonebook,
changing the language will take a longer time.

Changing the language deletes the mobile phonebook
imported to the Bluetooth
® 2.0 interface. If you wish to
use it, you will have to import it again.
6. When the voice guide says “English (Spanish, French or
Japanese) selected,” the language change process will be
completed and the system will return to the main menu.
BK0162600US.book 131 ページ ２０１３年３月２２日　金曜日　午後２時４１分

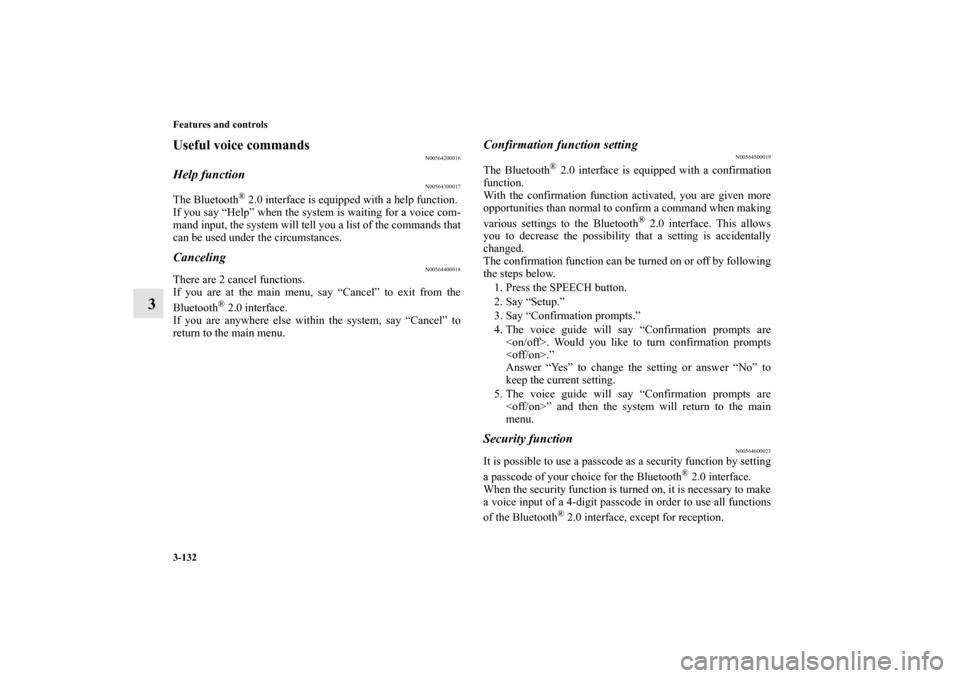

3-132 Features and controls
3
Useful voice commands
N00564200016
Help function
N00564300017
The Bluetooth
® 2.0 interface is equipped with a help function.
If you say “Help” when the system is waiting for a voice com-
mand input, the system will tell you a list of the commands that
can be used under the circumstances.
Canceling
N00564400018
There are 2 cancel functions.
If you are at the main menu, say “Cancel” to exit from the
Bluetooth
® 2.0 interface.
If you are anywhere else within the system, say “Cancel” to
return to the main menu.
Confirmation function setting
N00564500019
The Bluetooth
® 2.0 interface is equipped with a confirmation
function.
With the confirmation function activated, you are given more
opportunities than normal to confirm a command when making
various settings to the Bluetooth
® 2.0 interface. This allows
you to decrease the possibility that a setting is accidentally
changed.
The confirmation function can be turned on or off by following
the steps below.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Confirmation prompts.”
4. The voice guide will say “Confirmation prompts are
. Would you like to turn confirmation prompts
.”
Answer “Yes” to change the setting or answer “No” to
keep the current setting.
5. The voice guide will say “Confirmation prompts are
” and then the system will return to the main
menu.
Security function
N00564600023
It is possible to use a passcode as a security function by setting
a passcode of your choice for the Bluetooth
® 2.0 interface.
When the security function is turned on, it is necessary to make
a voice input of a 4-digit passcode in order to use all functions
of the Bluetooth
® 2.0 interface, except for reception.
BK0162600US.book 132 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-133
3
Setting the passcode
Use the following procedure to turn on the security function by
setting a passcode.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Passcode.”
4. The voice guide will say “Passcode is disabled. Would
you like to enable it?” Answer “Yes.”
Answer “No” to cancel the setting of the passcode and
return to the main menu.
5. The voice guide will say “Please say a 4-digit passcode.
Remember this passcode. It will be required to use this
system.”
Say a 4-digit number which you want to set as a passcode.
6. For confirmation purposes, the voice guide will say “Pass-
code <4-digit passcode>. Is this correct?” Answer “Yes.”
Answer “No” to return to the passcode input in Step 5.
7. When the registration of the passcode is completed, the
voice guide will say “Passcode is enabled” and the system
will return to the main menu. NOTE
Passcode will be required to access the system after the
next ignition cycle.

It is required for a little time after engine stop that the
entered passcode is actually recorded in the system.
If the ignition switch or the operation mode is made to
ACC or ON or the engine is started immediately after
engine stop, there is a case when the entered passcode is
not recorded in the system. At this time, please try to enter
the passcode again.Entering the passcode
If a passcode has been set and the security function is enabled,
the voice guide will say “Hands-free system is locked. State the
passcode to continue” when the SPEECH button is pressed to
enter voice recognition mode. Say the 4-digit passcode number
to enter the passcode.
If the entered passcode is wrong, the voice guide will say “<4-
digit passcode>, Incorrect passcode. Please try again.” Enter
the correct passcode.
NOTE
You can reenter the passcode as many times as you want.

If you have forgotten your passcode, say “Cancel” to quit
the voice input mode and then check with an authorized
Mitsubishi Motors dealer.
Disabling the passcode
Use the following procedure to turn off the security function by
disabling the passcode. NOTE
System must be unlocked to disable the passcode.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Passcode.”
4. The voice guide will say “Passcode is enabled. Would you
like to disable it?” Answer “Yes.”
Answer “No” to cancel the disabling of the passcode and
return to the main menu.
5. When the disabling of the passcode is completed, the
voice guide will say “Passcode is disabled” and the sys-
tem will return to the main menu.
BK0162600US.book 133 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-134 Features and controls
3
Speaker enrollment function
N00564700011
The Bluetooth
® 2.0 interface can use the speaker enrollment
function to create a voice model for one person per language.
This makes it easier for the Bluetooth
® 2.0 interface to recogn-
ise voice commands said by you.
You can turn a voice model registered with the speaker
enrollment function on and off whenever you want.
Speaker enrollment
N00564800038
It takes about 2 to 3 minutes to complete the speaker
enrollment process.
To ensure the best results, run through the process while in the
driver’s seat, in an environment that is as quiet as possible
(when there is no rain or strong winds and the vehicle windows
are closed). Please turn off your phone while in speaker
enrollment to prevent interruption of the process.
Use the following procedure for speaker enrollment.
1. Stop your vehicle in a safe area, put the gearshift lever in
the “N” (Neutral) position (manual transaxle), or the
selector lever in the “P” (PARK) position (continuously
variable transmission (CVT)), and pull the parking brake
lever.NOTE
Speaker enrollment is not possible unless the vehicle is
parked. Make sure you park the vehicle in a safe area
before attempting speaker enrollment.
2. Press the SPEECH button.
3. Say “Voice training.”4. The voice guide will say “This operation must be per-
formed in a quiet environment while the vehicle is
stopped. See the owner’s manual for the list of required
training phrases. Press and release the SPEECH button
when you are ready to begin. Press the HANG-UP button
to cancel at any time.”
Press the SPEECH button to start the speaker enrollment
process.
NOTE
If you do not start the speaker enrollment process within 3
minutes after pressing the SPEECH button, the speaker
enrollment function will time out.
The voice guide will say “Speaker enrollment has timed
out.” The system will then beep and the voice recognition
mode will be deactivated.
5. The voice guide will prompt for phrase 1. Repeat the cor-
responding phrase listed in table “Enrollment commands”
on page 3-153.
The system will register your voice and then move on to
the registration of the next command. Continue the pro-
cess until all phrases have been registered.NOTE
To repeat the most recent voice training command, press
and release the SPEECH button.

If you press the HANG-UP button anytime during the pro-
cess, the system will beep and stop the speaker enrollment
process.
BK0162600US.book 134 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-135
3

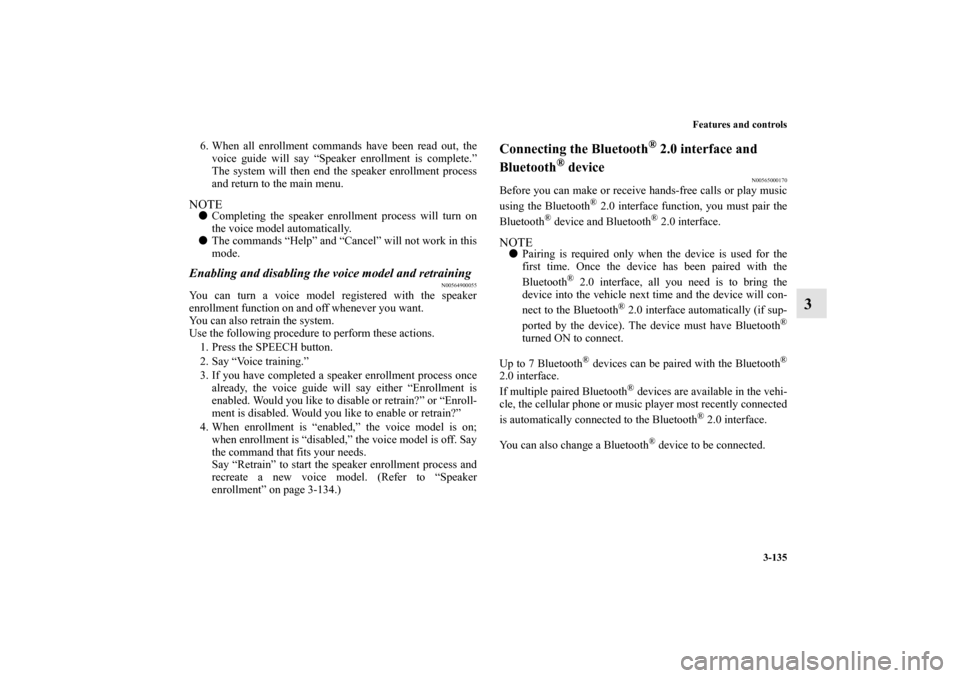

6. When all enrollment commands have been read out, the
voice guide will say “Speaker enrollment is complete.”
The system will then end the speaker enrollment process
and return to the main menu.NOTE
Completing the speaker enrollment process will turn on
the voice model automatically.

The commands “Help” and “Cancel” will not work in this
mode.Enabling and disabling the voice model and retraining
N00564900055
You can turn a voice model registered with the speaker
enrollment function on and off whenever you want.
You can also retrain the system.
Use the following procedure to perform these actions.
1. Press the SPEECH button.
2. Say “Voice training.”
3. If you have completed a speaker enrollment process once
already, the voice guide will say either “Enrollment is
enabled. Would you like to disable or retrain?” or “Enroll-
ment is disabled. Would you like to enable or retrain?”
4. When enrollment is “enabled,” the voice model is on;
when enrollment is “disabled,” the voice model is off. Say
the command that fits your needs.
Say “Retrain” to start the speaker enrollment process and
recreate a new voice model. (Refer to “Speaker
enrollment” on page 3-134.)
Connecting the Bluetooth
® 2.0 interface and
Bluetooth
® device
N00565000170
Before you can make or receive hands-free calls or play music
using the Bluetooth
® 2.0 interface function, you must pair the
Bluetooth
® device and Bluetooth
® 2.0 interface.
NOTE
Pairing is required only when the device is used for the
first time. Once the device has been paired with the
Bluetooth
® 2.0 interface, all you need is to bring the
device into the vehicle next time and the device will con-
nect to the Bluetooth
® 2.0 interface automatically (if sup-
ported by the device). The device must have Bluetooth
®
turned ON to connect.
Up to 7 Bluetooth
® devices can be paired with the Bluetooth
®
2.0 interface.
If multiple paired Bluetooth
® devices are available in the vehi-
cle, the cellular phone or music player most recently connected
is automatically connected to the Bluetooth
® 2.0 interface.
You can also change a Bluetooth
® device to be connected.
BK0162600US.book 135 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-136 Features and controls
3
To pairTo pair a Bluetooth
® device with the Bluetooth
® 2.0 interface,
follow the steps below.
1. Stop your vehicle in a safe area, put the gearshift lever in
the “N” (Neutral) position (manual transaxle), or the
selector lever in the “P” (PARK) position (continuously
variable transmission (CVT)), and pull the parking brake
lever.
NOTE
You cannot pair any Bluetooth
® device with the
Bluetooth
® 2.0 interface unless the vehicle is parked.
Before pairing a Bluetooth
® device with the Bluetooth
®
2.0 interface, confirm that the vehicle is parked in a safe
location.
2. Press the SPEECH button.
3. Say “Setup.”
4. Say “Pairing Options.”
5. The voice guide will say “Select one of the following:
pair, edit, delete, or list.” Say “Pair.”
NOTE
If 7 devices have already been paired, the voice guide will
say “Maximum devices paired” and then the system will
end the pairing process. To register a new device, delete
one device and then repeat the pairing process.
(Refer to “Selecting a device: Deleting a device” on page
3-137.)6. The voice guide will say “Please say a 4-digit pairing
code.” Say a 4-digit number.
When the confirmation function is on, the system will
confirm whether the number said is acceptable. Answer
“Yes.”
Answer “No” to return to pairing code selection.
NOTE
Some Bluetooth
® devices require a specific pairing code.
Please refer to the device manual for pairing code require-
ments.

The pairing code entered here is only used for the
Bluetooth
® connection certification. It is any 4-digit num-
ber the user would like to select.
Remember the pairing code as it needs to be keyed into
the Bluetooth® device later in the pairing process.
Depending on the connection settings of the Bluetooth
®
device, this code may have to be entered each time you
connect the Bluetooth
® device to the Bluetooth
® 2.0
interface. For the default connection settings, refer to the
instructions for the device.
BK0162600US.book 136 ページ ２０１３年３月２２日　金曜日　午後２時４１分
