2014 MITSUBISHI MIRAGE Owners Manual

Vehicle care and maintenance
7-35

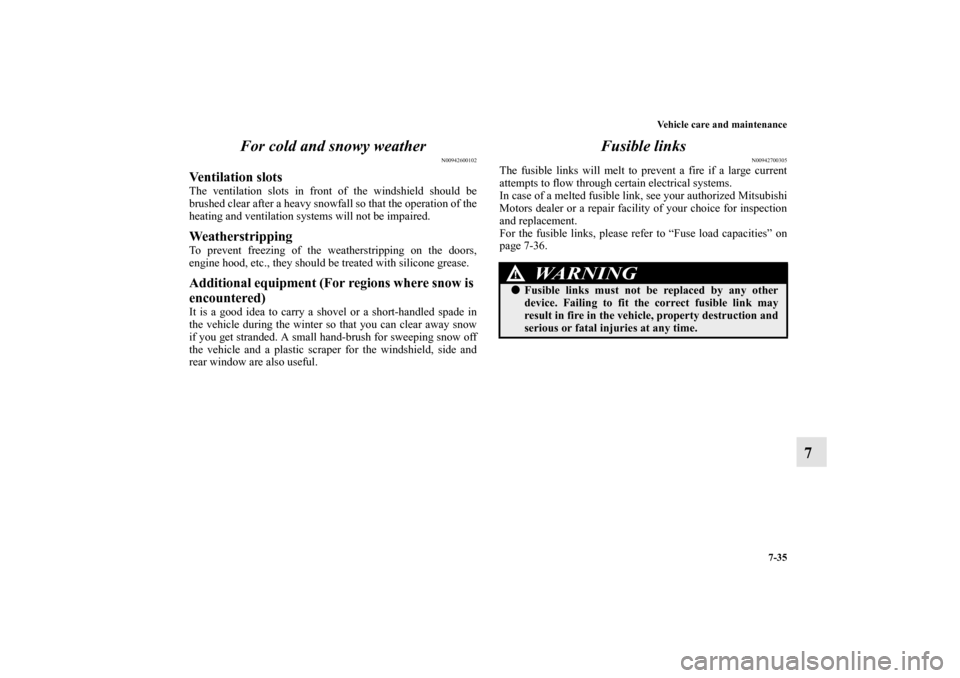

7 For cold and snowy weather
N00942600102
Ventilation slotsThe ventilation slots in front of the windshield should be
brushed clear after a heavy snowfall so that the operation of the
heating and ventilation systems will not be impaired.WeatherstrippingTo prevent freezing of the weatherstripping on the doors,
engine hood, etc., they should be treated with silicone grease.Additional equipment (For regions where snow is
encountered)It is a good idea to carry a shovel or a short-handled spade in
the vehicle during the winter so that you can clear away snow
if you get stranded. A small hand-brush for sweeping snow off
the vehicle and a plastic scraper for the windshield, side and
rear window are also useful.
Fusible links
N00942700305
The fusible links will melt to prevent a fire if a large current
attempts to flow through certain electrical systems.
In case of a melted fusible link, see your authorized Mitsubishi
Motors dealer or a repair facility of your choice for inspection
and replacement.
For the fusible links, please refer to “Fuse load capacities” on
page 7-36.
WA R N I N G
!
Fusible links must not be replaced by any other
device. Failing to fit the correct fusible link may
result in fire in the vehicle, property destruction and
serious or fatal injuries at any time.
BK0162600US.book 35 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-36 Vehicle care and maintenance

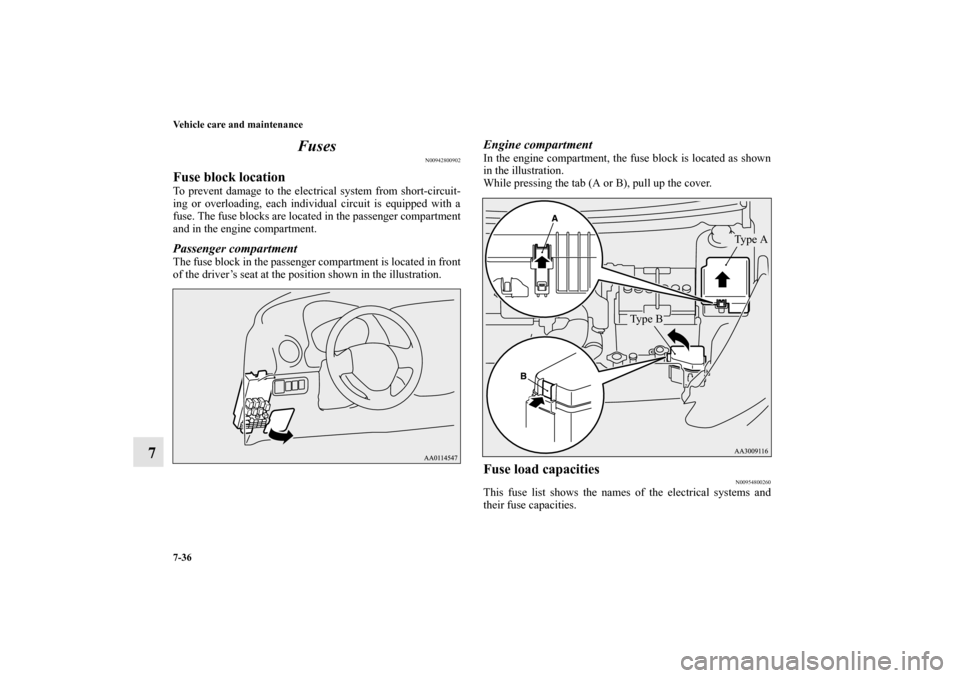

7Fuses
N00942800902
Fuse block locationTo prevent damage to the electrical system from short-circuit-
ing or overloading, each individual circuit is equipped with a
fuse. The fuse blocks are located in the passenger compartment
and in the engine compartment.Passenger compartmentThe fuse block in the passenger compartment is located in front
of the driver’s seat at the position shown in the illustration.
Engine compartmentIn the engine compartment, the fuse block is located as shown
in the illustration.
While pressing the tab (A or B), pull up the cover.Fuse load capacities
N00954800260
This fuse list shows the names of the electrical systems and
their fuse capacities.
Type BType A
BK0162600US.book 36 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Vehicle care and maintenance
7-37
7
There are spare fuses in the fuse block in the engine compart-
ment. Always replace a blown fuse with one of the same capac-
ity as the original.

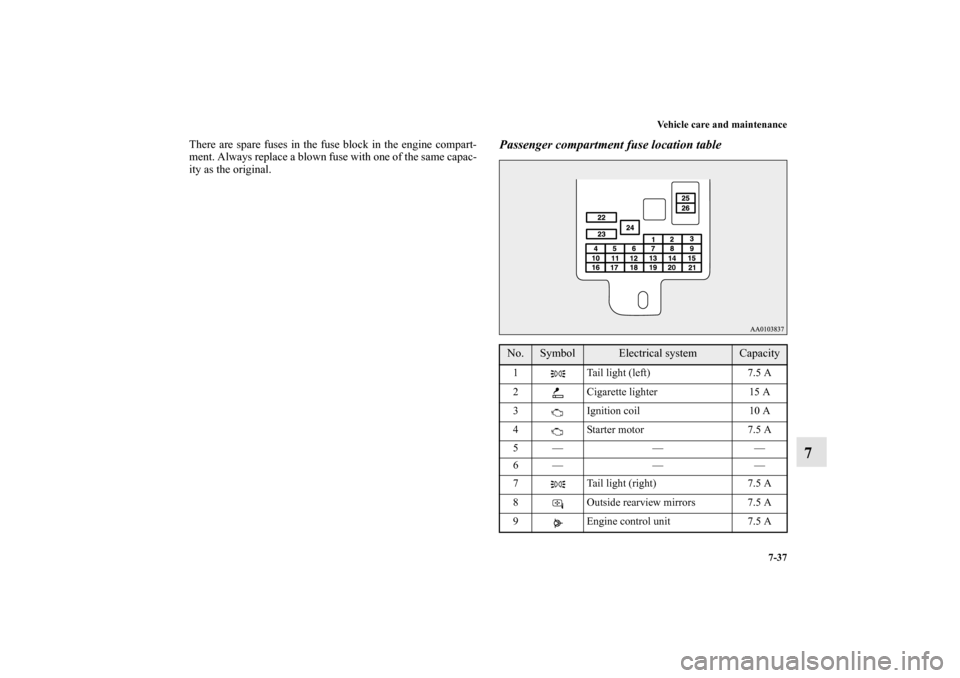

Passenger compartment fuse location tableNo.
Symbol
Electrical system
Capacity
1 Tail light (left) 7.5 A
2 Cigarette lighter 15 A
3 Ignition coil 10 A
4 Starter motor 7.5 A
5— — —
6— — —
7 Tail light (right) 7.5 A
8 Outside rearview mirrors 7.5 A
9 Engine control unit 7.5 A
BK0162600US.book 37 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-38 Vehicle care and maintenance
7

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.
Engine compartment fuse location table
10 Control unit 7.5 A
11 Rear fog light 10 A
12 Door lock 15 A
13 Interior light (Dome light) 15 A
14 Rear window wiper 15 A
15 Gauges 7.5 A
16 Relay 7.5 A
17 Heated seats 20 A
18 Option 10 A
19 Heated outside rearview mirrors 7.5 A
20 Windshield wiper 20 A
21 Back-up light 7.5 A
22 Defogger 30 A
23 Heater 30 A
24 — — —
25 Radio 10 A
26 Electronic controlled unit 15 ANo.
Symbol
Electrical system
Capacity
No.
Symbol
Electrical system
Capacity
SBF1 Radiator fan motor 40 A*
SBF2 Anti-lock braking system 30 A*
SBF3 Ignition switch 40 A*
SBF4 Power window control 40 A*
BF1 DC-DC (P/T) 30 ATy p e A
BK0162600US.book 38 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Vehicle care and maintenance
7-39
7
*: Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.

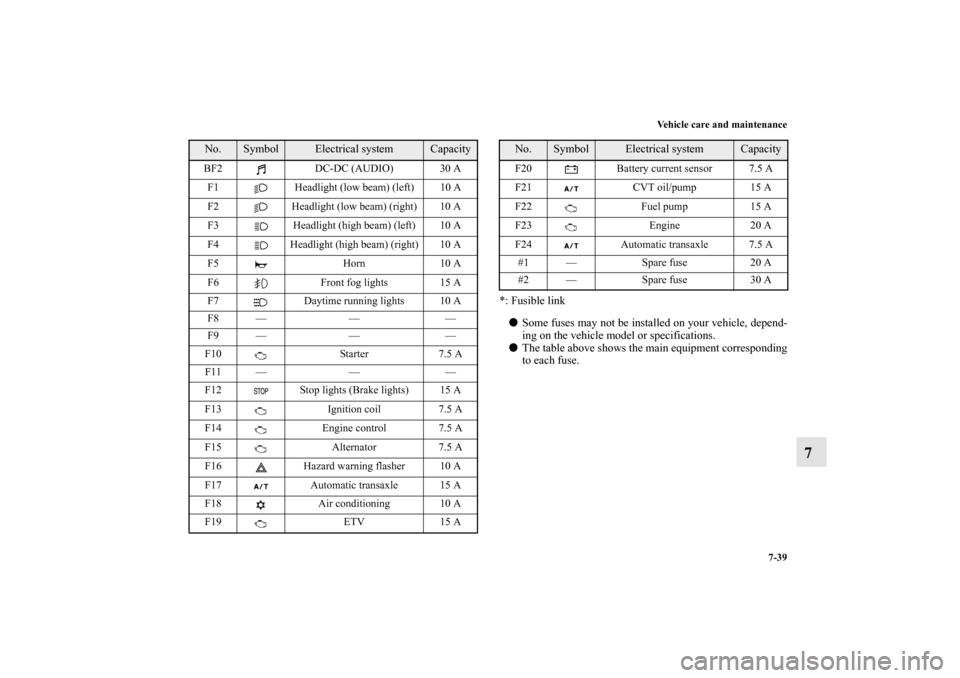

BF2 DC-DC (AUDIO) 30 A
F1 Headlight (low beam) (left) 10 A
F2 Headlight (low beam) (right) 10 A
F3 Headlight (high beam) (left) 10 A
F4 Headlight (high beam) (right) 10 A
F5 Horn 10 A
F6 Front fog lights 15 A
F7 Daytime running lights 10 A
F8 — — —
F9 — — —
F10 Starter 7.5 A
F11 — — —
F12 Stop lights (Brake lights) 15 A
F13 Ignition coil 7.5 A
F14 Engine control 7.5 A
F15 Alternator 7.5 A
F16 Hazard warning flasher 10 A
F17 Automatic transaxle 15 A
F18 Air conditioning 10 A
F19 ETV 15 ANo.
Symbol
Electrical system
Capacity
F20 Battery current sensor 7.5 A
F21 CVT oil/pump 15 A
F22 Fuel pump 15 A
F23 Engine 20 A
F24 Automatic transaxle 7.5 A
#1 — Spare fuse 20 A
#2 — Spare fuse 30 ANo.
Symbol
Electrical system
Capacity
BK0162600US.book 39 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-40 Vehicle care and maintenance
7
*: Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding

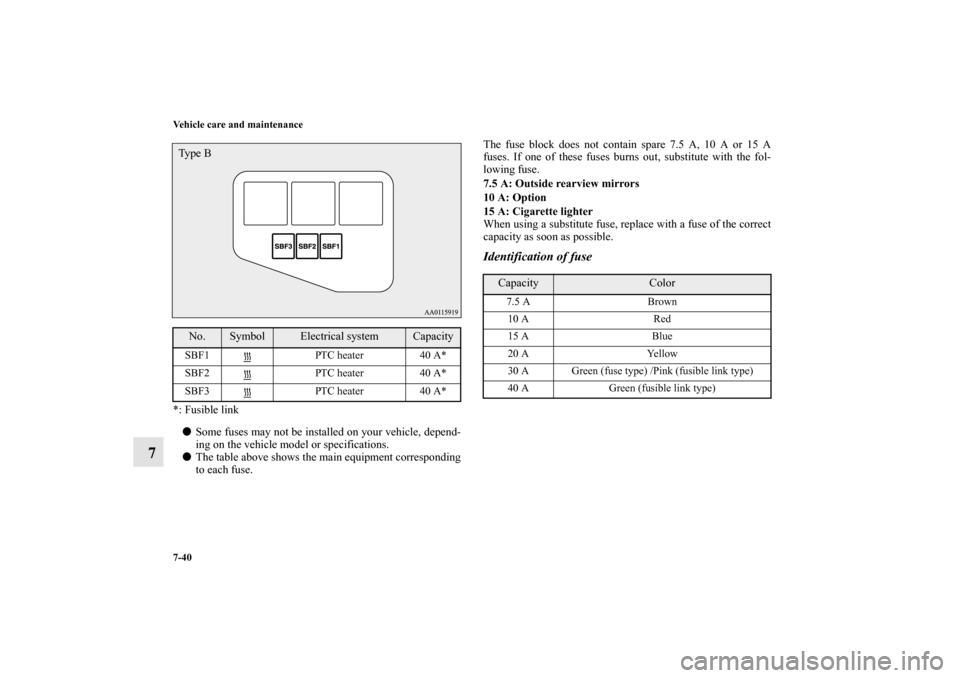

to each fuse.The fuse block does not contain spare 7.5 A, 10 A or 15 A
fuses. If one of these fuses burns out, substitute with the fol-
lowing fuse.
7.5 A: Outside rearview mirrors
10 A: Option
15 A: Cigarette lighter
When using a substitute fuse, replace with a fuse of the correct
capacity as soon as possible.
Identification of fuse
No.
Symbol
Electrical system
Capacity
SBF1 PTC heater 40 A*
SBF2 PTC heater 40 A*
SBF3 PTC heater 40 A*Ty p e B
Capacity
Color
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
30 A Green (fuse type) /Pink (fusible link type)
40 A Green (fusible link type)
BK0162600US.book 40 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Vehicle care and maintenance
7-41
7

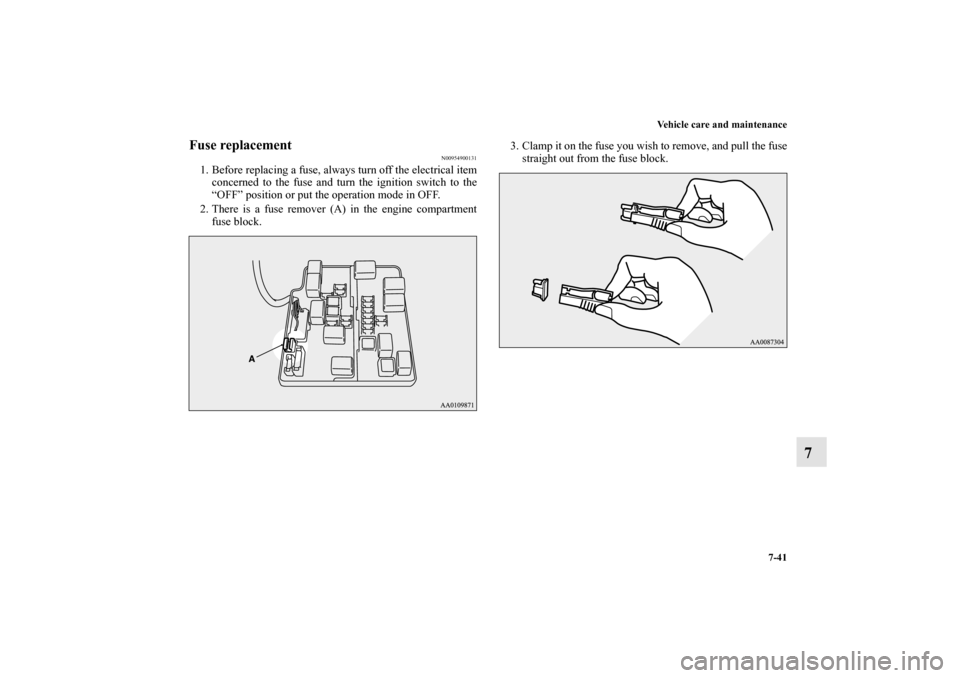

Fuse replacement
N00954900131
1. Before replacing a fuse, always turn off the electrical item
concerned to the fuse and turn the ignition switch to the
“OFF” position or put the operation mode in OFF.
2. There is a fuse remover (A) in the engine compartment
fuse block.3. Clamp it on the fuse you wish to remove, and pull the fuse
straight out from the fuse block.
BK0162600US.book 41 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-42 Vehicle care and maintenance
7

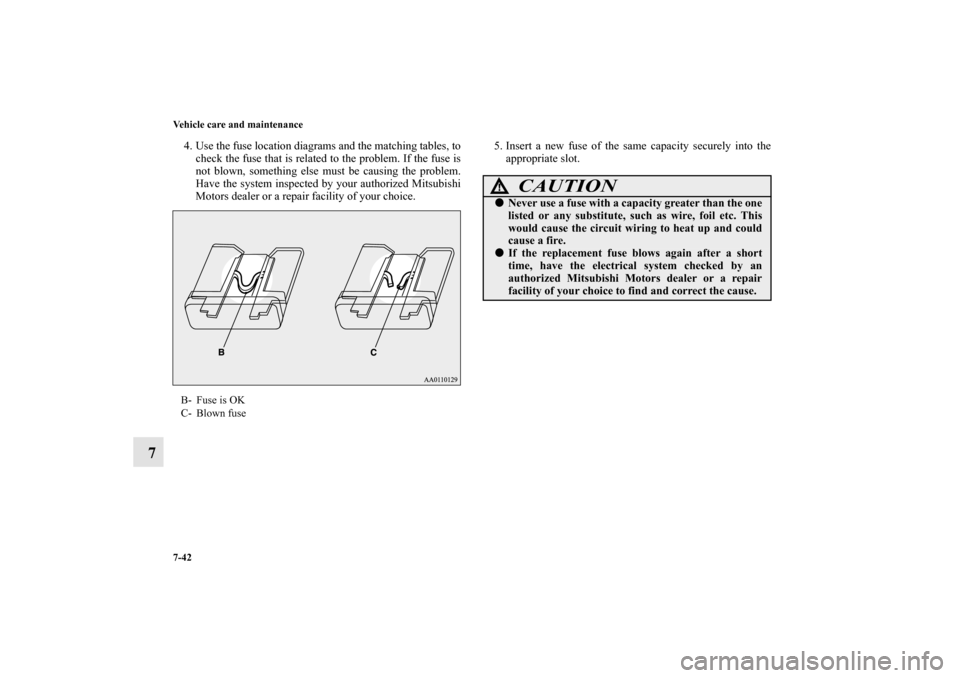

4. Use the fuse location diagrams and the matching tables, to
check the fuse that is related to the problem. If the fuse is
not blown, something else must be causing the problem.
Have the system inspected by your authorized Mitsubishi
Motors dealer or a repair facility of your choice.5. Insert a new fuse of the same capacity securely into the
appropriate slot.B- Fuse is OK
C- Blown fuse
CAUTION
!
Never use a fuse with a capacity greater than the one
listed or any substitute, such as wire, foil etc. This
would cause the circuit wiring to heat up and could
cause a fire.
If the replacement fuse blows again after a short
time, have the electrical system checked by an
authorized Mitsubishi Motors dealer or a repair
facility of your choice to find and correct the cause.
