2014 MITSUBISHI MIRAGE Owners Manual

Seat and restraint systems
2-7
2

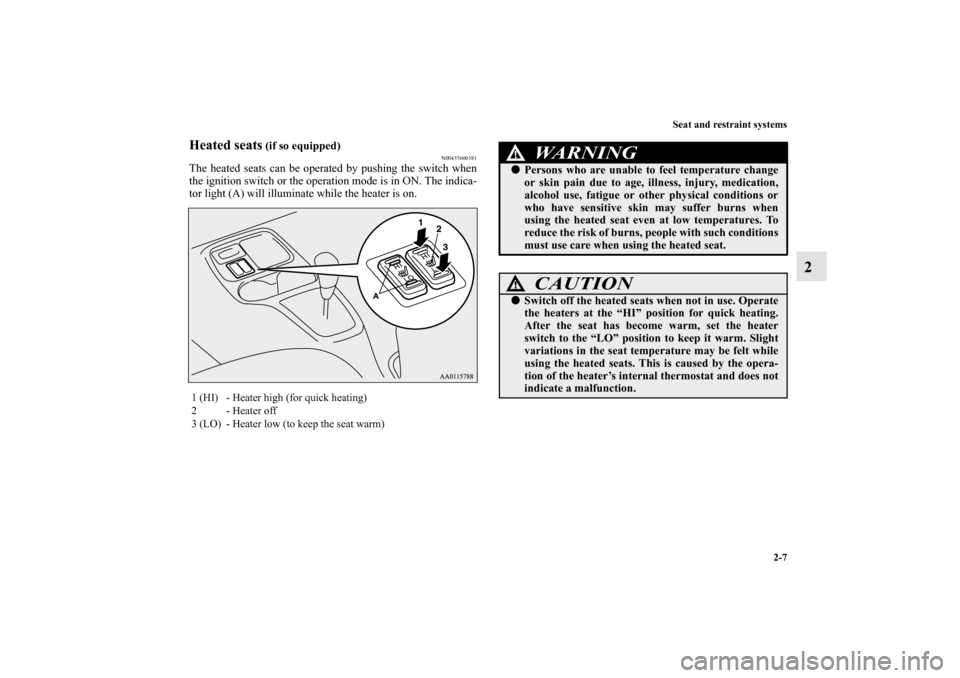

Heated seats
(if so equipped)
N00435600381
The heated seats can be operated by pushing the switch when
the ignition switch or the operation mode is in ON. The indica-
tor light (A) will illuminate while the heater is on.1 (HI) - Heater high (for quick heating)
2 - Heater off
3 (LO) - Heater low (to keep the seat warm)
WA R N I N G
!
Persons who are unable to feel temperature change
or skin pain due to age, illness, injury, medication,
alcohol use, fatigue or other physical conditions or
who have sensitive skin may suffer burns when
using the heated seat even at low temperatures. To
reduce the risk of burns, people with such conditions
must use care when using the heated seat.
CAUTION
!
Switch off the heated seats when not in use. Operate
the heaters at the “HI” position for quick heating.
After the seat has become warm, set the heater
switch to the “LO” position to keep it warm. Slight
variations in the seat temperature may be felt while
using the heated seats. This is caused by the opera-
tion of the heater’s internal thermostat and does not
indicate a malfunction.
BK0162600US.book 7 ページ ２０１３年３月２２日　金曜日　午後２時４１分

2-8 Seat and restraint systems

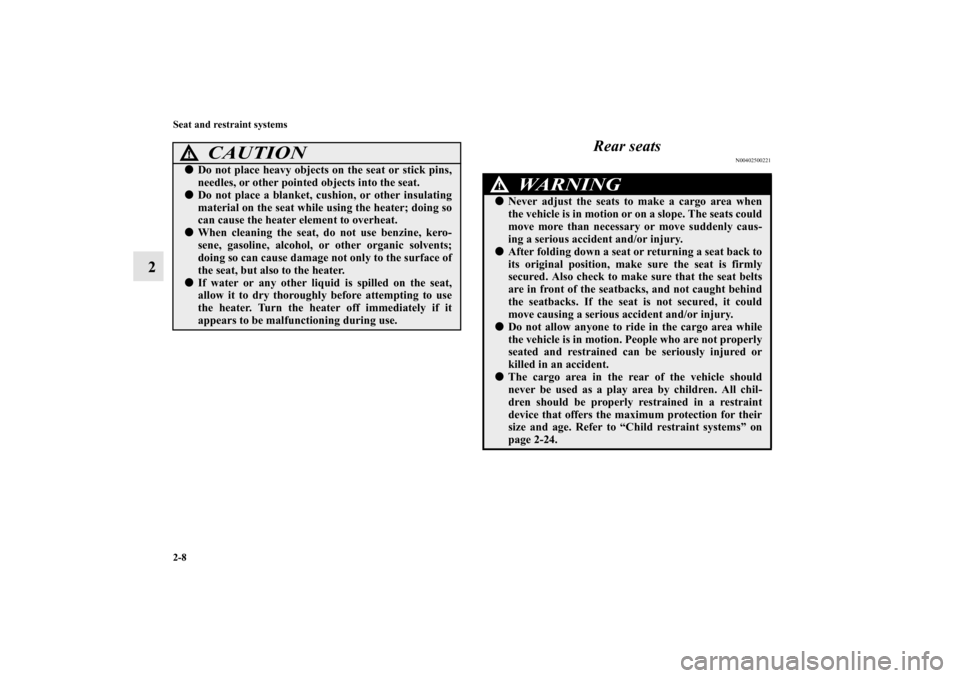

2Rear seats
N00402500221
CAUTION
!
Do not place heavy objects on the seat or stick pins,
needles, or other pointed objects into the seat.
Do not place a blanket, cushion, or other insulating
material on the seat while using the heater; doing so
can cause the heater element to overheat.
When cleaning the seat, do not use benzine, kero-
sene, gasoline, alcohol, or other organic solvents;
doing so can cause damage not only to the surface of
the seat, but also to the heater.
If water or any other liquid is spilled on the seat,
allow it to dry thoroughly before attempting to use
the heater. Turn the heater off immediately if it
appears to be malfunctioning during use.
WA R N I N G
!
Never adjust the seats to make a cargo area when
the vehicle is in motion or on a slope. The seats could
move more than necessary or move suddenly caus-
ing a serious accident and/or injury.
After folding down a seat or returning a seat back to
its original position, make sure the seat is firmly
secured. Also check to make sure that the seat belts
are in front of the seatbacks, and not caught behind
the seatbacks. If the seat is not secured, it could
move causing a serious accident and/or injury.
Do not allow anyone to ride in the cargo area while
the vehicle is in motion. People who are not properly
seated and restrained can be seriously injured or
killed in an accident.
The cargo area in the rear of the vehicle should
never be used as a play area by children. All chil-
dren should be properly restrained in a restraint
device that offers the maximum protection for their
size and age. Refer to “Child restraint systems” on
page 2-24.
BK0162600US.book 8 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Seat and restraint systems
2-9
2

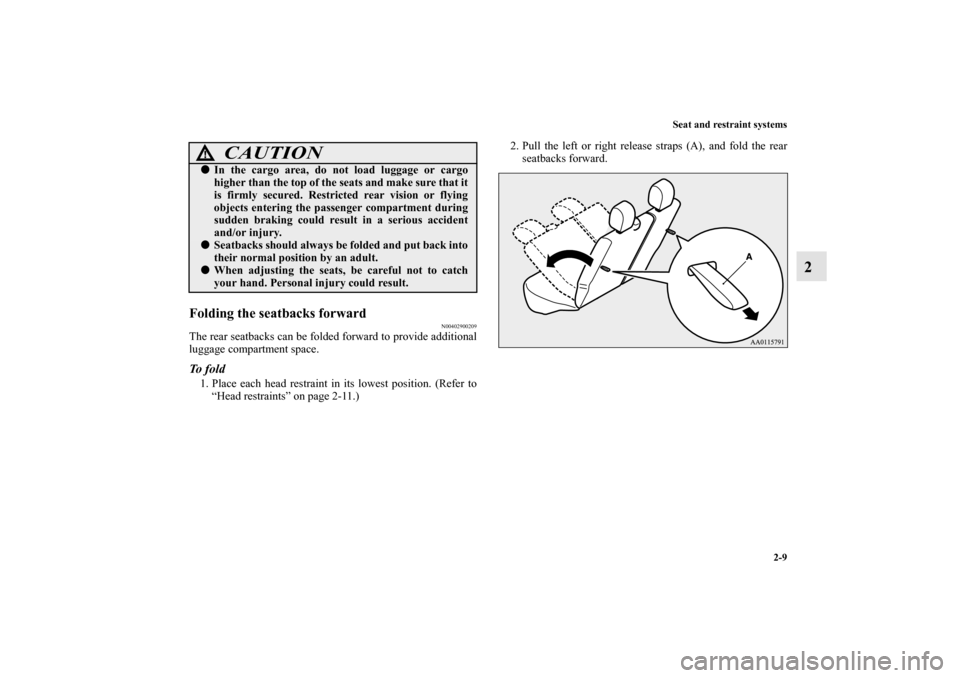

Folding the seatbacks forward
N00402900209
The rear seatbacks can be folded forward to provide additional
luggage compartment space.To f o l d1. Place each head restraint in its lowest position. (Refer to
“Head restraints” on page 2-11.)2. Pull the left or right release straps (A), and fold the rear
seatbacks forward.
CAUTION
!
In the cargo area, do not load luggage or cargo
higher than the top of the seats and make sure that it
is firmly secured. Restricted rear vision or flying
objects entering the passenger compartment during
sudden braking could result in a serious accident
and/or injury.
Seatbacks should always be folded and put back into
their normal position by an adult.
When adjusting the seats, be careful not to catch
your hand. Personal injury could result.
BK0162600US.book 9 ページ ２０１３年３月２２日　金曜日　午後２時４１分

2-10 Seat and restraint systems
2

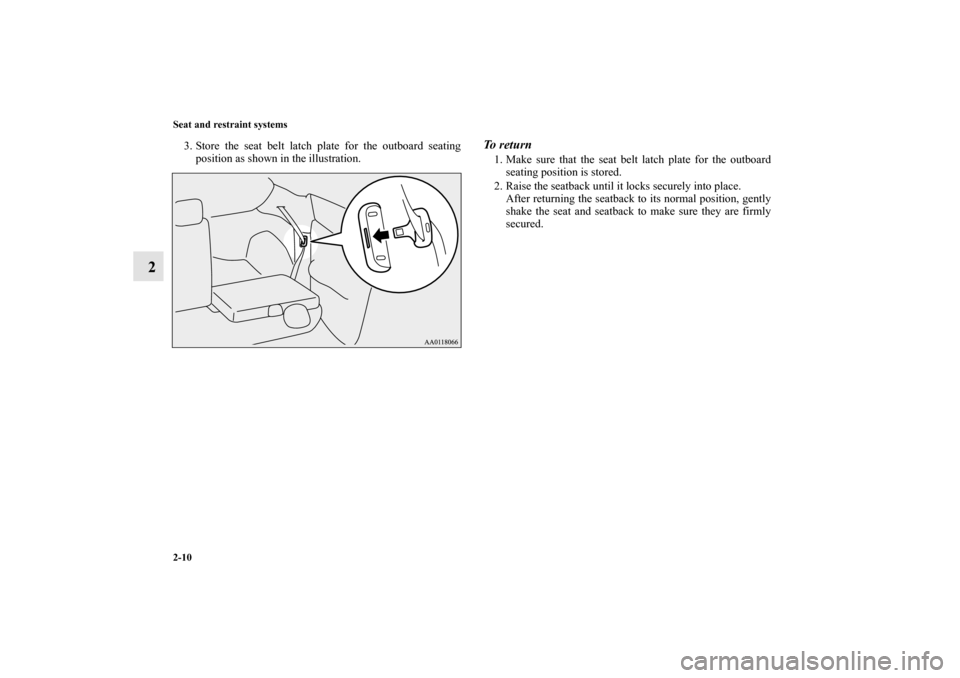

3. Store the seat belt latch plate for the outboard seating
position as shown in the illustration.
To r e t u r n1. Make sure that the seat belt latch plate for the outboard
seating position is stored.
2. Raise the seatback until it locks securely into place.
After returning the seatback to its normal position, gently
shake the seat and seatback to make sure they are firmly
secured.
BK0162600US.book 10 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Seat and restraint systems
2-11

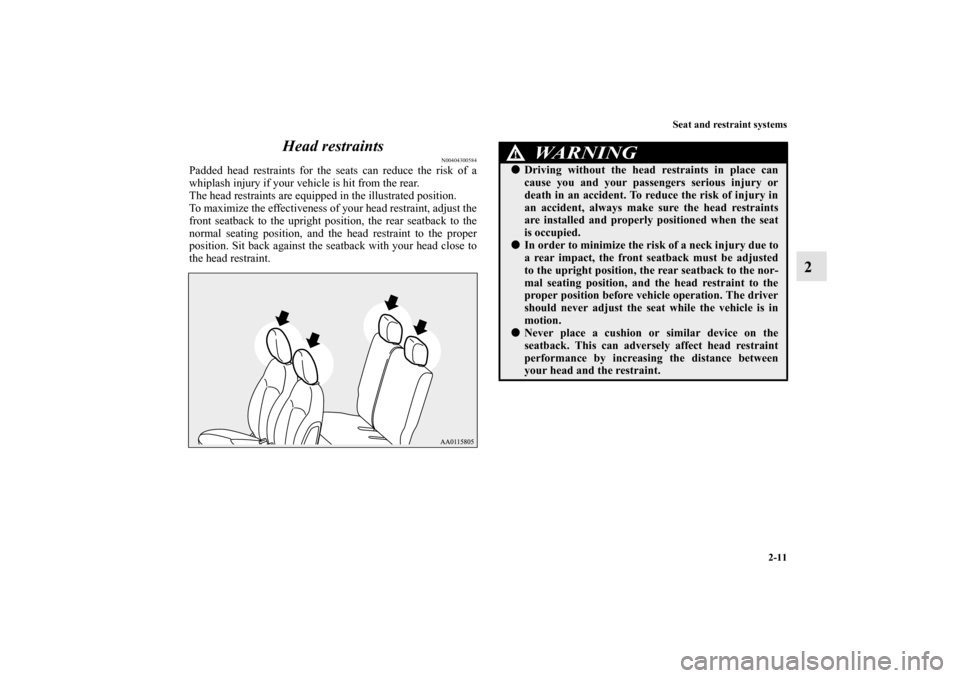

2 Head restraints
N00404300584
Padded head restraints for the seats can reduce the risk of a
whiplash injury if your vehicle is hit from the rear.
The head restraints are equipped in the illustrated position.
To maximize the effectiveness of your head restraint, adjust the
front seatback to the upright position, the rear seatback to the
normal seating position, and the head restraint to the proper
position. Sit back against the seatback with your head close to
the head restraint.
WA R N I N G
!
Driving without the head restraints in place can
cause you and your passengers serious injury or
death in an accident. To reduce the risk of injury in
an accident, always make sure the head restraints
are installed and properly positioned when the seat
is occupied.
In order to minimize the risk of a neck injury due to
a rear impact, the front seatback must be adjusted
to the upright position, the rear seatback to the nor-
mal seating position, and the head restraint to the
proper position before vehicle operation. The driver
should never adjust the seat while the vehicle is in
motion.
Never place a cushion or similar device on the
seatback. This can adversely affect head restraint
performance by increasing the distance between
your head and the restraint.
BK0162600US.book 11 ページ ２０１３年３月２２日　金曜日　午後２時４１分

2-12 Seat and restraint systems
2

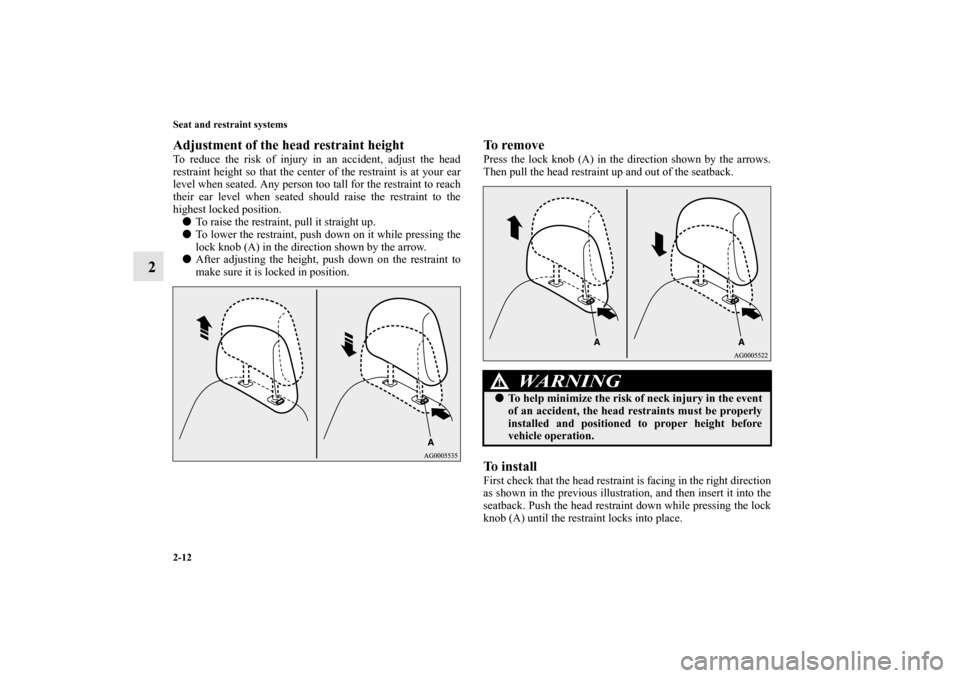

Adjustment of the head restraint heightTo reduce the risk of injury in an accident, adjust the head
restraint height so that the center of the restraint is at your ear
level when seated. Any person too tall for the restraint to reach
their ear level when seated should raise the restraint to the
highest locked position.

To raise the restraint, pull it straight up.

To lower the restraint, push down on it while pressing the
lock knob (A) in the direction shown by the arrow.

After adjusting the height, push down on the restraint to
make sure it is locked in position.
To removePress the lock knob (A) in the direction shown by the arrows.
Then pull the head restraint up and out of the seatback.To installFirst check that the head restraint is facing in the right direction
as shown in the previous illustration, and then insert it into the
seatback. Push the head restraint down while pressing the lock
knob (A) until the restraint locks into place.
WA R N I N G
!
To help minimize the risk of neck injury in the event
of an accident, the head restraints must be properly
installed and positioned to proper height before
vehicle operation.
BK0162600US.book 12 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Seat and restraint systems
2-13
2

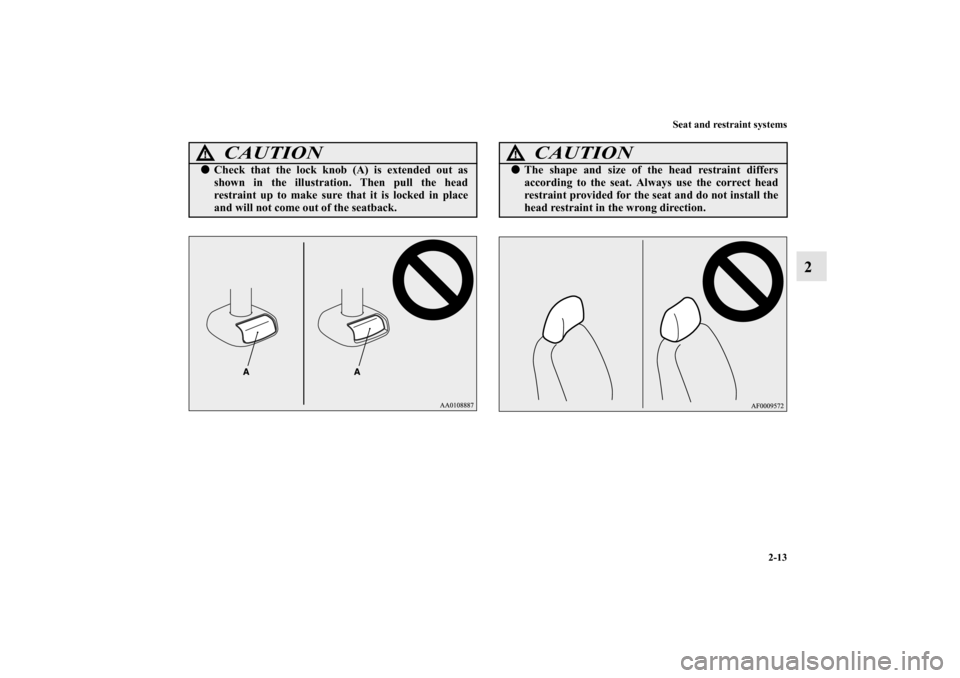

CAUTION
!
Check that the lock knob (A) is extended out as
shown in the illustration. Then pull the head
restraint up to make sure that it is locked in place
and will not come out of the seatback.
CAUTION
!
The shape and size of the head restraint differs
according to the seat. Always use the correct head
restraint provided for the seat and do not install the
head restraint in the wrong direction.
BK0162600US.book 13 ページ ２０１３年３月２２日　金曜日　午後２時４１分

2-14 Seat and restraint systems

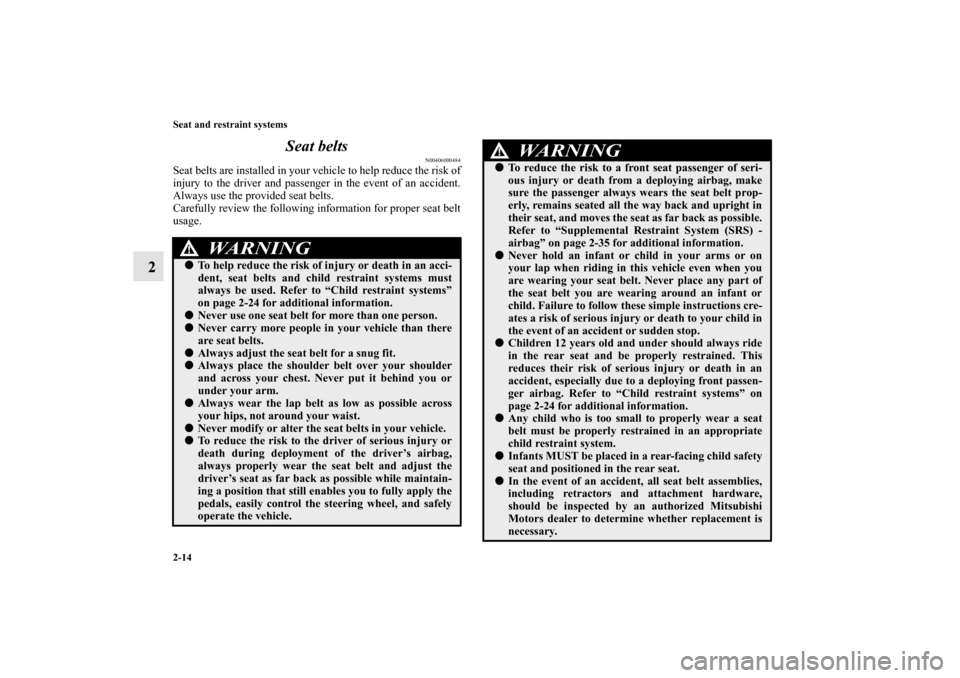

2Seat belts
N00406000484
Seat belts are installed in your vehicle to help reduce the risk of
injury to the driver and passenger in the event of an accident.
Always use the provided seat belts.
Carefully review the following information for proper seat belt
usage.
WA R N I N G
!
To help reduce the risk of injury or death in an acci-
dent, seat belts and child restraint systems must
always be used. Refer to “Child restraint systems”
on page 2-24 for additional information.
Never use one seat belt for more than one person.
Never carry more people in your vehicle than there
are seat belts.
Always adjust the seat belt for a snug fit.
Always place the shoulder belt over your shoulder
and across your chest. Never put it behind you or
under your arm.
Always wear the lap belt as low as possible across
your hips, not around your waist.
Never modify or alter the seat belts in your vehicle.
To reduce the risk to the driver of serious injury or
death during deployment of the driver’s airbag,
always properly wear the seat belt and adjust the
driver’s seat as far back as possible while maintain-
ing a position that still enables you to fully apply the
pedals, easily control the steering wheel, and safely
operate the vehicle.

To reduce the risk to a front seat passenger of seri-
ous injury or death from a deploying airbag, make
sure the passenger always wears the seat belt prop-
erly, remains seated all the way back and upright in
their seat, and moves the seat as far back as possible.
Refer to “Supplemental Restraint System (SRS) -
airbag” on page 2-35 for additional information.
Never hold an infant or child in your arms or on
your lap when riding in this vehicle even when you
are wearing your seat belt. Never place any part of
the seat belt you are wearing around an infant or
child. Failure to follow these simple instructions cre-
ates a risk of serious injury or death to your child in
the event of an accident or sudden stop.
Children 12 years old and under should always ride
in the rear seat and be properly restrained. This
reduces their risk of serious injury or death in an
accident, especially due to a deploying front passen-
ger airbag. Refer to “Child restraint systems” on
page 2-24 for additional information.
Any child who is too small to properly wear a seat
belt must be properly restrained in an appropriate
child restraint system.
Infants MUST be placed in a rear-facing child safety
seat and positioned in the rear seat.
In the event of an accident, all seat belt assemblies,
including retractors and attachment hardware,
should be inspected by an authorized Mitsubishi
Motors dealer to determine whether replacement is
necessary.
WA R N I N G
!
