Vehicle care and maintenance
7-43

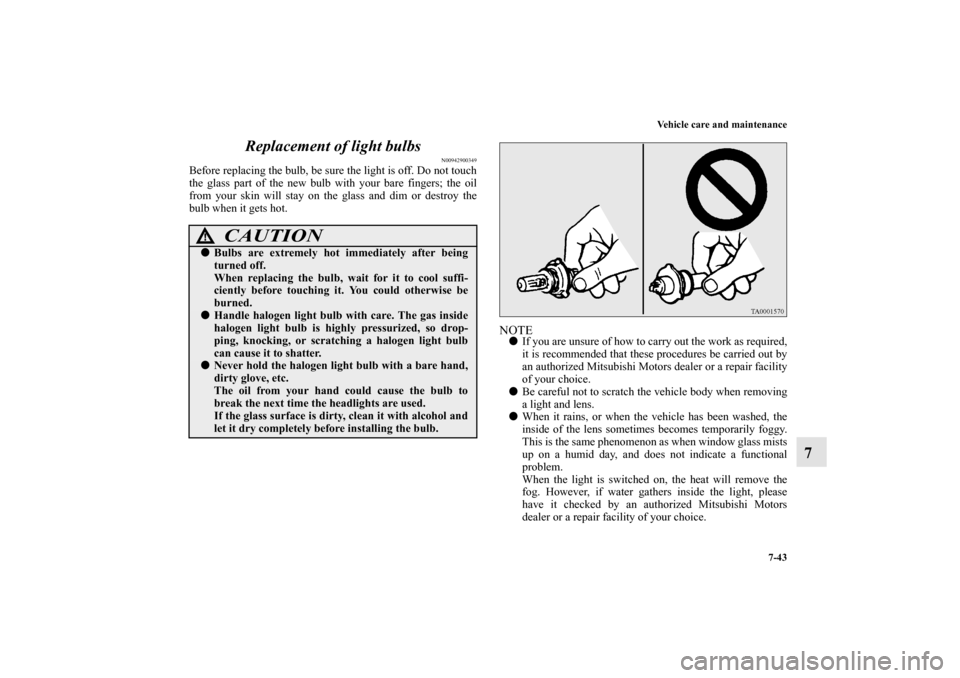

7 Replacement of light bulbs
N00942900349
Before replacing the bulb, be sure the light is off. Do not touch
the glass part of the new bulb with your bare fingers; the oil
from your skin will stay on the glass and dim or destroy the
bulb when it gets hot.
NOTE
If you are unsure of how to carry out the work as required,
it is recommended that these procedures be carried out by
an authorized Mitsubishi Motors dealer or a repair facility
of your choice.

Be careful not to scratch the vehicle body when removing
a light and lens.

When it rains, or when the vehicle has been washed, the
inside of the lens sometimes becomes temporarily foggy.
This is the same phenomenon as when window glass mists
up on a humid day, and does not indicate a functional
problem.
When the light is switched on, the heat will remove the
fog. However, if water gathers inside the light, please
have it checked by an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
CAUTION
!
Bulbs are extremely hot immediately after being
turned off.
When replacing the bulb, wait for it to cool suffi-
ciently before touching it. You could otherwise be
burned.
Handle halogen light bulb with care. The gas inside
halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0162600US.book 43 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-44 Vehicle care and maintenance
7

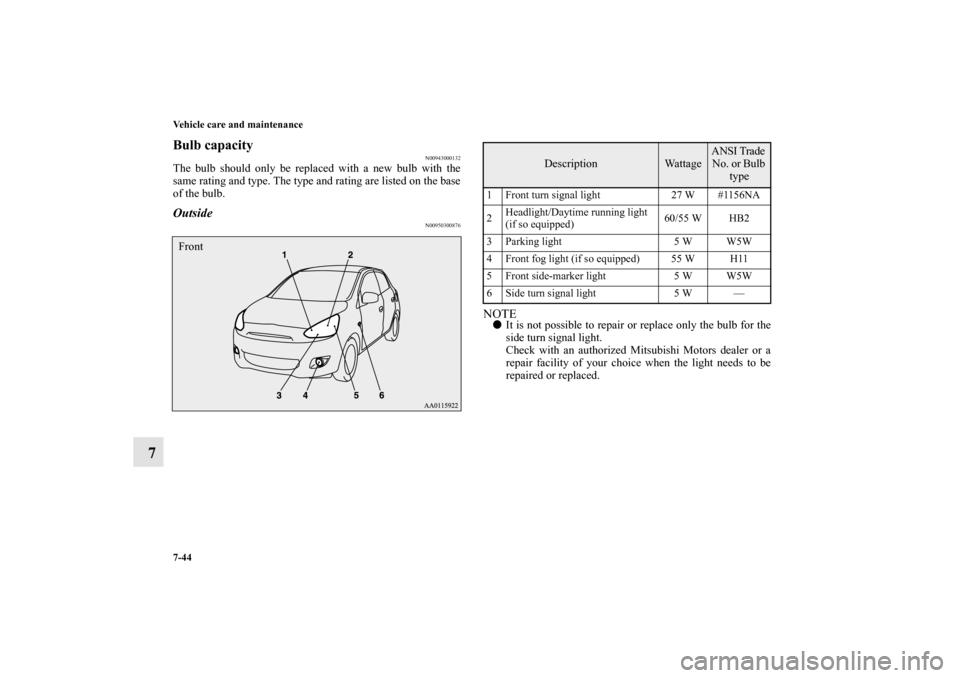

Bulb capacity
N00943000132
The bulb should only be replaced with a new bulb with the
same rating and type. The type and rating are listed on the base
of the bulb.Outside
N00950300876
NOTE
It is not possible to repair or replace only the bulb for the
side turn signal light.
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.
Front
Description
Wattage
ANSI Trade
No. or Bulb
type
1 Front turn signal light 27 W #1156NA
2 Headlight/Daytime running light
(if so equipped)60/55 W HB2
3 Parking light 5 W W5W
4 Front fog light (if so equipped) 55 W H11
5 Front side-marker light 5 W W5W
6 Side turn signal light 5 W —
BK0162600US.book 44 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Vehicle care and maintenance
7-45
7
NOTE
The high-mounted stop light uses LEDs rather than bulbs.
For repair and replacement, contact an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.

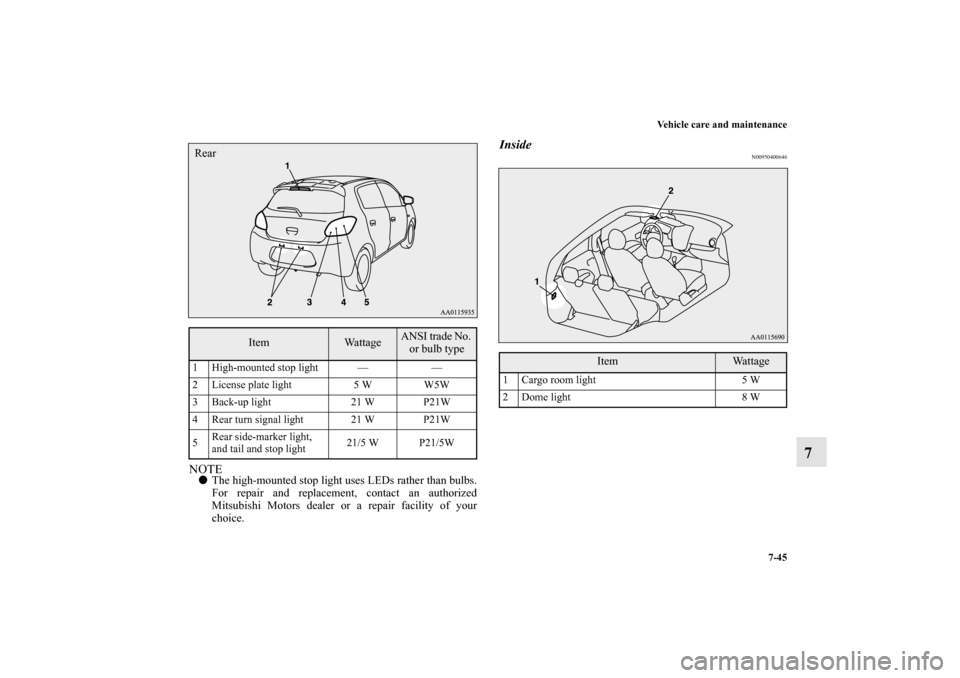

Inside
N00950400646
Item
Wattage
ANSI trade No.
or bulb type
1 High-mounted stop light — —
2 License plate light 5 W W5W
3 Back-up light 21 W P21W
4 Rear turn signal light 21 W P21W
5Rear side-marker light,
and tail and stop light21/5 W P21/5WRear
Item
Wa t t a g e
1 Cargo room light 5 W
2 Dome light 8 W
BK0162600US.book 45 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-46 Vehicle care and maintenance
7

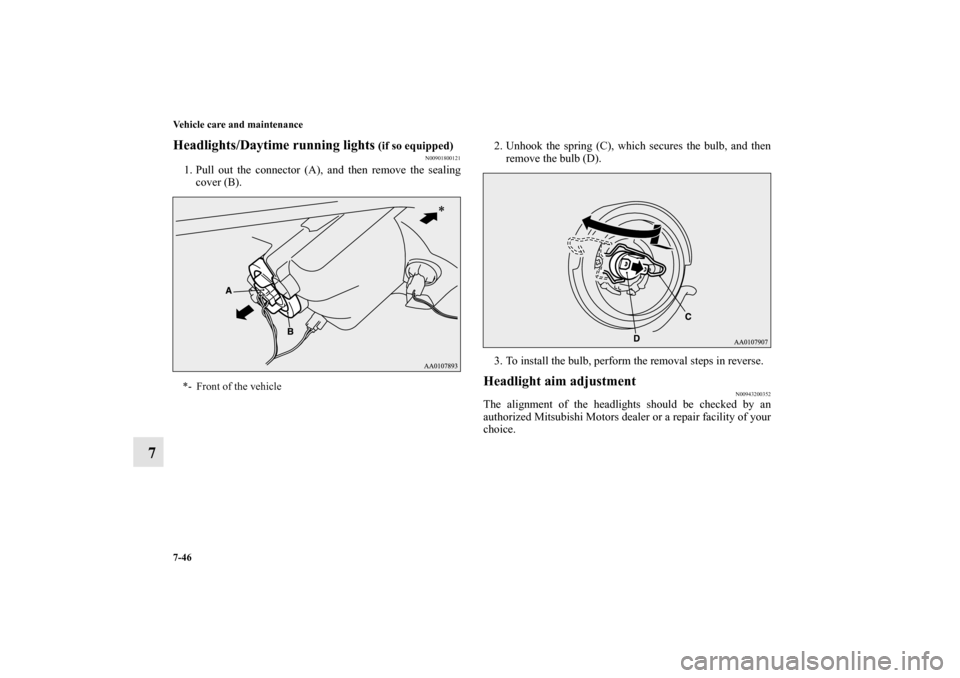

Headlights/Daytime running lights
(if so equipped)
N00901800121
1. Pull out the connector (A), and then remove the sealing
cover (B).2. Unhook the spring (C), which secures the bulb, and then
remove the bulb (D).
3. To install the bulb, perform the removal steps in reverse.
Headlight aim adjustment
N00943200352
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
*- Front of the vehicle
BK0162600US.book 46 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Vehicle care and maintenance
7-47
7

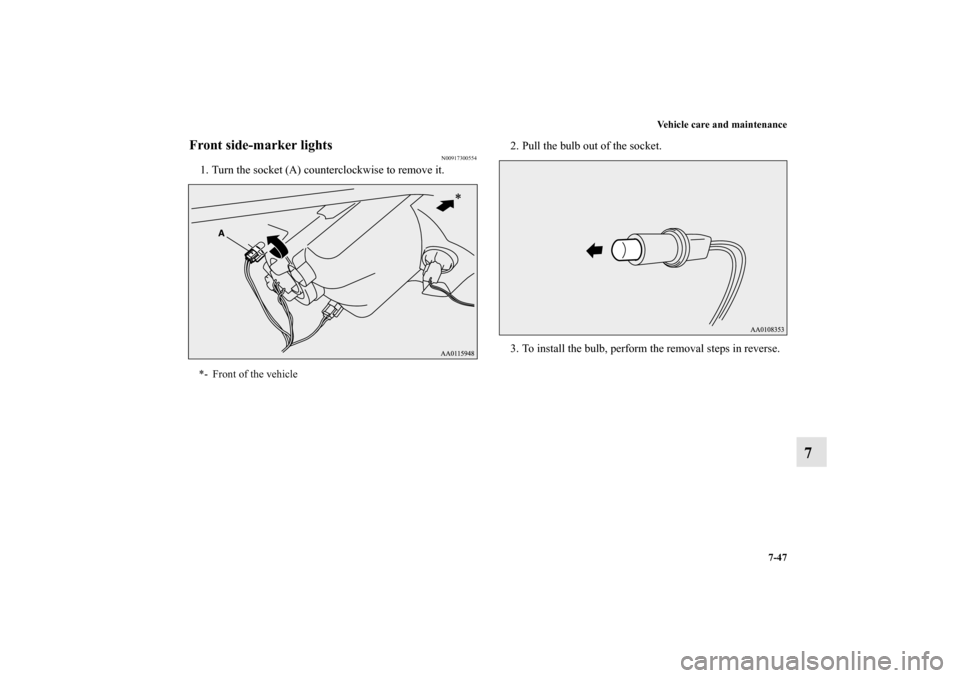

Front side-marker lights
N00917300554
1. Turn the socket (A) counterclockwise to remove it.2. Pull the bulb out of the socket.
3. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0162600US.book 47 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-48 Vehicle care and maintenance
7

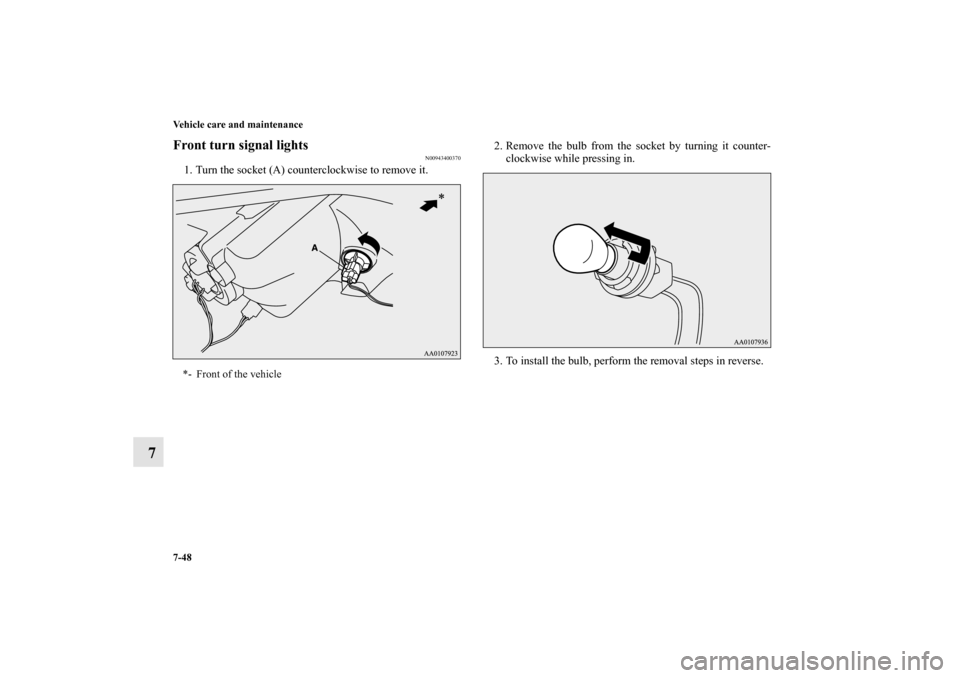

Front turn signal lights
N00943400370
1. Turn the socket (A) counterclockwise to remove it.2. Remove the bulb from the socket by turning it counter-
clockwise while pressing in.
3. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0162600US.book 48 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Vehicle care and maintenance
7-49
7

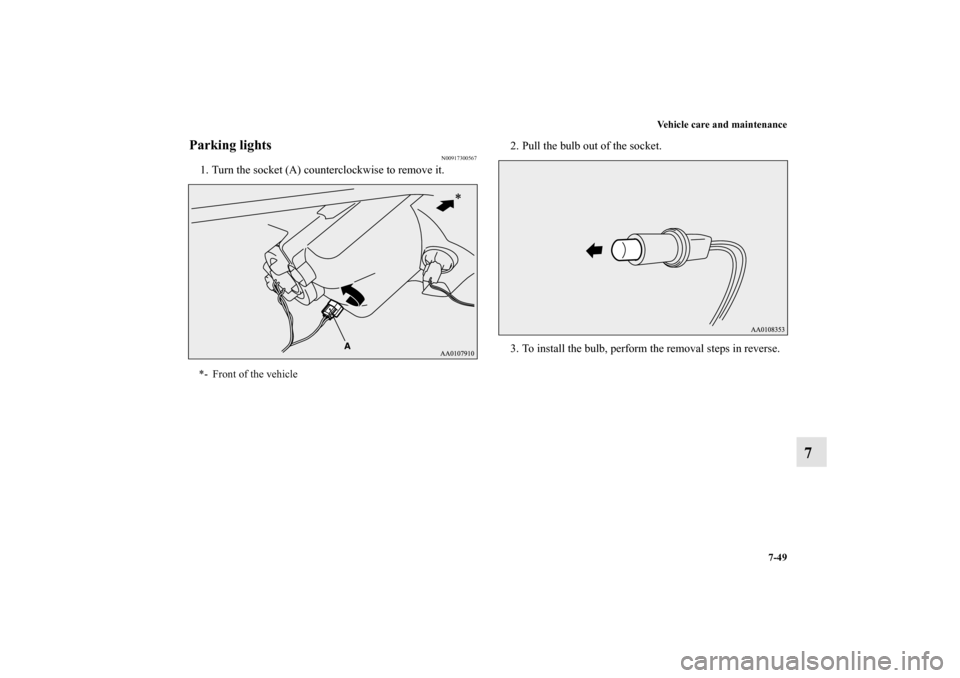

Parking lights
N00917300567
1. Turn the socket (A) counterclockwise to remove it.2. Pull the bulb out of the socket.
3. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0162600US.book 49 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-50 Vehicle care and maintenance
7

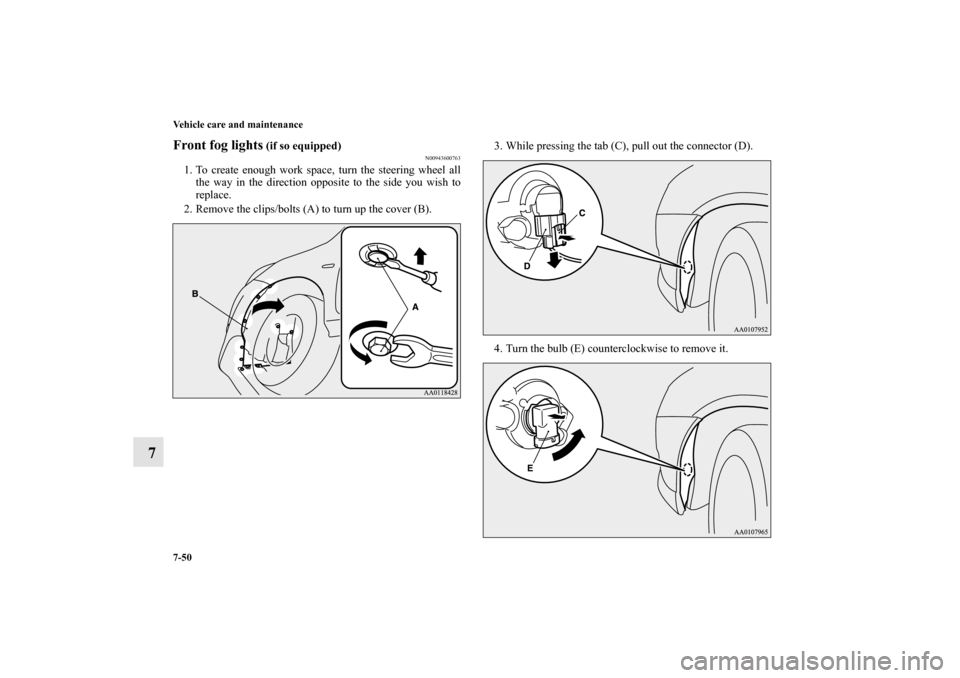

Front fog lights
(if so equipped)
N00943600763
1. To create enough work space, turn the steering wheel all
the way in the direction opposite to the side you wish to
replace.
2. Remove the clips/bolts (A) to turn up the cover (B).3. While pressing the tab (C), pull out the connector (D).
4. Turn the bulb (E) counterclockwise to remove it.
