2014 MITSUBISHI MIRAGE Owners Manual

Features and controls
3-97
3

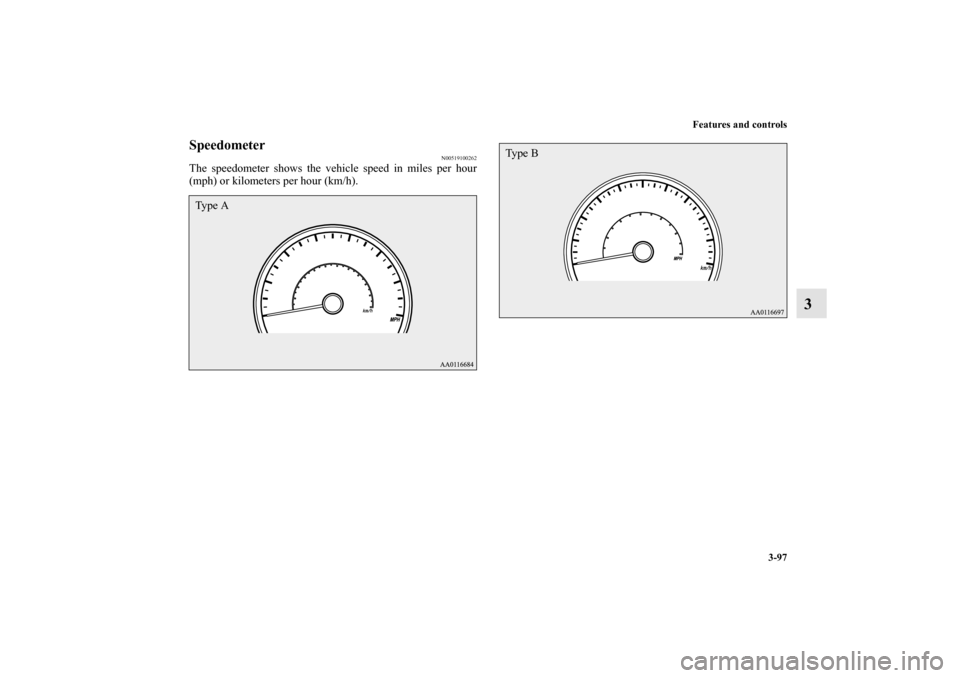

Speedometer
N00519100262
The speedometer shows the vehicle speed in miles per hour
(mph) or kilometers per hour (km/h).Ty p e A
Ty p e B
BK0162600US.book 97 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-98 Features and controls
3
Tachometer
N00519200292
The tachometer shows engine revolutions per minute. This
allows the driver to determine the most efficient selector posi-
tion and engine speed combinations.
This gauge also assists in evaluating engine performance.
Multi-information display
N00555000278
The multi-information display displays the odometer, trip
odometer, service reminder, fuel remaining, selector lever posi-
tion, average fuel consumption, driving range, etc.
It is also possible to change elements such as the language and
units used on the multi-information display.NOTE
When the ignition switch or the operation mode is in OFF,
the selector lever position display and fuel remaining dis-
play are not displayed.
CAUTION
!
The red zone indicates an engine speed beyond the
range of safe operation.
Select the correct shift position (manual transaxle)
or selector position (CVT) to control the engine
speed so that the tachometer indicator does not
enter the red zone.
1- Information display → P.3-99
2- Service reminder → P.3-103
3- Selector lever position display* → P.3-64
4- Fuel remaining display → P. 3 - 1 0 2
BK0162600US.book 98 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-99
3
Information display
N00574800015
Each time you lightly press the multi-information display switch (A), the display switches in the following order.NOTE
When the ignition switch or the operation mode is in OFF, the driving range display and average fuel consumption display are
not displayed.

While driving, the service reminder is not displayed even if you operate the multi-information display switch.1- Odometer → P.3-100 5- Driving range display → P. 3 - 1 0 1
2-
Trip odometer → P.3-1006- Average fuel consumption display → P.3-102
3-
Trip odometer → P. 3 - 1 0 07- Service reminder (distance) → P.3-103
4- Instrument panel light dimmer control → P.3-100 8- Service reminder (month) → P.3-103
BK0162600US.book 99 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-100 Features and controls
3
Odometer
N00574900016
The odometer indicates the total distance the vehicle has trav-
eled.Trip odometer
N00575000014
The trip odometer indicates the distance traveled between two
points.To reset the trip odometerTo return the display to 0, hold down the multi-information dis-
play switch for about 1 second or more. Only the currently dis-
played value will be reset.
Example
If trip odometer is displayed, only trip odometer will
be reset.NOTE
Both trip odometers and can count up to 9999.9
miles/kilometers.
When a trip odometer goes past 9999.9 miles/kilometers,
it returns to 0.0 miles/kilometers.

When disconnecting the battery terminal, the memories of
trip odometer displays and are cleared, and their
displays return to “0.0 miles/kilometers”.
Instrument panel light dimmer control
N00575100015
Each time you press the multi-information display switch (2),
there is a sound and the brightness of the instrument panel
lights changes.
Usage examples for trip odometer , trip odometer
It is possible to measure two currently traveled distances,
from home using trip odometer and from a particular
point on the way using trip odometer .
1- Brightness level
2- Multi-information display switch
Bright Dim
BK0162600US.book 100 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-101
3
NOTE
You can adjust to 8 different levels for when the parking
lights or headlights are illuminated and 8 for when they
are not.
Each time you reduce two brightness levels, the segment
display of the brightness level decreases one by one.

If you press and hold the switch for longer than about 1
second, the brightness automatically scrolls through its
different levels, and stops scrolling when you release the
switch. Select your desired level of brightness.

The brightness level of the instruments is stored when the
ignition switch is turned to the “OFF” position or the
operation mode is put in OFF.
Driving range display
N00575200016
This displays the approximate driving range (how many more
miles or kilometers you can drive). When the driving range
falls below approximately 30 miles (50 km), “---” is displayed.NOTE
The driving range is determined based on the fuel con-
sumption data. This may vary depending on the driving
conditions and habits. Treat the distance displayed as just
a rough guideline.

When you refuel, the driving range display is updated.
However, if you only add a small amount of fuel, the cor-
rect value will not be displayed. Fill to a full tank when-
ever possible.

When your vehicle is stopped on an extremely steep hill,
the driving range value may, change. This is due to the
movement of fuel in the tank and does not indicate any
breakdown.

The display setting can be changed to the preferred units
(miles or km).
Refer to “Changing the function settings” on page 3-105.
BK0162600US.book 101 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-102 Features and controls
3
Average fuel consumption display
N00575300017
This displays the average fuel consumption from the last reset
to the present.
The reset mode conditions for the average fuel consumption
display can be switched between “Auto reset” and “Manual
reset”.
For information on how to change the average fuel consump-
tion display setting, refer to “Changing the function settings”
on page 3-105.NOTE
The average fuel consumption display can be reset sepa-
rately in both auto reset mode and manual reset mode.

“---” is displayed when the average fuel consumption can-
not be measured.

The initial (default) setting is “Auto reset mode”.

Average fuel consumption may vary depend on the driv-
ing conditions (road conditions, how you drive, etc.).
The actual fuel consumption may differ from the fuel con-
sumption displayed, so treat the fuel consumption dis-
played as just a rough guideline.

Disconnecting the battery cable will erase from memory
the manual reset mode or auto reset mode setting for the
average fuel consumption display.

The display setting can be changed to the preferred units
{mpg, km/L, L/100 km}.
Refer to “Changing the function settings” on page 3-105.
Fuel remaining display
N00575400018
The fuel remaining display indicates the fuel level in the fuel
tank when the ignition switch or the operation mode in ON.NOTE
It may take several seconds to stabilize the display after
refilling the tank.

If fuel is added with the ignition switch or the operation
mode in ON, the remaining fuel display may incorrectly
indicate the fuel level.

The fuel lid mark (A) indicates that the fuel tank filler
door is located on the left side of the vehicle. (Refer to
“Filling the fuel tank” on page 1-4.)1- Full
0- Empty
BK0162600US.book 102 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-103
3
Fuel remaining warning displayWhen the remaining fuel level runs low (one segment is dis-
played), the last segment of the fuel gauge flashes when the
ignition switch is turned to the “ON” position or the operation
mode is changed to ON.
When the remaining fuel level very runs low (no segments dis-
played), “ ” and the bar graph flash.
If the warning display appears, refuel as soon as possible.NOTE
On hills or curves, the display may be incorrect due to the
movement of fuel in the tank.
Service reminder
N00556700227
Displays the approximate time until the next recommended
periodic inspection. “---” is displayed when the inspection time
has arrived.NOTE
The service reminder time can be modified by an autho-
rized Mitsubishi Motors dealer, to adjust for severe usage,
etc. Refer to “Severe maintenance schedule” in your vehi-
cle’s Warranty and Maintenance Manual. For further
information, please contact your authorized Mitsubishi
Motors dealer.
1. Shows the time until the next periodic inspection.NOTE
Shows the distance in units of 100 miles (100 km) and the
time in units of 1 month.
CAUTION
!
Running out of gas could damage the catalytic con-
verter. If the warning display appears, refuel as soon
as possible.
Distance
Month
BK0162600US.book 103 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-104 Features and controls
3
2. This informs you that a periodic inspection is due. Contact
an authorized Mitsubishi Motors dealer or a repair facility
of your choice to have the system checked.
3. After your vehicle is inspected at an authorized Mitsubishi
Motors dealer, it displays the time until the next periodic
inspection.To resetThe “---” display can be reset while the ignition switch or the
operation mode is in OFF.
1. When you lightly press the multi-information display
switch a few times, the information display switches to
the service reminder display.2. Press and hold the multi-information display switch for
about 1 second or more to make the spanner mark start
flashing. (If there is no operation for about 10 seconds
with flashing, the display will revert to its original indica-
tion.)
3. With this indicator flashing, if you lightly press the multi-
information meter switch, the display switches from “---”
to “cLEAr”. After that, the time until the next periodic
inspection is shown.BK0162600US.book 104 ページ ２０１３年３月２２日　金曜日　午後２時４１分
