2014 MITSUBISHI MIRAGE Owners Manual

Comfort controls
5-65
5

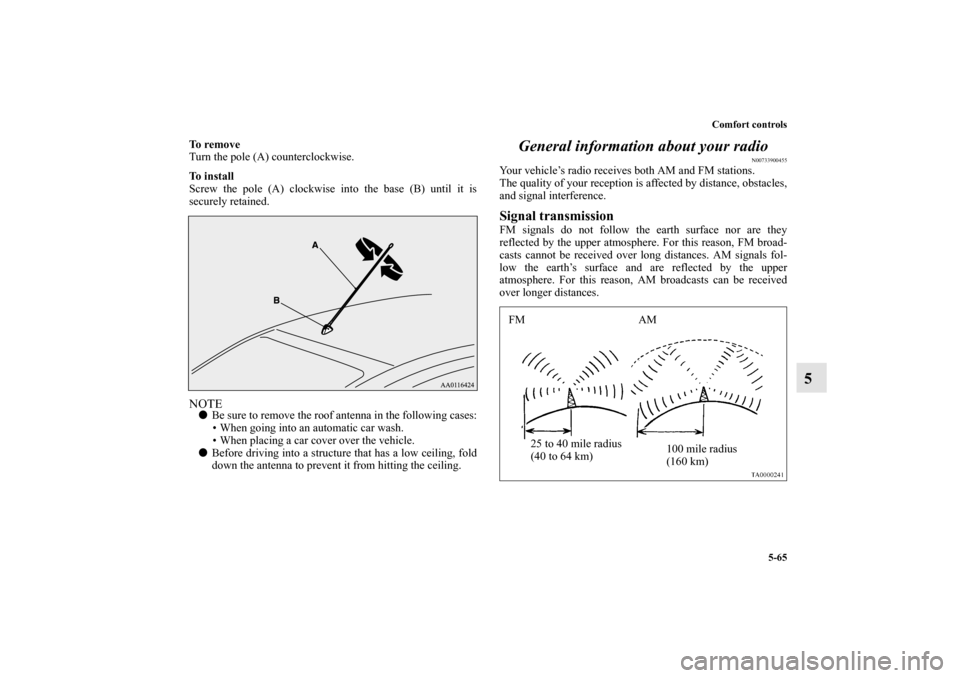

To remove
Turn the pole (A) counterclockwise.
To i n s t a l l
Screw the pole (A) clockwise into the base (B) until it is
securely retained.NOTE
Be sure to remove the roof antenna in the following cases:
• When going into an automatic car wash.
• When placing a car cover over the vehicle.

Before driving into a structure that has a low ceiling, fold
down the antenna to prevent it from hitting the ceiling.
General information about your radio
N00733900455
Your vehicle’s radio receives both AM and FM stations.
The quality of your reception is affected by distance, obstacles,
and signal interference.Signal transmissionFM signals do not follow the earth surface nor are they
reflected by the upper atmosphere. For this reason, FM broad-
casts cannot be received over long distances. AM signals fol-
low the earth’s surface and are reflected by the upper
atmosphere. For this reason, AM broadcasts can be received
over longer distances.FM AM
25 to 40 mile radius
(40 to 64 km)100 mile radius
(160 km)
BK0162600US.book 65 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-66 Comfort controls
5

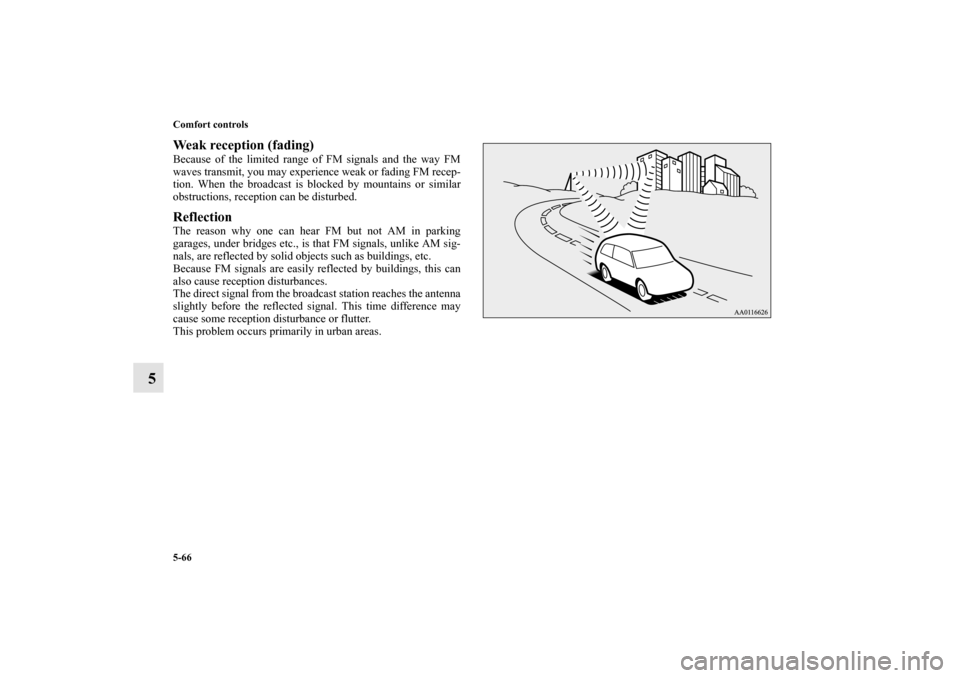

Weak reception (fading)Because of the limited range of FM signals and the way FM
waves transmit, you may experience weak or fading FM recep-
tion. When the broadcast is blocked by mountains or similar
obstructions, reception can be disturbed.ReflectionThe reason why one can hear FM but not AM in parking
garages, under bridges etc., is that FM signals, unlike AM sig-
nals, are reflected by solid objects such as buildings, etc.
Because FM signals are easily reflected by buildings, this can
also cause reception disturbances.
The direct signal from the broadcast station reaches the antenna
slightly before the reflected signal. This time difference may
cause some reception disturbance or flutter.
This problem occurs primarily in urban areas.BK0162600US.book 66 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Comfort controls
5-67
5

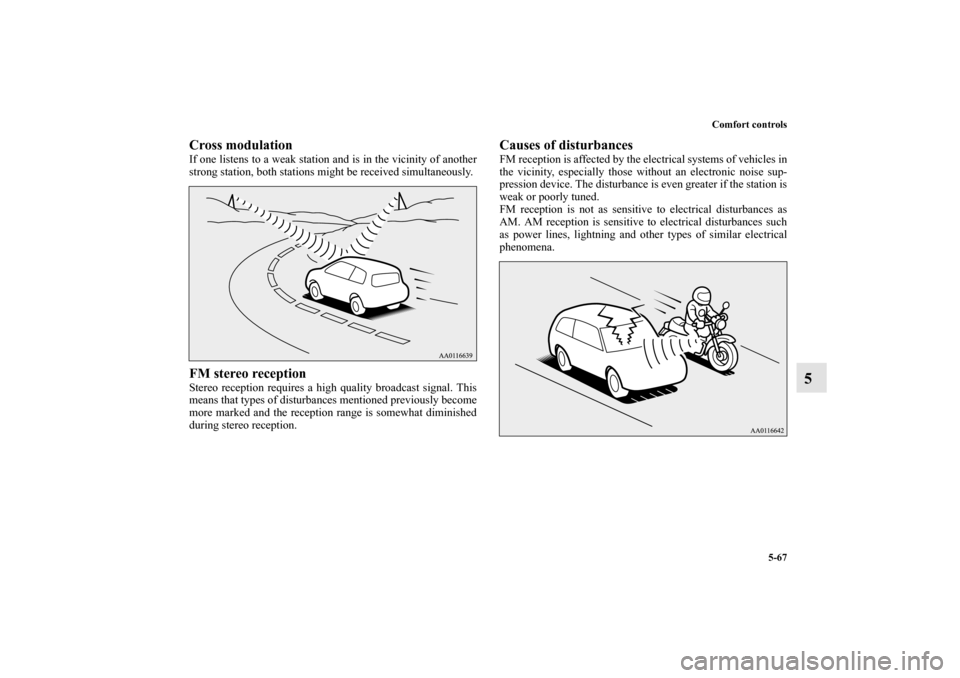

Cross modulationIf one listens to a weak station and is in the vicinity of another
strong station, both stations might be received simultaneously.FM stereo receptionStereo reception requires a high quality broadcast signal. This
means that types of disturbances mentioned previously become
more marked and the reception range is somewhat diminished
during stereo reception.
Causes of disturbancesFM reception is affected by the electrical systems of vehicles in
the vicinity, especially those without an electronic noise sup-
pression device. The disturbance is even greater if the station is
weak or poorly tuned.
FM reception is not as sensitive to electrical disturbances as
AM. AM reception is sensitive to electrical disturbances such
as power lines, lightning and other types of similar electrical
phenomena.
BK0162600US.book 67 ページ ２０１３年３月２２日　金曜日　午後２時４１分

BK0162600US.book 68 ページ ２０１３年３月２２日　金曜日　午後２時４１分

6
For emergencies
If the vehicle breaks down . . . . . . . . . . . . . . . . . . .6- 2
Jump-starting the engine . . . . . . . . . . . . . . . . . . . .6- 2
Engine overheating . . . . . . . . . . . . . . . . . . . . . . . .6- 5
Jack and tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6- 7
Tire repair kit (if so equipped) . . . . . . . . . . . . . . . .6- 9
How to change a tire
(Vehicles equipped with spare tire) . . . . . . . . . .6- 18
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6- 29
Operation under adverse driving conditions . . . . .6- 32
BK0162600US.book 1 ページ ２０１３年３月２２日　金曜日　午後２時４１分

6-2 For emergencies
6If the vehicle breaks down
N00836300233
If your vehicle breaks down on the road, move to the shoulder
and turn on the hazard warning flashers. If there is no shoulder,
or the shoulder is not safe, drive in the right lane slowly with
the hazard lights flashing until you come to a safe stopping
place. Keep the flashers flashing.If the engine stops/failsIf the engine stops, there will be no power assist to the steering
and brakes, making these difficult to use.

The brake booster will not work, so the brakes will not
grip well. The brake pedal will be harder to press than
usual.

Since there is no power steering assist, the steering wheel
will be hard to turn.When the engine fails at the intersectionGet help from your passengers, bystanders, etc. to push the
vehicle and move it to a safe area.
Jump-starting the engine
N00836400768
If the engine cannot be started because the battery is weak or
dead, you can start it with the battery from another vehicle
using jumper cables.NOTE
Do not use jumper cables if they have damage or corro-
sion.
1. Take off any metal jewelry such as watch bands or brace-
lets that might create an accidental electrical contact.
2. Position the vehicles close enough together so that the
jumper cables can reach, but be sure the vehicles aren’t
touching each other.
WA R N I N G
!
To reduce the risk of igniting flammable gas that
may be emitted from the battery, carefully read this
section before jump-starting the vehicle.
Do not try to start your vehicle by pushing or tow-
ing. This can cause an accident resulting in serious
injury or death and can damage the vehicle.
CAUTION
!
Check the other vehicle. It must have a 12-volt bat-
tery. If the other system isn’t 12-volt, both systems
can be damaged.
BK0162600US.book 2 ページ ２０１３年３月２２日　金曜日　午後２時４１分

For emergencies
6-3
6

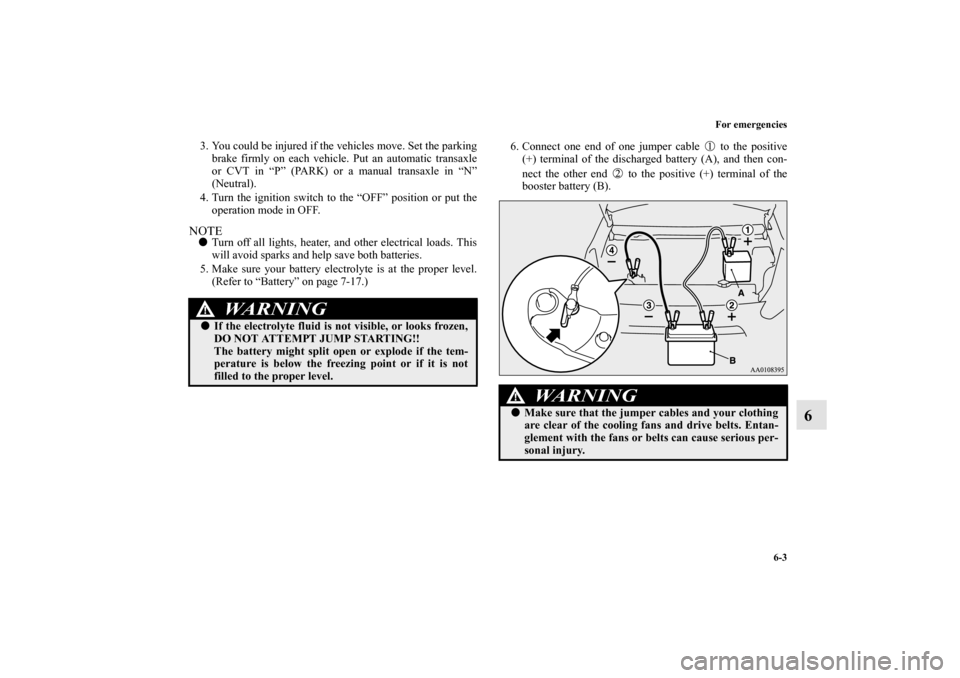

3. You could be injured if the vehicles move. Set the parking
brake firmly on each vehicle. Put an automatic transaxle
or CVT in “P” (PARK) or a manual transaxle in “N”
(Neutral).
4. Turn the ignition switch to the “OFF” position or put the
operation mode in OFF.NOTE
Turn off all lights, heater, and other electrical loads. This
will avoid sparks and help save both batteries.
5. Make sure your battery electrolyte is at the proper level.
(Refer to “Battery” on page 7-17.)6. Connect one end of one jumper cable to the positive
(+) terminal of the discharged battery (A), and then con-
nect the other end to the positive (+) terminal of the
booster battery (B).
WA R N I N G
!
If the electrolyte fluid is not visible, or looks frozen,
DO NOT ATTEMPT JUMP STARTING!!
The battery might split open or explode if the tem-
perature is below the freezing point or if it is not
filled to the proper level.
WA R N I N G
!
Make sure that the jumper cables and your clothing
are clear of the cooling fans and drive belts. Entan-
glement with the fans or belts can cause serious per-
sonal injury.
BK0162600US.book 3 ページ ２０１３年３月２２日　金曜日　午後２時４１分

6-4 For emergencies
6

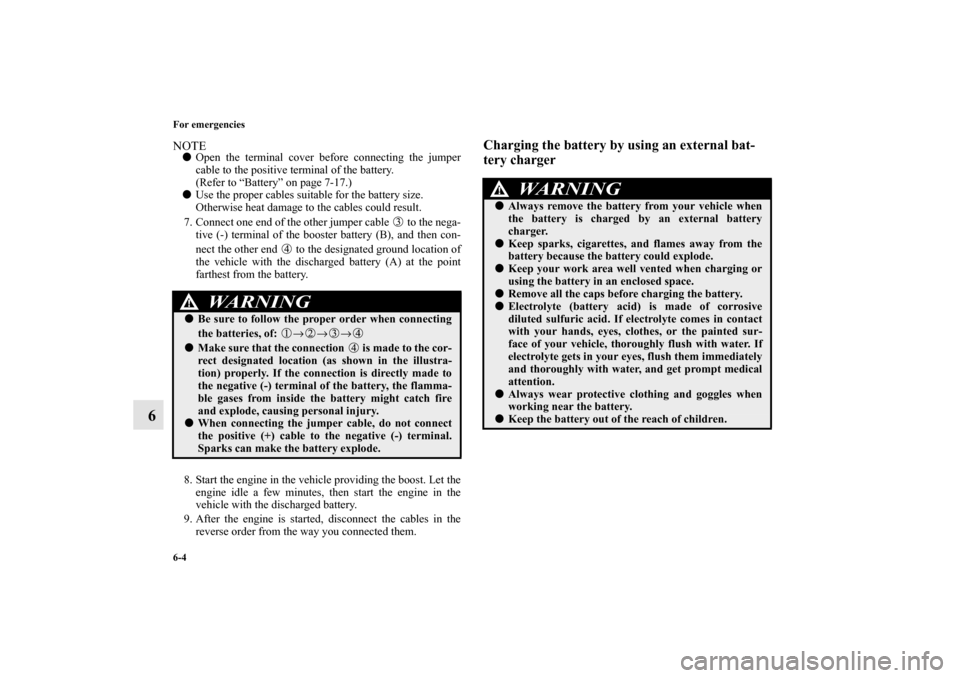

NOTE
Open the terminal cover before connecting the jumper
cable to the positive terminal of the battery.
(Refer to “Battery” on page 7-17.)

Use the proper cables suitable for the battery size.
Otherwise heat damage to the cables could result.
7. Connect one end of the other jumper cable to the nega-
tive (-) terminal of the booster battery (B), and then con-
nect the other end to the designated ground location of
the vehicle with the discharged battery (A) at the point
farthest from the battery.
8. Start the engine in the vehicle providing the boost. Let the
engine idle a few minutes, then start the engine in the
vehicle with the discharged battery.
9. After the engine is started, disconnect the cables in the
reverse order from the way you connected them.
Charging the battery by using an external bat-
tery charger
WA R N I N G
!
Be sure to follow the proper order when connecting
the batteries, of: →→→
Make sure that the connection is made to the cor-
rect designated location (as shown in the illustra-
tion) properly. If the connection is directly made to
the negative (-) terminal of the battery, the flamma-
ble gases from inside the battery might catch fire
and explode, causing personal injury.
When connecting the jumper cable, do not connect
the positive (+) cable to the negative (-) terminal.
Sparks can make the battery explode.
WA R N I N G
!
Always remove the battery from your vehicle when
the battery is charged by an external battery
charger.
Keep sparks, cigarettes, and flames away from the
battery because the battery could explode.
Keep your work area well vented when charging or
using the battery in an enclosed space.
Remove all the caps before charging the battery.
Electrolyte (battery acid) is made of corrosive
diluted sulfuric acid. If electrolyte comes in contact
with your hands, eyes, clothes, or the painted sur-
face of your vehicle, thoroughly flush with water. If
electrolyte gets in your eyes, flush them immediately
and thoroughly with water, and get prompt medical
attention.
Always wear protective clothing and goggles when
working near the battery.
Keep the battery out of the reach of children.
