2014 MITSUBISHI MIRAGE Owners Manual

Comfort controls
5-33
5
CD control panel and display
N00735300756
To listen to a CD
N00735501087
To s e t a d i s c1. Insert the disc with the label facing up.
When a disc is inserted, the CD indicator will come on
and the CD player will begin playing even if the radio is
being used. The CD player will also start playback when
the CD button is pressed with a disc in the player or with a
disc set in the Disc-loading slot, even if the radio is being
used.
2. To stop the CD, turn off the power by pressing the PWR
switch for 2 seconds or longer, or change over to the radio
mode by pressing the RADIO button, or eject the disc by
pressing the eject button.NOTE
For information on adjusting the volume and tone, refer to
“To adjust the volume” on page 5-30 and “To adjust the
tone” on page 5-31.

3 inches (8 cm) compact disc cannot be played on this CD
player.

For information concerning the handling of compact
discs, refer to “Handling of compact discs” on page 5-62.
1- CD (CD mode changeover) button
2- RADIO button
3- DISP (Display)/ (Return) button
4- CD eject button
5- CD indicator
6- Disc-loading slot
7- FOLDER indicator
8- TRACK indicator
9- Display
10- RPT (Repeat)/F-RPT (Folder repeat mode) indicator
11- RDM (Random mode)/F-RDM (Folder random mode) indi-
cator
12- SEL (Select) indicator
13- PAGE (Title scroll) button
14- (Fast-reverse/Track down) button
15- (Fast-forward/Track up) button
16- PWR (On-Off)/SEL (Select) switch
17- RPT (Repeat) button
18- RDM (Random) button
BK0162600US.book 33 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-34 Comfort controls
5
To eject a discWhen the CD eject button is pressed, the disc automatically
stops and is ejected.NOTE
If you do not remove the disc before 15 seconds have
elapsed, the CD player will automatically reload the disc
and stop.To listen to a music CDPress the CD button if a disc is already in the CD player. The
CD player will enter CD mode and start playback. The track
number and the playing time will appear on the display. The
tracks in the disc will be played continuously.To listen to an MP3 CDThis CD player allows you to play MP3 (MPEG Audio Layer-
3) files recorded on CD-ROMs, CD-Rs (recordable CDs), and
CD-RWs (rewritable CDs) in ISO9660 Level 1/Level 2, Joliet,
and Romeo formats. Each disc can hold up to 255 files in up to
100 folders, up to a maximum of 16 levels. The ID3 tag infor-
mation can be displayed during MP3 playback. For informa-
tion concerning ID3 tags, refer to “CD text and MP3 title
display” on page 5-38.
1. Insert a disc containing MP3 files into the slot.
2. Press the CD button if a disc is already in the CD player.
The display shows “READING”, then playback will
begin.
NOTE
While listening to a disc on which CD-DA (CD-Digital
Audio) and MP3 files have both been recorded, you can
switch between reading of the CD-DA, reading of the
MP3 files, and the external audio input mode by pressing
the CD button for 2 seconds or longer (until you hear a
beep).
For information on the external audio input, refer to “To
use the external audio input function” on page 5-42.

With a disc that contains both CD-DA and MP3 files, the
CD-DA files are automatically played first.

The playback sound quality differs depending on the
encoding software and the bit rate. For details, refer to the
user manual of your encoding software.

Depending on file/folder configurations on a disc, it may
take some time before playback starts.

MP3 encode software and writing software are not sup-
plied with this unit.

You may encounter trouble in playing an MP3 or display-
ing the information of MP3 files recorded with certain
writing software or CD recorders (CD-R/RW drivers).

If you record too many folders or files other than MP3
onto a disc, it may take some time before playback starts.

This unit does not record MP3 files.

For information on CD-Rs/RWs, refer to “Notes on CD-
Rs/RWs” on page 5-64.
BK0162600US.book 34 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Comfort controls
5-35
5

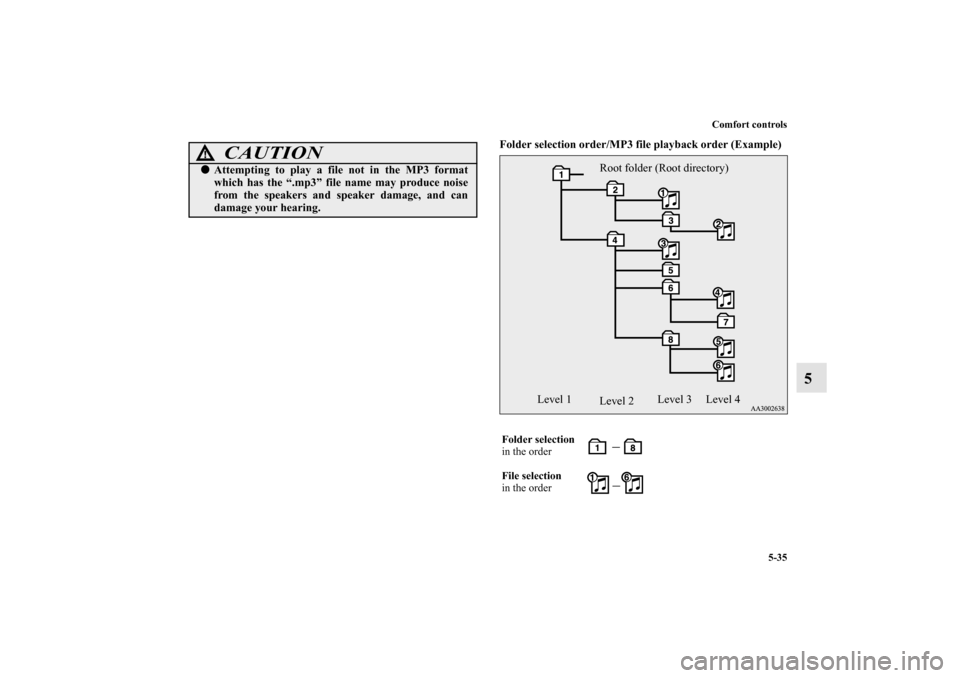

Folder selection order/MP3 file playback order (Example)

CAUTION
!
Attempting to play a file not in the MP3 format
which has the “.mp3” file name may produce noise
from the speakers and speaker damage, and can
damage your hearing.
Folder selection
in the order
File selection
in the order
Root folder (Root directory)
Level 1
Level 2Level 3 Level 4
BK0162600US.book 35 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-36 Comfort controls
5
To fast-forward/reverse the discFast-forward
The disc is fast-forwarded while the button is held down.
Playback will begin once the button is released.
Fast-reverse
The disc is fast-reversed while the button is held down.
Playback will begin once the button is released.To select a desired trackTrack up
The disc will skip as many songs as the number of times the
button is pressed.
The display window will display the track number of the track
selected.
Track down
The disc will skip as many songs as the number of times the
button is pressed.
The display window will display the track number of the track
selected.
To find a file (MP3 CDs only)Operate the SEL switch to select desired file.
When this mode is activated by pressing the SEL switch, the
SEL indicator will be displayed in the display.NOTE
To cancel the selection, press the button to return to the
previous step.

If no operation is performed for 10 seconds or more or
other button is operated after the SEL switch has been
turned, searching of the desired file is canceled.

If no operation is performed for 5 seconds or more after
the file is displayed, playback starts.

When the SEL indicator is not shown on the display and
the SEL switch is operated, the volume adjustment is acti-
vated.Press the SEL switch : To start this mode or to select the folder
or file.
Turn the SEL switch : To show the folder or file
BK0162600US.book 36 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Comfort controls
5-37
5

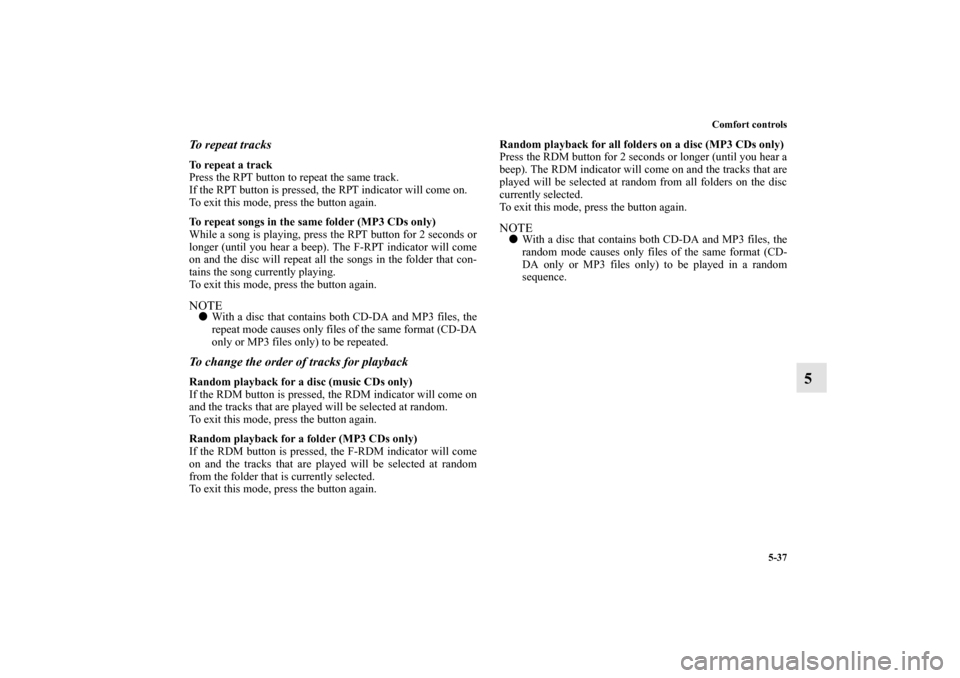

To repeat tracksTo repeat a track
Press the RPT button to repeat the same track.
If the RPT button is pressed, the RPT indicator will come on.
To exit this mode, press the button again.
To repeat songs in the same folder (MP3 CDs only)
While a song is playing, press the RPT button for 2 seconds or
longer (until you hear a beep). The F-RPT indicator will come
on and the disc will repeat all the songs in the folder that con-
tains the song currently playing.
To exit this mode, press the button again.NOTE
With a disc that contains both CD-DA and MP3 files, the
repeat mode causes only files of the same format (CD-DA
only or MP3 files only) to be repeated.To change the order of tracks for playbackRandom playback for a disc (music CDs only)
If the RDM button is pressed, the RDM indicator will come on
and the tracks that are played will be selected at random.
To exit this mode, press the button again.
Random playback for a folder (MP3 CDs only)
If the RDM button is pressed, the F-RDM indicator will come
on and the tracks that are played will be selected at random
from the folder that is currently selected.
To exit this mode, press the button again.Random playback for all folders on a disc (MP3 CDs only)
Press the RDM button for 2 seconds or longer (until you hear a
beep). The RDM indicator will come on and the tracks that are
played will be selected at random from all folders on the disc
currently selected.
To exit this mode, press the button again.
NOTE
With a disc that contains both CD-DA and MP3 files, the
random mode causes only files of the same format (CD-
DA only or MP3 files only) to be played in a random
sequence.
BK0162600US.book 37 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-38 Comfort controls
5
CD text and MP3 title display
N00752100179
This CD player can display CD text and MP3 titles, including
ID3 tag information.
CD text
The CD player can display disc and track titles for discs with
converted disc and track title information. Press the DISP but-
ton repeatedly to make selections in the following sequence:
disc name → track name → normal display mode.NOTE
The display can show up to 11 characters. If a disc name
or track name has more than 11 characters, press the
PAGE button to view the next 11 characters.

When there is no title information to be displayed, the dis-
play shows “NO TITLE”.

Characters that the CD player cannot display are shown as
“•”.
MP3 titles
The CD player can display folder and file titles for discs with
converted folder and file information. Press the DISP button
repeatedly to make selections in the following sequence: folder
name → file name → normal display mode.ID3 tag information
The CD player can display ID3 tag information for files that
have been recorded with ID3 tag information.
1. Press the DISP button for 2 seconds or longer to switch to
the ID3 tag information.
2. Press the DISP button repeatedly to make selections in the
following sequence: album TAG → track TAG → artist
TA G → normal display mode.
NOTE
To return from ID3 tag information to the folder name,
press the DISP button again for 2 seconds or longer.

When there is no title information to be displayed, the dis-
play shows “NO TITLE”.

The display can show up to 11 characters. If a folder
name, track name, or item of ID3 tag information has
more than 11 characters, press the PAGE button to view
the next 11 characters.

Characters that the CD player cannot display are shown as
“•”.
BK0162600US.book 38 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Comfort controls
5-39
5
To display the clock
N00702600010
Press the button to switch the clock mode. To exit the clock
mode, press the button.NOTE
While the clock mode is selected, the display will switch
to the applicable operation display whenever the CD
player, external audio input mode or radio, etc. is oper-
ated. Then, if no entries are made for 7 seconds, the dis-
play will automatically return to the clock mode.
To adjust the clock
N00702700011
1. Press and hold the button and the clock display flashes.
2. Press the or button to adjust the “hours” digit.
If you keep pressing the button, fast-forward begins.
3. When the “hours” digit is adjusted, press the button to
flash the “minutes” digit.
Press the or button to adjust the “minutes” digit.
If you keep pressing the button, fast-forward begins.
4. When the time is set, press the button to stop the clock
display from flashing.
A- (Clock) button
CD player mode Clock mode Example
A- (Clock) button
B- (Clock adjustment up) button
C- (Clock adjustment down) button
BK0162600US.book 39 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-40 Comfort controls
5
NOTE
Reset the time after the battery terminals are disconnected
and reconnected.

Seconds do not appear in the clock display, but after
adjusting the “minutes” setting, the clock begins to oper-
ate from 0 seconds.
To confirm the version number of the Gracenote
DB (vehicles with a Bluetooth
® 2.0 interface)
N00702800012
1. Press and hold the /MENU button until you hear a
beep. “GracenoteDB” will appear on the display.
Each time the /MENU button is pressed, this switches
in the order Gracenote DB, PHONE SET and cancel.
2. Press the or buttons several times to select “DB
Version” and then press the /MENU button to deter-
mine.
The Gracenote DB version is displayed.A-
/MENU button
B-
button
C-
button
