2014 MITSUBISHI MIRAGE Owners Manual

Features and controls
3-121

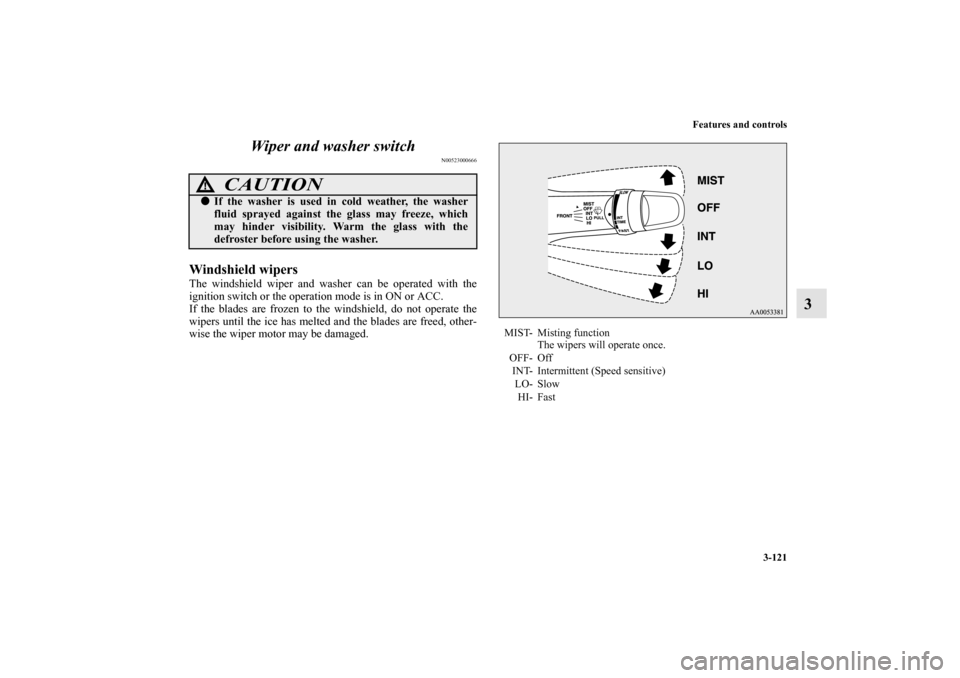

3 Wiper and washer switch
N00523000666
Windshield wipersThe windshield wiper and washer can be operated with the
ignition switch or the operation mode is in ON or ACC.
If the blades are frozen to the windshield, do not operate the
wipers until the ice has melted and the blades are freed, other-
wise the wiper motor may be damaged.
CAUTION
!
If the washer is used in cold weather, the washer
fluid sprayed against the glass may freeze, which
may hinder visibility. Warm the glass with the
defroster before using the washer.
MIST- Misting function
The wipers will operate once.
OFF- Off
INT- Intermittent (Speed sensitive)
LO- Slow
HI- Fast
BK0162600US.book 121 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-122 Features and controls
3
To adjust intermittent intervals
With the lever in the “INT” (speed sensitive intermittent opera-
tion) position, the intermittent intervals can be adjusted by
turning the knob (A). NOTE
The speed-sensitive-operation function of the windshield
wipers can be deactivated.
For further information, please contact your authorized
Mitsubishi Motors dealer or a repair facility of your
choice.Misting function
The misting function can be used when the ignition switch or
the operation mode is in ON or ACC.
The wipers will operate once if the wiper lever is raised to the
“MIST” position and released. This operation is useful when it
is drizzling, etc. The wipers will continue to operate while the
lever is held in the “MIST” position.1- Fast
2- Slow
BK0162600US.book 122 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-123
3

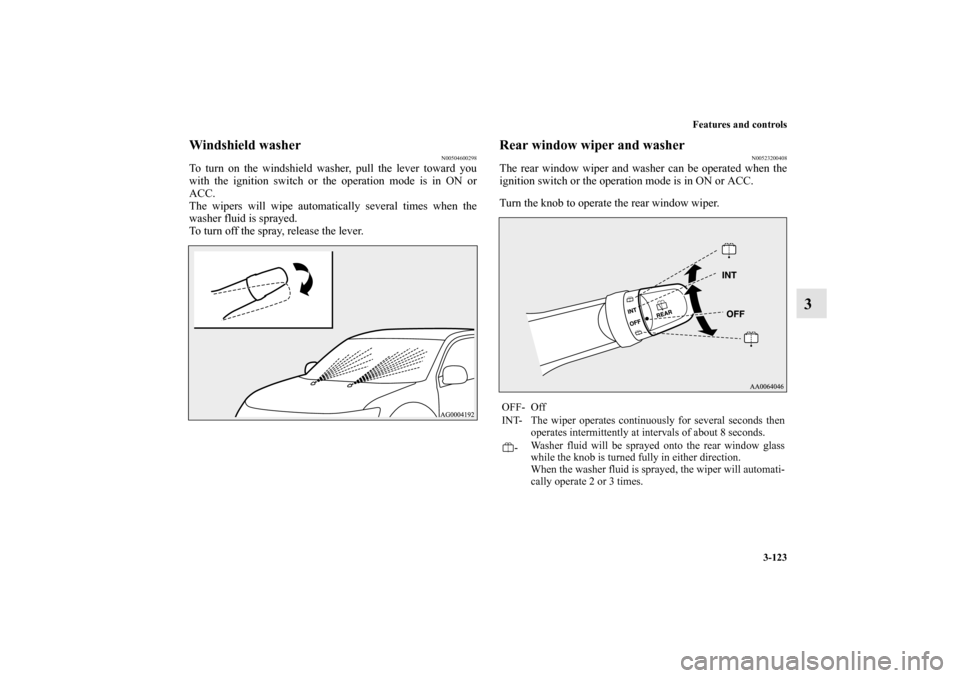

Windshield washer
N00504600298
To turn on the windshield washer, pull the lever toward you
with the ignition switch or the operation mode is in ON or
ACC.
The wipers will wipe automatically several times when the
washer fluid is sprayed.
To turn off the spray, release the lever.
Rear window wiper and washer
N00523200408
The rear window wiper and washer can be operated when the
ignition switch or the operation mode is in ON or ACC.
Turn the knob to operate the rear window wiper.OFF- Off
INT- The wiper operates continuously for several seconds then
operates intermittently at intervals of about 8 seconds.
-Washer fluid will be sprayed onto the rear window glass
while the knob is turned fully in either direction.
When the washer fluid is sprayed, the wiper will automati-
cally operate 2 or 3 times.
BK0162600US.book 123 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-124 Features and controls
3
NOTE
On vehicles with CVT, to ensure a clear rearward view,
the wiper perform several continuous operations when the
reverse gear is engaged and the switch is in the “INT”
position.
Following this continuous operation, the wiper will auto-
matically switch to intermittent operation.

It is possible to modify functions as follows:
• Adjustment of the interval for intermittent operation.
• Changing intermittent wiper operation to continuous
wiper operation.
See your authorized Mitsubishi Motors dealer for
details.

The washer fluid reservoir is located in the engine com-
partment.
Check the fluid level regularly and refill if necessary.
(Refer to “Washer fluid” on page 7-15.)
Precautions to observe when using wipers and
washers
N00523500254
NOTE
Do not use the wipers when the windshield is dry. This
could scratch the glass and wear the wiper blades prema-
turely.

Before using the wipers in cold weather, check to be sure
that the wiper blades are not frozen to the windshield or
rear window. Using the wipers while the blades are frozen
could cause the wiper motor to burn out.

If the wipers are left on the glass out of the parked posi-
tion and they become blocked by ice or other deposits on
the glass, the motor may still burn out even if the wiper
switch is OFF. If deposits form on the windshield, park
your vehicle in a safe place, turn off the engine, and clean
the glass so that the wipers can operate smoothly.

Avoid using the washer for more than 20 seconds at a
time. Do not operate the washer when the washer fluid
reservoir is empty or the pump may fail.

During cold weather, add a recommended washer solution
that will not freeze in the washer fluid reservoir. Other-
wise the washer may not work or may be damaged.
CAUTION
!
If the washer is used in cold weather, washer fluid
sprayed onto the glass might freeze, blocking your
view. Heat the glass with the defroster before using
the washer.
BK0162600US.book 124 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-125
3

Replace the wiper blades when they are worn. Use the
proper size replacement blades. For further information,
please contact your authorized Mitsubishi Motors dealer.
Electric rear window defogger switch
N00523700403
The rear window defogger can be used when the engine is run-
ning.
The indicator light (A) will come on when you press the elec-
tric rear window defogger switch. Electric current will flow
through the heating wires on the rear window to help clear
away moisture or frost.Ty p e 1
BK0162600US.book 125 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-126 Features and controls
3
After about 20 minutes of operation, the system will shut off
automatically.
To switch the defogger OFF before 20 minutes have passed,
press the switch again. The indicator light will go out and the
defogger will turn off.
If you need the defogger for more than 20 minutes, press the
switch again. This will add 20 more minutes.
NOTE
If your vehicle is equipped with heated mirrors, mist can
also be removed from the outside rearview mirrors when
the rear window defogger switch is pressed. (Refer to
“Door mirror heater” on page 3-53.)
CAUTION
!
The rear window defogger is not designed to melt
snow. Remove any snow manually before using the
rear window defogger.
Use the rear window defogger only after the engine
has started and is running. Be sure to turn the
defogger switch off immediately after the window is
clear to save on battery power.Ty p e 2

Do not place stickers, tape, or other items that are
attached with adhesive over the grid wires on the
rear window.
When cleaning the inside rear window, use a soft
cloth and wipe lightly over the grid wires.
CAUTION
!
BK0162600US.book 126 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-127
3 Horn switch
N00523800185
To honk the horn, press around the “ ” mark on the steering
wheel.
Link System
(if so equipped)
N00563700043
The Link System takes control of the devices connected via the
USB input terminal or the Bluetooth
® 2.0 interface allowing
the connected devices to be operated by using the switches in
the vehicle or voice commands.
See the following section for details on how to operate.
Refer to “Bluetooth
® 2.0 interface” on page 3-128.
Refer to “USB input terminal” on page 3-153.
Refer to “To play tracks from USB device” on page 5-43.
Refer to “To play tracks from a Bluetooth
® device” on page 5-
56.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
Link System End User License Agreement
N00563800015
You have acquired a device that includes software licensed by
Mitsubishi Motors Corporation from JOHNSON CONTROLS
Inc (the automotive experience business unit), and their subse-
quent 3rd party suppliers. For a complete list of these 3rd party
products and their end user license agreements, please go to the
following website.
http://www.jciblueconnect.com/faq/fulldisclosure.pdf
BK0162600US.book 127 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-128 Features and controls

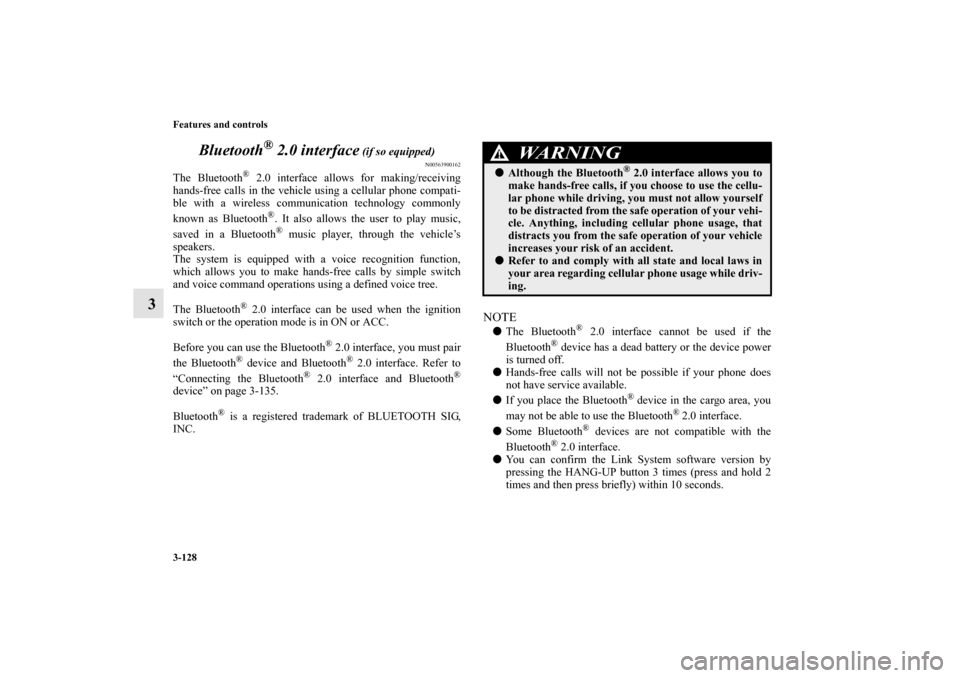

3Bluetooth
® 2.0 interface
(if so equipped)
N00563900162
The Bluetooth
® 2.0 interface allows for making/receiving
hands-free calls in the vehicle using a cellular phone compati-
ble with a wireless communication technology commonly
known as Bluetooth
®. It also allows the user to play music,
saved in a Bluetooth® music player, through the vehicle’s
speakers.
The system is equipped with a voice recognition function,
which allows you to make hands-free calls by simple switch
and voice command operations using a defined voice tree.
The Bluetooth
® 2.0 interface can be used when the ignition
switch or the operation mode is in ON or ACC.
Before you can use the Bluetooth
® 2.0 interface, you must pair
the Bluetooth
® device and Bluetooth
® 2.0 interface. Refer to
“Connecting the Bluetooth
® 2.0 interface and Bluetooth
®
device” on page 3-135.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
NOTE
The Bluetooth
® 2.0 interface cannot be used if the
Bluetooth
® device has a dead battery or the device power
is turned off.

Hands-free calls will not be possible if your phone does
not have service available.

If you place the Bluetooth
® device in the cargo area, you
may not be able to use the Bluetooth
® 2.0 interface.

Some Bluetooth
® devices are not compatible with the
Bluetooth
® 2.0 interface.

You can confirm the Link System software version by
pressing the HANG-UP button 3 times (press and hold 2
times and then press briefly) within 10 seconds.
WA R N I N G
!
Although the Bluetooth
® 2.0 interface allows you to
make hands-free calls, if you choose to use the cellu-
lar phone while driving, you must not allow yourself
to be distracted from the safe operation of your vehi-
cle. Anything, including cellular phone usage, that
distracts you from the safe operation of your vehicle
increases your risk of an accident.

Refer to and comply with all state and local laws in
your area regarding cellular phone usage while driv-
ing.
