2014 MITSUBISHI MIRAGE Owners Manual

Comfort controls
5-57
5
To listen to tracks from a device connected via
Bluetooth
®
N00765500089
1. Press the PWR switch to turn on the audio system. The
system turns on in the last mode used.
2. Press the CD button several times to switch to the BT-A
(Bluetooth
®) mode. The input mode changes as follows
every time the CD button is pressed: CD mode → iPod
mode → Bluetooth
® mode (if so equipped) → AUX mode
→ CD mode.
The BT indicator are illuminated and then the BT-A mode
will be activated.
3. Connect your Bluetooth
® device.
Refer to “Connecting the Bluetooth
® 2.0 interface and
Bluetooth
® device” on page 3-135.
4. Playback starts automatically.
NOTE
Depending on the connected device, the playback may not
start automatically.
In this case, operate the connected device to start the play-
back.To stop the playback (if supported by the device)
N00765600035
To stop the playback, press the Stop button.
To restart the playback, press the Play/Pause button.To pause the playback (if supported by the device)
N00765700036
To pause the playback, press and hold the Play/Pause button
until you hear a beep.To restart the playback, press the Play/Pause button.
To fast-forward/reverse the track (if supported by the
device)
N00703200013
To fast-forward/reverse the current track, press the button
or button.
Fast-forward
To fast-forward the current track, press the button. While
the button is kept pressed, the track will be fast-forwarded.
Fast-reverse
To fast-reverse the current track, press the button. While
the button is kept pressed, the track will be fast-reversed.To select a track (if supported by the device)
N00765800037
Track up
Press the button repeatedly until the desired file number
appears on the display.
Track down
Press the button repeatedly until the desired file number
appears on the display.NOTE
Pressing the button once during the song will cause
the audio system to restart playback from the beginning of
the file.
BK0162600US.book 57 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-58 Comfort controls
5
To play the same track repeatedly (if supported by the
device)
N00765900038
Press the RPT button several times to switch to show “RPT” in
the display.
The mode changes as follows every time the RPT button is
pressed:
No display (not repeat) → RPT (repeat same track) → F-RPT
(repeat all tracks) → No display
To exit this mode, press the button again.To play the all tracks repeatedly (if supported by the
device)
N00703300014
Press the RPT button several times to switch to show “F-RPT”
in the display.
The mode changes as follows every time the RPT button is
pressed:
No display (not repeat) → RPT (repeat same track) → F-RPT
(repeat all tracks) → No display
All tracks in the Bluetooth
® device are played repeatedly.
To exit this mode, press the button again.
To play tracks in random order (if supported by the
device)
N00766000023
Press the RDM button to show “RDM” in the display.
The system randomly selects and plays tracks from all tracks in
the Bluetooth
® device.
To exit this mode, press the button again.
To switch the display (if supported by the device)
N00766200041
The system can display tag information.
1. Press the DISP button.
2. The display changes as follows every time the DISP but-
ton is pressed:
Album title → Title name → Artist name → Genre
→Normal displayNOTE
Up to 11 characters are shown in the display at once. If the
title is cut off in the middle, press the PAGE button. The
next characters are displayed every time this button is
pressed.

If no title is stored, “NO TITLE” is shown in the display.

Characters that cannot be displayed are substituted by “•”.
BK0162600US.book 58 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Comfort controls
5-59

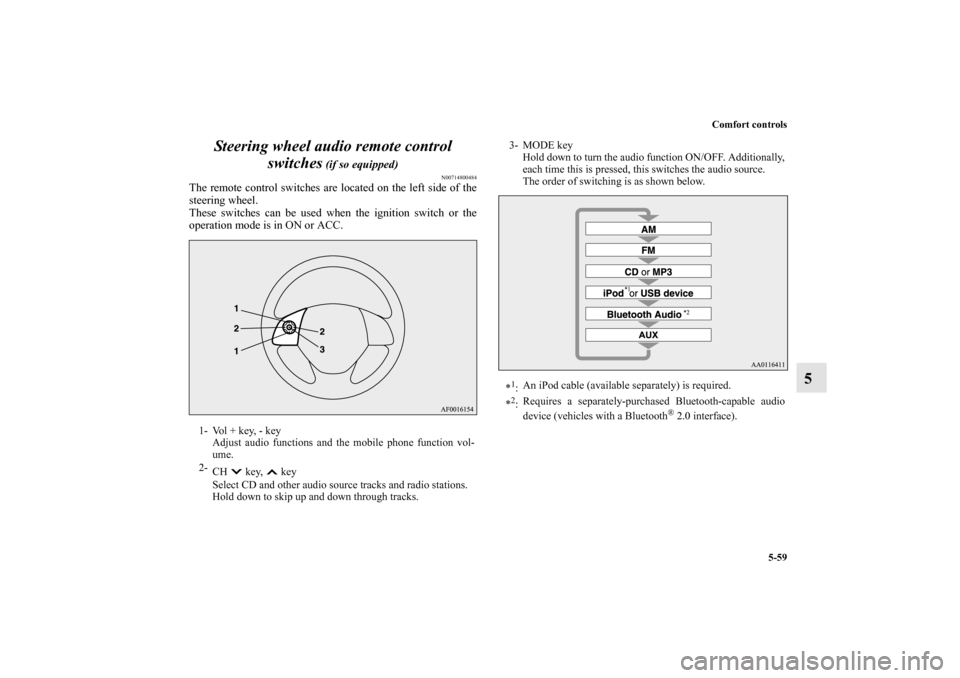

5 Steering wheel audio remote control
switches
(if so equipped)
N00714800484
The remote control switches are located on the left side of the
steering wheel.
These switches can be used when the ignition switch or the
operation mode is in ON or ACC.1- Vol + key, - key
Adjust audio functions and the mobile phone function vol-
ume.
2-
CH key, key
Select CD and other audio source tracks and radio stations.
Hold down to skip up and down through tracks.
3- MODE key
Hold down to turn the audio function ON/OFF. Additionally,
each time this is pressed, this switches the audio source.
The order of switching is as shown below.
*1:An iPod cable (available separately) is required.
*2:Requires a separately-purchased Bluetooth-capable audio
device (vehicles with a Bluetooth
® 2.0 interface).
BK0162600US.book 59 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-60 Comfort controls
5Error codes
N00736100780
If an error code appears in the display, take action in accordance with the table below.Audio system
iPod
(if so equipped)Error display
Item
Repair
CHECK DISCDisc is not loaded correctly, or condensation
on disc.Insert disc with label facing up.
Remove moisture from disc.
DISC ERRORDisc is dirty, scratched, or deformed; or exces-
sive vehicle vibration.Clean or replace disc. Retry when vibrations stop.
INTERNAL ELoading or eject error. Pick-up is out of posi-
tion.Eject disc and reload. If disc will not eject, bring your
vehicle to your authorized Mitsubishi Motors dealer or a
repair facility of your choice for repair.
HEAT ERROR Internal protection against high temperatures. Allow radio to cool by waiting about 30 minutes.
ERROR DC Foreign material is inside of radio or amplifier.Bring your vehicle to your authorized Mitsubishi Motors
dealer or a repair facility of your choice for repair.
Error display
Item
Repair
NO SONG There are no playable music files. Record music files in the iPod.
VER ERROR The iPod or its software cannot be recognized. Connect a supported iPod.BK0162600US.book 60 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Comfort controls
5-61
5
USB memory device
(if so equipped)
Error display
Item
Repair
FILE ERROR The file cannot be played. The file is protected by copyrights, etc. An error is dis-
played for several seconds, and then the next playable file
is played automatically.
UNSUPPORTED (first) →
DEVICE (after)The USB memory device cannot be recog-
nized. Remove the USB memory device.
UNSUPPORTED (first) →
FORMAT (after)The USB memory device format cannot be
recognized. Remove the USB memory device.
USB BUS PWRAn overcurrent or other power-supply error
has occurred.Remove the USB memory device.
Have the vehicle inspected at an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
LSI ERROR Internal device errors Have the vehicle inspected at an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
BK0162600US.book 61 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-62 Comfort controls
5Handling of compact discs
N00734100340

Use only the type of compact discs that have the mark
shown in the illustration below. (Playback of CD-R or
CD-RW discs may cause problems.)

The use of special shaped, damaged compact discs (like
cracked discs) or low-quality compact discs (like warped
discs or burrs on the discs) such as those shown will dam-
age the CD player.
BK0162600US.book 62 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Comfort controls
5-63
5

In the following circumstances, moisture can form on
compact discs and inside the audio system, preventing
normal operation.
• When there is high humidity (for example, when it is
raining).
• When the temperature suddenly rises, such as right after
the heater is turned on in cold weather.
In this case, wait until the moisture has had time to dry
out.

When the CD player is subjected to violent vibrations,
such as during off-road driving, the tracking may not
work.

When storing compact discs, always store them in their
separate cases. Never place compact discs in direct sun-
light, or in any place where the temperature or humidity is
high.

Never touch the flat surface of the disc where there isn’t a
label. This will damage the disc surface and could affect
the sound quality. When handling a compact disc, always
hold it by the outer edge and the center hole.

To clean a disc, use a soft, clean, dry cloth. Wipe directly
from the center hole toward the outer edge. Do not wipe in
a circle. Never use any chemicals such as benzine, paint
thinner, a disc spray cleaner, or an anti-static agent on the
disc.

Do not use a ball point pen, felt pen, pencil, etc. to write
on the label surface of the disc.
Do not put additional labels or stickers on compact discs.
Also, do not use any compact disc on which a label or
sticker has started to peel off or any compact disc that has
stickiness or other contamination left by a peeled-off label
or sticker. If you use such a compact disc, the CD player
may stop working properly and you may not be able to
eject the compact disc.
BK0162600US.book 63 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-64 Comfort controls
5

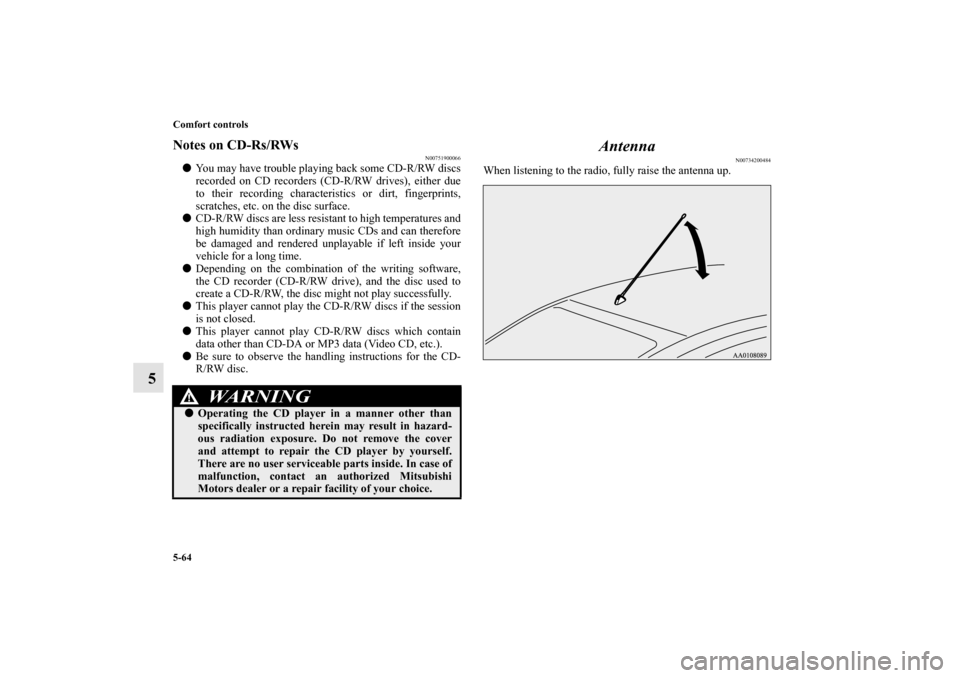

Notes on CD-Rs/RWs
N00751900066

You may have trouble playing back some CD-R/RW discs
recorded on CD recorders (CD-R/RW drives), either due
to their recording characteristics or dirt, fingerprints,
scratches, etc. on the disc surface.

CD-R/RW discs are less resistant to high temperatures and
high humidity than ordinary music CDs and can therefore
be damaged and rendered unplayable if left inside your
vehicle for a long time.

Depending on the combination of the writing software,
the CD recorder (CD-R/RW drive), and the disc used to
create a CD-R/RW, the disc might not play successfully.

This player cannot play the CD-R/RW discs if the session
is not closed.

This player cannot play CD-R/RW discs which contain
data other than CD-DA or MP3 data (Video CD, etc.).

Be sure to observe the handling instructions for the CD-
R/RW disc.
Antenna
N00734200484
When listening to the radio, fully raise the antenna up.
WA R N I N G
!
Operating the CD player in a manner other than
specifically instructed herein may result in hazard-
ous radiation exposure. Do not remove the cover
and attempt to repair the CD player by yourself.
There are no user serviceable parts inside. In case of
malfunction, contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
