2014 MITSUBISHI MIRAGE stop start

Quick index
3
Anti-lock braking system warning
light
When this light comes on, the anti-lock braking system is not functioning and
only the ordinary braking system is functioning.

Park your vehicle in a safe place and stop the engine.
Test the system as described on page 3-73.

If the light does not go out after the test, or if it comes on again, we recom-
mend that you have the system checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.P. 3 - 7 3
SRS warning light
Immediately have the airbag and the pre-tensioner seat belt system checked at
an authorized Mitsubishi Motors dealer.P. 2 - 4 4
Selector lever position indicator in
the instrument cluster flasher slowly
(every 2 seconds)
Have your continuously variable transmission (CVT) checked at an autho-
rized Mitsubishi Motors dealer or a repair facility of your choice as soon as
possible.P. 3 - 6 5
and
ASC indicator and ASC OFF indica-
tor
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the indicator goes out.

If the indicator does not go out, or if it comes on again, have your vehicle
inspected by an authorized Mitsubishi Motors dealer or a repair facility of
your choice as soon as possible.

When this indicator comes on, the active stability control is not functioning.P. 3 - 7 9
Warning lights
Do this
Ref. Page
BK0162600US.book 3 ページ ２０１３年３月２２日　金曜日　午後２時４１分

4 Quick index
ASC indicator
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the indicator goes out.

If the indicator does not go out, or if it comes on again, have your vehicle
inspected by an authorized Mitsubishi Motors dealer or a repair facility of
your choice as soon as possible.

When this indicator comes on, the hill start assist is not functioning.
Start off carefully on a steep uphill slope.P. 3-71
Tire pressure monitoring system
warning light (if so equipped)
If the warning light comes on, you should stop and adjust the tires to the
proper inflation pressure as soon as possible.
(See “Tire inflation pressures” on page 7-23.)
Once adjustments have been made, the warning light will go off after a few
minutes of driving.

If the warning light blinks for approximately 1 minute and then remains con-
tinuously illuminated, the system is not operating properly. If the system
returns to normal, the warning light will go off. If the warning light does not
go off, have the vehicle inspected at an authorized Mitsubishi Motors dealer.P. 3-87Warning lights
Do this
Ref. Page
BK0162600US.book 4 ページ ２０１３年３月２２日　金曜日　午後２時４１分

6 Quick indexCannot shift the selector lever
from the “P” (PARK) position.
(for vehicles with continuously
variable transmission (CVT))Shift the selector lever while pressing the brake pedal.
Check that the ignition switch or the operation mode is in ON.P. 3 - 6 1
The windows are fogged up.
Vehicles equipped with the heater without air conditioning function or the manual
air conditioning:
1. Set the mode selection dial to the “ ” or “ ” position.
2. Turn on the blower.
Vehicles equipped with the automatic air conditioning:
Push the defogger switch to change the “ ” mode.P. 5-9, 5-15,
5-21
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.Have the battery checked. Recharge or replace as needed.P. 6 - 2 ,
P. 7 - 1 7
The high coolant temperature
warning light is illuminates.
Steam comes out of the engine
compartment.The engine is overheated.
Carefully stop the vehicle in a safe place.P. 6 - 5
Problem
Do this
Ref. Page
BK0162600US.book 6 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Seat and restraint systems
2-19
2
NOTE
If the seat belt subsequently remains unfastened, the
warning light and the tone will issue further warnings
each time the vehicle starts moving from a stop.
Front passenger seat belt warning light
N00418300237
The front passenger seat belt warning light is located at shown
in the illustration.
When the ignition switch is turned to the “ON” position or the
operation mode is put in ON, this indicator normally comes on
and goes off a few seconds later.
The light comes on when a person sits on the front passenger
seat but does not fasten the seat belt. It goes off when the seat
belt is subsequently fastened.
WA R N I N G
!
In order to reduce the risk of serious injury or death
in an accident, always fasten your own seat belt. Do
not allow anyone to ride in your vehicle unless he or
she is also seated and fastening a seat belt. Children
should additionally be restrained in a secure child
restraint system.
WA R N I N G
!
When a child booster seat is used on the front pas-
senger seat, the front passenger seat belt warning
light will not come on, if the seat belt is not fastened
when the booster seat is used. Confirm that the child
is wearing the seat belt properly.
BK0162600US.book 19 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-24 Features and controls
3
Operation mode OFF reminder system
N00560100150
When the operation mode is in any mode other than OFF, all
the doors and the liftgate are closed, and someone tries to lock
the vehicle by pressing the driver’s door switch or the liftgate
switch, the warning light blinks and the buzzer sounds for
about 3 seconds as a warning, and the doors and the liftgate
cannot be locked.Starting and stopping the engine
N00514600288
Tips for starting
The operation mode can be in any mode to start the
engine.

The starter motor will be turning for up to approximately
15 seconds if the engine switch is released at once. Press-
ing the engine switch again while the starter motor is still
turning will stop the starter motor. The starter motor will
be turning for up to approximately 30 seconds while the
engine switch is pressed.
If the engine does not start, wait for a while and then
attempt to start the engine again. Trying repeatedly with
the starter motor still turning will damage the starter
mechanism.

If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” on page 6-
2 for instructions.
A longer warm up period will only consume extra fuel.
The engine is warmed up enough for driving when the low
coolant temperature indicator goes out.
Refer to “Low coolant temperature indicator” on page 3-
110.
Starting the engineYour vehicle is equipped with an electronically controlled fuel
injection system. This is a system that automatically controls
fuel injection. There is usually no need to depress the accelera-
tor pedal when starting the engine.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.
1. Make sure all occupants are properly seated with seat
belts fastened.
2. Make sure the parking brake is applied.
WA R N I N G
!
Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.
CAUTION
!
Do not push-start the vehicle.
Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.
BK0162600US.book 24 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-25
3
3. Press and hold the brake pedal down with your right foot.
4. Press and hold the clutch pedal all the way down (manual
transaxle).
5. On vehicles equipped with manual transaxle, place the
gearshift lever in the “N” (Neutral) position.
On vehicles equipped with continuously variable trans-
mission (CVT), make sure the selector lever is in the “P”
(PARK) position.NOTE
On vehicles equipped with continuously variable trans-
mission (CVT), the engine can only be started when the
selector lever is in the “P” (PARK) or “N” (NEUTRAL)
position.
For safety reasons, the engine should be started when the
selector lever is in the “P” (PARK) position in which the
driving wheels lock.
6. Press the engine switch.
7. Confirm that all warning lights and warning displays are
functioning properly.NOTE
Minor noises may be heard on engine start-up. These will
disappear as the engine warms up.
When the engine is hard to start
After several attempts, you may experience that the engine still
does not start.
1. Make sure that all electric devices, such as lights, air con-
ditioning blower and rear window defogger, are turned
off.2. While depressing the brake pedal {continuously variable
transmission (CVT)} or the clutch pedal (manual
transaxle), press the accelerator pedal halfway and hold it
there, then crank the engine. Release the accelerator
pedal, immediately after the engine starts.
3. If the engine still will not start, the engine could be
flooded with too much gasoline. While depressing the
brake pedal (CVT) or the clutch pedal (manual transaxle),
push the accelerator pedal all the way down and hold it
there, then press the engine switch to crank the engine. If
the engine does not start after 5 to 6 seconds, push the
engine switch to stop cranking the engine, and release the
accelerator pedal. Put the operation mode in OFF. Wait a
few seconds, and then press the engine switch to crank the
engine again while depressing the brake pedal (CVT) or
the clutch pedal (manual transaxle), but do not push the
accelerator pedal. If the engine fails to start, repeat these
procedures. If the engine still will not start, contact your
local Mitsubishi Motors dealer or a repair facility of your
choice for assistance.
BK0162600US.book 25 ページ ２０１３年３月２２日　金曜日　午後２時４１分

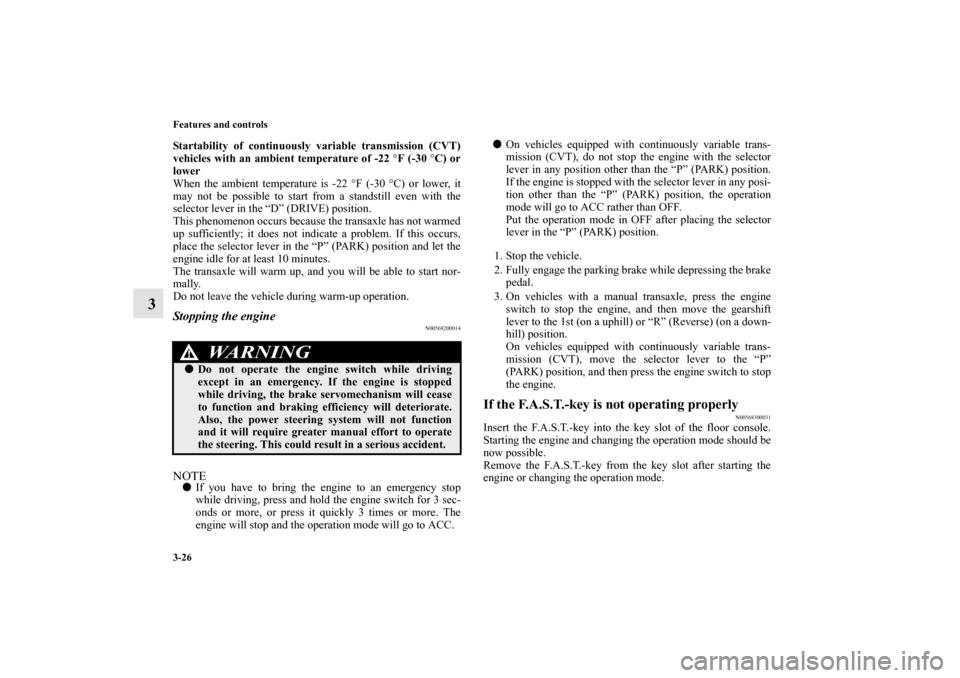

3-26 Features and controls
3
Startability of continuously variable transmission (CVT)
vehicles with an ambient temperature of -22 °F (-30 °C) or
lower
When the ambient temperature is -22 °F (-30 °C) or lower, it
may not be possible to start from a standstill even with the
selector lever in the “D” (DRIVE) position.
This phenomenon occurs because the transaxle has not warmed
up sufficiently; it does not indicate a problem. If this occurs,
place the selector lever in the “P” (PARK) position and let the
engine idle for at least 10 minutes.
The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.Stopping the engine
N00568200014
NOTE
If you have to bring the engine to an emergency stop
while driving, press and hold the engine switch for 3 sec-
onds or more, or press it quickly 3 times or more. The
engine will stop and the operation mode will go to ACC.
On vehicles equipped with continuously variable trans-
mission (CVT), do not stop the engine with the selector
lever in any position other than the “P” (PARK) position.
If the engine is stopped with the selector lever in any posi-
tion other than the “P” (PARK) position, the operation
mode will go to ACC rather than OFF.
Put the operation mode in OFF after placing the selector
lever in the “P” (PARK) position.
1. Stop the vehicle.
2. Fully engage the parking brake while depressing the brake
pedal.
3. On vehicles with a manual transaxle, press the engine
switch to stop the engine, and then move the gearshift
lever to the 1st (on a uphill) or “R” (Reverse) (on a down-
hill) position.
On vehicles equipped with continuously variable trans-
mission (CVT), move the selector lever to the “P”
(PARK) position, and then press the engine switch to stop
the engine.
If the F.A.S.T.-key is not operating properly
N00568300031
Insert the F.A.S.T.-key into the key slot of the floor console.
Starting the engine and changing the operation mode should be
now possible.
Remove the F.A.S.T.-key from the key slot after starting the
engine or changing the operation mode.
WA R N I N G
!
Do not operate the engine switch while driving
except in an emergency. If the engine is stopped
while driving, the brake servomechanism will cease
to function and braking efficiency will deteriorate.
Also, the power steering system will not function
and it will require greater manual effort to operate
the steering. This could result in a serious accident.
BK0162600US.book 26 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-56 Features and controls
3Starting the engine
N00512600789
[For vehicles equipped with the Free-hand Advanced Secu-
rity Transmitter (F.A.S.T.-key)]
For information on operation for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Starting and stopping the engine” on page 3-24.
[Except for vehicles equipped with the Free-hand
Advanced Security Transmitter (F.A.S.T.-key)]Tips for starting
Do not operate the starter motor continuously for longer
than 15 seconds as this could run the battery down or
damage the starter motor. If the engine does not start, turn
the ignition switch back to the “OFF” position, wait a few
seconds, and then try again. Trying repeatedly with the
engine or starter motor still turning will damage the starter
mechanism.

If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” (on page
6-2) for instructions.

A longer warm up period will only consume extra fuel.
The engine is warmed up enough for driving when the low
coolant temperature indicator goes out.
Refer to “Low coolant temperature indicator” on page 3-
110.
CAUTION
!
If the engine is stopped while driving, the brake ser-
vomechanism will cease to function and braking
efficiency will deteriorate. Also, the power steering
system will not function and it will require greater
manual effort to operate the steering.
Do not leave the key in the “ON” position for a long
time when the engine is not running, doing so will
cause the battery to be discharged.
Do not turn the key to the “START” position when
the engine is running, doing so could damage the
starter motor.
BK0162600US.book 56 ページ ２０１３年３月２２日　金曜日　午後２時４１分
