6DO-IT-YOURSELF MAINTENANCE
18
!
G120E02A-DAT
Adding Brake Fluid
WARNING:
Handle brake fluid carefully. It can
damage your vision if it gets into your eyes. Use only DOT 3 or DOT 4 specification fluid from a sealed container. Do not allow the fluidbottle or reservoir to remain open any longer than required. This will avoid entry of dirt and moisturewhich can damage the brake sys- tem and cause improper operation. To add brake fluid, first wipe away any dirt then unscrew the fluid reservoir cap. Slowly pour the recommendedfluid into the reservoir. Do not overfill. Carefully replace the cap on the reser- voir and tighten.
G120D01CM-AAT
To Check the Fluid Level It is normal for the brake fluid level to
go down slightly as the brake pads wear.
The fluid level in the brake fluid reser-
voir should be checked periodically.The level should be between the "MIN"and "MAX" marks on the side of the reservoir. If the level is at or below the "MIN" mark, carefully add fluid to bringit up to "MAX".
OCM055014R
G120C02A-AAT
Recommended Brake Fluid
Use only hydraulic brake fluid conform- ing to DOT 3 or DOT 4 specifications inyour braking system. Follow the in- structions printed on the container.
!
G120B01A-AAT Checking the Brake Fluid Level
WARNING:
Use caution when handling brake fluid. It can damage your vision if it gets into your eyes. It will alsodamage your vehicle's paint if spilled on it and not removed im- mediately.
CM-aust-6.p65 5/19/2008, 6:38 PM
18

6
DO-IT-YOURSELF MAINTENANCE
19CHANGING THE CLIMATE CONTROL AIR FILTER
B145A01CM-DAT
(For Evaporator and Blower Unit)
The climate control air filter is located in the passenger cabin in front of the evaporator unit behind the glove box. It helps to decrease the amount of pollutants entering the car.
1. Open the glove box and remove the adjusting pins on both sides of the glove box.
G140C01A-AAT
Lubrication
To lubricate the compressor and the seals in the system, the air condition-ing should be run for at least 10 min- utes each week. This is particularly important during cool weather whenthe air conditioning system is not oth- erwise in use.
!
G140B01A-AAT
Checking the Air Conditioning Operation
1. Start the engine and let it run at fast
idle for several minutes with the air conditioning set at the maximum cold setting.
2. If the air coming out of the in-dash vents is not cold, have the air con-ditioning system inspected by yourHyundai dealer.
CAUTION:
Running the air conditioning sys-
tem for extended periods of time with a low refrigerant level may dam- age the compressor.
OCM055010R
AIR CONDITIONING CARE
G140A01A-DAT
Keeping the Condenser Clean
The air conditioning condenser (and
engine radiator) should be checked periodically for accumulation of dirt, dead insects, leaves, etc. These caninterfere with maximum cooling effi- ciency. When removing such accumu- lations, brush or hose them away care-fully to avoid bending the cooling fins. Replacement of the filter drier
To comply with local Australian State
codes and Laws the filter drier must be replaced if the system has been opened to the atmosphere for any reason or if during servicing no refrigerant is foundin the system.
CM-aust-6.p65 5/19/2008, 6:38 PM
19

6DO-IT-YOURSELF MAINTENANCE
20

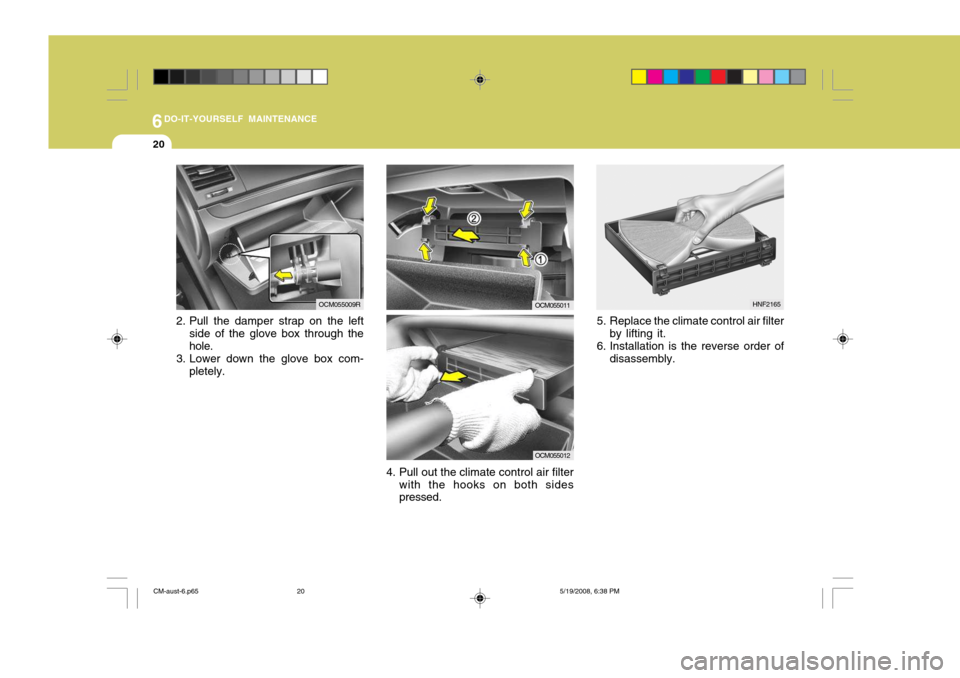

5. Replace the climate control air filterby lifting it.
6. Installation is the reverse order of disassembly.
4. Pull out the climate control air filter with the hooks on both sides pressed.
2. Pull the damper strap on the left
side of the glove box through the hole.
3. Lower down the glove box com-
pletely.
OCM055009ROCM055011
OCM055012
HNF2165
CM-aust-6.p65 5/19/2008, 6:38 PM
20

6
DO-IT-YOURSELF MAINTENANCE
21
G200B02HP-AAT
Replacing Accessory Fuse
The fuse box for the lights and other electrical accessories will be found low on the dashboard on the driver'sside. Inside the box you will find a list showing the circuits protected by each fuse. If any of your car's lights or other electrical accessories stop working, a blown (open) fuse could be the reason.If the fuse has burned out, you will see that the metal strip inside the fuse has melted through. If you suspect a blownfuse, follow this procedure:
CAUTION:
When replacing a fusible link, never
use anything but a new fusible link with the same or lower amperage rating. Never use a piece of wire ora higher-rated fusible link. This could result in serious damage and create a fire hazard.
!
CHECKING AND REPLACING FUSES
A fusible link will melt if the electrical circuits from the battery are ever over- loaded, thus preventing damage to theentire wiring harness. (This could be caused by a short in the system draw- ing too much current.) If this everhappens, have a Hyundai dealer deter- mine the cause, repair the system and replace the fusible link. The fusiblelinks are located in a fuse box for easy inspection. G200A01A-AAT
Replacing a Fusible Link
OCM054003OCM054002R
CM-aust-6.p65 5/19/2008, 6:38 PM
21

6DO-IT-YOURSELF MAINTENANCE
22
1. Turn off the ignition and all otherswitches.
2. Open the fuse box and examine each fuse. Remove each fuse by pulling it toward you (a small "fusepuller" tool is contained in the relay and fuse box of the engine room to simplify this operation).
3. Be sure to check all other fuses
even if you find one that appears tohave burned out.
4. Replace the blown fuse by pressinga new fuse of the same rating intoplace. The fuse should be a snugfit. If it is not, have the fuse clip repaired or replaced by a Hyundai dealer. If you do not have a sparefuse, you may be able to borrow a fuse of the same or lower rating from an accessory you can tempo-rarily get along without (the radio or cigarette lighter, for example). Al- ways remember to replace the bor-rowed fuse.
G200B02NF
1VQA4037
Good
Burned out
CM-aust-6.p65 5/19/2008, 6:38 PM
22

6
DO-IT-YOURSELF MAINTENANCE
23
CAUTION:
A burned-out fuse indicates that there is a problem in the electrical circuit. If you replace a fuse and it blows as soon as the accessory isturned on, the problem is serious and should be referred to a Hyundai dealer for diagnosis and repair.Never replace a fuse with anything except a fuse with the same or a lower amperage rating. A highercapacity fuse could cause damage and create a fire hazard.
!
NOTE: See page 6-38 for the fuse panel
descriptions. G200C01CM-GAT
Power connector NOTE:
o If the power connector is pulled
out of the fuse panel, the warning chime, audio, clock and interior lamps, etc., will not operate. The following items must be reset af-ter replacement.- Digital clock - Trip computer
- Automatic heating and cooling
control system
- Audio
o Even though the power connec- tor is pulled out, the battery can still be discharged by operation of the headlights or other electri-cal devices.
Your vehicle is equipped with a power connector to prevent battery discharge if your vehicle is parked without beingoperated for prolonged periods. Use the following procedures before park- ing the vehicle for prolonged periods.
1. Turn off the engine.
2. Turn off the headlights and tail lights.
3. Open the driver’s side panel cover and pull out the power connector.
4. Insert the power connector in the opposite direction.
OCM055026L
CM-aust-6.p65 5/19/2008, 6:38 PM
23

6DO-IT-YOURSELF MAINTENANCE
24
!
CHECKING THE BATTERY
The fluid in the battery contains a strong solution of sulfuric acid, whichis poisonous and highly corrosive. Be careful not to spill it on yourself or the car. If you do spill battery fluid onyourself, immediately do the following:
o If battery fluid is on your skin, flush the affected areas with water for atleast 15 minutes and then seekmedical assistance.
o If battery fluid is in your eyes, rinse
out your eyes with water and getmedical assistance as soon as pos- sible. While you are being driven to get medical assistance, continue torinse your eyes by using a sponge or soft cloth saturated with water.
o If you swallow battery fluid, drink a large quantity of water or milk fol- lowed by milk of magnesia, eat araw egg or drink vegetable oil. Get medical assistance as soon as pos- sible.
G210A01A-DAT
WARNING:
Batteries can be dangerous! When working with batteries, carefully observe the following precautionsto avoid serious injuries. While batteries are being charged (ei-
ther by a battery charger or by thevehicle's alternator), they produce ex- plosive gases. Always observe these warnings to prevent injuries from oc-curring:
o Charge batteries only in a well ven- tilated area.
o Do not permit flames, sparks or smoking in the area.
o Keep children away from the area.
OCM055016
CM-aust-6.p65 5/19/2008, 6:38 PM
24

6
DO-IT-YOURSELF MAINTENANCE
25
!
G210B01Y-GAT
Checking the Battery
Keep the battery clean. Any evidence of corrosion around the battery posts or terminals should be removed using a solution of household baking sodaand warm water. After the battery ter- minals are dry, cover them with a light coating of grease.
WARNING: Always read the following instructions carefully when handling a battery. Keep lighted cigarettes and all other flames or sparks away from the battery.Hydrogen, which is a highlycombustible gas, is alwayspresent in battery cells and may explode if ignited. Keep batteries out of the reach of children because batteries contain highly cor- rosive SULFURIC ACID. Do not allow battery acid tocontact your skin, eyes,clothing or paint finish.If any electrolyte gets intoyour eyes, flush your eyeswith clean water for at least 15 minutes and get imme- diate medical attention. Ifpossible, continue to apply water with a sponge or cloth until medical atten-tion is received.If electrolyte gets on yourskin, thoroughly wash the contacted area. If you feel a pain or a burn- ing sensation, get medical attention immediately. Wear eye protection when charging or working near a battery. Always provide ventilation when working in an en- closed space.
o When lifting a plastic-cased bat-
tery, excessive pressure on the case may cause battery acid to leak, resulting in personal injury. Lift with a battery carrier or withyour hands on opposite corners.
o Never attempt to charge the bat-
tery when the battery cables are connected.
o The electrical ignition system works with high voltage. Never touch these componentswith the engine running or the ignition switched on.
CM-aust-6.p65 5/19/2008, 6:38 PM
25
