GLOVE BOX
B500A01Y-AAT
WARNING:
To avoid the possibility of injury in case of an accident or a suddenstop, the glove box door should be kept closed when the car is in mo- tion.
o To open the glove box, pull on the glove box release lever.
o The glove box door can be locked (and unlocked) with the key (if in- stalled).
OCM052128R B500B01O-AAT Illuminated Glove Box Opening the glove box will automati- cally turn on the light when the multi-function switch is turned to the first/ second position.
!
B505A01NF-DAT
The centre console box is used for storing cassette tape or small articles. To use the centre console box, pull upthe button and lift the lid to open it. WARNING:
To avoid the possibility of injury in case of an accident or a sudden stop, the centre console box lid should bekept closed when the car is in mo- tion. OCM052129
CENTRE CONSOLE BOX
CM-aust-1a.p65
5/21/2008, 2:08 PM
78

1
FEATURES OF YOUR HYUNDAI
79
!WARNING:
o Do not store cigarette lighters, propane cylinders, or other flam- mable/explosive materials in the vehicle. These items may catch fire and/or explode if the vehicle isexposed to hot temperatures for extended periods.
o To avoid the possibility of injury in case of an accident or a suddenstop, the centre facia upper tray lid should be kept closed when thecar is in motion.
OCM052053R

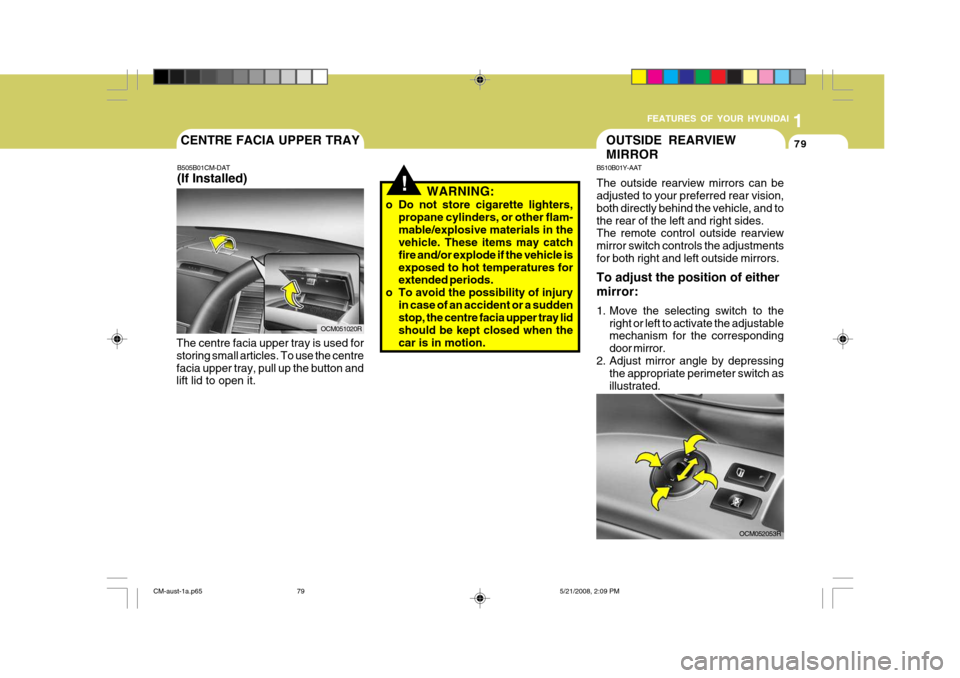

OUTSIDE REARVIEW MIRROR
B510B01Y-AAT The outside rearview mirrors can be adjusted to your preferred rear vision, both directly behind the vehicle, and tothe rear of the left and right sides. The remote control outside rearview mirror switch controls the adjustmentsfor both right and left outside mirrors. To adjust the position of either mirror:
1. Move the selecting switch to the
right or left to activate the adjustable mechanism for the corresponding door mirror.
2. Adjust mirror angle by depressing the appropriate perimeter switch asillustrated.CENTRE FACIA UPPER TRAY
B505B01CM-DAT (If Installed)
The centre facia upper tray is used for storing small articles. To use the centrefacia upper tray, pull up the button and lift lid to open it.
OCM051020R
CM-aust-1a.p65 5/21/2008, 2:09 PM
79

1FEATURES OF YOUR HYUNDAI
80
CAUTION:
o Do not operate the switch continu- ously for an unnecessary length of time.
o Scraping ice from the mirror face could cause permanent damage.To remove any ice, use a sponge,soft cloth or approved de-icer.
!
!WARNING:
Be careful when judging the size or distance of any object seen in the passenger side rearview mirror. It isa convex mirror with a curved sur- face. Any objects seen in this mirror are closer than they appear.
!

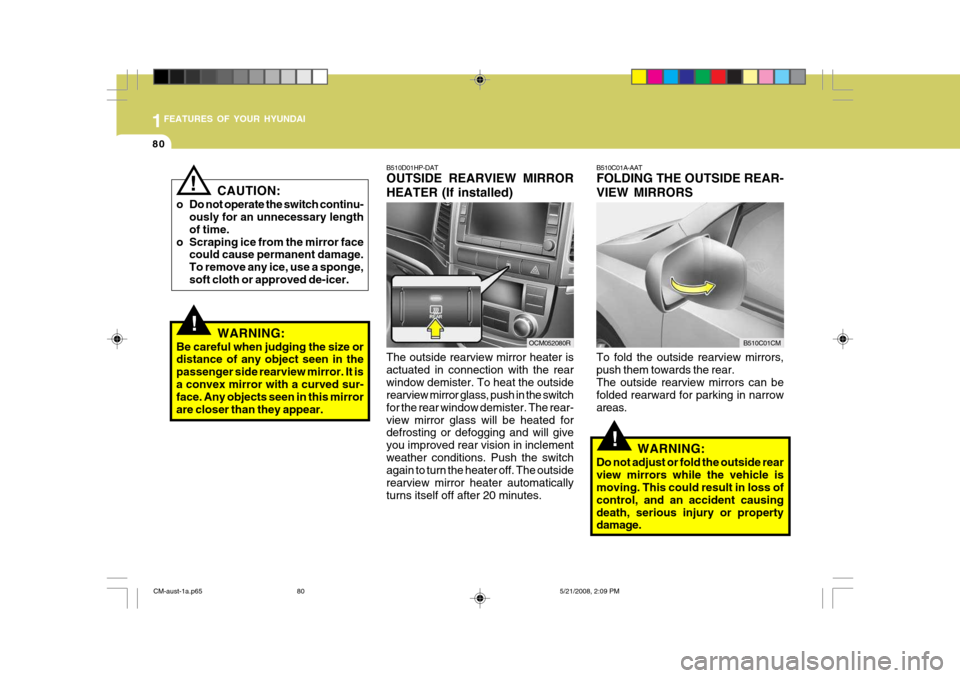

B510D01HP-DAT OUTSIDE REARVIEW MIRROR HEATER (If installed) The outside rearview mirror heater is actuated in connection with the rearwindow demister. To heat the outside rearview mirror glass, push in the switch for the rear window demister. The rear-view mirror glass will be heated for defrosting or defogging and will give you improved rear vision in inclementweather conditions. Push the switch again to turn the heater off. The outside rearview mirror heater automaticallyturns itself off after 20 minutes. B510C01A-AAT FOLDING THE OUTSIDE REAR- VIEW MIRRORS To fold the outside rearview mirrors, push them towards the rear.The outside rearview mirrors can be folded rearward for parking in narrow areas.
WARNING:
Do not adjust or fold the outside rearview mirrors while the vehicle is moving. This could result in loss of control, and an accident causingdeath, serious injury or property damage.
OCM052080RB510C01CM
CM-aust-1a.p65 5/21/2008, 2:09 PM
80

1
FEATURES OF YOUR HYUNDAI
81
B520C01CM-DAT Automatic Dimming Rearview Mirror with Compass (If installed) 1. Status Indicator LED 2. Feature Control Button3. Rear Light Sensor 4. Display Window Automatic dimming rearview mirror au- tomatically controls the reduce glare from headlights behind you when thefunction is turned on by pressing and holding the Feature Control Button for more than 3 but less than 6 seconds.This feature can be turned off by press- ing and holding the button for the same amount of time once more.
B520C08JM 1. To operate Compass feature Press and release the button, then the vehicle's directional heading will be dis-played. Pressing and releasing the but- ton again will turn off the display. Heading display - E : East - W : West - S : South - N : North ex) NE : North East
2. Calibration procedure Press and hold the
button(2) between
9 and 12 seconds. Release the button when a “C” appears in the display, which indicates the compass needs calibration.
1. Drive the vehicle in 2 complete circles at less than 8km/h or until the com- pass heading appears.
2. Circle can be driven clockwise or
counterclockwise.
3. Keep driving in a circle until a com- pass heading appears.

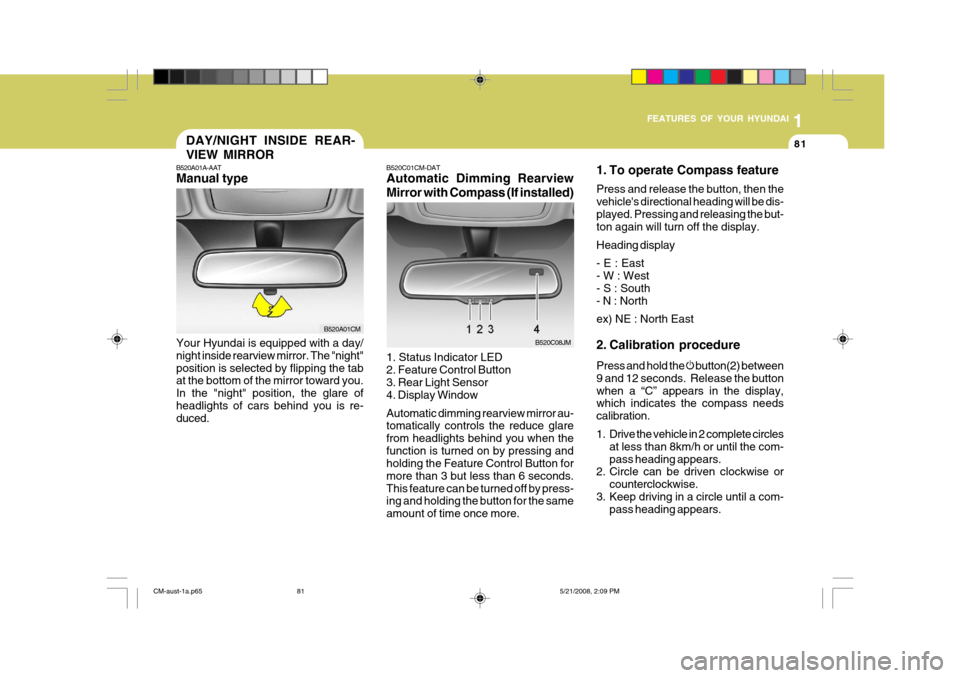

DAY/NIGHT INSIDE REAR- VIEW MIRROR
B520A01A-AAT Manual type Your Hyundai is equipped with a day/ night inside rearview mirror. The "night"position is selected by flipping the tab at the bottom of the mirror toward you. In the "night" position, the glare ofheadlights of cars behind you is re- duced.
B520A01CM
CM-aust-1a.p65 5/21/2008, 2:09 PM
81

1FEATURES OF YOUR HYUNDAI
82

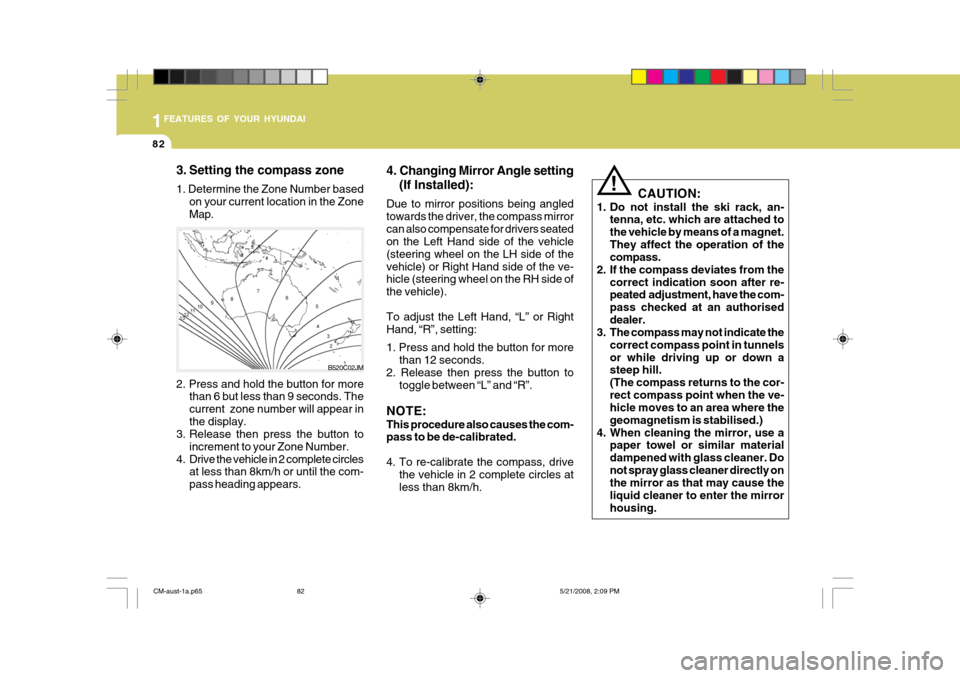

3. Setting the compass zone 1. Determine the Zone Number based
on your current location in the Zone Map.
2. Press and hold the button for more than 6 but less than 9 seconds. Thecurrent zone number will appear inthe display.
3. Release then press the button to
increment to your Zone Number.
4. Drive the vehicle in 2 complete circles at less than 8km/h or until the com-pass heading appears. B520C02JM
!
CAUTION:
1. Do not install the ski rack, an- tenna, etc. which are attached to the vehicle by means of a magnet.They affect the operation of the compass.
2. If the compass deviates from the
correct indication soon after re-peated adjustment, have the com- pass checked at an authoriseddealer.
3. The compass may not indicate the
correct compass point in tunnelsor while driving up or down a steep hill. (The compass returns to the cor-rect compass point when the ve- hicle moves to an area where the geomagnetism is stabilised.)
4. When cleaning the mirror, use a paper towel or similar materialdampened with glass cleaner. Donot spray glass cleaner directly on the mirror as that may cause the liquid cleaner to enter the mirrorhousing.
4. Changing Mirror Angle setting
(If Installed):
Due to mirror positions being angledtowards the driver, the compass mirrorcan also compensate for drivers seated on the Left Hand side of the vehicle (steering wheel on the LH side of thevehicle) or Right Hand side of the ve- hicle (steering wheel on the RH side of the vehicle). To adjust the Left Hand, “L” or Right Hand, “R”, setting: 1. Press and hold the button for more than 12 seconds.
2. Release then press the button to
toggle between “L” and “R”.
NOTE: This procedure also causes the com- pass to be de-calibrated.
4. To re-calibrate the compass, drive the vehicle in 2 complete circles at less than 8km/h.
CM-aust-1a.p65 5/21/2008, 2:09 PM
82

1
FEATURES OF YOUR HYUNDAI
83PARKING BRAKE
B530A02CM-DAT Always engage the parking brake be- fore leaving the car. This also turns on the parking brake indicator light whenthe key is in the "ON" or "START" position. Type A
Type B
Type AType B
OCM053002
OCM053007Before driving away, be sure that the parking brake is fully released and theindicator light is off. Type A : Applying the parking brake To engage the parking brake, first applythe foot brake and then without press- ing the release button in, pull the park- ing brake lever up as far as possible. Inaddition it is recommended that when parking the vehicle on a gradient, the shift lever should be positioned in theappropriate low gear on manual transaxle vehicles or in the P (Park) position on automatic transaxle vehicles.!
The mirror is a convenient feature to help the front passenger talk with rearpassengers without turning the head or body rearward. To use the mirror, push the cover andopen it. Adjust mirror angle to the desired position. Close the cover after use.
WARNING
Do not adjust the mirror angle or talkwith rear passengers for a long timewhile driving. You may lose your steering control and cause severe personal injury or accidents.
CONVERSATION MIRROR
B525A01CM-GAT (If Installed)
OCM052151
CAUTION:
Driving with the parking brake ap- plied will cause excessive brake pad and brake rotor wear.
!
CM-aust-1a.p65 5/21/2008, 2:09 PM
83

1FEATURES OF YOUR HYUNDAI
84
!

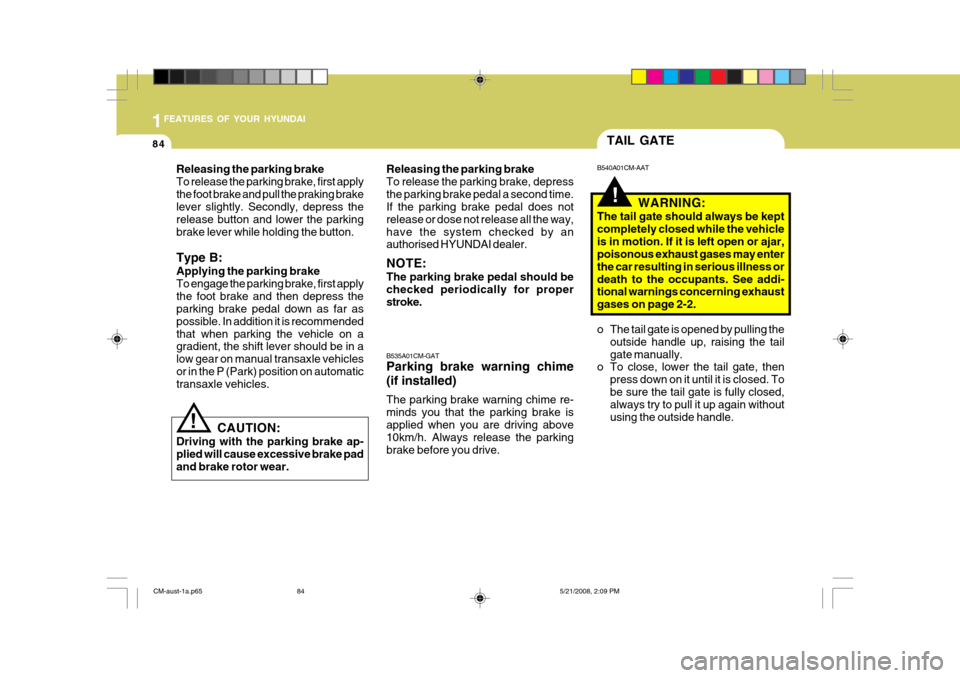

TAIL GATE
B540A01CM-AAT
WARNING:
The tail gate should always be kept completely closed while the vehicleis in motion. If it is left open or ajar, poisonous exhaust gases may enter the car resulting in serious illness ordeath to the occupants. See addi- tional warnings concerning exhaust gases on page 2-2.
o The tail gate is opened by pulling the outside handle up, raising the tail gate manually.
o To close, lower the tail gate, then
press down on it until it is closed. Tobe sure the tail gate is fully closed, always try to pull it up again without using the outside handle.
Releasing the parking brakeTo release the parking brake, first applythe foot brake and pull the praking brake lever slightly. Secondly, depress the release button and lower the parkingbrake lever while holding the button. Type B: Applying the parking brake To engage the parking brake, first applythe foot brake and then depress the parking brake pedal down as far as possible. In addition it is recommendedthat when parking the vehicle on a gradient, the shift lever should be in a low gear on manual transaxle vehiclesor in the P (Park) position on automatic transaxle vehicles.
B535A01CM-GAT Parking brake warning chime (if installed) The parking brake warning chime re- minds you that the parking brake isapplied when you are driving above 10km/h. Always release the parking brake before you drive.
Releasing the parking brakeTo release the parking brake, depressthe parking brake pedal a second time. If the parking brake pedal does not release or dose not release all the way,have the system checked by an authorised HYUNDAI dealer. NOTE: The parking brake pedal should be checked periodically for proper stroke.
!
CAUTION:
Driving with the parking brake ap- plied will cause excessive brake pad and brake rotor wear.
CM-aust-1a.p65 5/21/2008, 2:09 PM
84

1
FEATURES OF YOUR HYUNDAI
85
B650A01S-AAT Stowage Precautions
1. Do not place objects on the cargo security screen. Such objects may be thrown about inside the vehicle and possibly injure vehicle occu-pants during an accident or when braking.
2. For better fuel economy, do not carry
unnecessary weight.
3. Never allow anyone to ride in the
luggage compartment. It is designed for luggage only.
4. Try to maintain the balance of the
vehicle and locate the weight as far forward as possible.
!
B640A01S-AAT Cargo Security Screen (If installed) To use the security screen, pull it out of the retractor and hook it to the anchors as illustrated.
! CAUTION:
To prevent damage to the goods or the vehicle, care should be taken when carrying fragile or bulky ob- jects in the luggage compartment. WARNING:
Avoid eye injury. DO NOT over-
stretch the luggage net. ALWAYS keep your face and body out of its recoil path. DO NOT use when thestrap has visible signs of wear or damage.
OCM052123L
When loading objects in the luggage compartment, use the four rings lo-cated in the luggage compartment to attach the luggage net as shown illus- tration. This will help prevent the ob-jects from sliding.

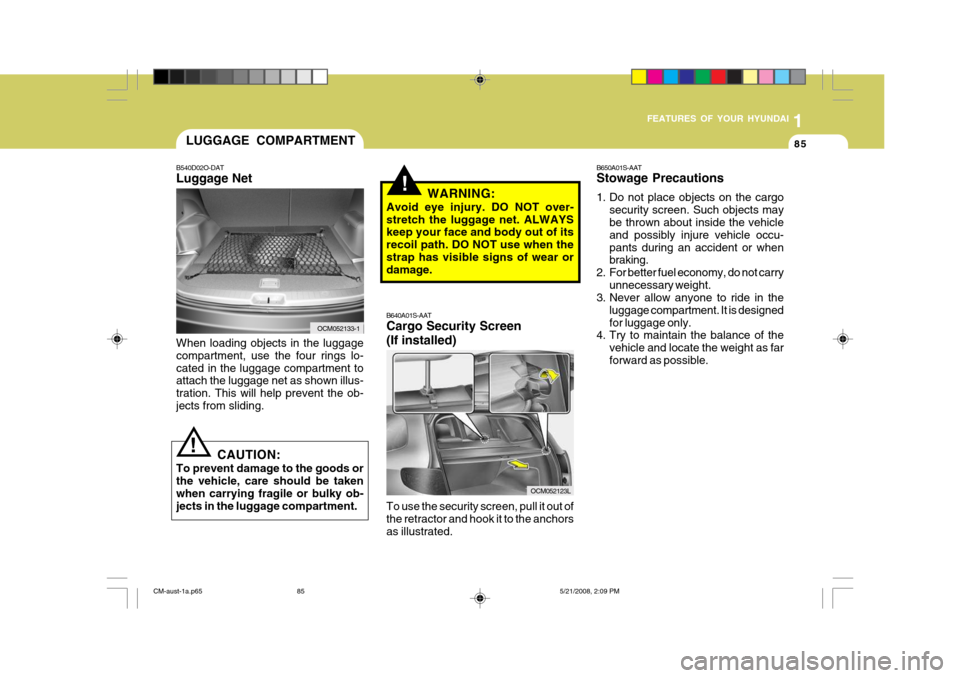

LUGGAGE COMPARTMENT
B540D02O-DAT Luggage Net
OCM052133-1
CM-aust-1a.p65 5/21/2008, 2:09 PM
